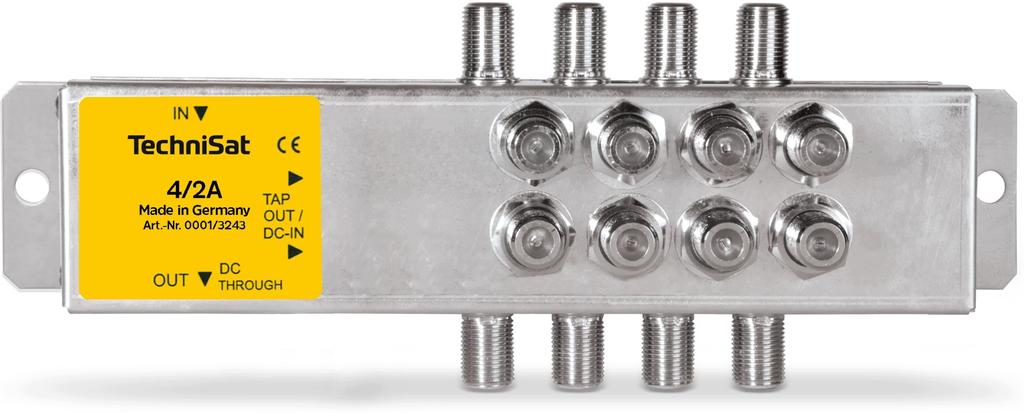

TechniSat 4-2A 2-Way Active SAT Bus Tap

? Lossless SAT bus division - TechniSat 4-2A Active 2-way Tap

Are you designing or expanding a multi-level satellite installation in an apartment building, guesthouse or large house and need to split the signal from the main bus into two separate risers without losing quality?

The TechniSat 4-2A Active 2-way Tap (0001/3243) from the TechniSwitch series is a professional component designed for precise division of 4 satellite paths.

Thanks to the use of an active amplification system in the branch paths, the device completely compensates for the attenuation resulting from the signal division. This allows you to power two independent strings of multiswitches while maintaining ideal HD and 4K UHD signal parameters.

? Key advantages of the TechniSat 4-2A tap:

• ? Lossless division into 2 risers: Allows the division of 4 satellite bands into two independent branches without a drop in the signal level at the branch outputs.

• ⚡ Active attenuation compensation: The built-in amplifier actively eliminates branching losses, providing a full-value signal to the connected multiswitches.

• ? Low through loss: Minimal attenuation on the main bus route enables the construction of long and complex cascade systems.

⚙️ Shielded housing and stability in cascade installations

In extensive RTV-SAT systems, the key to reliability is immunity to external interference. The TechniSat 4-2A tap is enclosed in an armored housing made of die-cast metal, which ensures the highest shielding class (Class A).

The signal is effectively protected against interference from LTE/5G cellular networks and radio transmitters.

The refined arrangement of F connectors with a standard spacing allows for direct, aesthetic and stable connection to other TechniSwitch series modules (e.g. power supplies, amplifiers or multiswitches) using quick connectors, without the need for unnecessary cable runs.

? Technical data and exact set contents

• Model: Active 2-way tap 4-2A (code: 0001/3243)

• Number of inputs: 4x SAT (bus)

• Number of loop-through outputs: 4x SAT (loop-through bus)

• Number of branch outputs: 2x 4 SAT (two 4-way taps)

• SAT frequency range: 950 - 2150 MHz

• Throughput attenuation: approx. 2 ... 4 dB

• Gain / Tap attenuation: Active (0 dB / loss-compensating gain)

• Connector type: F (75 Ohm)

• Power supply: Looped through from the TechniSwitch system bus

• Country of manufacture: Germany (Made in Germany)

? What exactly will you find in the box:

• TechniSat 4-2A active tap (0001/3243)

• Set of mounting screws

• User manual in Polish

? Knowledge Base – Check Before Installation!

What's the difference between an active and a passive tap? A passive tap, when splitting the signal into two paths, causes a signal strength drop of at least 4-6 dB at each output. An active tap has a built-in amplifier that compensates for this loss, ensuring that multiswitches connected to the tap receive the same signal strength as the input.

What is this component used for in a multiswitch installation? This device is used when you need to route a satellite signal in two different directions from a single source (e.g., a Quattro LNB on the roof) – for example, to the left and right wings of a building, or to different floors where separate multiswitches are installed.

Does the tap require a separate 230V power supply? No, the device uses a DC power supply loop-through transmitted via the main TechniSwitch system power supply or from connected multiswitches.

? Ensure professional signal splitting in your installation without any quality loss! Order the TechniSat 4-2A active tap today!
