Bulldog Single Sided Ring 50mm M10 (1)

Double-sided gear ring Bulldog

Spiked washer 50 mm (1 pc.)

The most important parameters

• Model: C2-50M12G-B

• Outer diameter: 50 mm

• Hole diameter: M10

• Packaging: 1 pc.

Used to connect wooden elements with steel or wooden ones to increase the load-bearing capacity of the bolted connection in structural elements. The tie bolt must be adapted to the hole in the ring.

Original product of the renowned company SIMPSON Strong-Tie ®

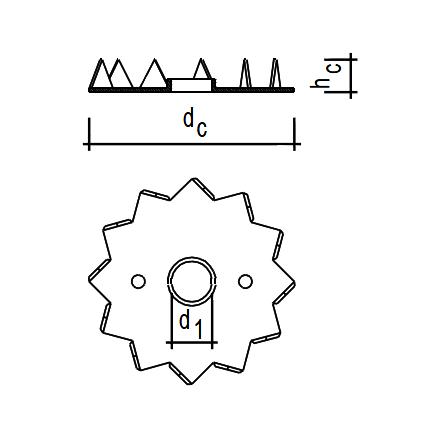

• [ dc ] outer diameter: 50 mm

• [ d1 ] central hole: 10.4 mm

• [ h1 ] tooth height: 5.6 mm

• [ hc ] height: 6.6 mm

• thickness: 1 mm

• Quantity in package: 1 pc.

1. Structural Efficiency

Bulldog spike rings enable connections to be designed using fewer tie bolts, allowing for proper spacing between bolts and from the wood edges. This increases the stability and security of the structure while reducing the risk of material damage.

2. Versatile Applications

The product is available in double-sided versions for wood connections and single-sided versions for wood-to-steel connections, making it suitable for a variety of structures and materials, including solid wood, composite wood, and laminated laminated wood.

3. Anti-corrosion protection

The steel used to produce the rings is hot-dip galvanized (50 µm), which provides excellent corrosion protection and extends the product's life even in harsh weather conditions.

4. Durability and connection strength

Bulldog barbed rings provide strong and durable connections, which is crucial in structural elements requiring high load-bearing capacity. They also enable easy disassembly, which further increases the functionality and practicality of use in various construction and renovation projects.

5. Service class

Characterized by material moisture corresponding to a temperature of 20°C and relative humidity of the surrounding air exceeding 85% only for a few weeks a year.

6. Zinc coating

The products are immersed in molten zinc at 550-560°C. The zinc coating is formed by a reaction between the steel component and the zinc, and forms on both sides of the immersed component. It provides good corrosion resistance in most environments.

Application and method assembly

• Used to connect timber to steel members to increase the load-bearing capacity of the bolted connection in structural members.

• Installation is carried out using a hydraulic press or a wooden block and a hammer.

• If the toothed ring is assembled in a workshop, 1 or 2 nails may be needed to hold it during transport.

• DoP- h10/0007

• EN 145454: 2008

Warranty highest quality. This standard specifies requirements and test methods for the materials, geometry, strength, stiffness, and durability (i.e., corrosion protection) of fasteners used in load-bearing wooden structures.

The products we offer are characterized by the highest quality and can be safely used in construction. We make every effort to ensure that the products supplied to our contractors are safe and adapted to specific tasks.
