Screws for fastening plasterboards to steel substrates
3.5x55 mm 500 pcs.
KSGM screws are made of phosphated steel, have a countersunk head with a PH-2 socket, thread for steel and a sharp tip with a drilling capacity in steel up to 0.75 mm.
Used for fastening plasterboards to steel substrates.
The most important parameters

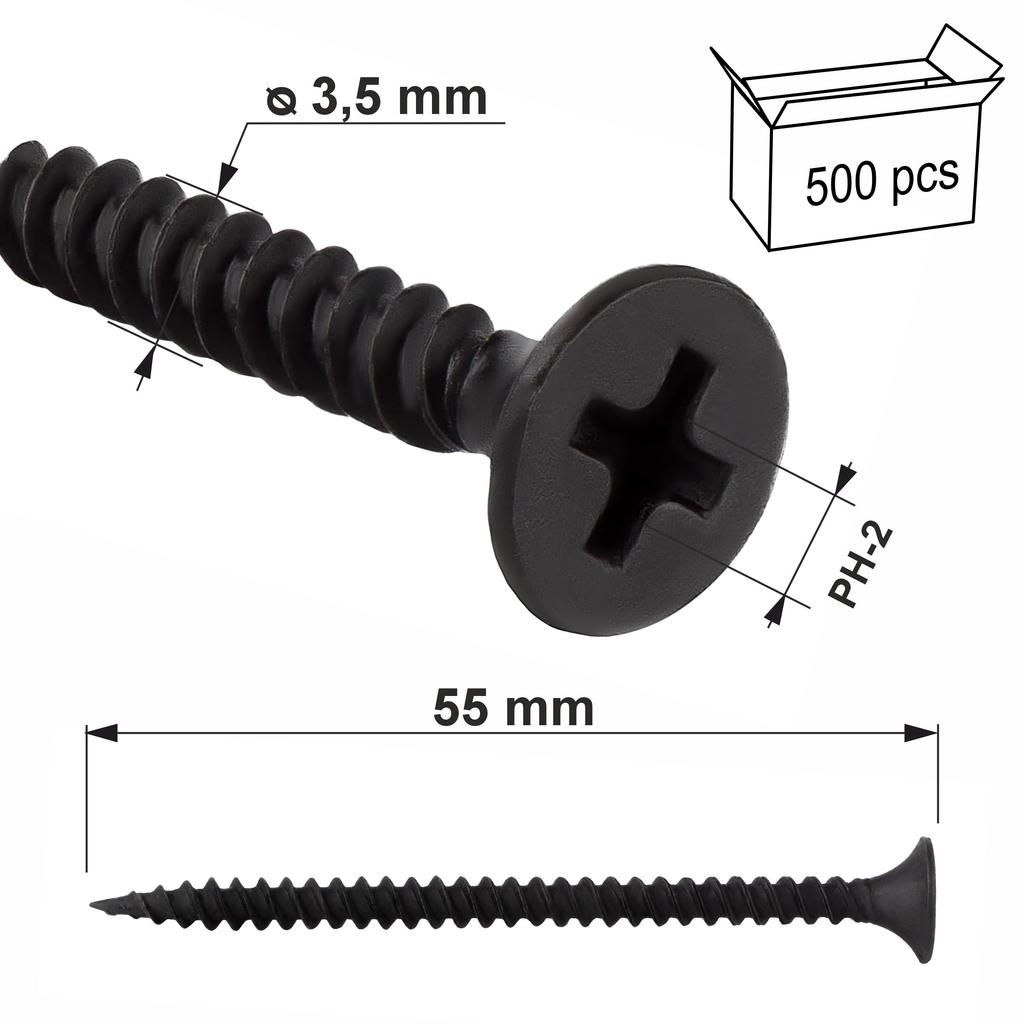

• Model: KSGM-35055
• Size: 3.5x55 mm
• Packaging: 500 pcs
• Socket: PH-2
• Drilling capacity in steel up to: 0.75 mm
• Material: low-carbon phosphated steel
Original product of the renowned company KLIMAS Wkręt-Met ®
Features and Benefits
1. PH-2 socket
One of the most common sockets, enables installation using tips with a limiter.
2. Countersunk head
Ensures appropriate recess in the fastened element.
3. Thread for metal and sharp tip
The thread design guarantees secure and durable fastening in steel surfaces (sheet metal up to 0.75 mm thick), and the sharp tip makes it easier to start installation.
4. Pull-out strength
5.5 times higher pull-out strength than standard requirements.
5. Short screwing time
The screws for fastening plasterboards are made of carbon steel covered with a special phosphate coating. The screws have a countersunk flat head, which ensures proper recess in the fastened element, and a thread for steel with a sharp tip, which ensures durable and secure fastening in steel substrates (up to 0.75 mm thick) and facilitates installation.
The screw head has a PH-2 recess, which enables installation using tips with an anchoring depth limiter.
Substrate and example applications
• [ dw ] screw diameter: Ø 3.5 mm
• [ Lw ] screw length: 55mm
• socket: PH-2
• number of pieces in the package: 500
• screw material: phosphated low-carbon steel
• substrate - steel up to 0.75 mm thick
• screws made in accordance with the standard PN-EN 14566
The screws we offer are characterized by the highest quality and can be safely used in construction. We make every effort to ensure that the products delivered to our contractors are safe and adapted to specific tasks.
1. Only original screws supplied by the manufacturer may be used.
2. Before installation, identify the substrate in which the screw will be installed and compare the loads that the screw will carry with the load-bearing capacity.
3. The appropriate screw length should be selected, depending on the thickness of the plasterboard being mounted.
4. Maintain the recommended distance from the edge of the substrate (at least 1.5 cm) and the axial distances between screws (no greater than 25 cm).
5. Fixation is performed using a cordless screwdriver or a hand screwdriver, without first making a pilot hole.
6. Head the screw should be slightly recessed into the plasterboard. An incorrectly inserted screw (too shallow, too deep or crooked) should be removed and mounted in a different place.
KLIMAS screws - the most common choice of professionals
*the measuring tape is not part of the auction (it is only used for better presentation of the screws)
Special thread profile minimizes screwing time: 2.5 times shorter screwing time than standard requirements.
