Topcon TP-L6G Pipe Level

The Topcon TP-L6G pipe level with a green beam is an innovative measurement solution that significantly increases the instrument's usability, especially in open spaces. The green laser is 4 times more visible than the red laser.

This allows the level to be successfully used even in very sunny times of day, and the laser dot is visible to the naked eye at greater distances from the instrument's position. This minimizes the possibility of making an error in properly aligning the target.

The Topcon TP-L6G pipe laser has a very useful and time-saving SmartLine function. This allows the laser beam emitted by the instrument to automatically search for the center of the target. This function is particularly useful when setting the instrument on a job that has already been started (e.g., when continuing work from the previous day).

This model also has another feature: the ability to adjust the beam brightness. The user can increase or decrease the spot intensity depending on the prevailing lighting conditions and thus save battery power.

Green laser - super visibility - the green laser beam is 4 times better visible than the red beam, therefore ensuring greater leveling accuracy and allowing work at greater distances from the instrument position.

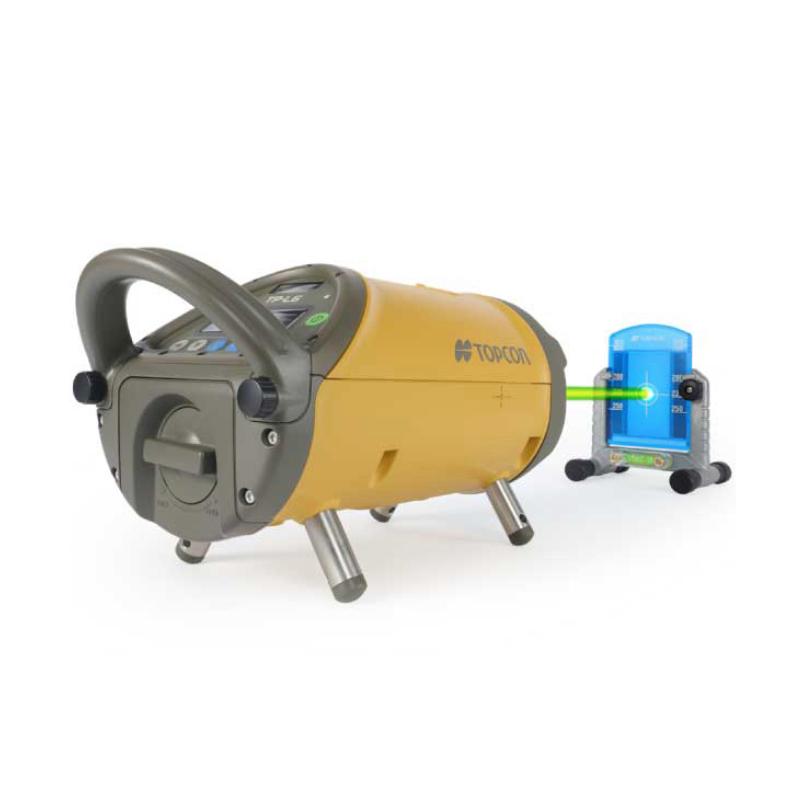

Accurate pipe laying - a clearly visible laser spot (range 200 m) allows pipes to be laid along the axis, and the target plate at the end of the line immediately detects the slightest alignment error.

The most important slope - the leveling laser can also be tilted in the range of -15 to +40%, which allows for the implementation of slopes

Quick alignment - the SmartLine function automatically finds the center of the target plate, reducing the possibility of making an aiming error

Adapted to the harshest working conditions - solid, dust- and waterproof housing, resistant to shocks, impacts, dust and water - withstands 24 hours underwater at a depth of 5 m

Quick start of work - the diode plummet makes it easier to set the level in the axis of the manhole

Instant leveling - the built-in compensator automatically levels the instrument (within ±10%) and allows it to be operated immediately after being placed in the pipe, and the level warning system protects against incorrect measurements

User-friendly interface - intuitive operation, remote control, clear display with backlight function that can be used in the darkest manholes

Efficient power supply system - batteries provide 40 hours of continuous operation, the instrument can be powered directly from a car battery

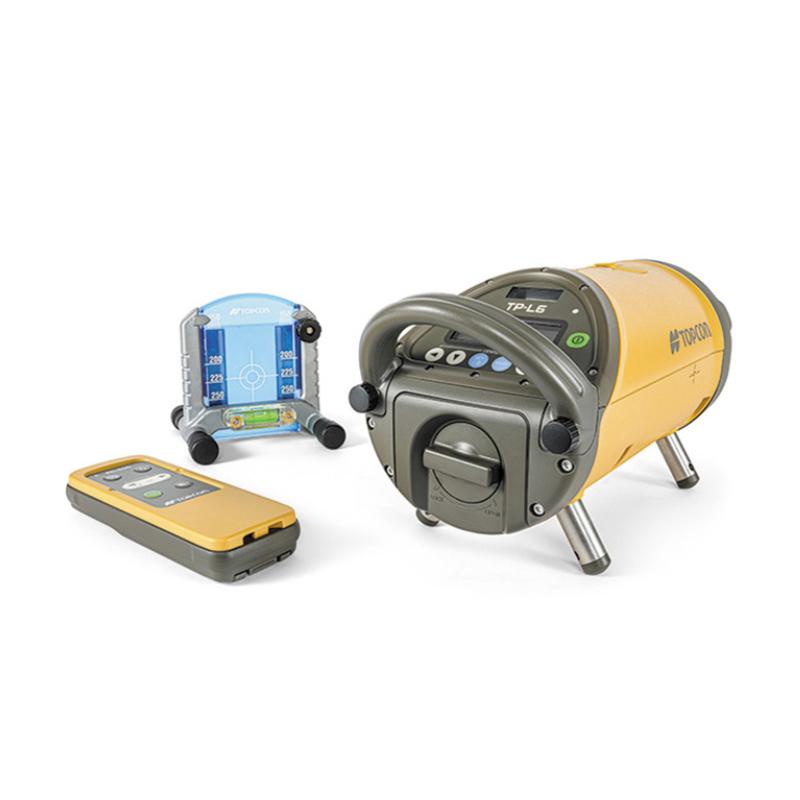

Rich standard equipment - batteries, charger, legs, remote control, target plate - the equipment is ready to work immediately after taking it out of the case without the need to buy additional accessories

Carefree use - 5-year warranty and effective Topcon after-sales service ensure the implementation of long-term construction projects

Self-leveling range: ±10%

Topcon TP-L6G pipe level

Legs 150mm (4 pcs.) / 200mm (4pcs.)

Sales document (Receipt / VAT invoice)

Light source: green visible laser, (520 nm) Accuracy: ±2.4 mm/50 m Working range: 200 m Automatic target search: yes Slope range: -15% to +40% Power supply: rechargeable batteries Operating time: 45 hours Resistance class: IPX8 Operating temperature range: -20°C to +50°C Dimensions: 125 x 250 mm Weight: 3.0 kg
