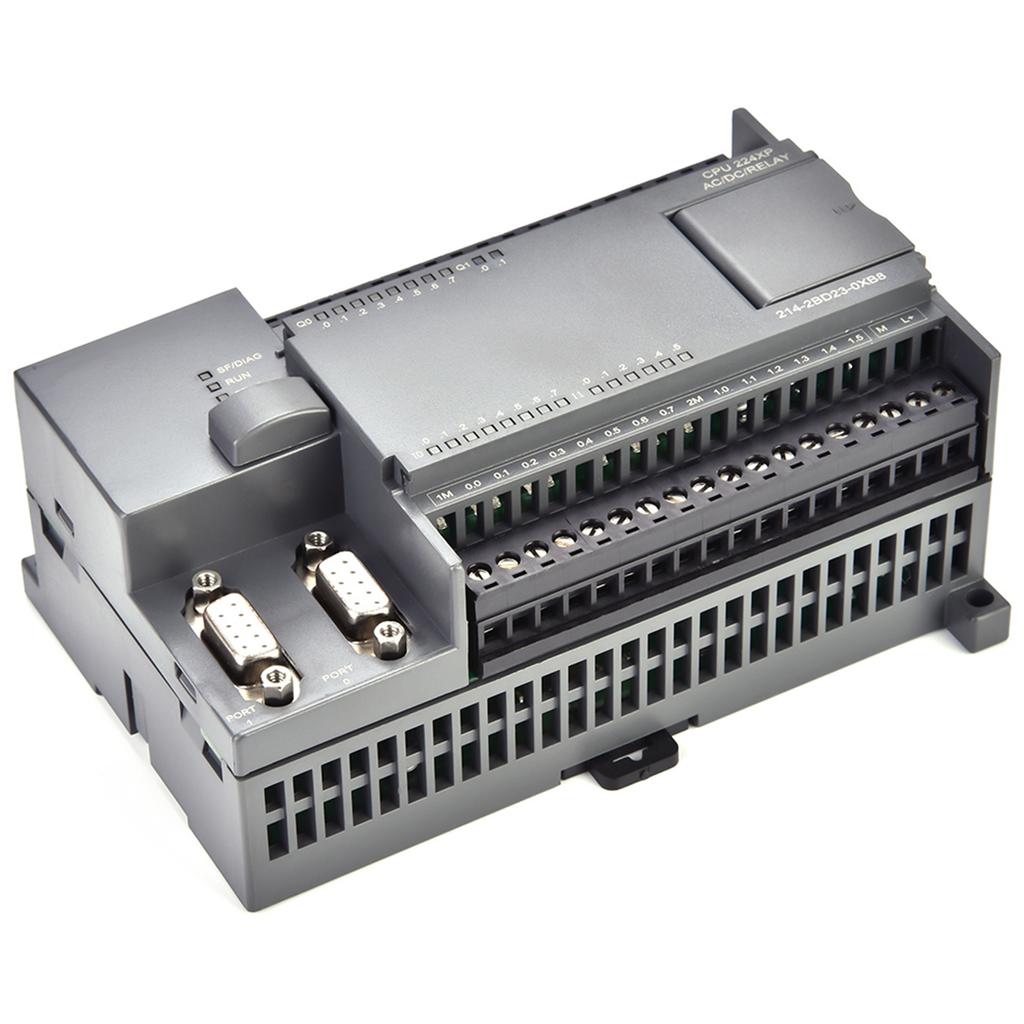

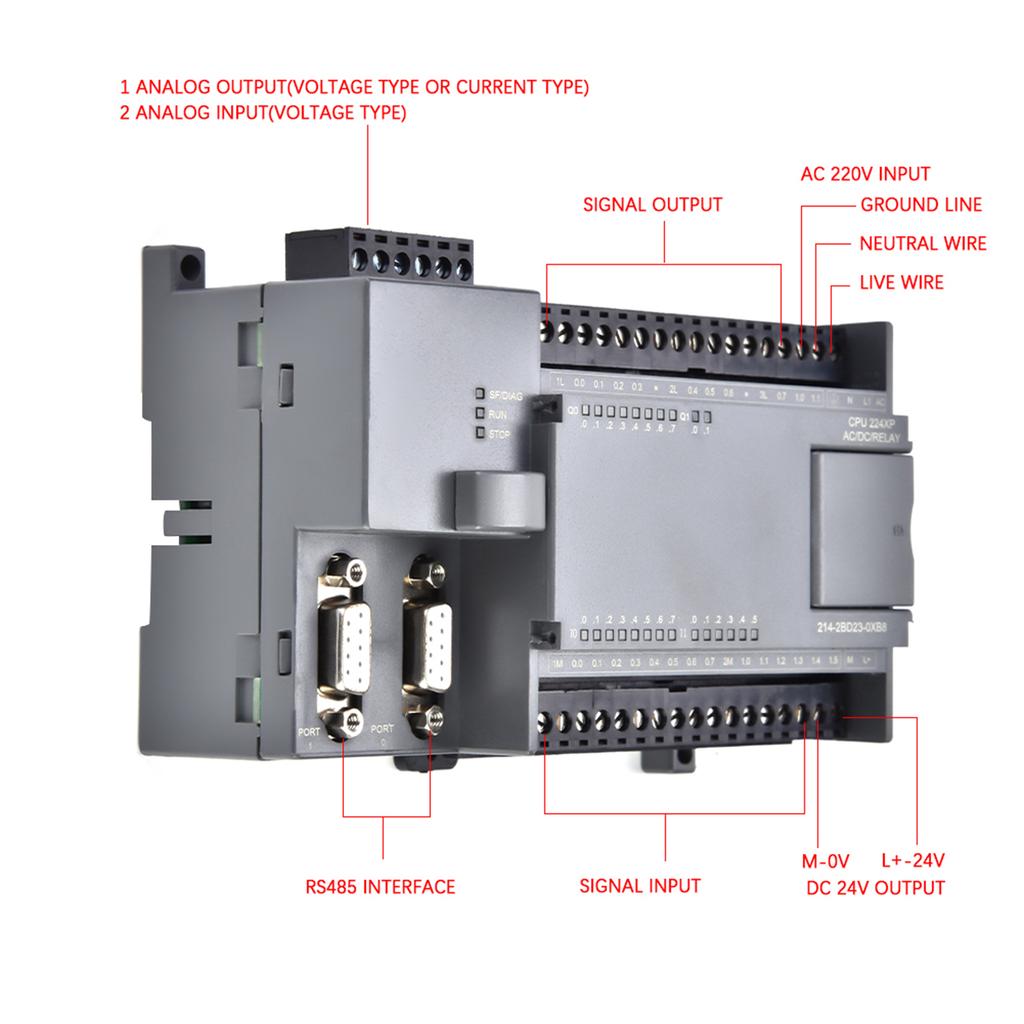

220V PLC S7 200 CPU224XP RELAY Output Programmable Logic Controller

Features: This Programmable Logic Controller is Compatible with 6ES7 214 2BD23 0XB8 Ac 220V power supply, relay output Digital input 14*24V DC, digital output 10*24V DC, 2 into 1 out, 2 RS485 communication port, 7 extension modules Stable 200PLC power supply design, long life electrolytic capacitance I O plate adopts imported industrial level optical coupler The CPU board adopts the same switch as 2000PLC Specifications: Power consumption 7W voltage AC220V Program memory 36K Data memory 20KB Extension modules 1 7

digital value extension MAX256DI DO analog quantity extension MAX32A 16AQ Data storage time Memory flash, permanent Total number of counters 256 Timer total 256 Data space 10kb Communication port

2*PPI communication port, RS485 Baud rate 9.6,19.2,187.5kbps

digital value

input 14 channel input digital value

output 10 channel output analog quantity input 2 analog quantity output 1 access way NPN PNP output type Relay Digital output rated current per point 2A Maximum cable length 500m(shield) Pulse capture input 14 High speed counter 6 x 30KHz Size 140*80*62mm Weight 454g Package included: 1 x

Programmable Logic Controller .
