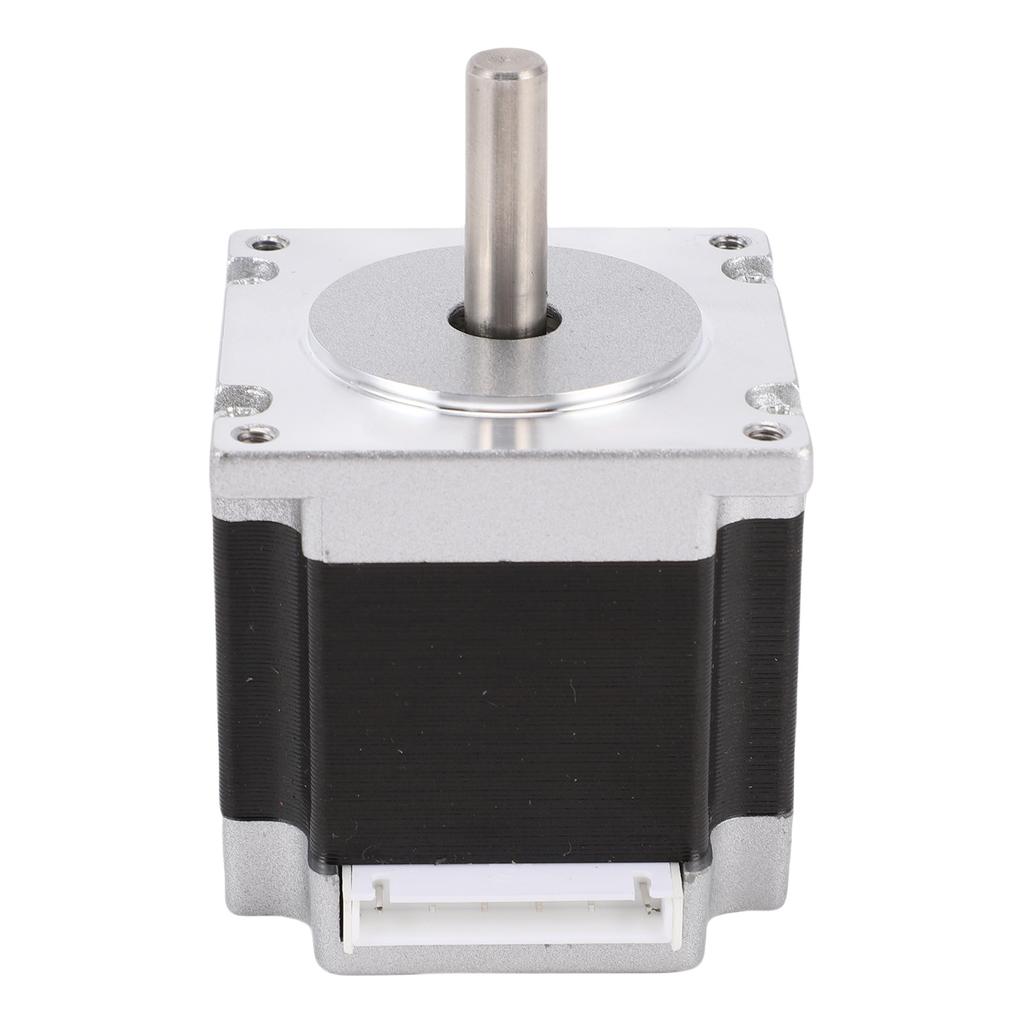

Nema23 Stepper Motor Driver Kit 8mm Shaft 126N.cm 2.8A 56mm 23HS5628 Motor and TB6600 Driver for CNC Engraving Machine 3D Printer

Feature: 1. Driver Parameters: The TB6600 stepper motor driver offers 32 subdivisions and 6 selectable modes, enabling precise control of two phase stepper motors for smoother forward reverse rotation with high power output 2. Driver Features: The stepper driver supports 8 channel outputs with a current capacity of up to 4A. Featuring H bridge bipolar constant current drive technology, it delivers fast operating speeds and easy connectivity 3. Motor Parameters: The 23HS5628 Nema23 stepper motor has a 8mm shaft diameter, 2.8A current per phase, 1.8° step angle, and 2 phase 4 wire design. It provides a step length of 56mm and a holding torsion of 126N.cm 4. Safe Design: Built in overheat, under voltage, and over current guards. The energy efficient semi automatic current locking function and single chip PWM bipolar sine chopper ensure low vibration and high operational efficiency 5. Applications: This stepper motor and driver kit is suitable for small and medium automated equipment with CNC controllers, such as XYZ tables, labeling machines, cutting machines, engraving machines, and pick and place system

Specification: Item Type: Stepper Motor Driver Kit Material: Alloy Steel, PCB, Aluminum Alloy, ABS Driver Model: TB6600 Input Current: Recommended to use 5A switch power supply Output Current: 0.5-4.0A Maximum Power: 160W Subdivision: 1, 2/A, 2/B, 4, 8, 16, 32 Working Temperature: -10-45℃ Storage Temperature: -40-70℃ Humidity: No condensation, no water droplets Gas: No flammable gas and conductive dust Motor Model: 23HS5628 Motor Shaft Diameter: Approx. 8mm / 0.31in Current/Phase: 2.8A Holding Torsion: 12600g.cm Step Angle: 1.8° Phase: 2 Type: Hybrid Step Length: Approx. 56mm / 2.2in Phase Resistive Value: 0.9Ω Phase Inductance: 2.5mH Holding Torsion: 126N.cm Rotor Inertia: 300g.cm2 Wire: 4 Wires Features: Original New Stepper Motor Driver Chip DIP Switch Selectable Current Large Area Heat Sink, Suitable for High Temperature Environment 7 Gears Subdivision Adjustable Automatic Semi Flow, Reducing Heat Generation High Speed Optocoupler Isolation for Interfaces Strong Anti HF Interference Ability Input Voltage Reverse Connection Guard Overheat, Over Current, Short Circuit Guard

How to Use: Follow the selling points chart introduction

Package List: 1 x Motor 1 x Driver 1 x Cable 1 x Driver Controller 1 x Knob
