Owon SDS1102 Oscilloscope Oscillometer Digital Storage Oscilloscope 2CH 100MHz 1GS s 7 inch LCD Display

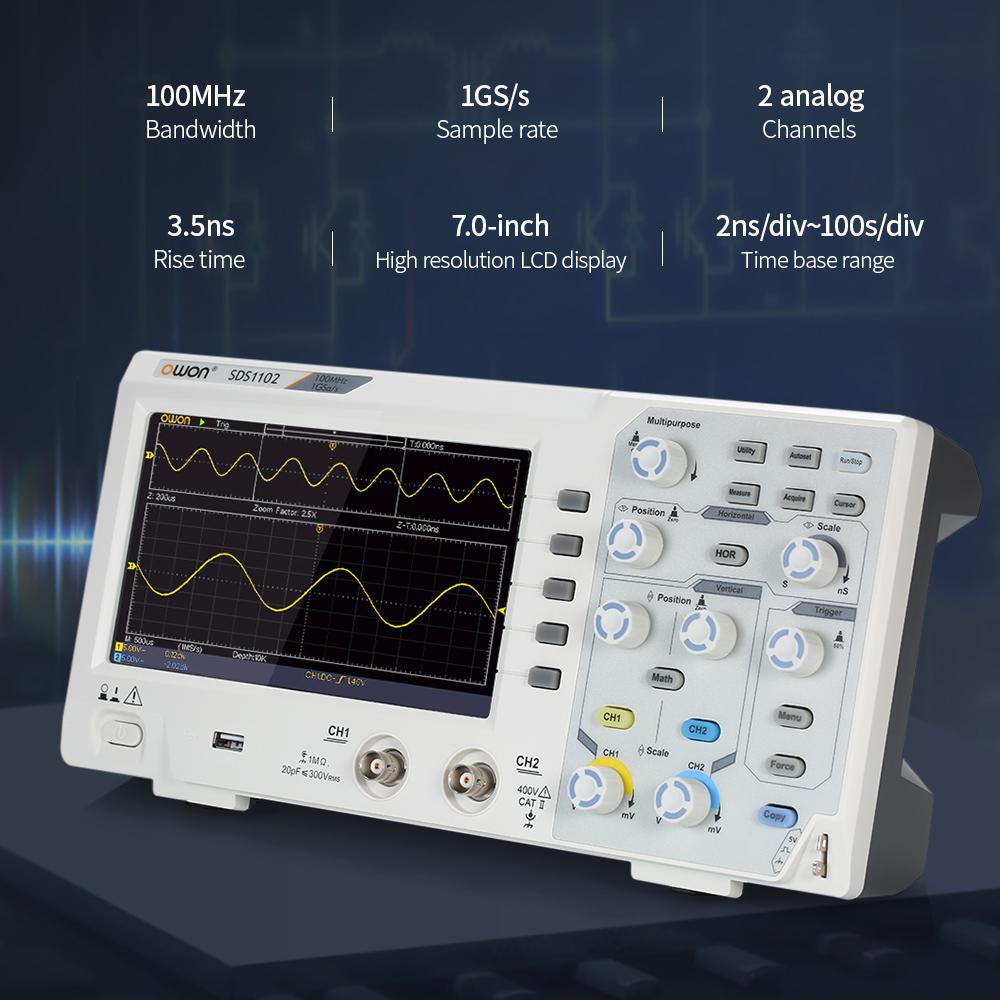

Feature: 1. 100MHz bandwidth. 2. 1GS s sample rate. 3. Time base range: 2ns div 100s div. 4. 3.5ns rise time. 5. 2 channels. 6. 7.0 inch high resolution LCD display. 7. Support for SCPI and LabVIEW. 8. 100MHz bandwidth. 1GS s sample rate. 9. 3.5ns rise time. 2 channels. Specification: Features: 100MHz bandwidth. 1GS s sample rate. Time base range: 2ns div 100s div. 3.5ns rise time. 2 channels. 7.0 inch high resolution LCD display. Support for SCPI and LabVIEW. Specifications: Functions & Specifications of SDS1102 Bandwidth 100MHz Sample Rate 1GS s Horizontal Scale(s div) 2ns div 100s div, step by 1 2 5 Rise Time (at input, typical) ≤3.5ns Channel 2 Display 7" color LCD, 800 × 480 pixels Input Impedance 1M Ohm ± 2percent , in parallel with 20pF ± 5pF Channel Isolation 50Hz:100:1, 10MHz:40:1 Max Input Voltage 400V (PK PK) (DC+AC, PK PK) DC Gain Accuracy ±3percent Record Length 10k DC Accuracy (average) Average≥16: ±(3percent reading+0.05div) for △V Probe Attenuation Factor 1X, 10X, 100X, 1000X LF Respond (AC, 3dB) ≥10Hz (at input, AC coupling, 3dB) Sample Rate Relay Time Accuracy ±100ppm Interpolation sin (x) x Interval(△T) Accuracy (full bandwidth) Single: ±(1 interval time + 100ppm × reading + 0.6ns), Average more than 16: ±(1 interval time + 100ppm × reading + 0.4ns) Input Coupling DC, AC, and GND Vertical Resolution (A D) 8 bits (2 channels simultaneously ) Vertical Sensitivity 5mV div 5V div (at input) Trigger Type Edge, Video Trigger Mode Auto, Normal, and Single Trigger Level ±5 divisions from screen center Line Field Frequency (video) NTSC, PAL and SECAM standard Cursor Measurement △V, and △T between cursors Automatic Measurement Vpp, Vavg, RMS, Frequency ,Period, Vmax, Vmin, Vtop, Vbase, Width, Overshoot, Pre shoot, Rise time, Fall time, +Width, Width, +Duty, Duty, Delay A→B , Delay A→B Waveform Math +, , ×, ÷, invert, FFT Waveform Storage 16 waveforms Lissajous Figure Bandwidth full bandwidth Lissajous Figure Phase Difference ±3 degrees Communication Interface USB host, USB device Frequency Counter available Power Consumption

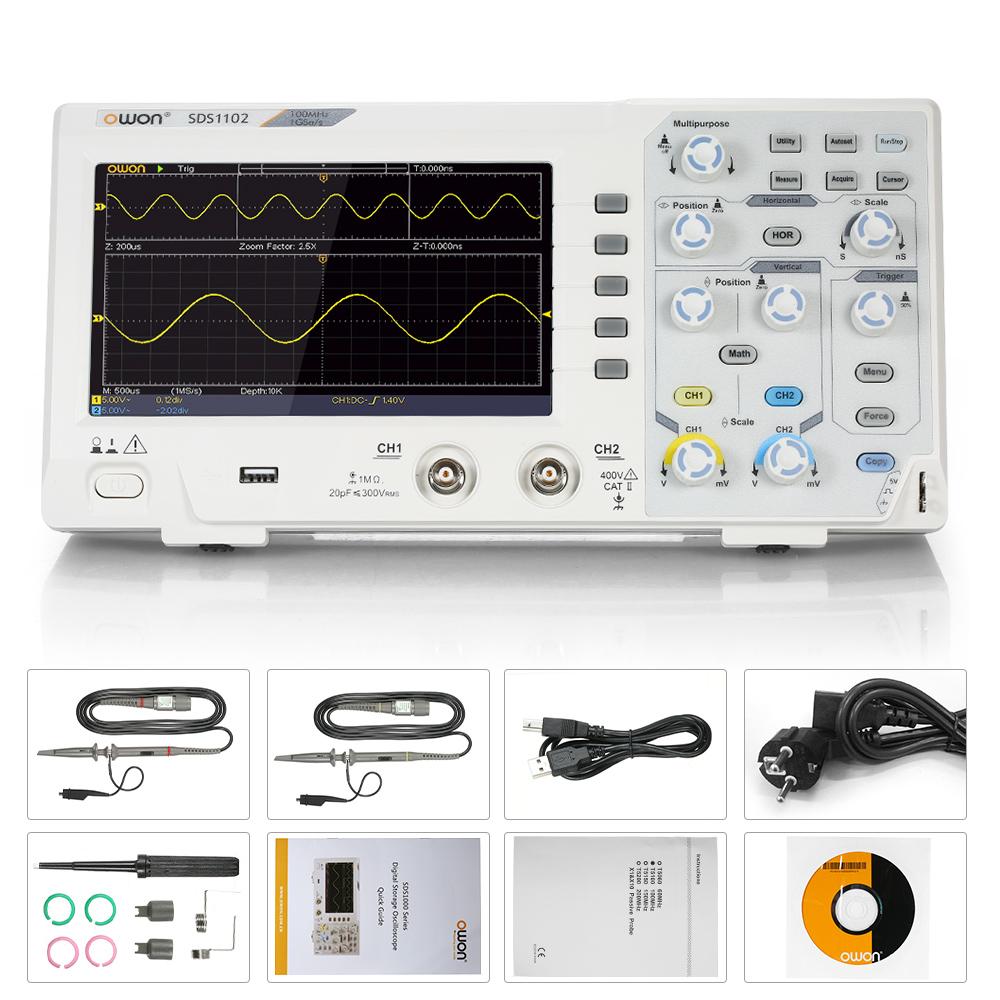

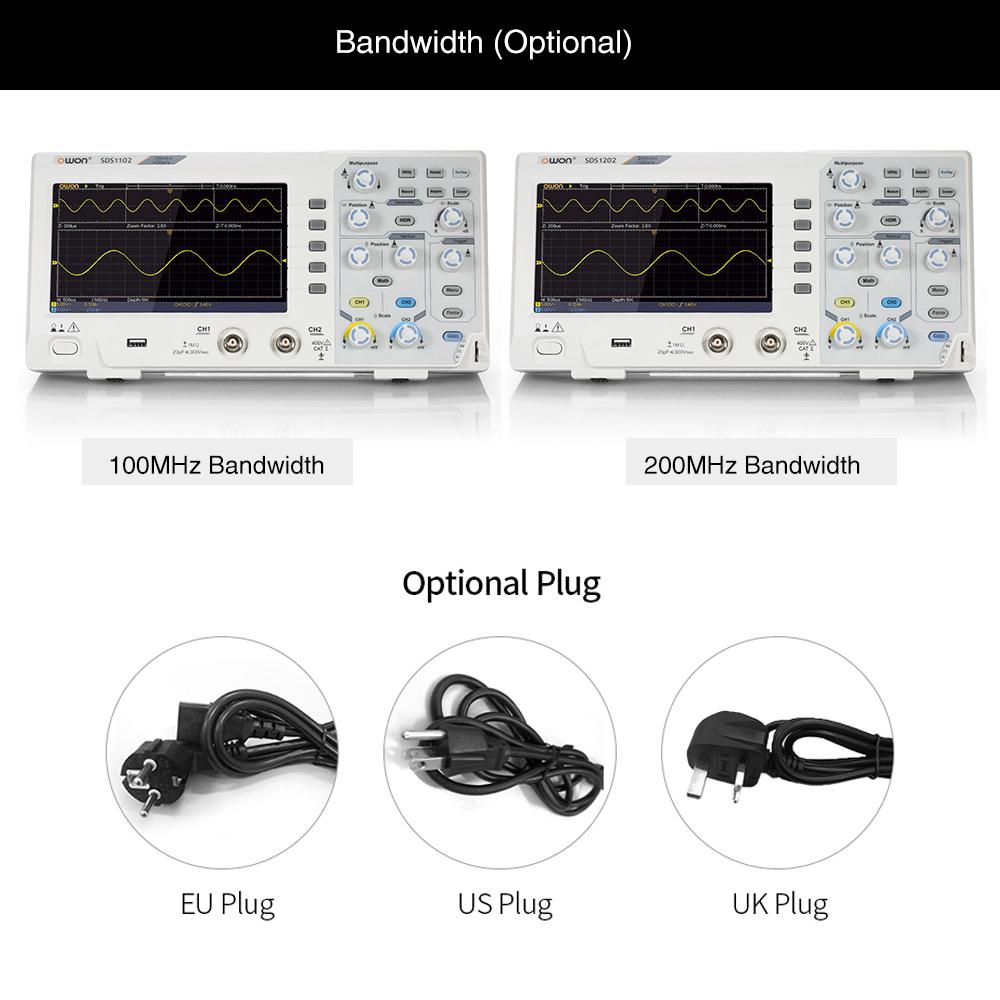

less than 15W Fuse 2A, T class, 250V Power Supply 220V (EU UK plug), 110V (US plug), 50 60Hz, CAT II Plug Type EU UK US (Optional) Item Size 300 * 76 * 153mm 11.81 * 2.99 * 6.02in Net Weight 1403g 3.09lb Package Weight 1601g 3.53lb Package Size 37 * 18 * 11.5cm 14.57 * 7.09 * 4.53in Package List: 1 * Oscilloscope 2 * Oscilloscope Probe 1 * Oscilloscope Powerline 1 * Data CD 1 * USB Cable 1 * Package of Accessory 1 * Quick Guide (English) Note: Please read the instruction manual in CD carefully to avoid injury and prevent damage to this product. Package List: 1 * Oscilloscope 2 * Oscilloscope Probe 1 * Oscilloscope Powerline 1 * Data CD 1 * USB Cable 1 * Package of Accessory 1 * Quick Guide (English) Note: Please read the instruction manual in CD carefully to avoid injury and prevent damage to this product.
