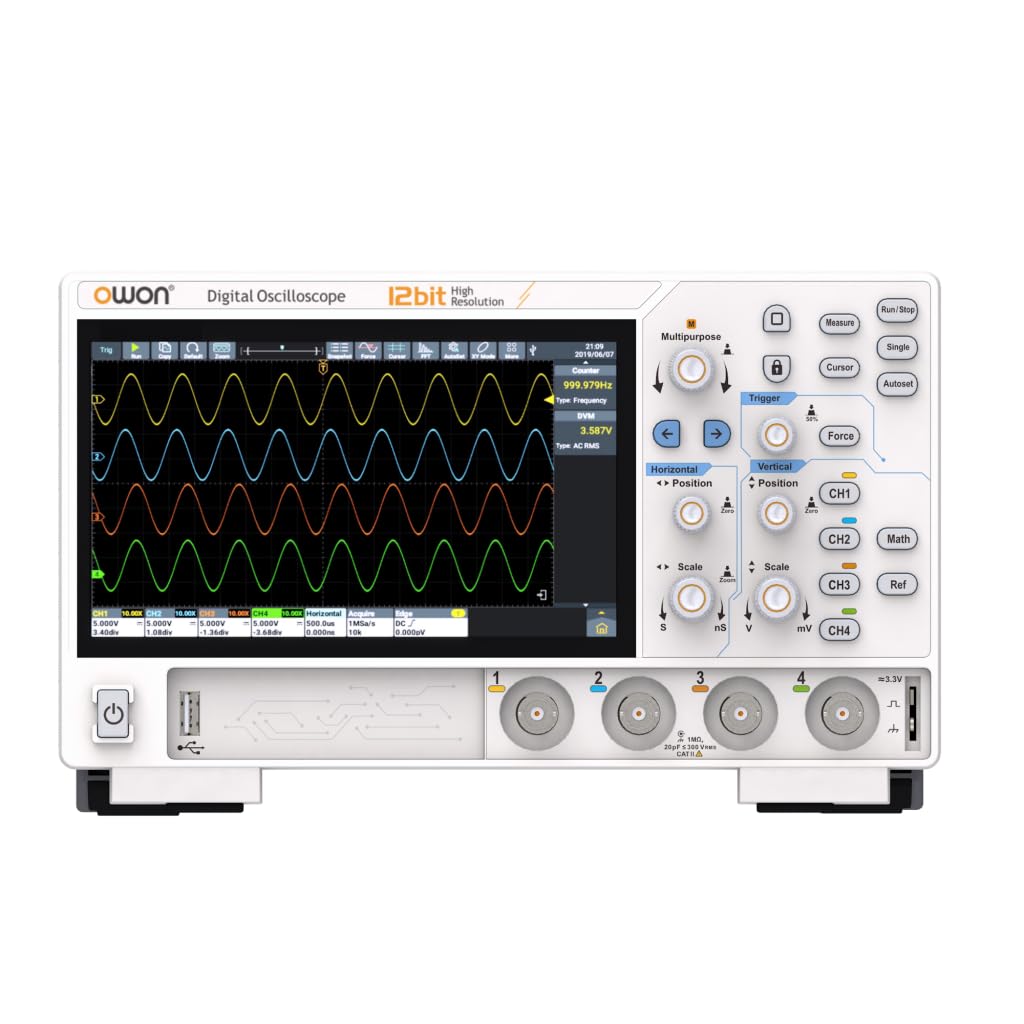

OWON ADS804A Digital Frequency Protocol FFT 1M Sampling 50M Waveform Update Lightweight Warranty from the Japanese Oscilloscope, 4-Channel, 70MHz,… Ещё

[12-bit high resolution allows clear observation of even minute signals] This unit is equipped with a 12-bit ADC that has four times the resolution of conventional 8-bit units, allowing for high-precision display of minute signal changes and noise components. The vertical scale can be set from 500 μV/div, making it ideal for minute analysis of EMI noise, power supply ripple, and analog signals. [Maximum 200 MHz Bandwidth and 1.25 GSa/s High-Speed Sampling] Frequency bandwidth ranges from 70 MHz to 200 MHz (depending on the model). Sampling rates up to 1.25 GSa/s are supported. Memory depth is up to 50 M points, and the waveform update rate is up to 700,000 wfms/s, allowing for highly efficient capture of sudden abnormal waveforms and analysis of long-term signals. [FFT analysis, bus decoding, and multi-function measurement are standard features] It covers all the analysis functions necessary for development and testing, including FFT (1M points), over 50 automatic measurement functions, and bus protocol analysis (UART/I2C/SPI/CAN/LIN). The oscilloscope, frequency counter, voltmeter, and calculation tool are all integrated into one unit, helping to save space in laboratories and on-site. [Excellent operability with multi-touch support and abundant inputs and outputs] The 7-inch capacitive multi-touch display allows intuitive operation similar to that of a smartphone. USB host, LAN, HDMI, and Trig output terminals are standard, making external display, remote operation, and data export easy. The power-saving, slim design (approximately 1.5 kg) fits even in limited workspaces. [Instruction Manual and Warranty] The product comes with a 3-year manufacturer's warranty on the device itself and a 1-year manufacturer's warranty on accessories. You can install and use the product with peace of mind. The Japanese instruction manual can be downloaded from the OWON official website (owon.co.jp) or from the Amazon product page under "User Manual (PDF)." [OWON ADS800A Series 12-bit Digital Oscilloscope] The ADS800A series is a high-resolution digital oscilloscope equipped with a 12-bit ADC. With a maximum waveform update rate of 700,000 wfms/s, a maximum record length of 50 M points, and a high-speed sampling rate of 1.25 GSa/s, the GS1000 is highly accurate and versatile, making it suitable for a wide range of applications, from research and development to education and service sites. [Major Features] Equipped with a 12-bit high-resolution ADC ・Supports a frequency bandwidth of 70 MHz to 200 MHz ・Sampling rate of 1.25 GSa/s (when using 2 channels), 625 MSa/s (when using 4 channels) ・Maximum waveform capture speed of 700,000 wfms/s ・Maximum memory depth of 50 M points ・Vertical scale: 500 μV/div to 10 V/div ・Equipped with FFT analysis (1 M points) and digital filter functions ・Bus decoding of RS232/UART, I2C, SPI, CAN, LIN, etc. is supported as standard ・Wide range of trigger functions including Edge, Pulse, and Logic ・Supports mouse and keyboard connections, and wireless operation via Wi-Fi/Bluetooth (optional) ・Equipped with a 7-inch capacitive multi-touch screen ・Wide range of interfaces including HDMI, USB, LAN, and Trig Out ・Supports Type-C power supply (12 V/4 A) ・Dimensions: Approx. 260 x 160 x 78 mm / Weight: Approx. 1.5 kg [Main model configuration] ADS802A / ADS812A / ADS822A (2-channel models) ADS804A / ADS814A / ADS824A (4-channel models) *Number of channels and bandwidth vary depending on the model. Combining multi-tool performance with intuitive operability, this model realizes a space-saving, highly functional measurement environment.
