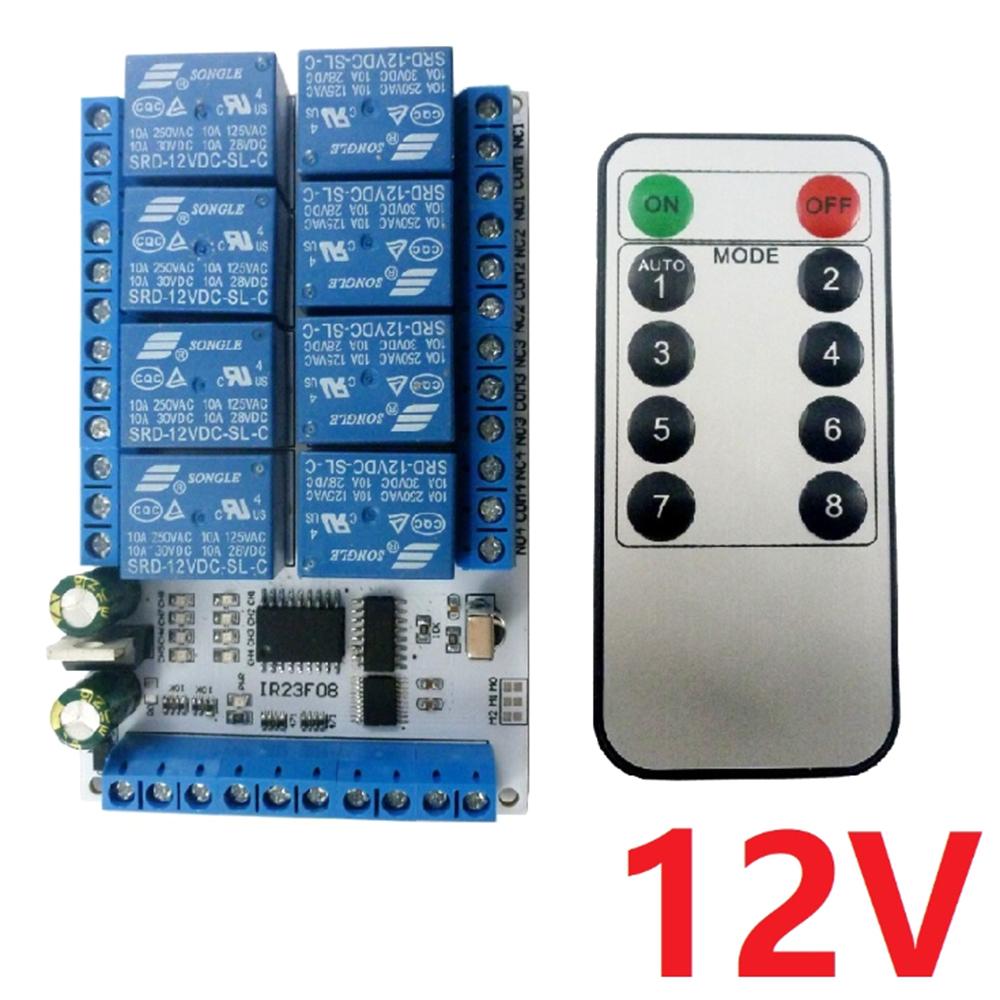

Feature:
1. 8 channel multi function infrared controller, each channel independently trigger and independently delay, do not interfere with each other.
2. 4 kinds of functional mode: Non locking (Momentary); Delay(2 10 60 600 3600seconds); Self locking (Toggle); Inter locking (Latch). The function mode and delay time are selected by the Solder pad.
3. Low pulse trigger (Connect to the power supply GND via the trigger button or low level control via the MCU IO port)
4. \ Momentary\ , \ Self locking\ ,\ Interlock\ and \ Delay\ four functional modes.
Specification:
Features:
8 channel multi function infrared controller, each channel independently trigger and independently delay, do not interfere with each other.
4 kinds of functional mode: Non locking (Momentary); Delay(2 10 60 600 3600seconds); Self locking (Toggle); Inter locking (Latch). The function mode and delay time are selected by the Solder pad.
Low pulse trigger (Connect to the power supply GND via the trigger button or low level control via the MCU IO port)
"Momentary", "Self locking" ,"Interlock" and "Delay" four functional modes.
Specifications:
Relay:
Operating voltage: 5v, 12v (Optional)
Operating current (dc 12v): standby current 8mA, 1 relay 37mA, 2 relays 66mA, 3 relays 94mA, 4 relays 122MA, 5 relays 150MA, 6 relays 178MA, 7 relays open 206MA, 8 relays 232MA.
Infrared receiver: VS1838 (Or compatible with IC)
Infrared remote control: N E C coding
Working distance: 8 15 meters (receiver sensitivity ≥0.5mW m2)
Input control port: 5V TTL level ,NPN trigger, 0.2 2 second low pulse
Relay maximum load capacity: dc 1 110V 5A; AC 85 265V 6A
Item Size: 99 * 62 * 20mm 3.9 * 2.44 * 0.79in
Item Weight: 116g 4.09ounces
Infrared remote control:
Transmission coding: N E C coding
IRED: infrared
Wavelength: 950nm
Power supply: dc 3V
Working voltage: 2.2 3.4V
Working current: ≥10mA
Static current: ≥1uA
Transmit power: 90mW sr typ.
Working distance: 8 15 meters (receiver sensitivity ≥0.5mW m2)
Frequency: 38 kHz
Button cell: CR2025 (not included)
Operating temperature: +55 celsius 45 celsius
Storage temperature: 25 celsius +55 celsius
Item size: 85 * 40 * 7mm 3.35 * 1.57 * 0.27in
Item weight: 11g 0.39ounces
Package size: 120 * 85 * 40mm 4.72 * 3.35 * 1.57in
Package weight: 130g 4.58ounces
Glossary:
NO: Relay normally open contact
COM: Relay common contact
NC: Relay normally closed contact
Relay open: COM connect NO.
Relay close: COM disconnect NO.
Momentary: Press the remote control button (or trigger input port), Relay open, return to Close after 0.5 second;
Self locking: Press the remote control button (or trigger input port), Relay open, Press again, port Relay close, and so on;
Latched: Enter the Channel 1 Latched command, port 1 Relay open, port 2 8 Relay close. Enter the Channel 2 Latched command , port 2 Relay open, port 1 3 8 Relay close
Delay: Enter the Delay command, Relay open, delay of 2 10 60 600 3600 seconds)after, Relay close;
Note:
1.Due to the different display screen and light effect, the actual color of the item might be slightly different from the color showed on the pictures.
2.Please allow a little measuring deviation due to manual measurement.
Package List:
1 * Relay
1 * Remote Control
Package List:
1 * Relay
1 * Remote Control
