Feature:
1. 8 CHANNEL: Independent 8 channel relay module, 8 channel external control output and active low level can control switches or sensors, etc.
2. CIRCUIT PROTECTION: The relay switch supports internal circuit protection, with stable and reliable performance, easy to operate and use, and long service life.
3. 6 COMMANDS: Supports 6 commands of On, Off, Instantaneous, Self Locking, Interlock, Delay, under the Delay, the maximum delay is 255 seconds.
4. SETTABLE TIME: The data sending and returning time can be set, and the maximum value is 1000ms, which is suitable for more application situations.
5. GOOD DURABILITY: The low level relay module has a compact structure and uses excellent board elements that are not prone to damage or defects.
Specification:

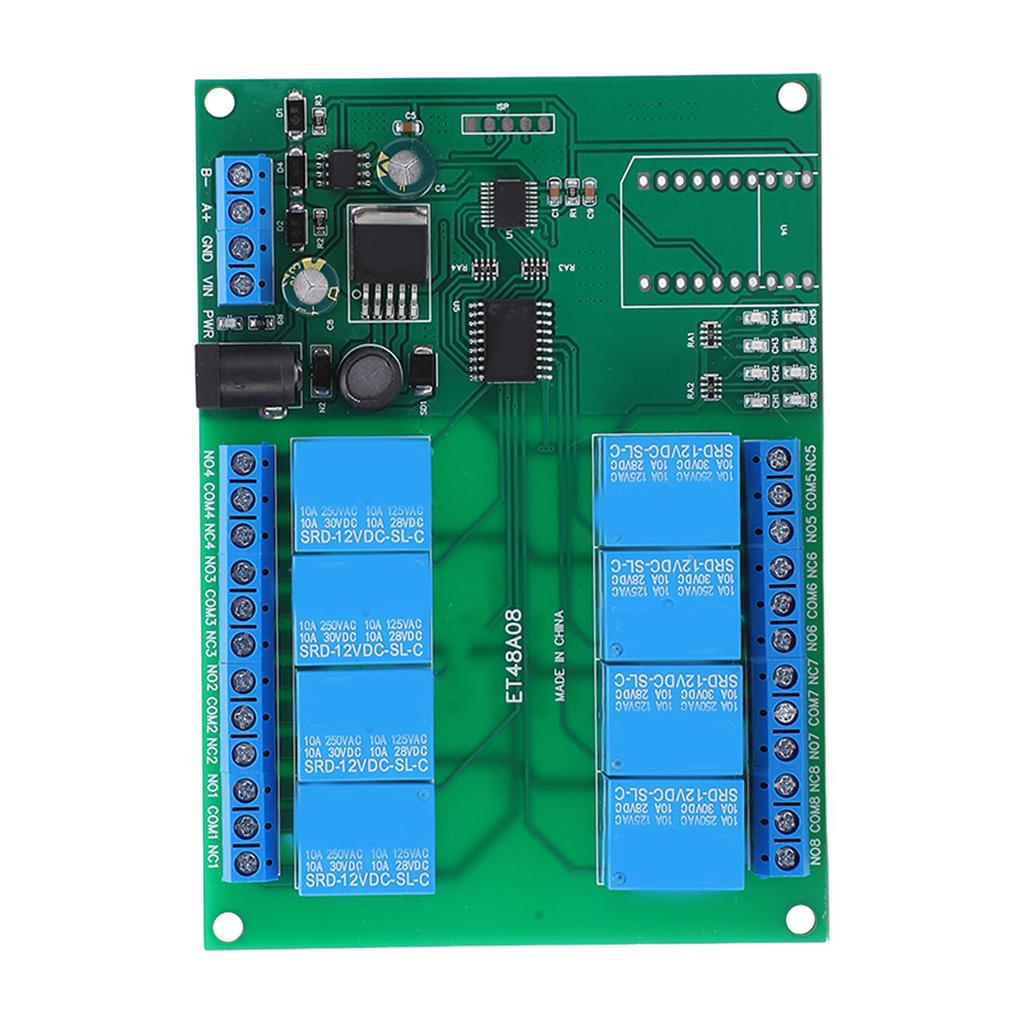

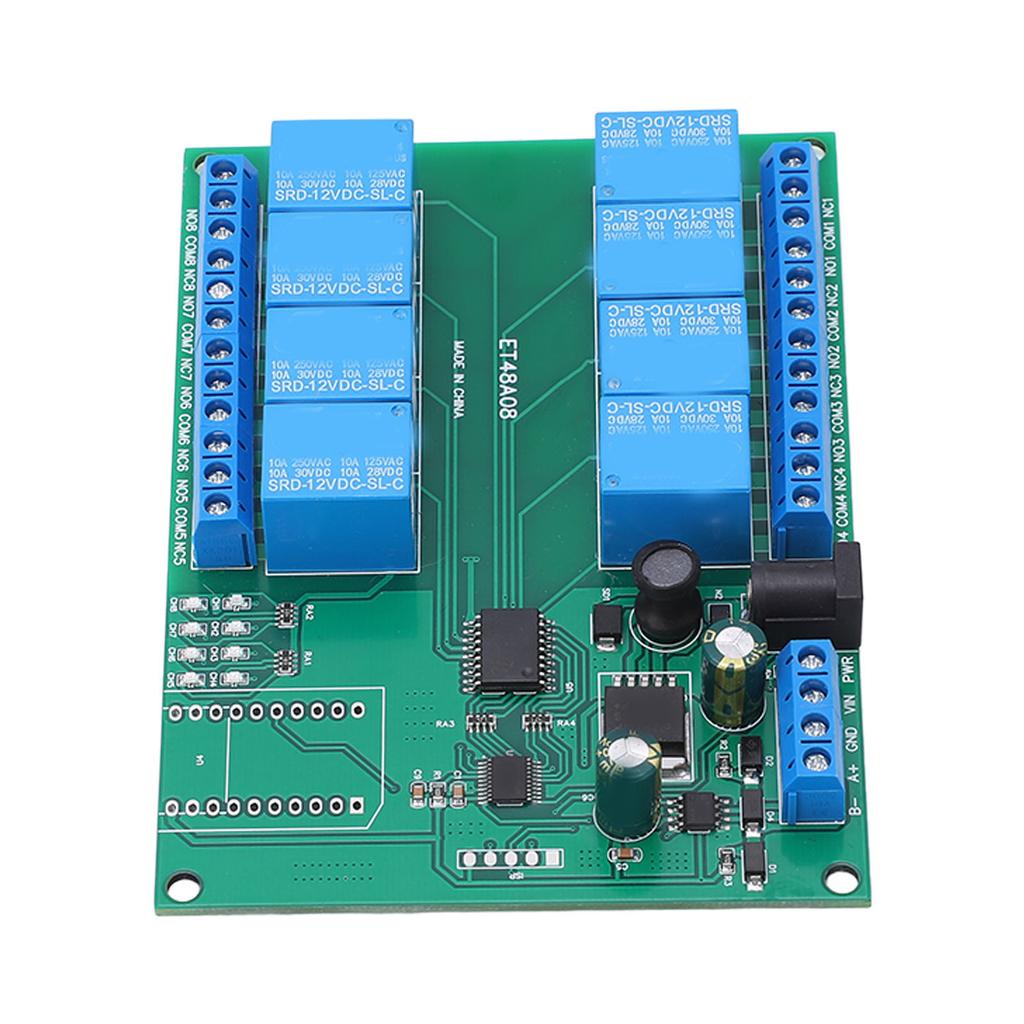

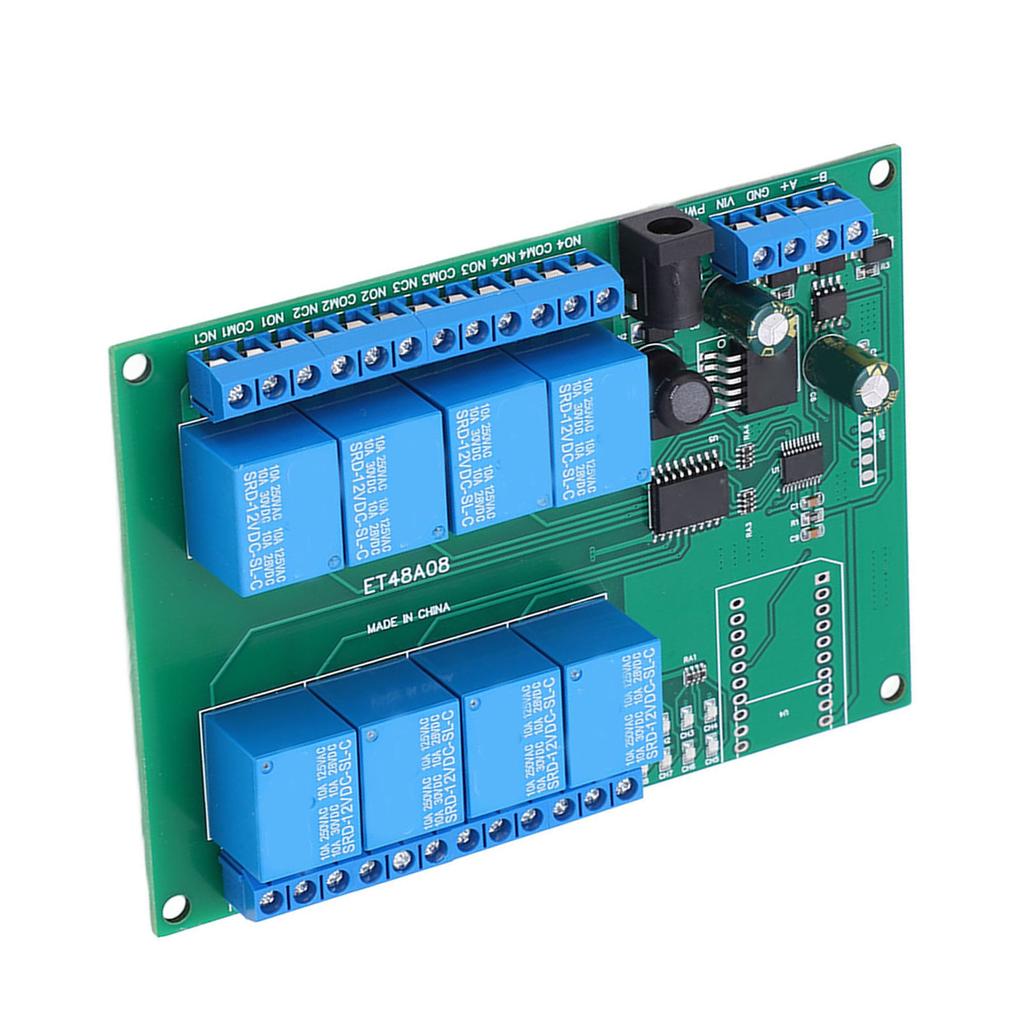

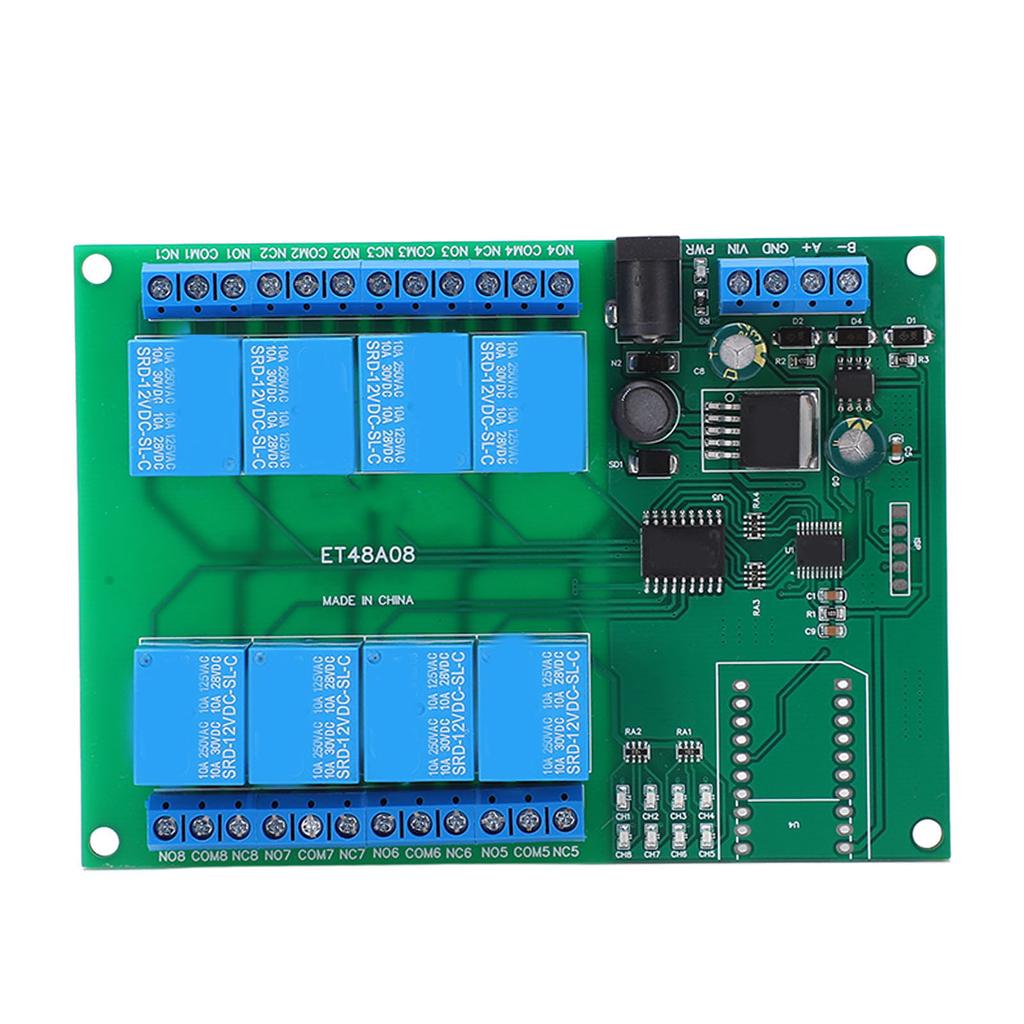

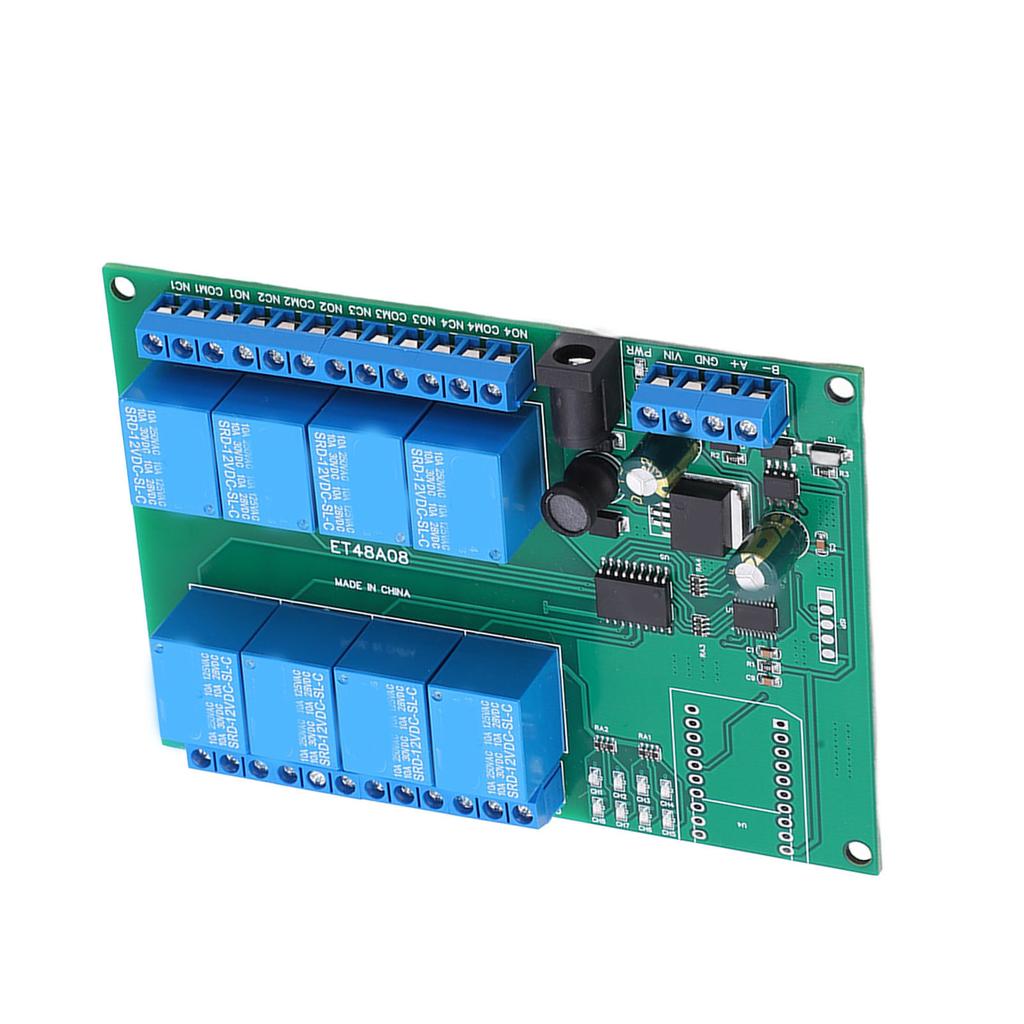

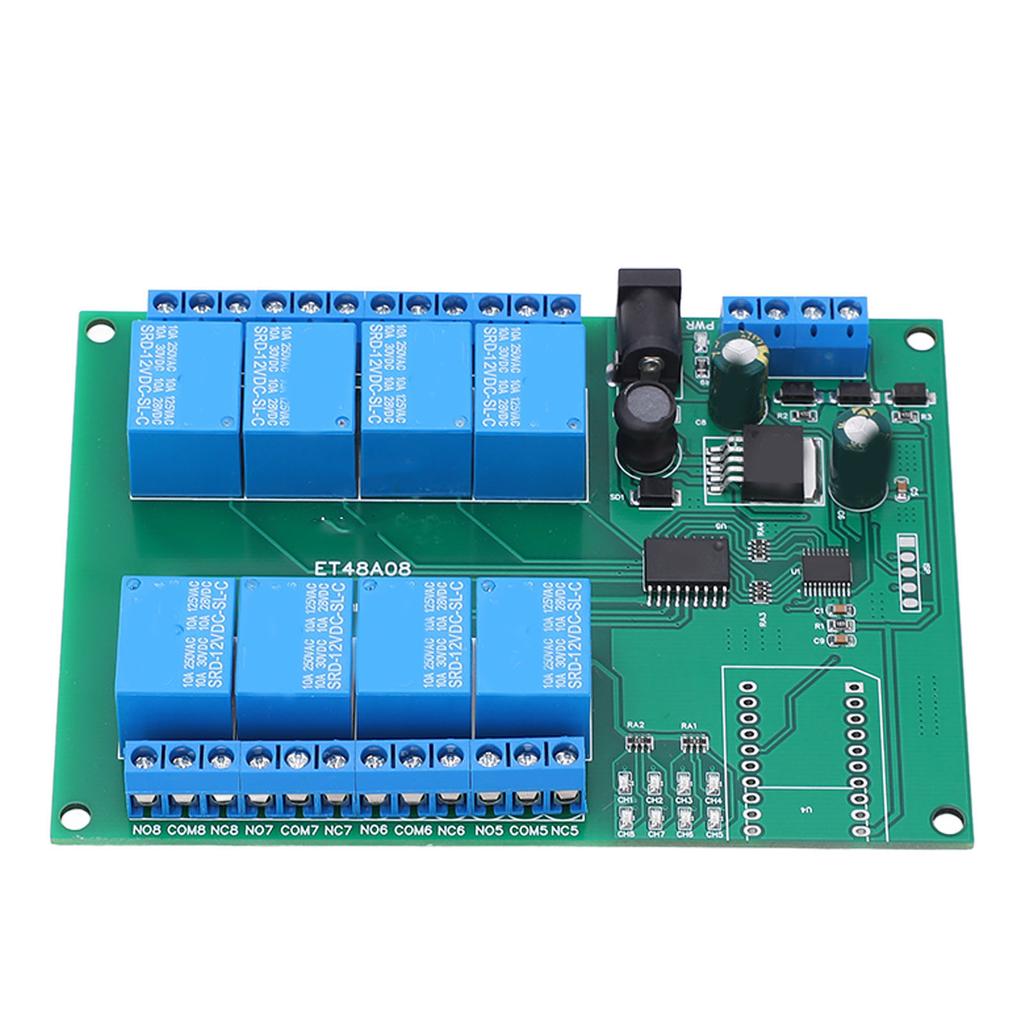

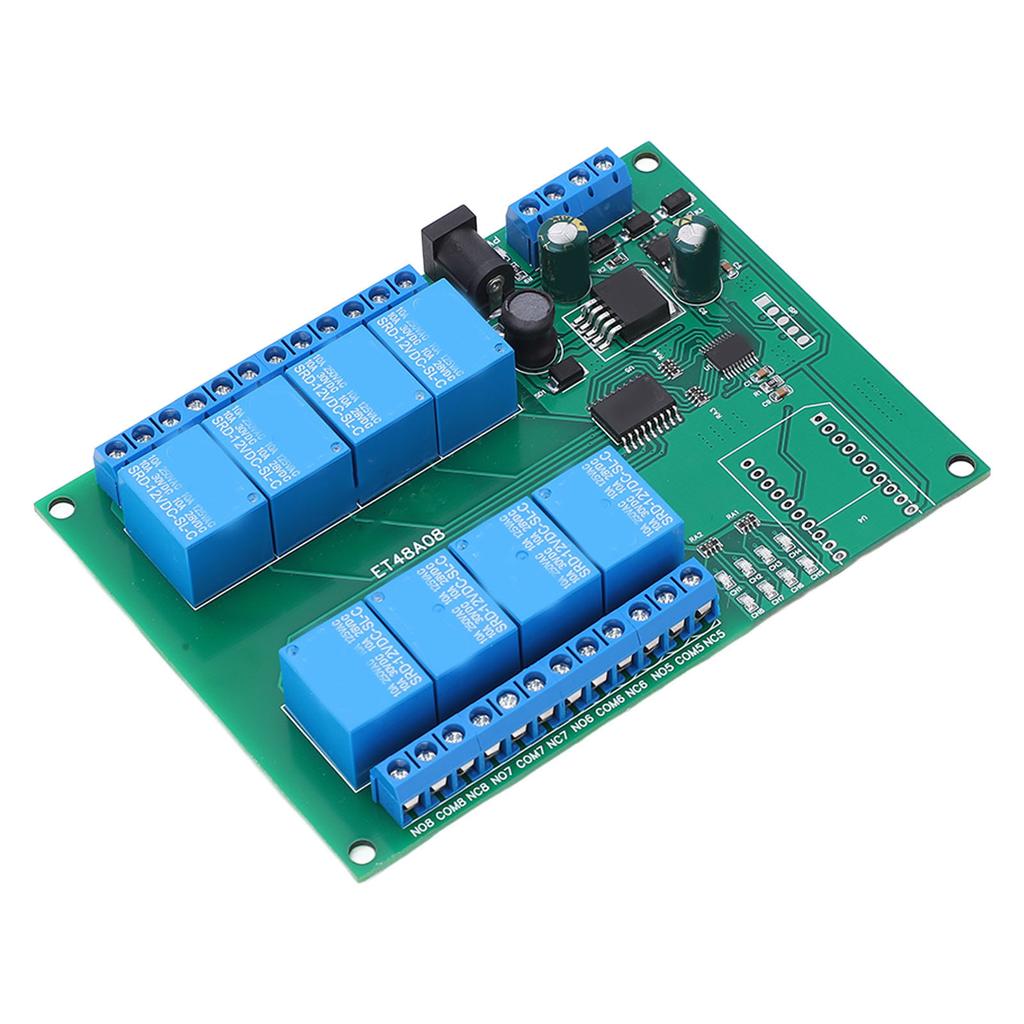

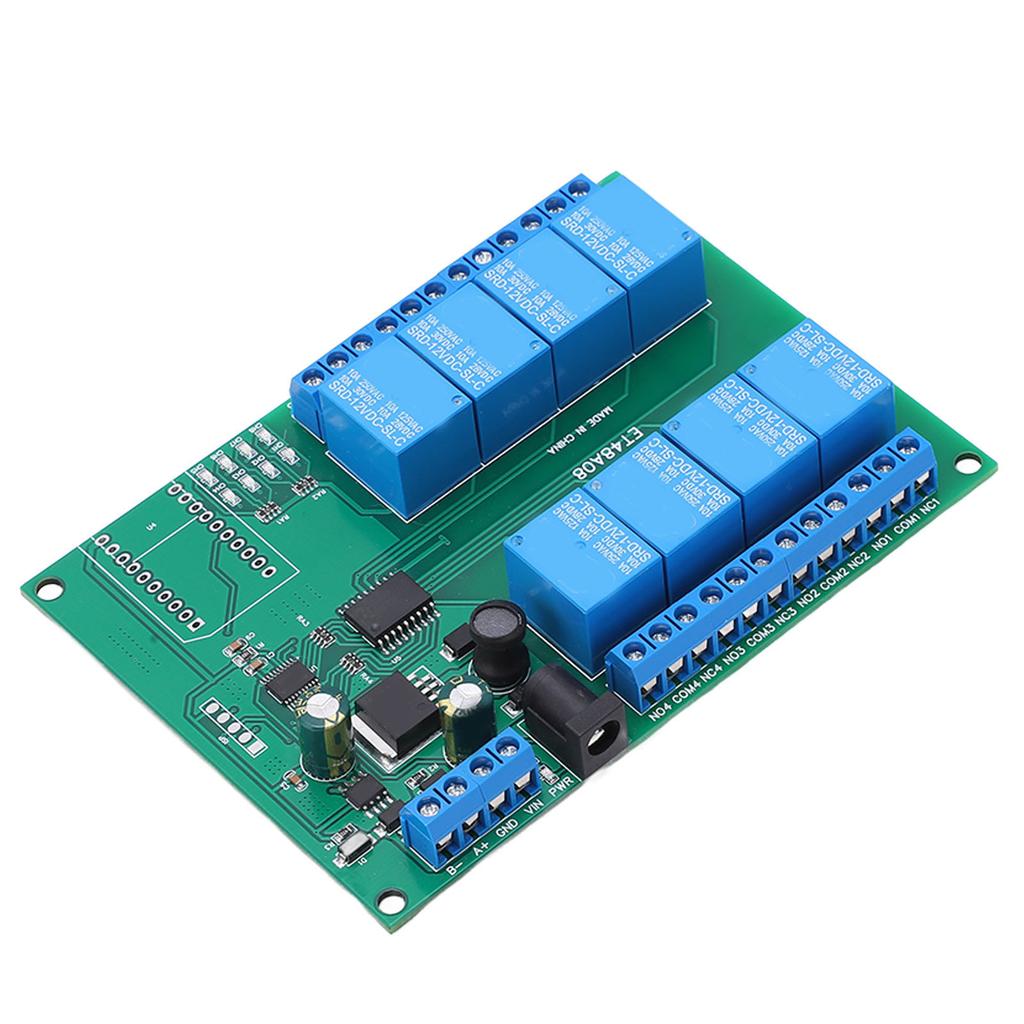

Item Type: 8 Channel Relay Module
Material: PCB
Working Voltage: DC 12V
Communication Interface: RS485 interface or network interface (optional)
6 Commands: On, Off, Instantaneous, Self Locking, Interlock, Delay, under the Delay command, the maximum delay is 255 seconds
Baud Rate: 1200 2400 4800 9600 19200BPS, can be set by command, default 9600BPS
Other Functions: Data transmission and return time can be set, the maximum value is 1000ms.
Package List:
1 x Relay Module
Note:
Pay attention to the correct operation.8 CHANNEL: Independent 8 channel relay module, 8 channel external control output and active low level can control switches or sensors, etc.
CIRCUIT PROTECTION: The relay switch supports internal circuit protection, with stable and reliable performance, easy to operate and use, and long service life.
6 COMMANDS: Supports 6 commands of On, Off, Instantaneous, Self Locking, Interlock, Delay, under the Delay, the maximum delay is 255 seconds.
SETTABLE TIME: The data sending and returning time can be set, and the maximum value is 1000ms, which is suitable for more application situations.
GOOD DURABILITY: The low level relay module has a compact structure and uses excellent board elements that are not prone to damage or defects.
