Feature:
1. AC DC clamp meter + Recorder Function + Oscilloscope function3 in 1.
2. 20,000 count true RMS auto ranging clamp meter.
3. Oscilloscope: Capable of measuring both current and voltage waveforms simultaneously, providing more comprehensive analysis.
4. Recorder Function: View, compare, analyze, and store measurement data via i meter (app), efficiently managing test information.
5. Inrush Current Measurement Function: Ensures stable and accurate test results amidst complex current fluctuations.
6. BT communication, support for Android iOS dual systems.
7. Mobile phone remote control function meets special environmental testing requirements, ensuring safety and convenience.
8. Alarm Function: Customizable thresholds for upper and lower limits, alerting users to ensure safety.
9. Full touch key operation enables quick switching with one hand, making operation simple and convenient.
10. 2.8 inch IPS LCD display with wide viewing range makes the values and waveforms clearer.
11. Dual theme display adapts to different light environments to ensure a clearer display effect.
12. 38mm narrow edge elongated opening design, suitable confined spaces and large wire diameters, balancing flexibility and applicability.
13. NCV function: Standard non contact AC voltage sensing to quickly locate wires.
14. 2600mAh lithium battery meeting the needs of extended operations.
Specification:
Specifications:

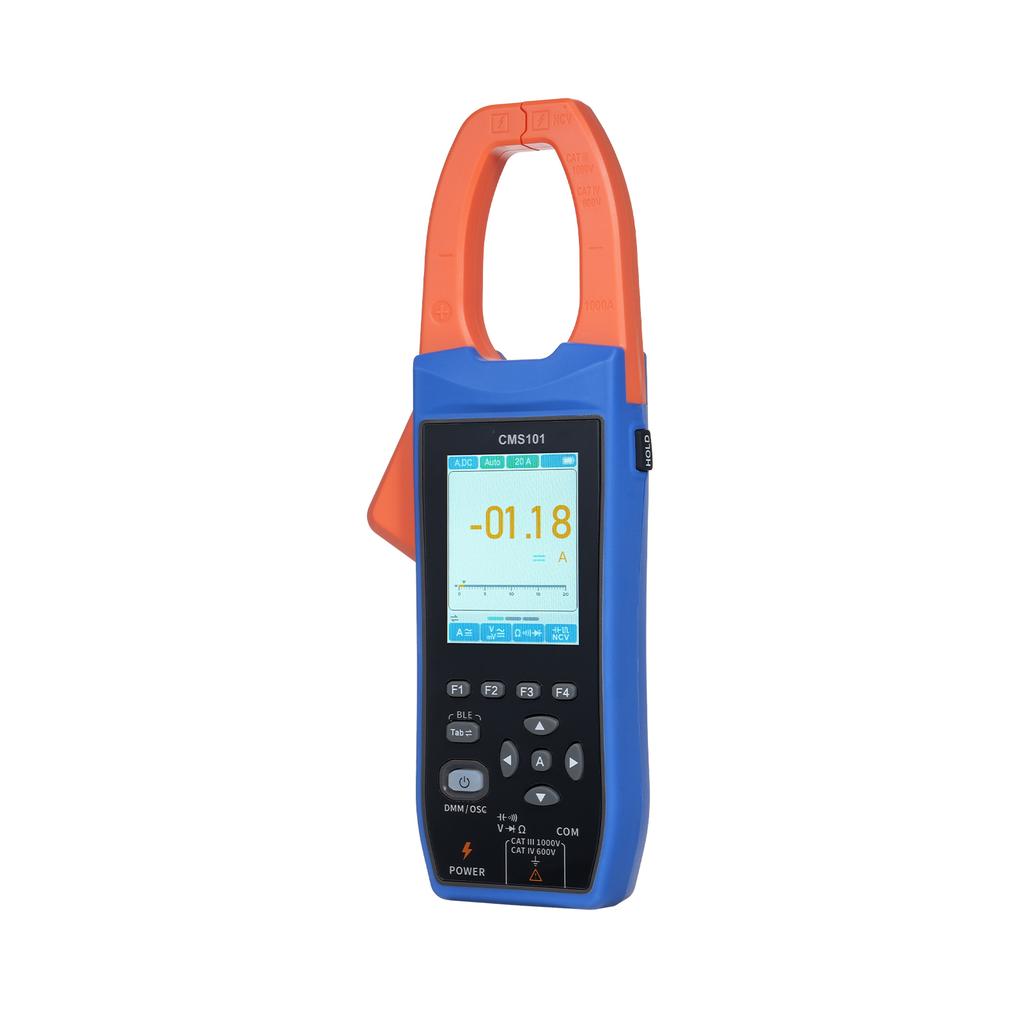

Model: CMS101
Material: ABS
DC Voltage (V): 200.00mV, ±(0.1percent + 6dig)
2.0000V 20.000V 200.00V, ±(0.1percent + 5dig)
1000.0V, ±(0.15percent + 5dig)
AC Voltage (V): 200.00mV 2.0000V 20.000V 200.00V, ±(0.6percent + 10dig)
1000.0V, ±(0.8percent + 10dig)
DC Current (A): 20.00A, ±(2.0percent + 10dig)
200.0A 1000A, ±(2.0percent + 5dig)
AC Current (A): 20.00A, ±(3.0percent + 10dig)
200.0A 1000A, ±(2.5percent + 5dig)
Inrush Current (A): 20.00A, ±(10.0percent + 10dig)
200.0A 1000A, ±(10.0percent + 10dig)
Resistance (R): 200.0 Ohm , ±(0.8percent + 10dig)
2.0000k Ohm 20.000k Ohm 200.00k Ohm 2.0000M Ohm , ±(0.3percent + 5dig)
20.000M Ohm , ±(0.5percent + 5dig)
Capacitance (F): 2.00nF 20.0nF 200nF 2.00microfarad 20.0microfarad 200microfarad 2.00mF 20.0mF, ±(3.0percent + 10dig)
Frequency (Hz): 200.00Hz 2.0000kHz 20.000kHz 200.00kHz 2.0000MHz 20.000MHz, ±(0.1percent + 5dig)
Duty Cycle: 0.1percent 99.9percent (Typical: Vrms=1V, f= 100Hz), ±(1.2percent + 3dig)
0.1percent 99.9percent (≥1 kHz), ±(2.5percent + 10dig)
Analog Bandwidth: 1kHz
Sample Mode: Real time sample
Real Time Sampling Rate: 5.0MSa S
Channel: 1
Input Impedance: 10M Ohm
Maximum Input Voltage: 1000V
Maximum Sample Current: 1000A
Scan Speed: 2.5Microsecond div 10S div
Time Base Accuracy: ±(0.01percent +0.1div)
Sensitivity: 30mV div 500V div
Displacement Range: ±3 grid
Sensitivity Accuracy: ±(5percent +0.2div)
Measurement Value: Rms, Period, Freq, Max, Min, PK PK, Avg
Trigger Mode: Auto
Trigger Type: Rise, Fall
BT Communication: A smart phone can be used to view the measurement data of the multimeter on the mobile phone side, perform remote control, display data charts, and store the measurement data in CSV format.
Automatic Shutdown: When all functions are not used, the meter will automatically shut down in about 10 minutes.(the default is 10 minutes of automatic shutdown when starting, which can be canceled)
Display Mode: DMM or OSC
Ture RMS: √
Return Zero Measurement: √
Input Protection: √
Digital Hold: √
Backlight Function: √
Low Battery Indication: √
Battery: Single section 3.7V
LCD Size: 2.8 inch LCD
Item Size: 248 * 94.5 * 37.8mm 9.76 * 3.72 * 1.49in
Package Weight: 820g 1.81lb
Package Size: 31 * 13.3 * 8.4cm 12.2 * 5.24 * 3.31in
Package List:
Package List:
1 * Clamp Meter
1 * Test s
1 * Charging Cable
1 * Cloth Bag
1 * Packaging Box
1 * User Manual (English)
