【Voltage Compatibility】
When using electrical appliances, please note that they are designed for Japanese voltage specifications (90-110V), so if you use them with a different voltage, it may cause a malfunction.
【Plug Type】
Our products use Japanese plug types (A or B type).
Please use a conversion adapter if necessary.
【Important Note on Transformers and Adapters】
A transformer adjusts voltage to match your device’s requirements.
A conversion adapter only changes the plug shape and does not adjust voltage.
Using only a conversion adapter without a transformer may result in damage to the product.
【Liability】
We are not responsible for malfunctions or damages caused by improper use, such as operating the product without a transformer.
----------------------------------------------------------------------
[Japanese support] We provide Japanese-speaking customer support and technical support, providing our customers with an excellent and secure user experience.

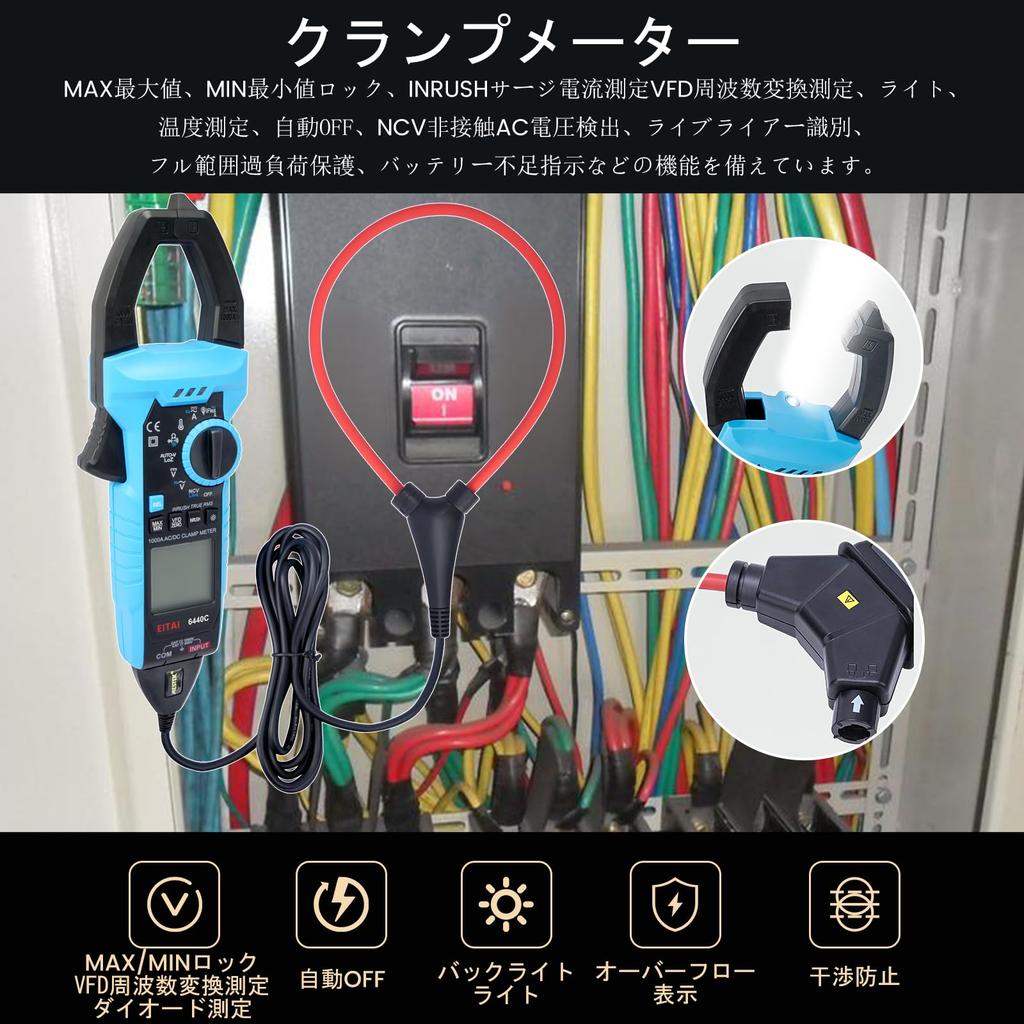

Versatile and Flexible: The EITAI6440C clamp meter comes with iFlex flexible clamps, expanding its AC current measurement range to 3000A. The adaptable probes accommodate a variety of conductor sizes, making it ideal for a variety of industrial, commercial, and residential applications.
True RMS and Low Impedance (LOZ) Voltage Measurement: True RMS technology and automatic AC/DC voltage recognition ensure accurate measurements even in noisy environments. Low Impedance (LOZ) mode prevents false readings caused by ghost voltages.
【Advanced Features】The EITAI6440C digital multimeter can measure AC/DC current, voltage, resistance, capacitance, temperature, diode, and continuity. Additional features include intake inrush current detection, VFD frequency conversion measurement, NCV non-contact voltage detection, live wire identification, and MAX/MIN value lock function.
[Safety and Convenience] Equipped with automatic power-off, low power indicator, built-in flashlight, and full-range overload protection, this tool prioritizes user safety and operability. Its compact design and large (42mm) clamp allow for comfortable use even in tight spaces, making it user-friendly.
[For Professionals] Integrating the functions of a leak clamp meter and a multimeter, the advanced MCU processor ensures fast and reliable measurements, making it the ideal portable and efficient electrical diagnostic tool for electricians, technicians, and DIY enthusiasts.
EITAI6440C Digital Clamp Meter Technical Parameters
Basic Features:
DC voltage measurement range: 600mV/6V/60V/600V/1000V ±(0.8%+3）
AC voltage measurement range: 6V/60V/600V/750V ±(1.0%+5）
DC Current Measurement Range: 60A/600A/1000A ±(2.5%+10）
AC Current Measurement Range: 60A/600A/1000A ±(2.5%+10）
Flexible clamp measurement range: 3000A ±(3%+5）
Resistance measurement range: 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ ±(1%+3）
Capacitance measurement range: 600nF/6μF/60uF/600uF/6mF/60mF ±(3%+20）
Temperature measurement range: -20°C to 1000°C ±(1%+4）
Auto Range: √
Display: True RMS
Overload protection: √
Automatic shutdown: Approximately 10 minutes (auto-off function can be disabled)
Diode test: Can measure LED operating voltages of 2.5V or less
NCV (live line) detection: √
Short circuit buzzer function: √
Low voltage indication: √
Input impedance: Approximately 10MΩ
Data hold function: √Clamp opening size: Maximum measurable wire diameter Φ42mm
General specifications
Power supply: 3 AAA batteries
Weight: Approx. 368g (excluding batteries and accessories)
Dimensions: 250mm x 85mm x 45mm
Standard accessories: Clamp meter: 1pc; Test leads: 1 pair; Temperature sensor: 1pc; Tool kit: 1 set *Due to import regulations and customs reasons, this product does not include batteries, please prepare them in advance. Note: The color of the actual product may differ from the photo due to lighting. There may be slight deviations in product measurements.
