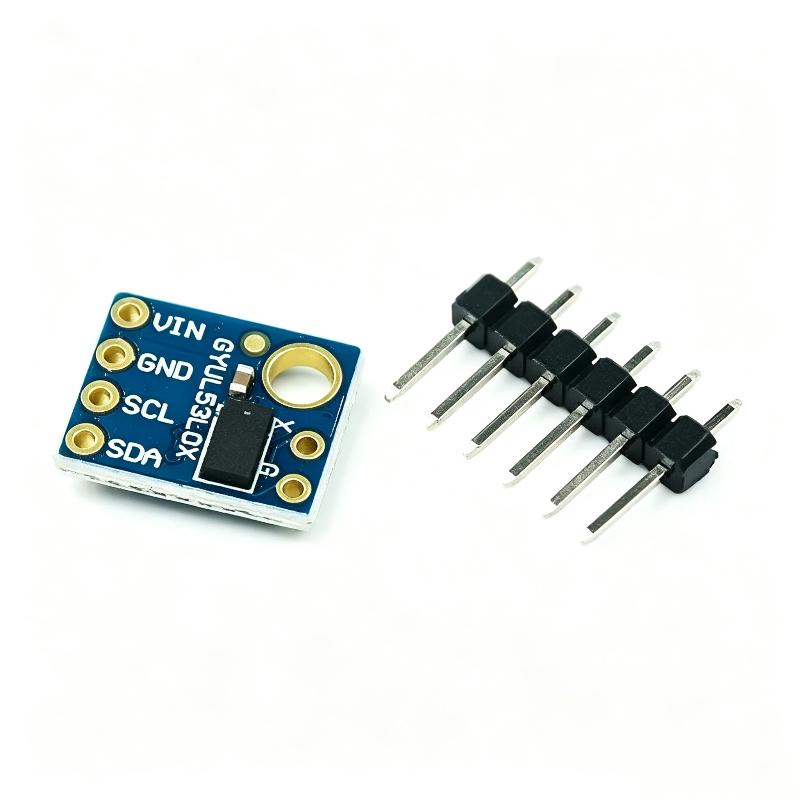

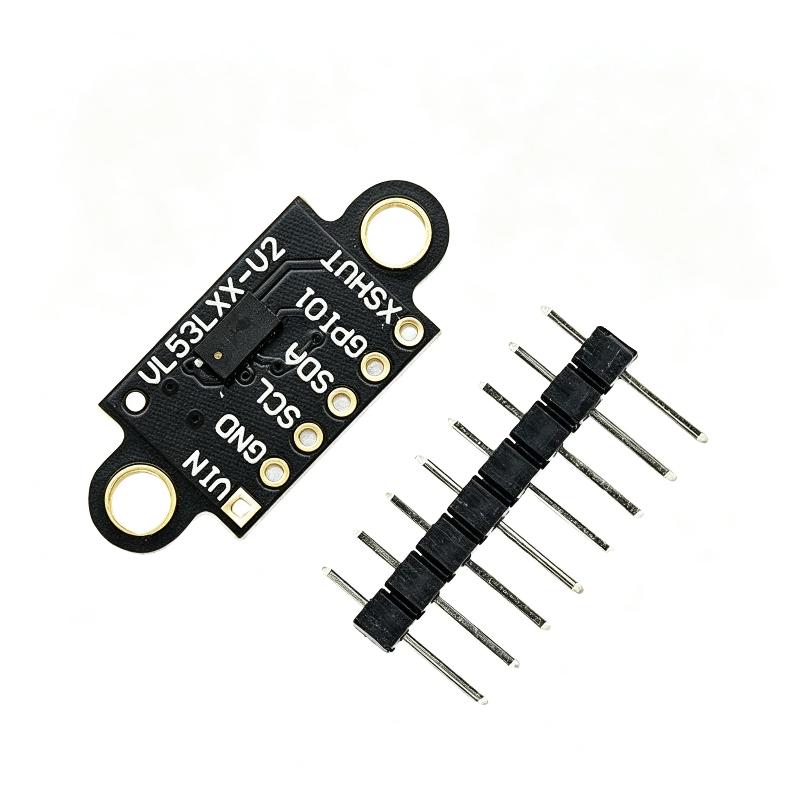

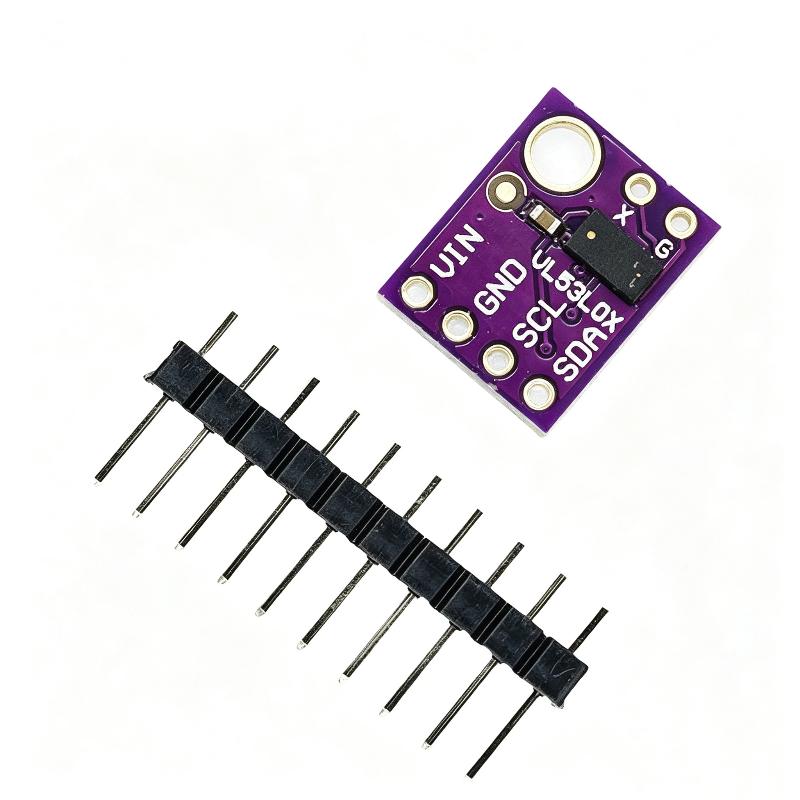

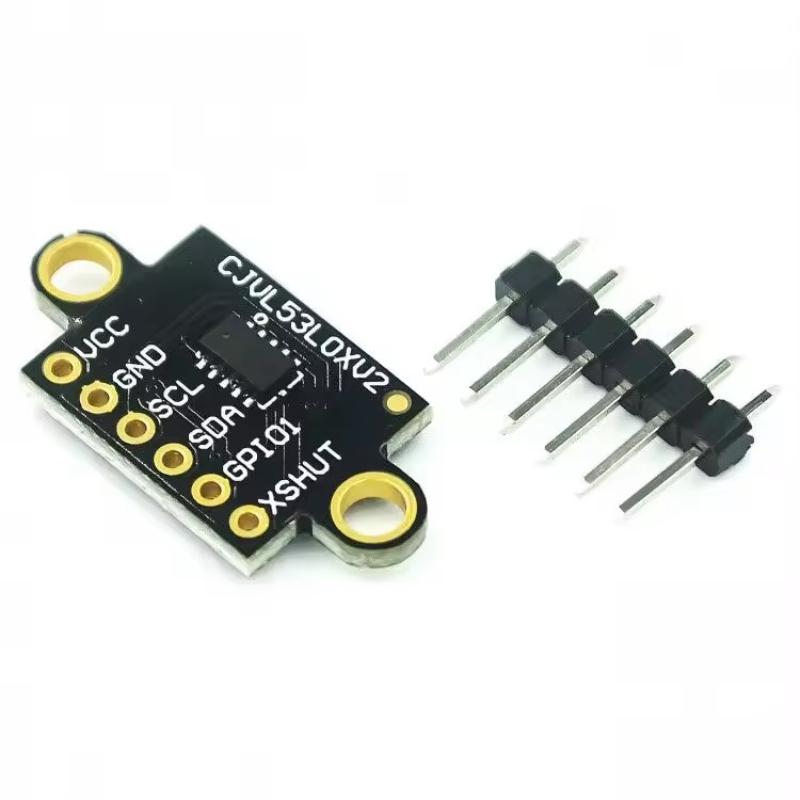

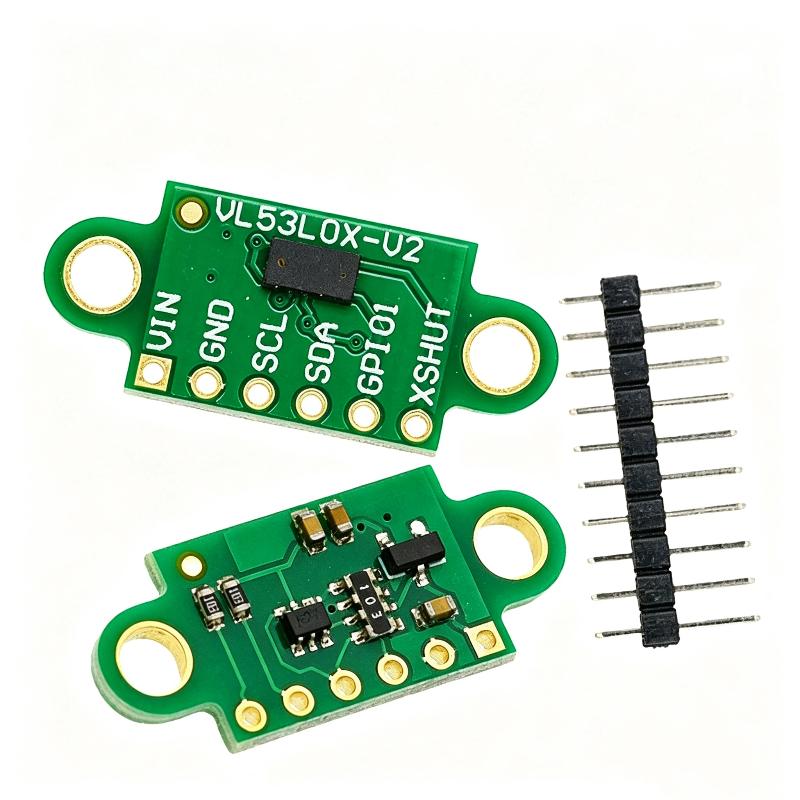

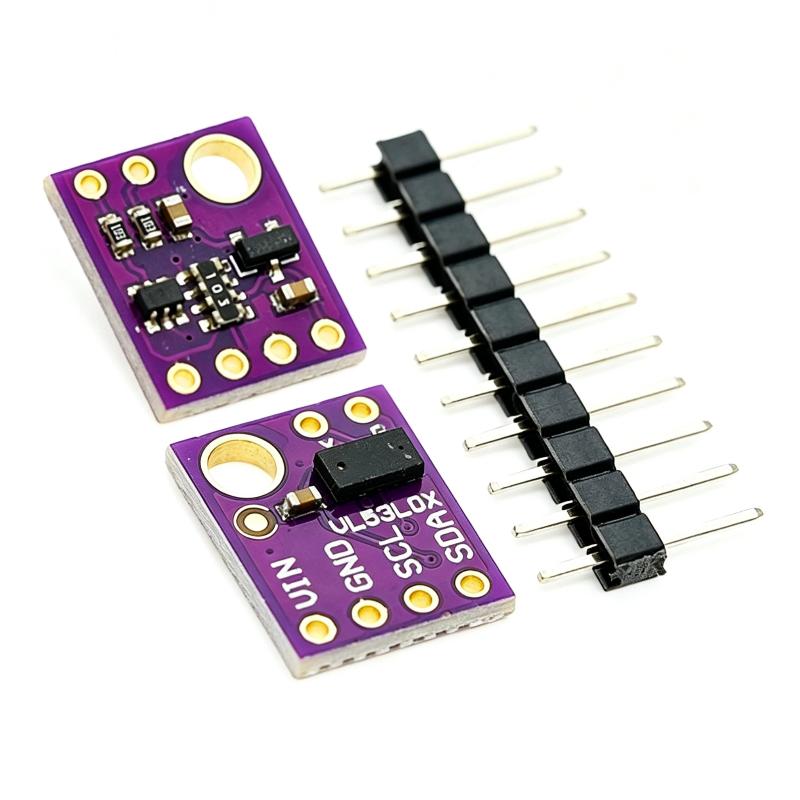

1 Set Breakout 940Nm Gy-Vl53L0Xv1 Laser Distance Vl53L0X Time-Of-Flight Tof Laser Ranging Sensor

Description: VL53L0X Time-of-Flight (ToF) Laser Ranging Sensor Module Kit, integrated high-precision distance measurement performance, ideal for electronic development, robotics, smart home and various DIY innovation projects. Features: 1. High-Precision Ranging Performance: Built-in STMicroelectronics VL53L0X ToF sensing chip with SPAD (Single Photon Avalanche Diode) array, supports 30mm to 2000mm non-contact distance measurement with ±3% accuracy, returns consistent results regardless of target reflectivity. Users can obtain stable, reliable distance data to meet all kinds of precision ranging demands. 2. Low-Power & Eye-Safe Design: Equipped with 940nm VCSEL (Vertical-Cavity Surface-Emitting Laser) emitter and built-in physical infrared filter, meets Class 1 laser safety standard (IEC 60825-1), features 20mA typical working current and 5μA ultra-low standby current, with strong ambient light interference resistance. It is safe for long-term use, fits battery-powered portable devices, and maintains stable performance even in outdoor scenarios. 3. High Compatibility & Easy Integration: Adopts high-quality FR-4 glass fiber PCB substrate with standard I2C communication interface, supports 3.3V-5V power input, reserves GPIO and XSHUT pins for programmable I2C address setting, and is compatible with mainstream development boards such as and STM32. Users do not need complex circuit design, can quickly embed the module into various projects, effectively reducing development threshold and cycle. 4. Stable & Durable Structure: Uses immersion gold process PCB board and matched gold-plated pin headers, features wear resistance, oxidation resistance, stable electrical conductivity, works normally within -20℃ to 70℃ operating temperature range with strong anti-interference ability. It maintains stable performance after long-term use, adapts to complex working environments such as industrial sites and outdoor scenes. 5. Cost-Effective Multi-Spec Kit: Contains VL53L0X modules with different specifications, covers various development needs, the pin headers can be directly soldered for immediate use. Users can meet multiple project development demands with one purchase, no need to buy different specification modules separately, effectively saving procurement cost. Specifications: Category: Electronic Components > Sensor Modules > Laser Ranging Sensors Material: FR-4 PCB, ST VL53L0X sensing chip, 940nm VCSEL laser, gold-plated copper pin headers Size: About 3*3cm Color: As picture Quantity: 1 set Note: 1. Please note that the photo does not show actual size, please refer to Description for size details. 2. Please allow differences due to manual measurement, thanks. 3. Due to the difference between different monitors, the image may not reflect the actual color of the item. The merchant warrants that their products comply with all applicable laws, and are offered only if they comply with Joom's policies and EU Product Safety and Compliance laws.
