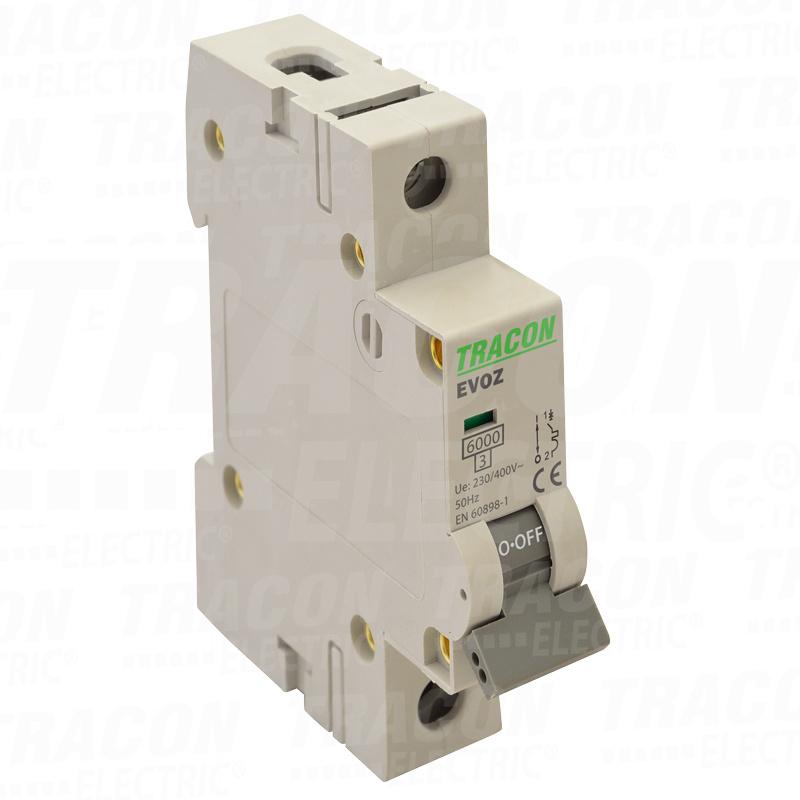

Circuit Breaker C 20A 1P Tracon

C Circuit Breaker 20A 1P TRACON

A C-characteristic circuit breaker is a protective device used in electrical installations that detects and trips circuits in the event of overloads or short circuits. The C-characteristic means that the circuit breaker is capable of detecting and tripping circuits with overload currents 5 to 10 times greater than the nominal rated current. The C-characteristic of a circuit breaker is defined by safety standards and regulations, such as the PN-EN 60898-1 standard. The C-characteristic circuit breaker is commonly used in installations with high-start loads, such as electric motors, transformers, capacitors, or loads with large, fixed capacitance. Circuit breakers with the C-characteristic are also frequently used in residential and commercial installations, where loads with varying starting values ​​are typically encountered. EVOZ1C20 20

Technical data:

Tripping characteristic: C

Number of poles (total): 1

Number of poles: 1

Rated current: 20 A

Rated voltage: 230 V

Rated insulation voltage Ui: 500 V

Rated impulse withstand voltage Uimp: 4 kV

Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V: 6 kA

Voltage type: AC

Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V: 6 kA

Frequency range: 50 - 60 Hz

Flush mounting: Yes

N pole simultaneously disconnected: No

Possibility of additional equipment: Yes

Width expressed in number of modules: 1

Ingress Protection (IP): IP20

Ambient temperature during operation: - 25 - 55 °C

Connectable solid wire cross-section: 1 - 25 mm²
