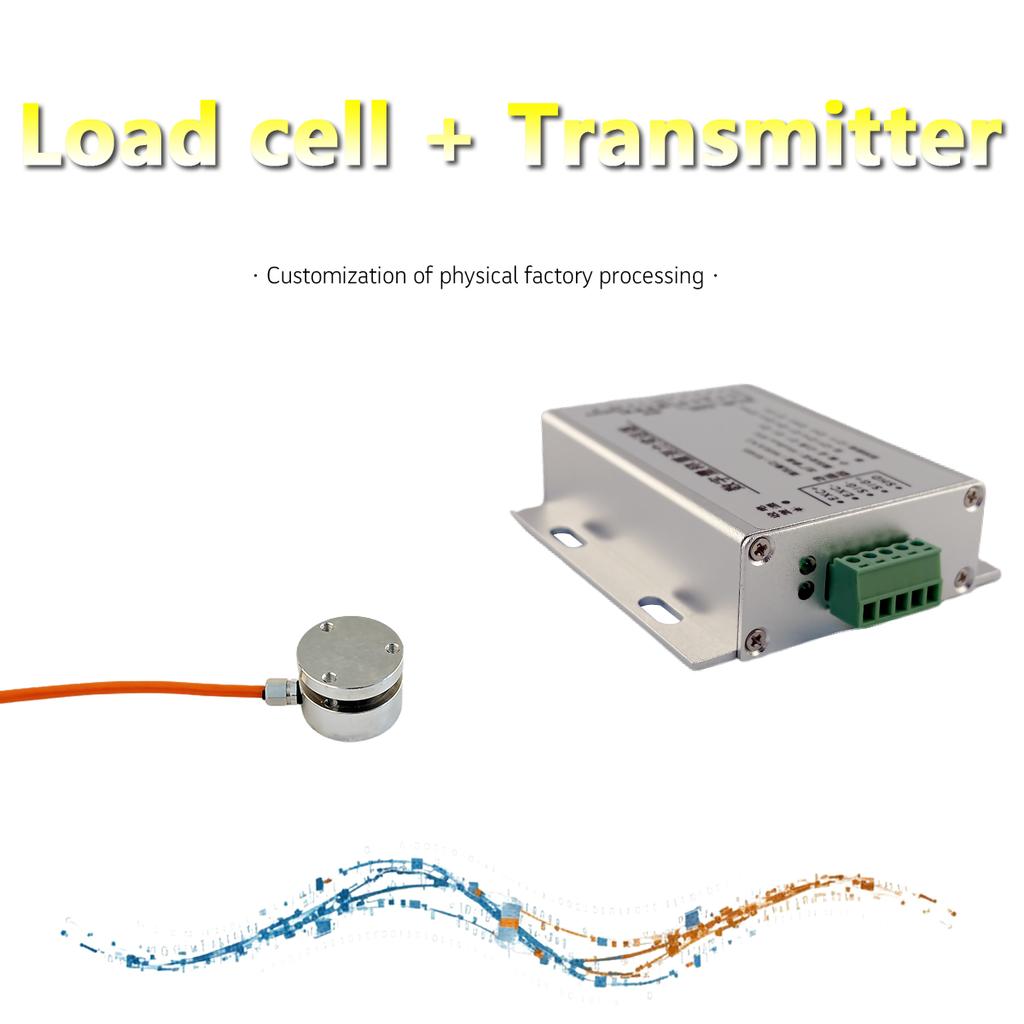

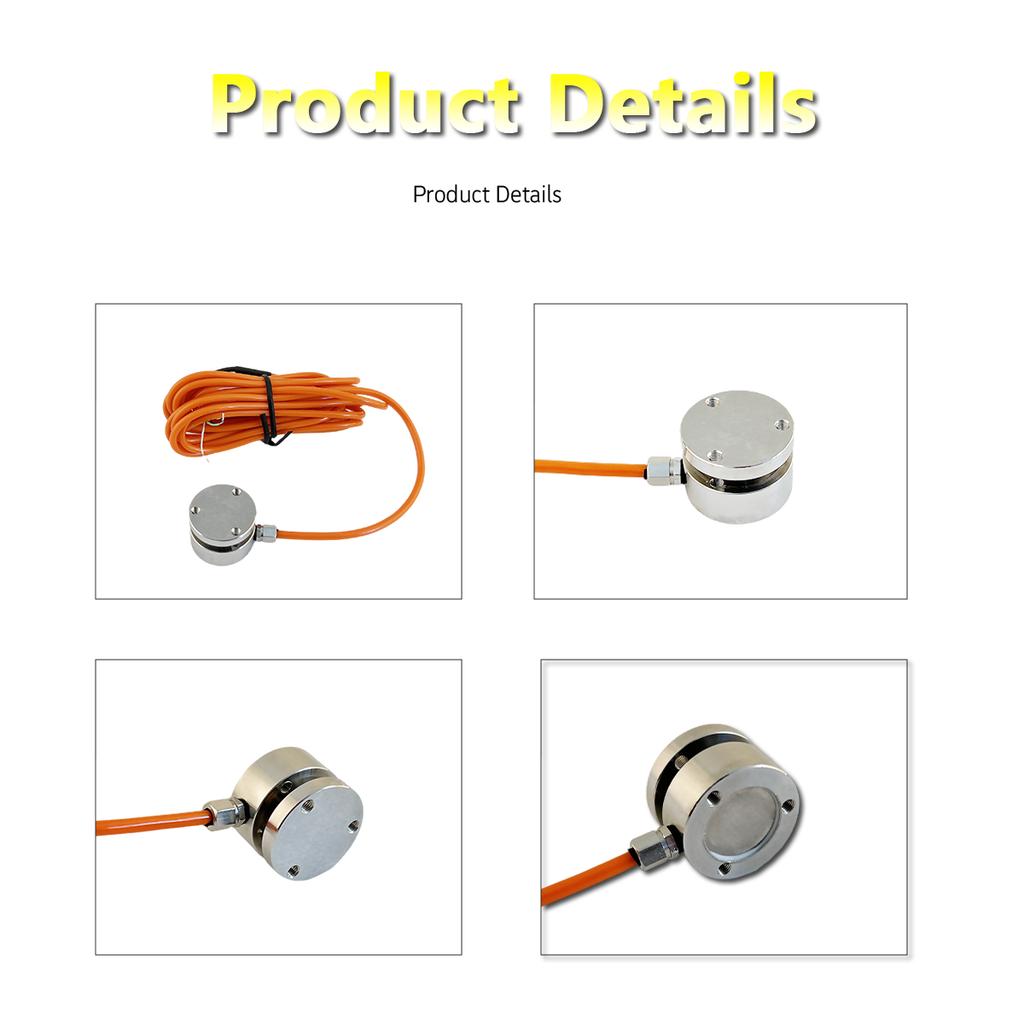

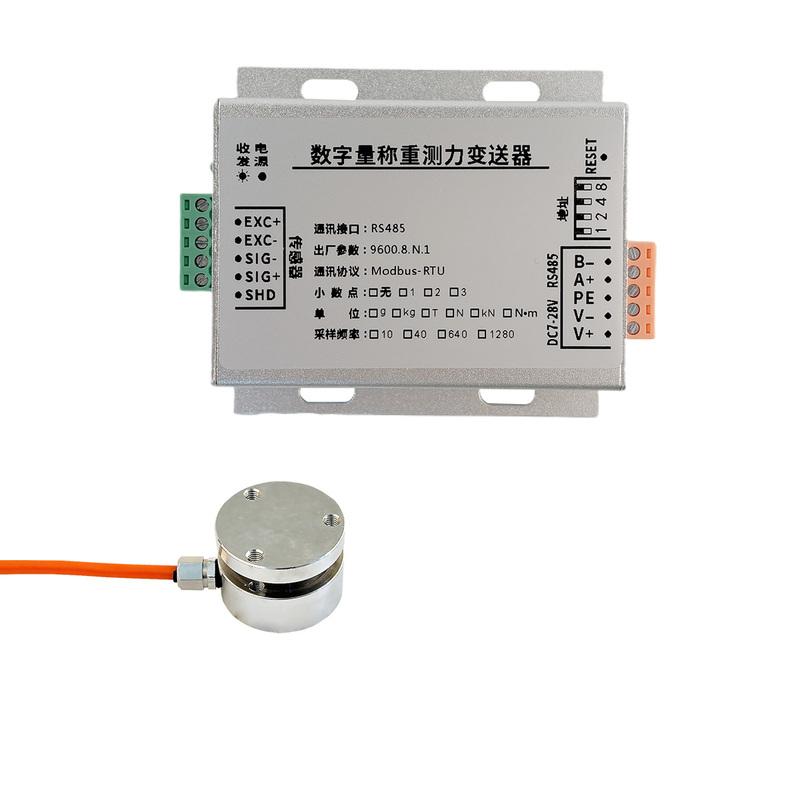

Miniature Load Cell with RS485 Digital Transmitter Modbus-RTU Output High Precision Pressure Sensor 500kg 1000kg 2000kg

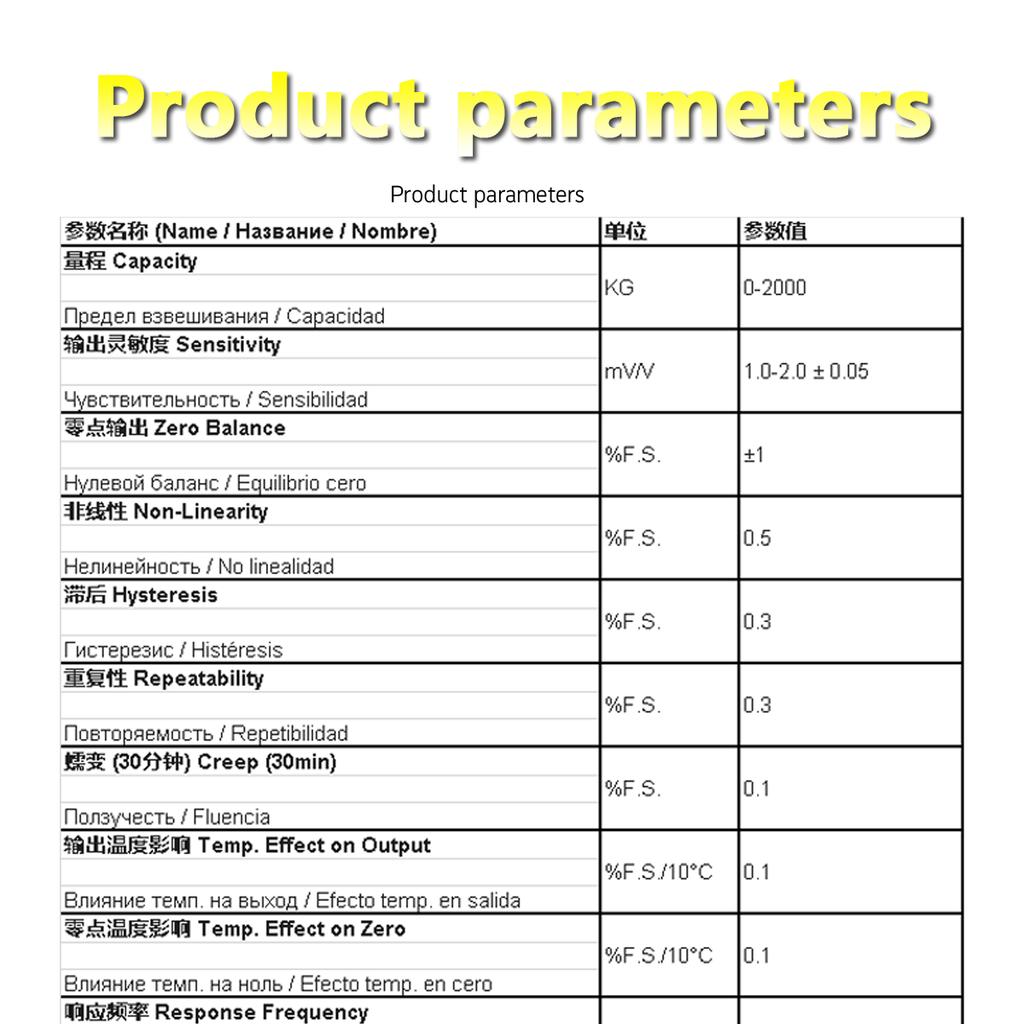

High-concerned chemical：None isCustomized：Yes Theory：Resistance Sensor Material：Metal Type：Optical-Electronics Sensor Output：Analog Sensor Brand Name：BENGBUZZYQ Origin：Mainland China Use：Pressure Sensor Rated load：0kg~5T Sensitivity：1.0-2.0±0.05 mV/V Non-linearity：0.5%F.S. Lag error：0.3%F.S. Repeatability：0.3%F.S. Creep：0.1%F.S. Zero temperature coefficient：0.1%F.S./10℃ Sensitivity temperature coefficient：0.1%F.S./10℃ Responsefrequency：10kHz Impedance：350Ω 0perating temperature：-20℃~+80℃ Safe overload：150 %F.S Maximum Overload：200 %F.S Incentive voltage：5V~12V Protection class：IP65 IP66 Insulation resistance：≥5000MΩ/100VDC

High-concerned chemical: None isCustomized: Yes Theory: Resistance Sensor Material: Metal Type: Optical-Electronics Sensor Output: Analog Sensor Brand Name: BENGBUZZYQ Origin: Mainland China Use: Pressure Sensor Rated load: 0kg~5T Sensitivity: 1.0-2.0±0.05 mV/V Non-linearity: 0.5%F.S. Lag error: 0.3%F.S. Repeatability: 0.3%F.S. Creep: 0.1%F.S. Zero temperature coefficient: 0.1%F.S./10℃ Sensitivity temperature coefficient: 0.1%F.S./10℃ Responsefrequency: 10kHz Impedance: 350Ω 0perating temperature: -20℃~+80℃ Safe overload: 150 %F.S Maximum Overload: 200 %F.S Incentive voltage: 5V~12V Protection class: IP65 IP66 Insulation resistance: ≥5000MΩ/100VDC
