Zinc Alloy Aviation Male Female Plug WS20 Electrical Power Connector DC Applications

Label:Yes 1. Durable Threaded Connection:Constructed with a threaded connection, the shell is made of chrome-plated zinc alloy and the contacts are gold-plated copper, offering durable, pressure-resistance, temperature-resistance, and corrosi-resistance performance. 5. Suitable for Demanding Environments:This connector is commonly used in aviation, marine, and other sealed electronic equipment or data acquisition systems. 2. Good Protection:The wire aviation connector provides effective electromagnetic and frequency interference (EMI/RFI) protection. 3. Key Specifications:Model: WS20, 3 pins；Contacts Diameter: 2.5×3；Contacts Resistance: ≤1 milliohm；Rated Current/Voltage: 25A / AC 500V；Withstand Voltage: AC 1500V 4. Secure Screw-Fixed Connection:Plug bottom is equipped with a connecting head, using screws fixed, stable and firm, easy disassembly.

Specifications: Item Type: 3 Pin Aviation Connector Material: Zinc Alloy Temperature Range: -40℃-85℃ / -40°F-185°F Mating Times: 500 Number of Pins: 3 Rated Current (A): 25 Contacts Diameter (mm): 2.5x3 Working Voltage (AC, V): 500 Withstand Voltage (AC, V) 1min: 1500 Contacts Resistance (milliohm): 1 Insulation Resistance (megaohm): 2000 Wire Gauge (mm²/AWG): ≤4/11 Insertion method: threaded locking Wiring method: Welding Color: Silver+Black Dimensions: 49 * 26mm(1.93 * 1.02in) and 29 * 29mm(1.14 * 1.14in)

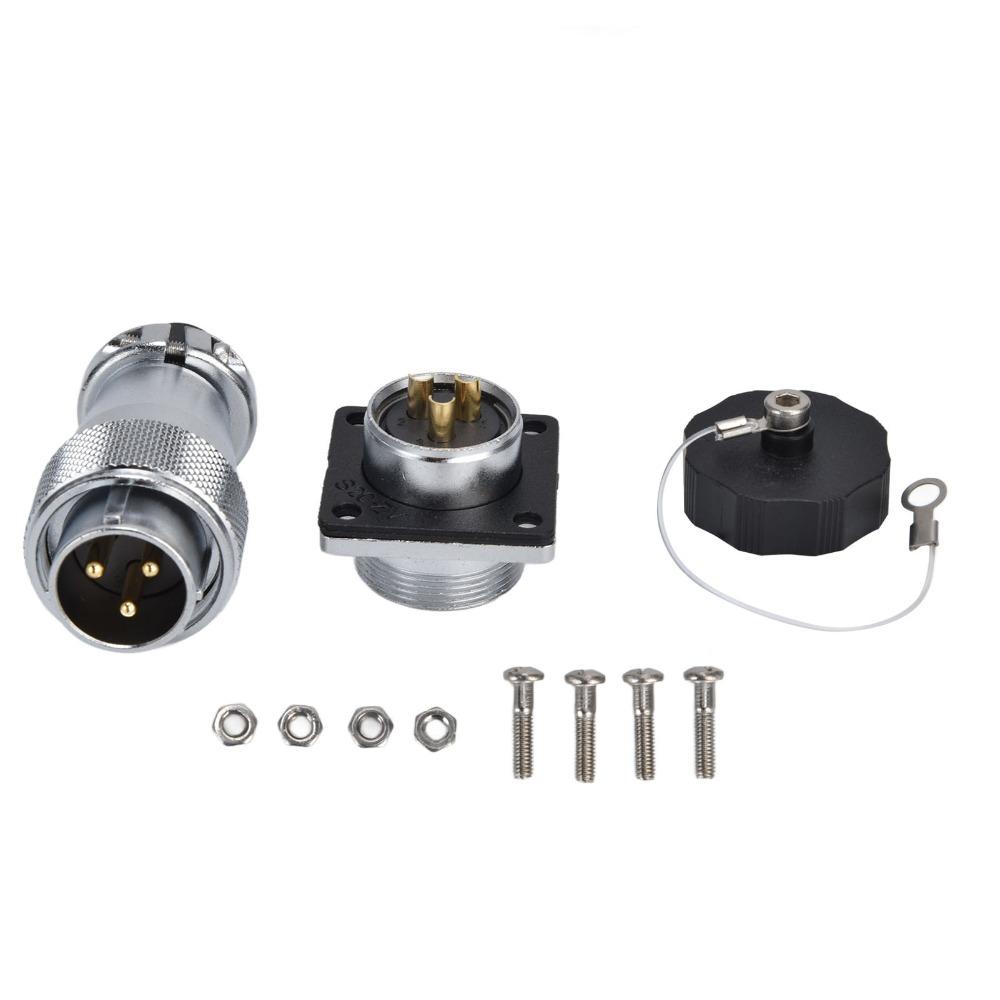

Package List: 1 x TQ Plug 1 x Z Socket 1 x Waterproof Cover 4 x Screw 4 x Nut

Note: 1. Due to the difference between different monitors, the picture may not reflect the actual color of the item. 2. Please allow slight dimension difference due to different manual measurements. Thank you for your understanding.
