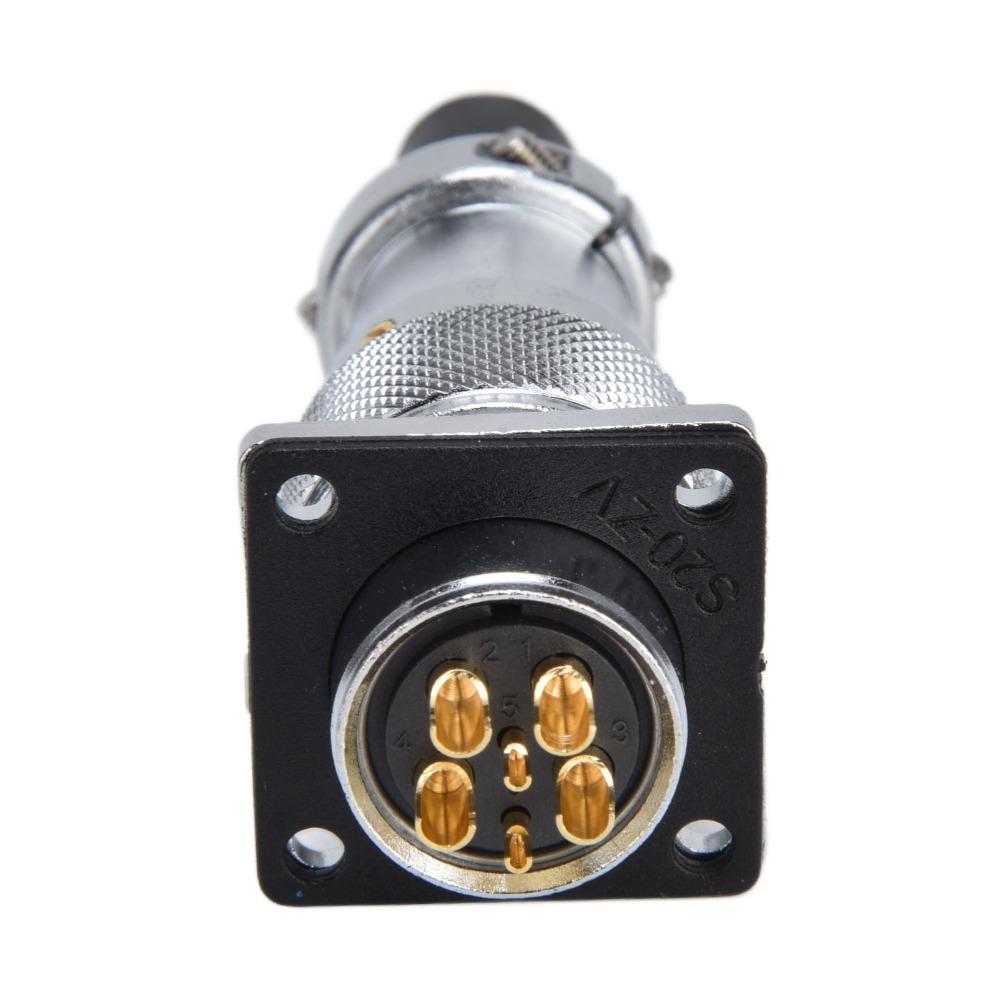

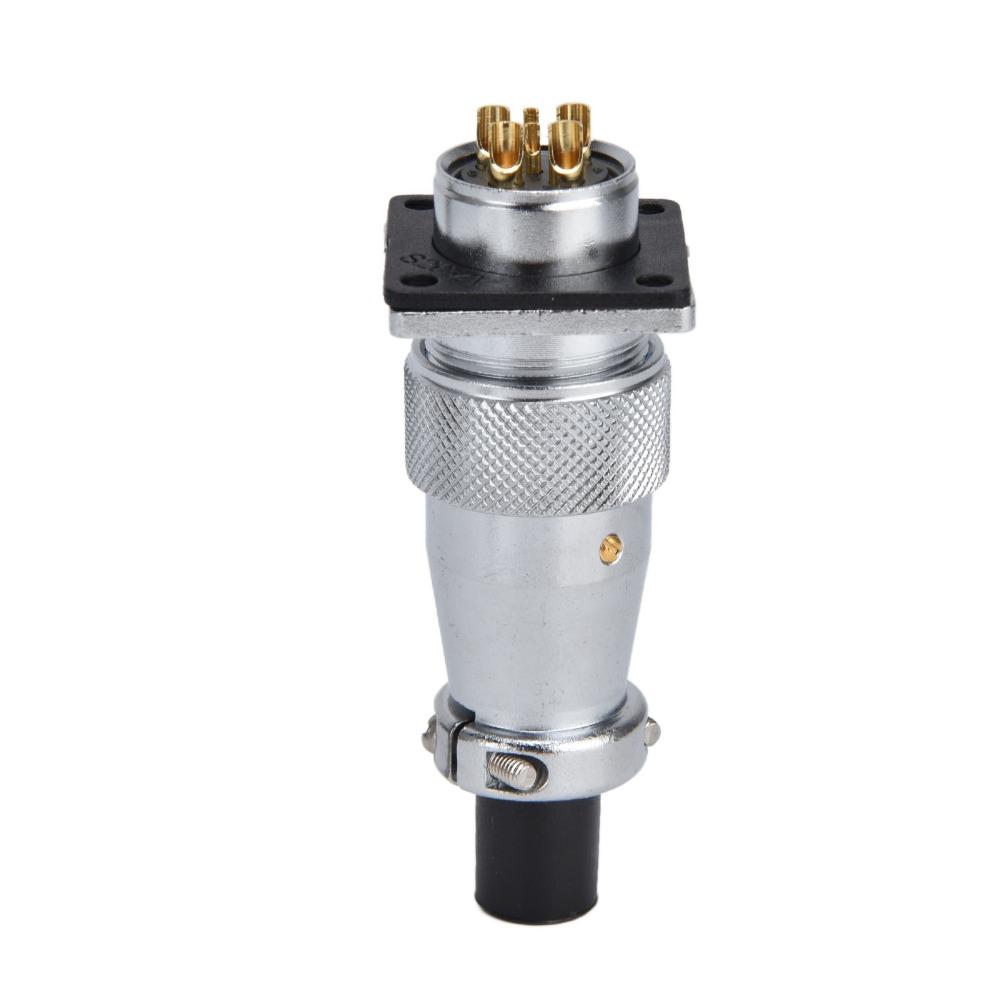

6 Pin Power Connector 500V WS20 Industrial Connector Aviation Plug Socket Industrial Equipment

Label:Yes 4.Simple Installation: Supports both soldering and crimping connections, enabling easy and secure integration into waterproof LED fixtures and industrial equipment. 3.Well Protected: The male plug and female socket have well protected electromagnetic and radi0 frequency interference. With multi core design to fit different industrial needs. 5.Zinc Alloy Material: Zinc alloy material have good tarnishing resistance, smooth surface, good room temperature mechanical properties and wear resistance 2.Specifications:WS20, Pins:6Pin; Terminal resistance: 5.1milliohm ;Rated Current / Voltage : 5 or 25A 500V;Withstand Voltage : AC 1500V; Terminal Diameter: 1x2 mm or 2.5x4 mm 1.Stable Electrical Performance: Possess stable electrical performance, high strength, pressure resistance, high temperature resistance, explosion proof and erosion proof

Specifications: Item Type: 6 Pin Aviation Connector Material: Zinc Alloy Number of Pins: 6 Rated Current (A): 5 or 25 Working Voltage (AC, V): 500 Withstand Voltage (AC, V) 1min: 1500 Terminal Diameter(mm): 1x2, 2.5x4 Terminal Resistance (milliohm): 5, 1 Insulation Resistance (megohm): 2000 Wire Gauge (mm²/AWG): ≤0.75/18, ≤2/14 Mating Times: 500 Temperature Range: -40℃-85℃ / -40°F-185°F Color: Silver Size:49*26mm(1.93*1.02in)/29*29mm(1.14*1.14in)

Package List: 1 x TQ Plug 1 x Z Socket 1 x Waterproof Cover 4 x Screw 4 x Nut

Note: 1. Due to the difference between different monitors, the picture may not reflect the actual color of the item. 2. Please allow slight dimension difference due to different manual measurements. Thank you for your understanding.
