brand new and high quality
Features:
Made of high quality, solid, durable and good performance, long service life.

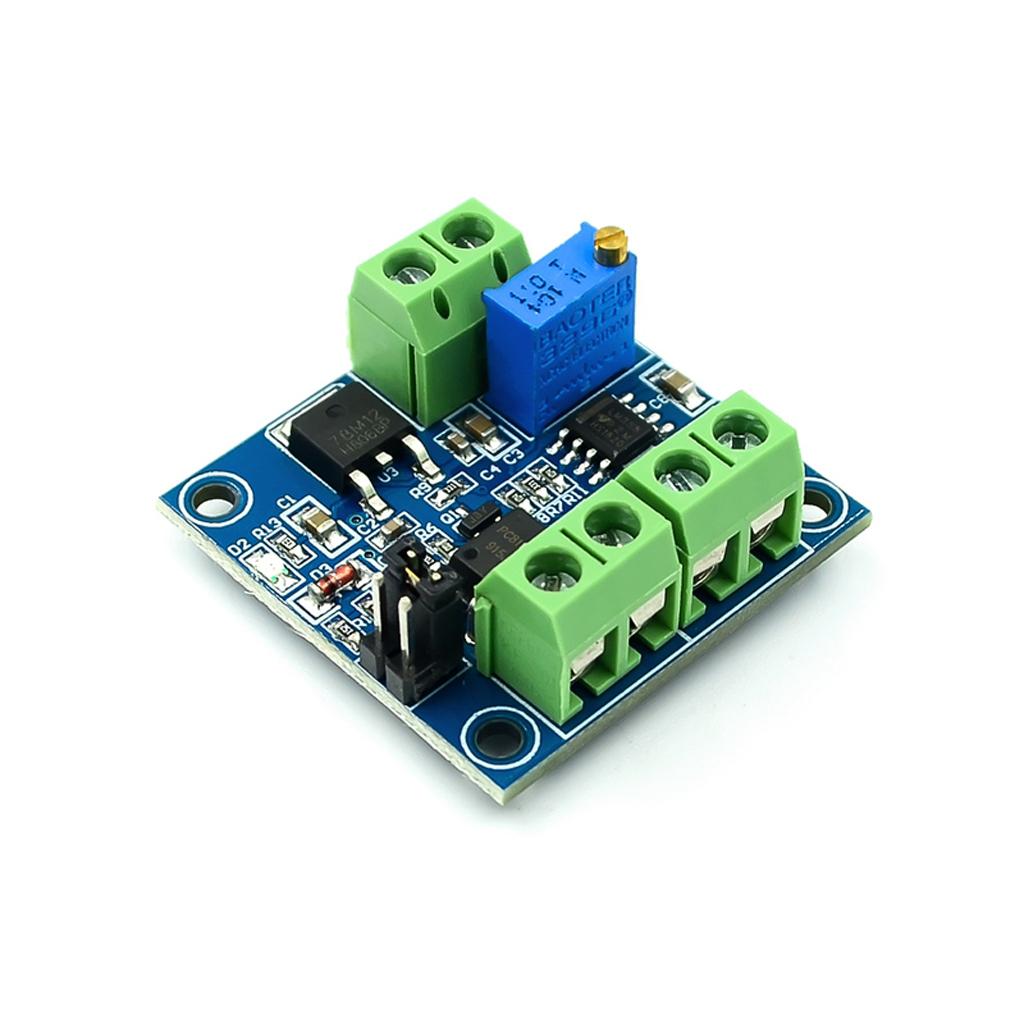

It is designed for converting the PWM digital signals into 0 to 10V analog signals.
The output voltage is regulated by adjusting the duty ratio of the PWM.
Select the PWM signal input level range through short-circuit.
It can be used as signal interface switching for PLC or other industrial control boards.
MCU embedded technology, easy to operate, fine tuned by potentiometer.
Small size and compact, easy to carry and use.
Module only, other accessories demo in the picture is not included.
Specification:
Material: Circuit Board, Electronic Components

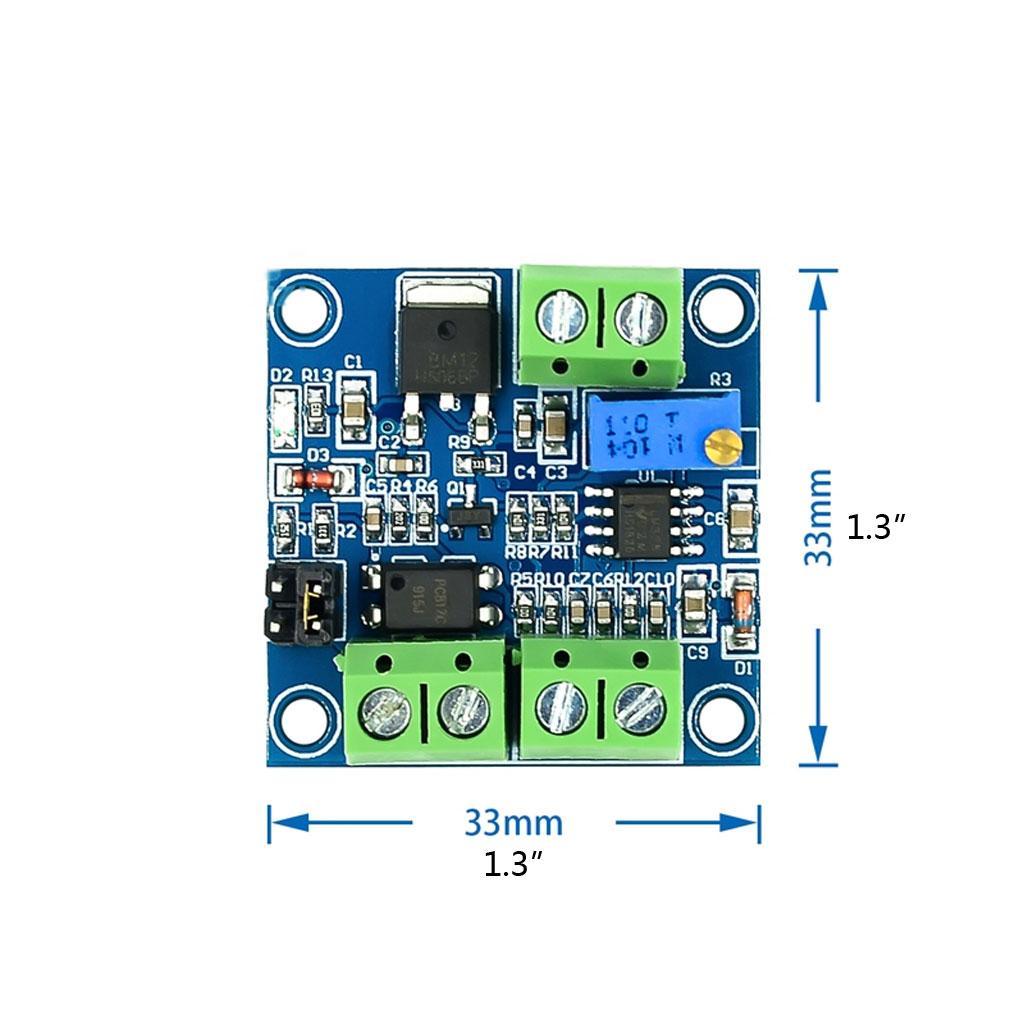

Size: app.3.3 x 3.3cm/1.3 x 1.3in
Color: Blue
Quantity: 1 Pc
Product Parameter:
Work Voltage: for DC 12V-30V (> 100MA)
PWM Receiver Frequency: 1KHZ-3KHZ
PWM Signal Input level range:
The for peak of 4.5V to 10V level. The short cap install in "5V". This level is used for normal controller or 5V MCU
The for peak of 12V to 24V level, so inserted in 24V. The short cap install in ‘24V’. This level is used for normal PLC controller
Conversion Range: 0%- PWM to 0-10V
Allowable Error: 5%
Note:
No retail package.
Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid.
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
Package includes:
1 x PWM to Voltage Converter Module
