PWM to Voltage Converter Module DC12V-30V 0%-100% PWM Conversion to 0-10V Voltage Adjustabl Converter Power Module "Features1: Wide range of applications2: Easy to operate, can be fine-tuned by potentiometer3: The module is small, easy to carry and easy to use;4: Adopt single chip embedded technology;5: Simple and easy to understand Product parameters1. Adopt single chip embedded technology;2. The peak value is 4.5V to 10V level, and the jumper is inserted at 5V. This type of level signal is mainly aimed at the interface of the 5V CPU of the conventional industrial control card (such as MACH3 board);3. Easy to operate, can be fine-tuned by potentiometer;4. Select the PWM signal input level range by short-circuiting;5. The module is small, easy to carry and easy to use;6. Module working voltage: DC12V-30V (power requirements: greater than 100MA);7. PWM signal receiving frequency range: 1KHZ-3KHZ;8. PWM signal input level range:;9. Peak 12 to 24V level, the jumper is inserted at 24V. This type of level signal is mainly aimed at the conventional PLC interface;10. Conversion range: 0%-100% PWM conversion to 0-10V voltage;11. Allowable error: 5%;Package included：1*PWM to voltage module
The line layout is compact and regular, with good electrical insulation and mechanical stability, and can maintain stable performance under different temperature and humidity environments to ensure accuracy and reliability.
In circuit design, carefully planned lines are like precision transportation networks, and lines of different widths and spacings undertake different currents and signals transmission tasks respectively. The key signal lines are impedance matching processing, which greatly reduces signal reflection and attenuation and ensures the stable transmission of high-frequency signals.

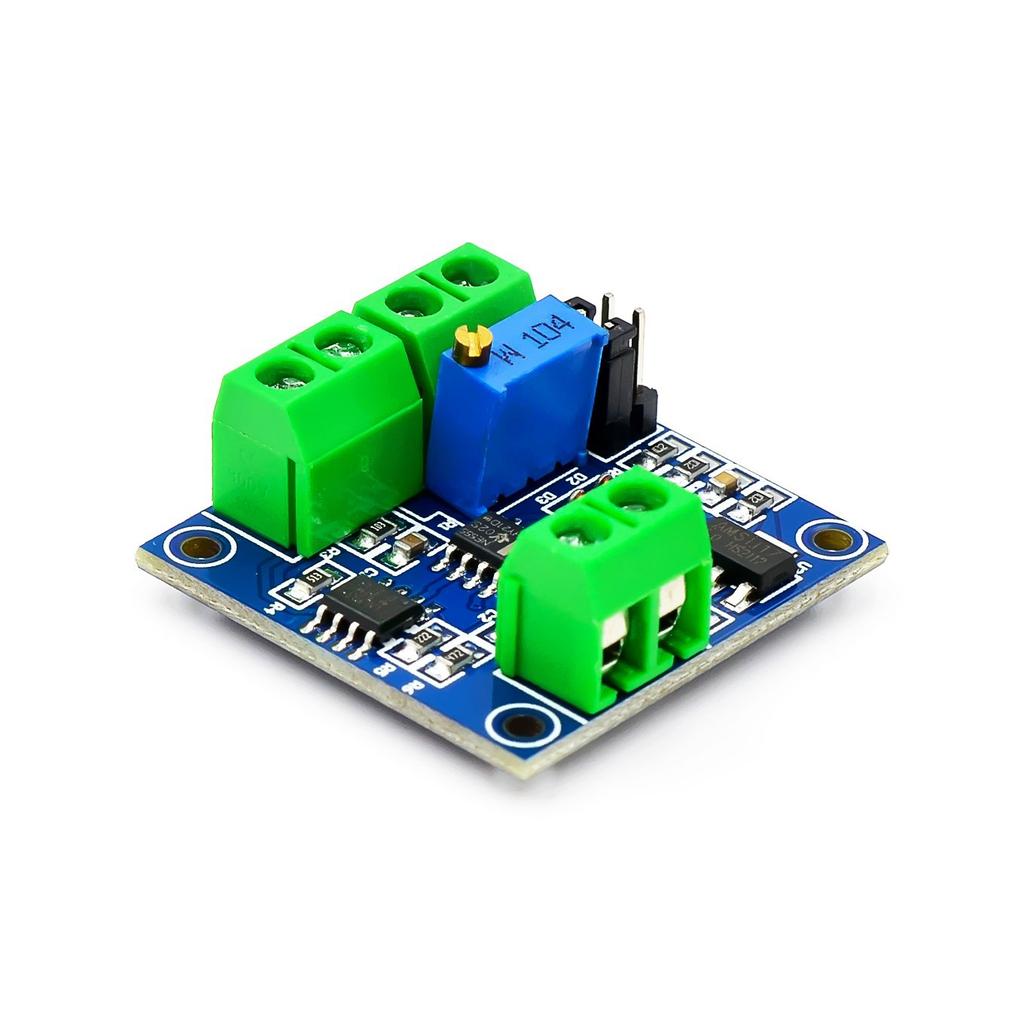

All kinds of electronic components are soldered on the circuit board, and the solder joints are full, round, and firm and reliable. Core components like chips are perfectly connected to the circuit board through fine packaging processes to achieve high-speed data processing and interaction.
