Feature:
1. Clamp current sensor for AC leakage current, current, high harmonic current, phase, electric energy, power, power factor and other detection.
2. The use of clamp structure, no need to disconnect the tested circuit, easy to carry, safe and simple operation, fast, safe and reliable.
3. It can be connected to industrial control devices, oscilloscopes, harmonic analyzers, cable line tester, double clamp ground resistance testers, cable fault testers, and power quality analyzers.
4. Adapt to a variety of output interfaces, such as Φ3.5mm audio plug, BNC plug, 4.0mm double banana plug, aviation plug, bare wire.
5. Permalloy core is more accurate for testing small current. Has strong anti interference ability, to ensure the accuracy and stability of the measurement.
Specification:

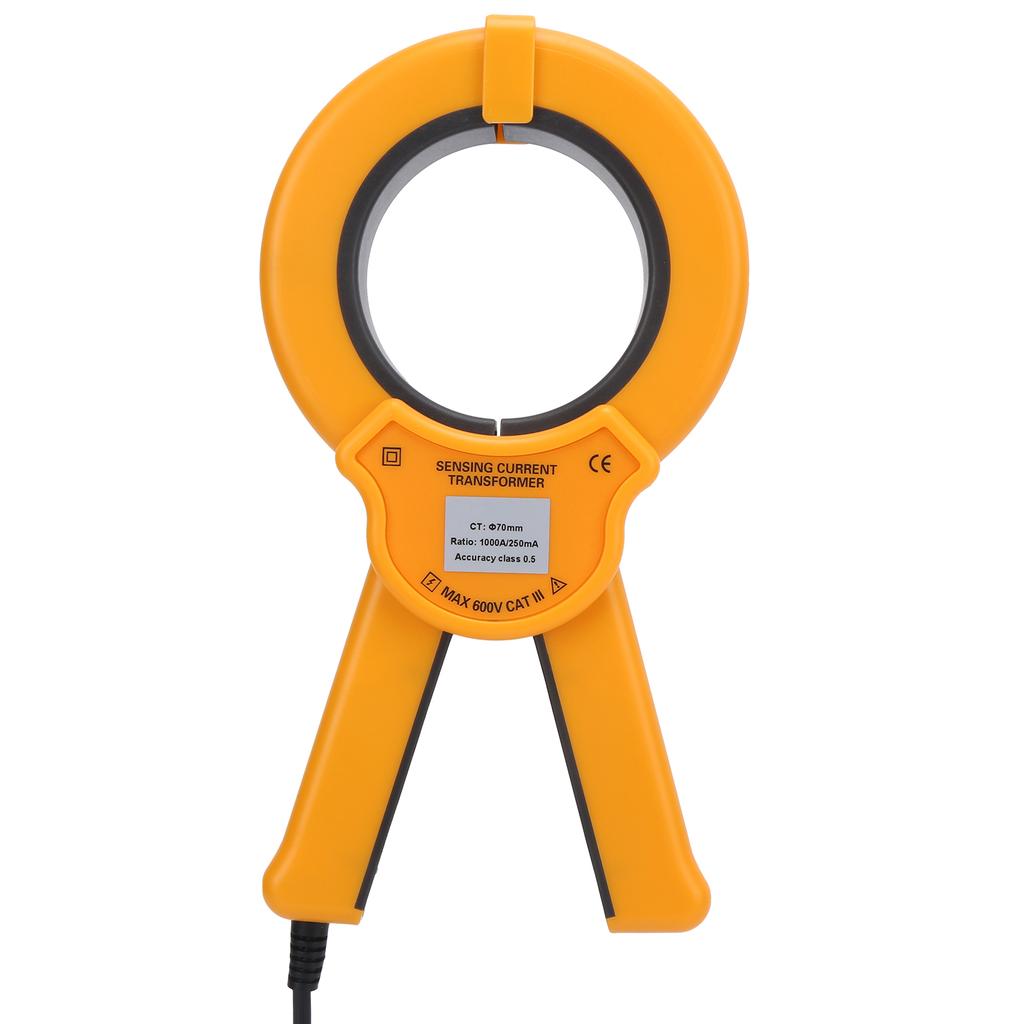

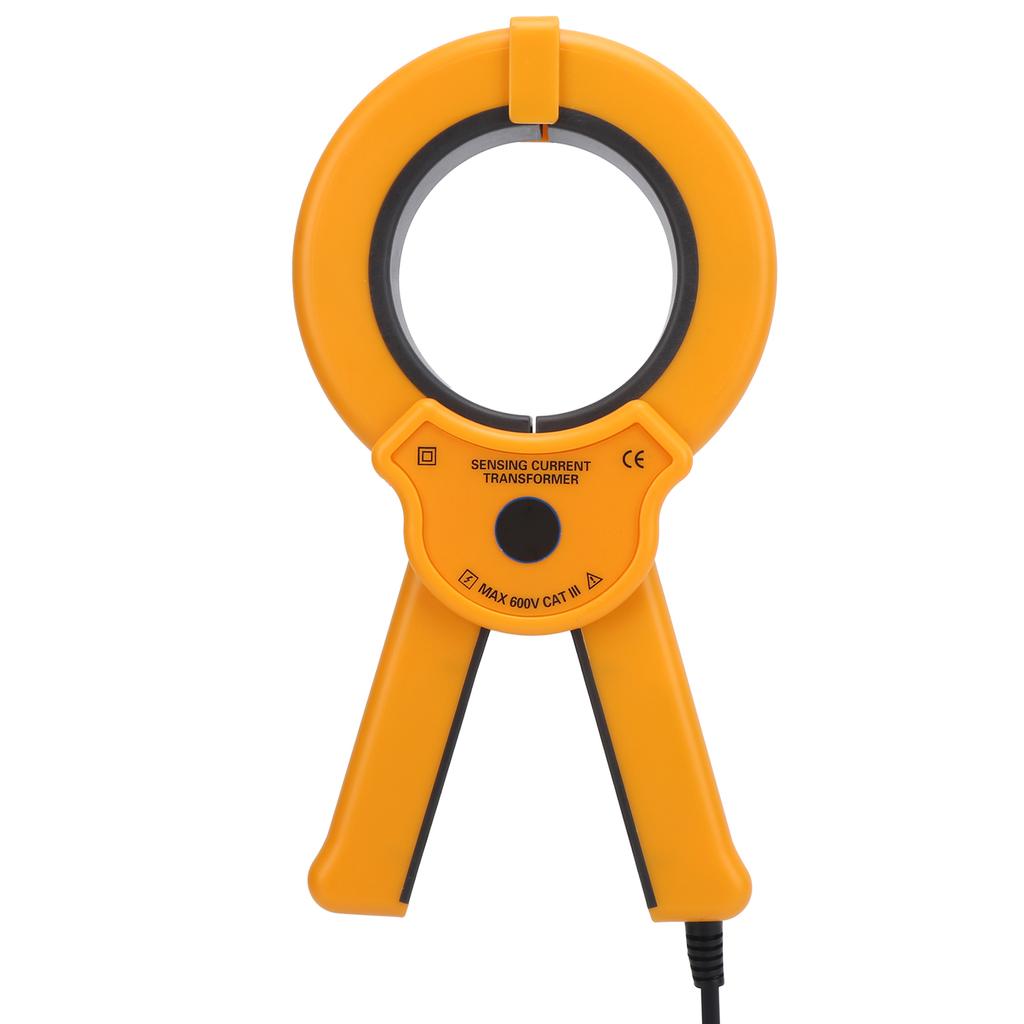

Item Type: Clamp Current Transformer
Material: ABS+Permalloy
Color: As shown in the picture
Model: ETCR070
Application: AC current, high harmonic current, phase, electric energy, power, power factor and other industrial electricity and electricity metering detection.
Industrial control device, oscilloscope, harmonic analyzer, cable line tester, double clamp ground resistance tester, cable fault tester, power quality analyzer.
Input Current Range: 0mA 1000A; output signal: mA A, mV A
Output Interface: Φ3.5mm audio plug BNC plug 4.0mm double banana plug aviation plug bare wire (optional)

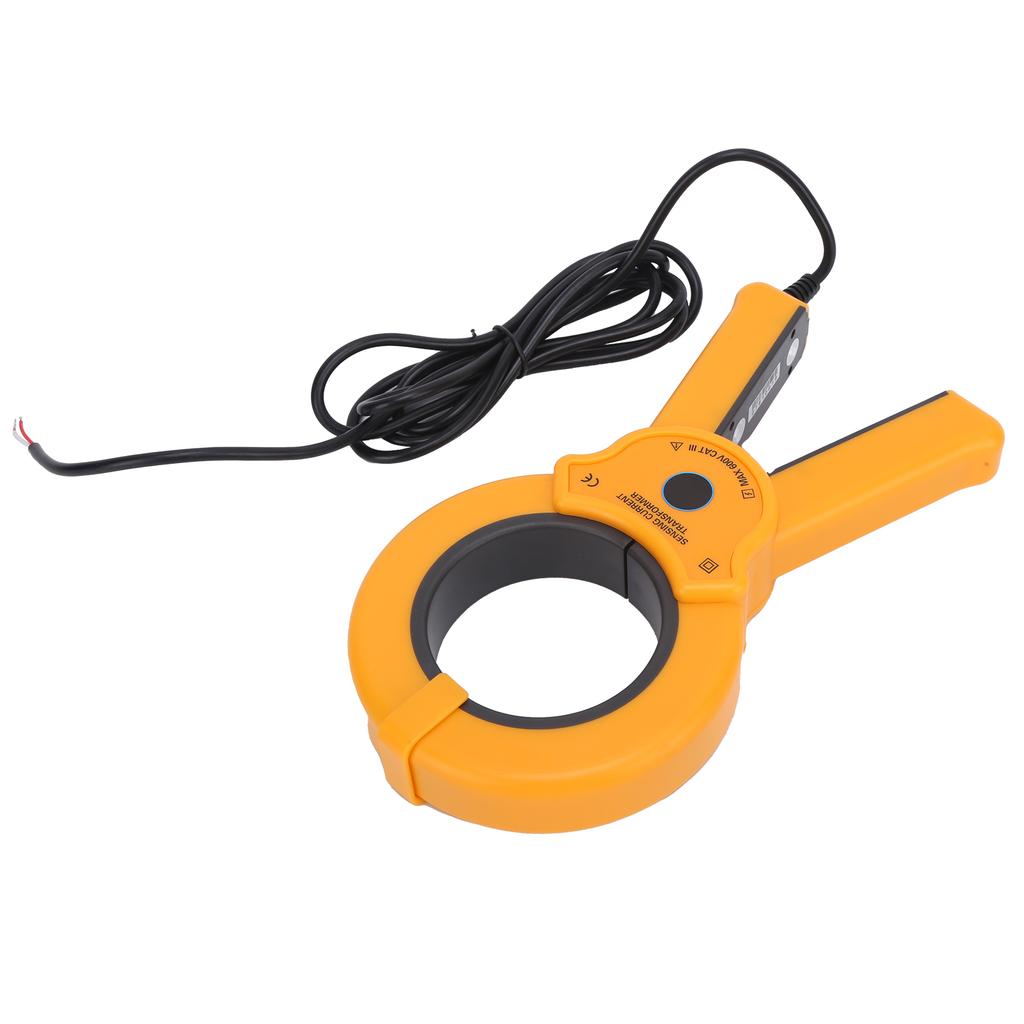

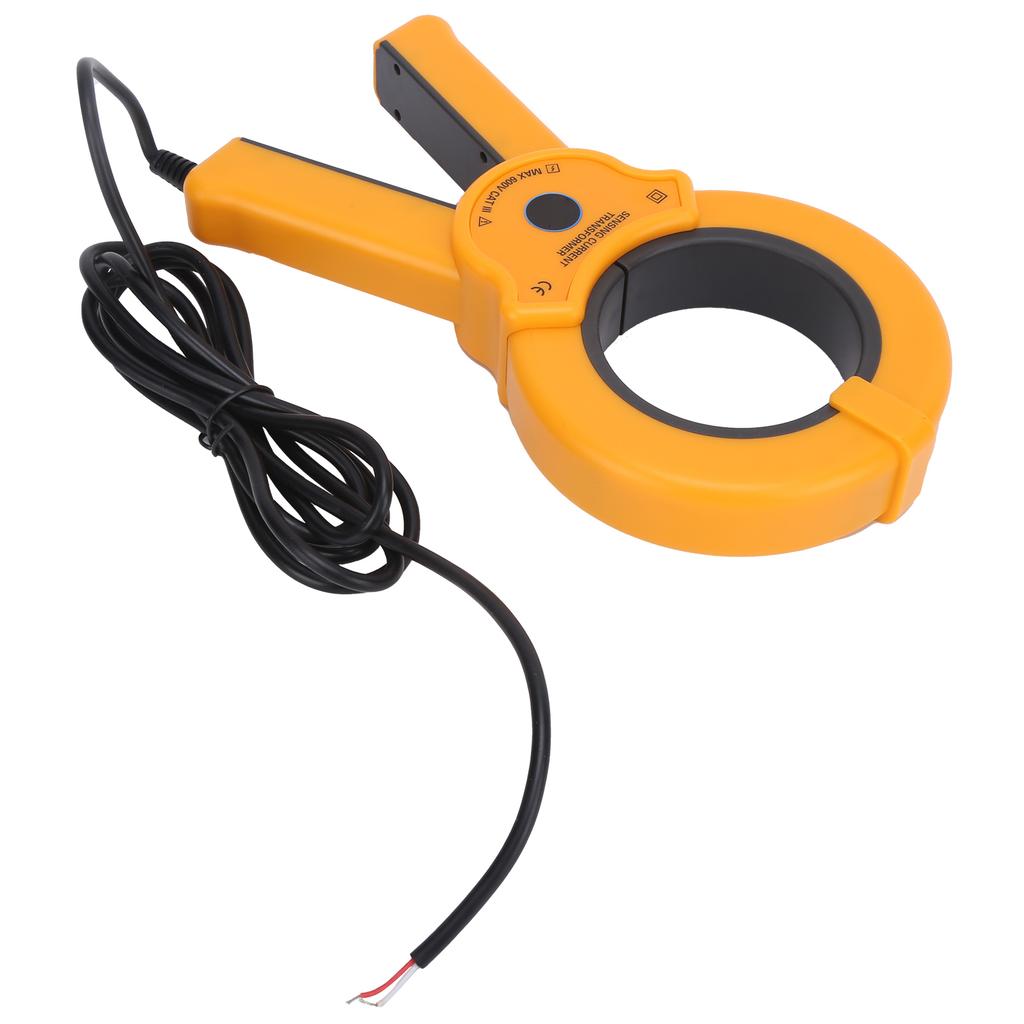

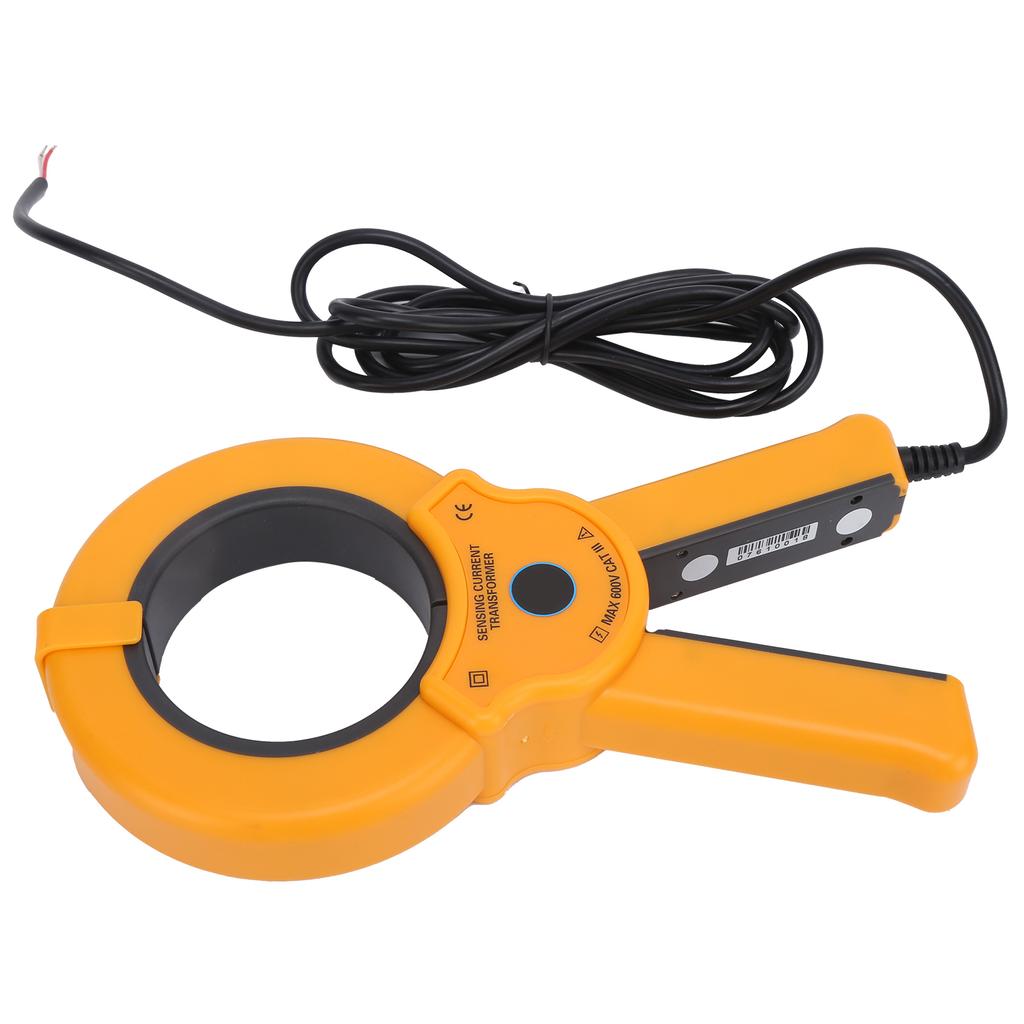

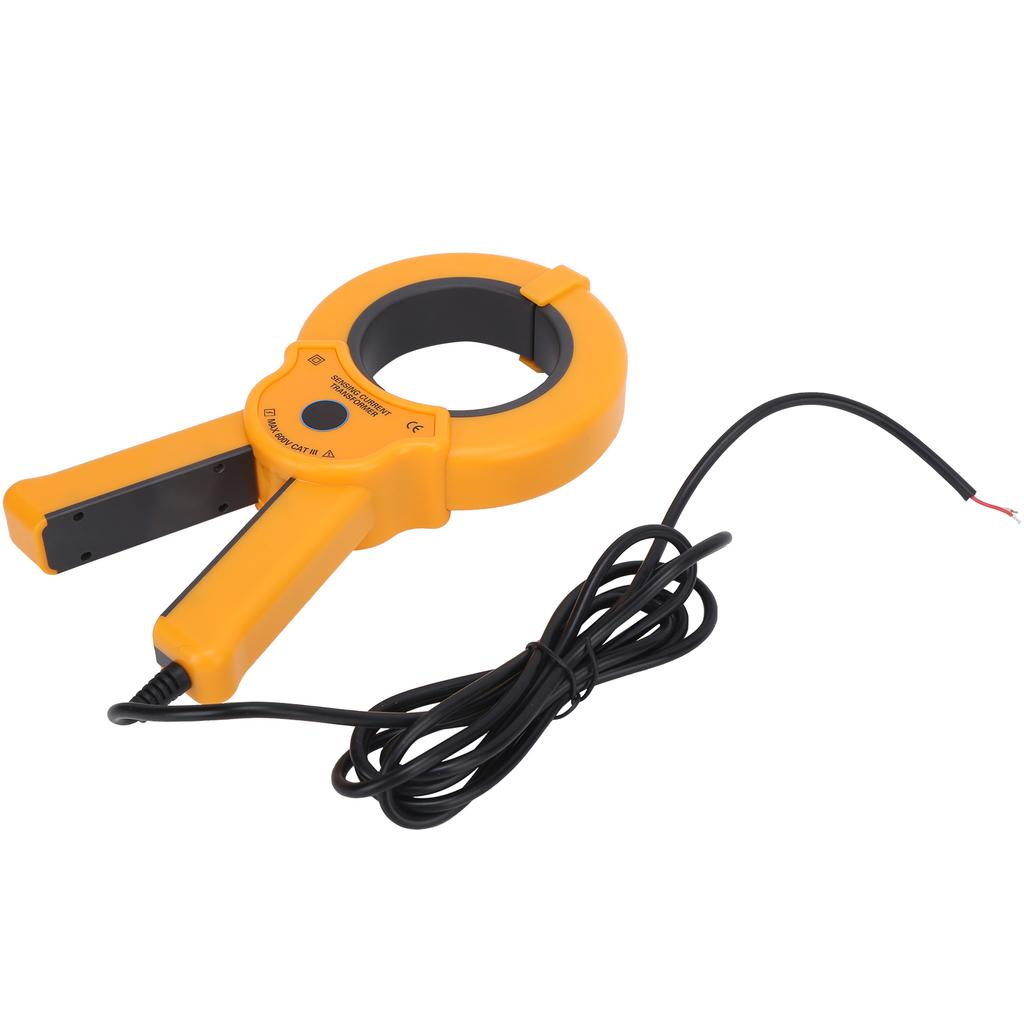

Cable Length: Approx. 2m 6.6ft

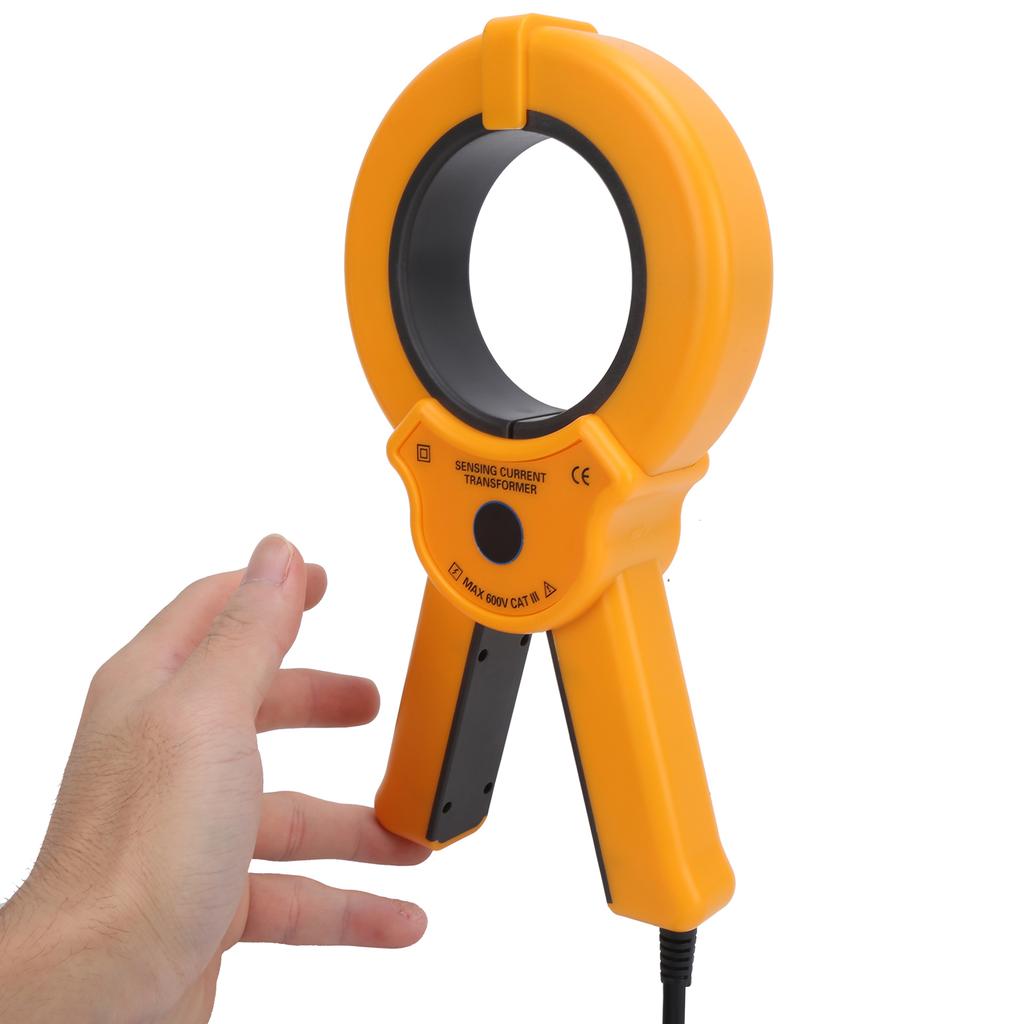

Jaw Size: Φ70mm 2.76in
Working Temperature: 15 degrees C 60 degrees C
Transformer model
Input Current
Output Signal
Frequency
Secondary load
Accuracy class
ETCR070
0mA 300A
100mA
10Hz 100kHz
0 10A less than 500 Ohm
0 100A less than 50 Ohm
0 1000A less than 5 Ohm
0.5
0mA 400A
200mA
0.5
0mA 600A
600mA
0.5
0mA 1000A
250mA
0.5
1A 1000A
1mV A
more than 100k Ohm
1
.
Package List:
1 x Clamp Current Transformer
Note:
1. Please allow 1‑2in error due to manual measurement. Thanks for your understanding.2. Monitors are not calibrated same, item color displayed in photos may be showing slightly different from the real object. Please take the real one as standard.
