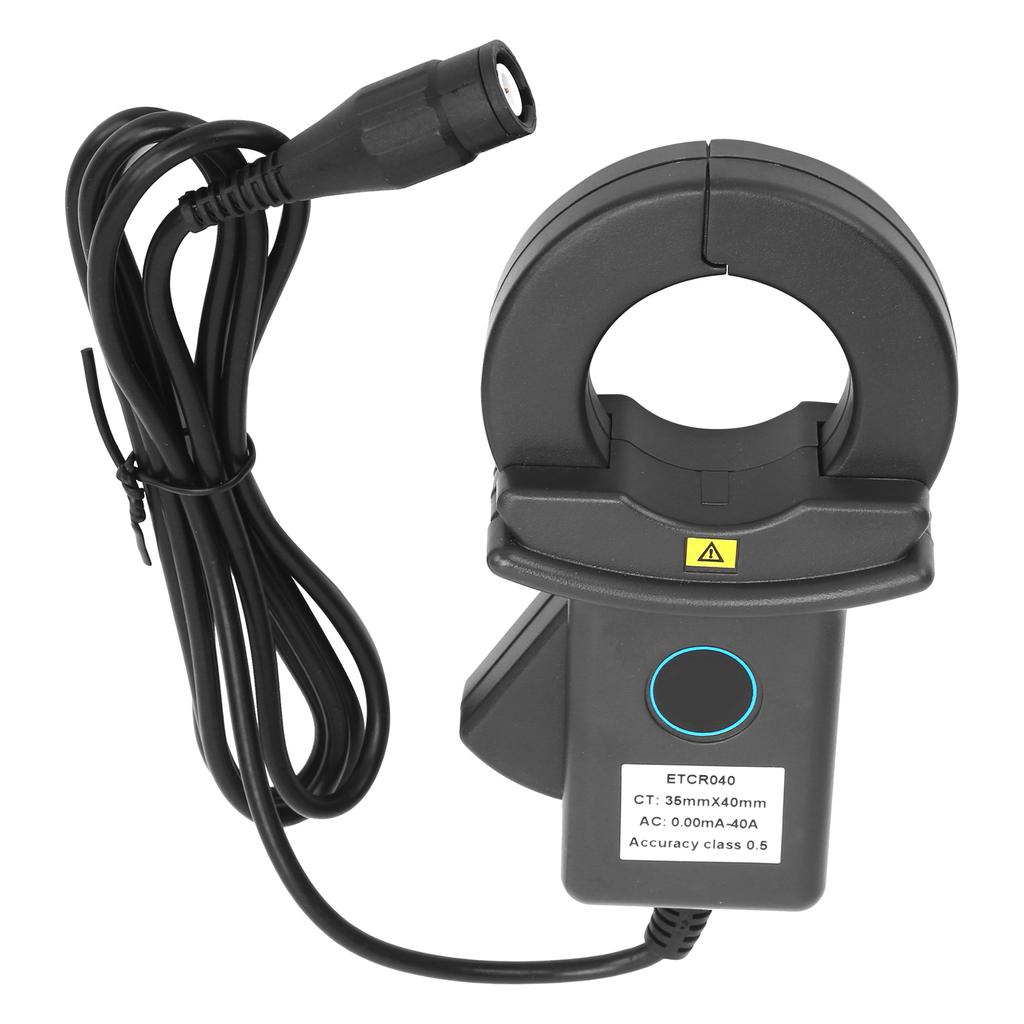

Feature:
1. Made of permalloy, it uses double layer shielding technology, and the influence of external magnetic fields is minimal, ensuring high accuracy, high stability, and high reliability for year round uninterrupted measurement.
2. Using the new CT technology, it adopts a portable clamp shaped design, non contact measurement can be performed without disconnecting the line under test, which is safe and fast.
3. A variety of combinations, it can be connected to phase detection analyzers, industrial control devices, data loggers, oscilloscopes, harmonic analyzers, power quality analyzers and high accuracy digital multimeters.
4. Support output interface, it supports BNC plug, 4.0mm double banana plug, 3.5mm audio plug and bare wire tap as an excuse, which can meet your various needs.
5. Wide range of application, it is suitable for high accuracy AC leakage current, high order harmonic current, phase, electric energy, power, power factor and other detection.
Specification:
item type: current transformer
Model: ETCR040
Material: ABS+Permalloy
Uses: It is suitable for AC leakage current detection, and is widely used in electric power, communications, meteorology, railways, oil fields, construction, measurement, scientific research and teaching units, industrial and mining enterprises and other fields.
Range
Resolution
Accuracy Grade
Phase Error
Transformation Ratio
0.00mA 40A AC
0.01mA
0.5
less than 2 degrees
800:01:00
Function
It is suitable for high accuracy detection of AC leakage current, high order harmonic current, phase, electric energy, power, power factor, etc.
Model
ETCR040
Measuring Range
0.00mA 40A AC
Resolution
0.01mA
Accuracy Class
0.5
Phase Error
less than 2 degrees
Transformation Ratio
800:01:00
Reference Load
less than 120 Ohm
Jaw Size
Approx. 35x40mm 1.4x1.6in
Quality
Approx. 190g 6.7oz
Output Interface
BNC Plug 4.0mm Double Banana Plug 3.5mm Audio Plug Bare Wire Tap (Optional), Cable Length Approx. 1.5m 4.9ft
Working Frequency
45Hz 100kHz
Dielectric Strength
AC 3700V Rms (Between Core And Shell)
Security Level
CAT 600V
Output Method
Inductive Current Output
Working Temperature and Humidity
15 celsius 50 celsius ; Below 80percent rh
.
Package List:

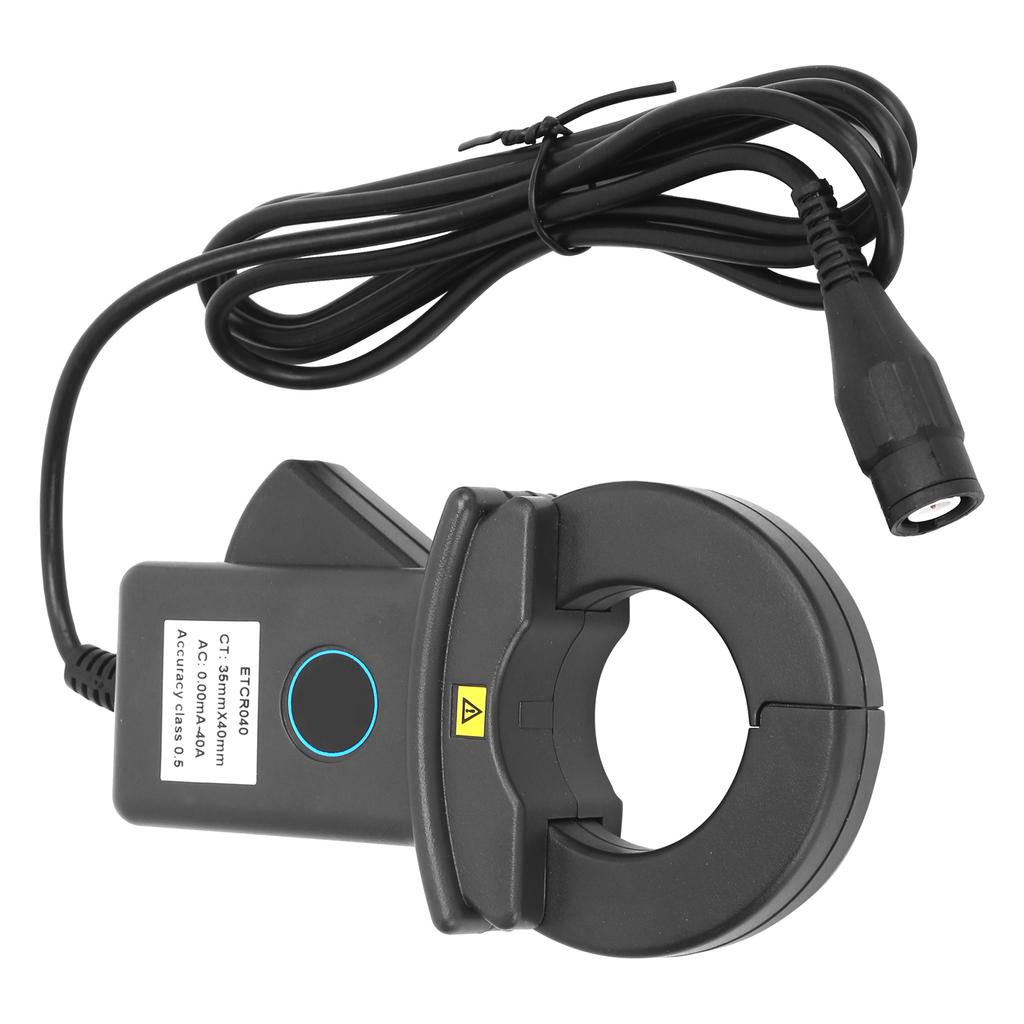

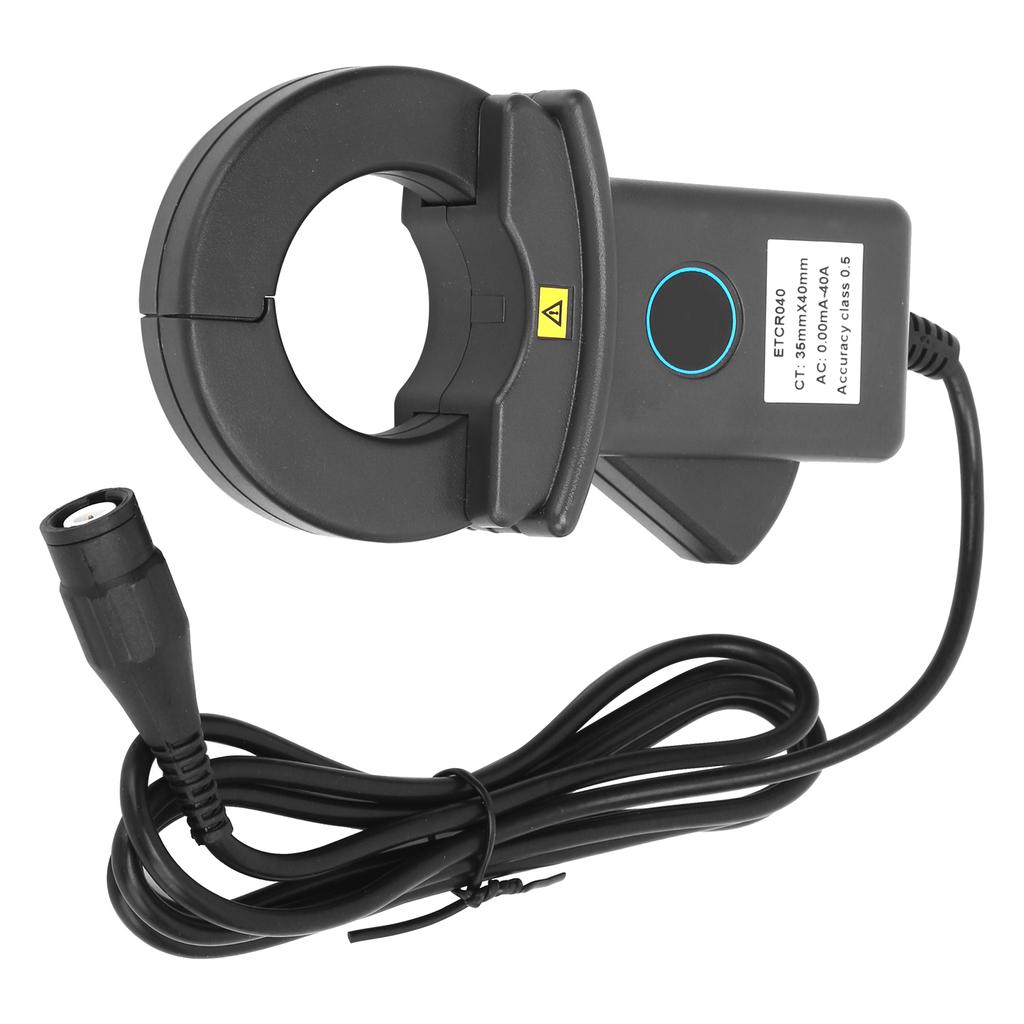

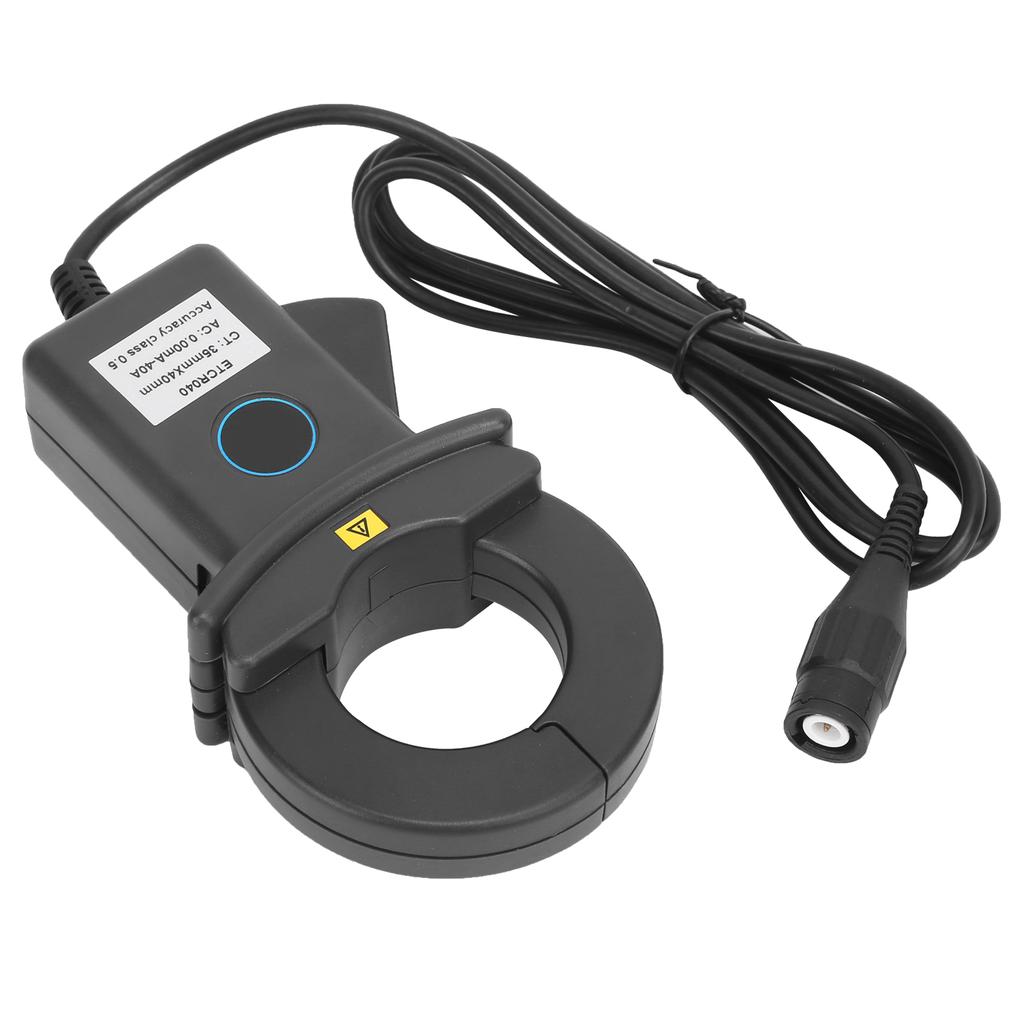

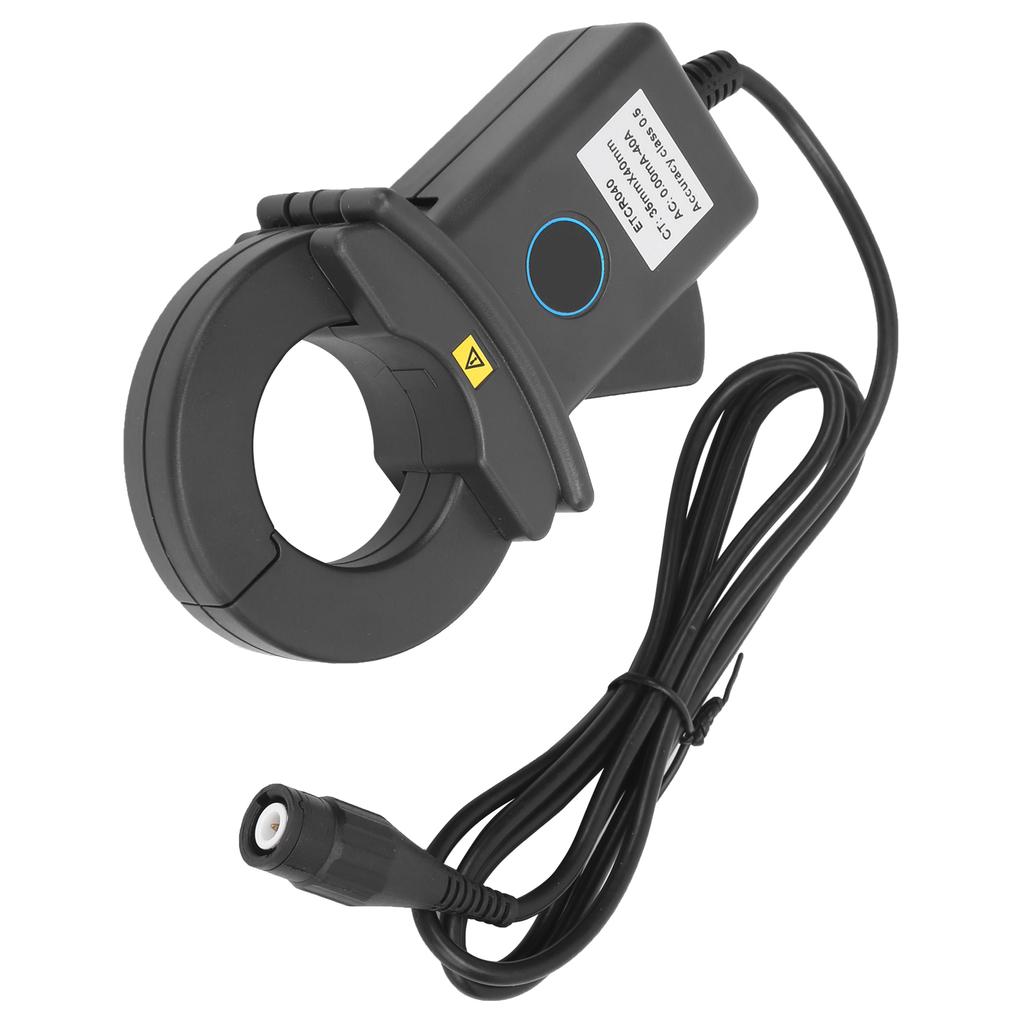

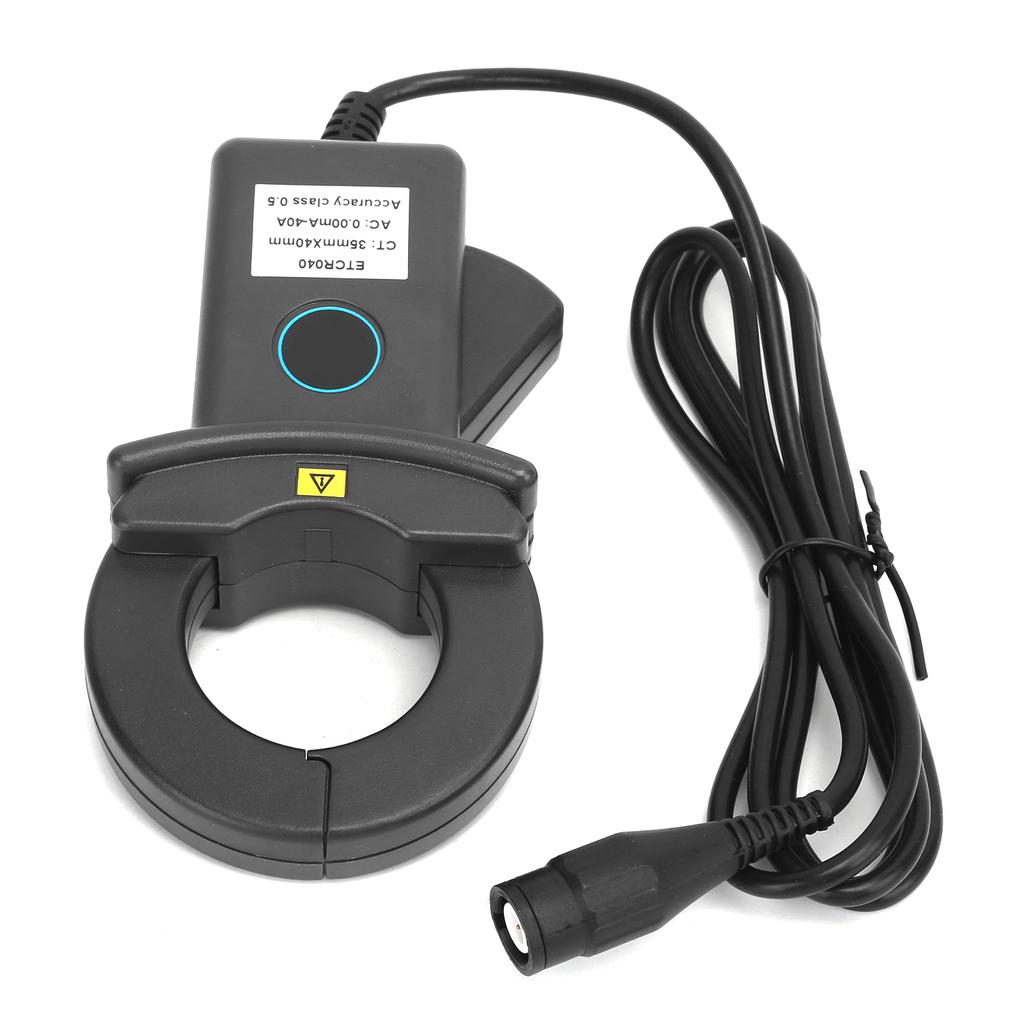

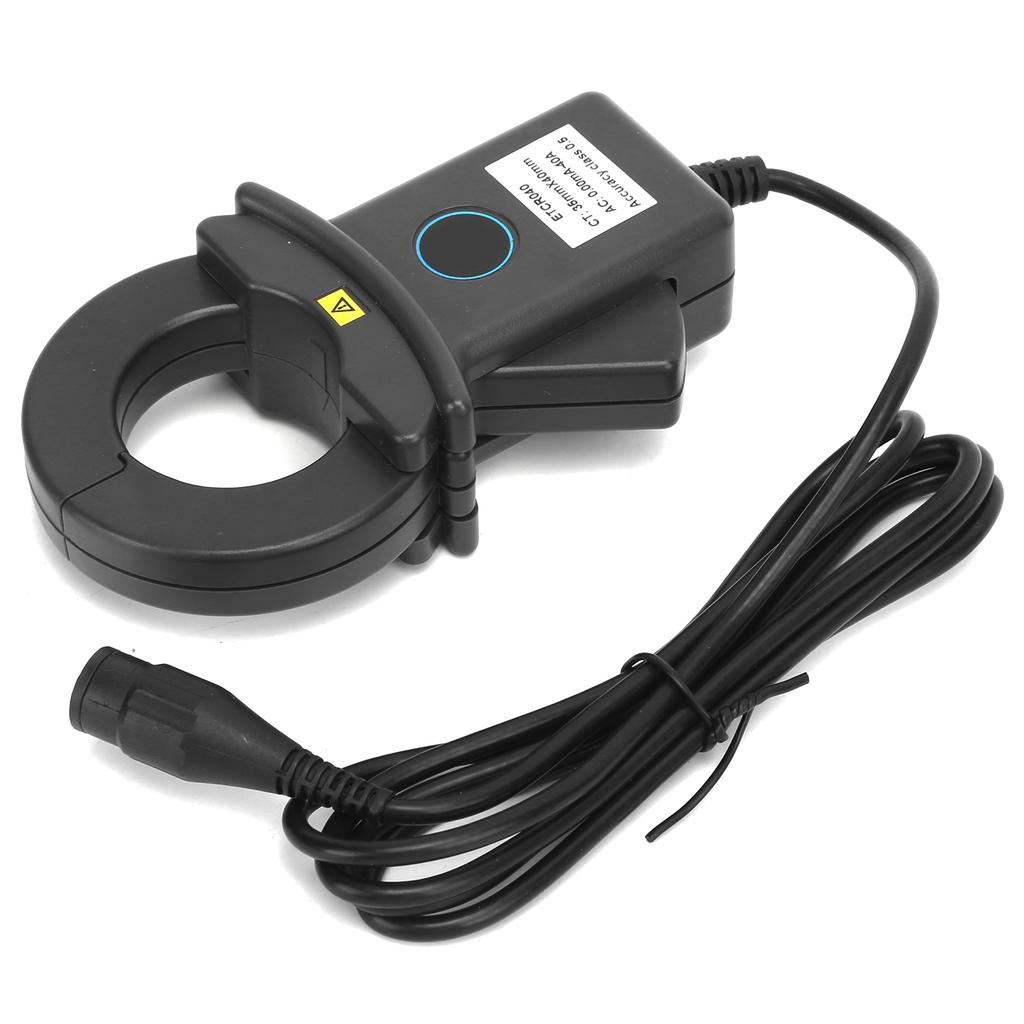

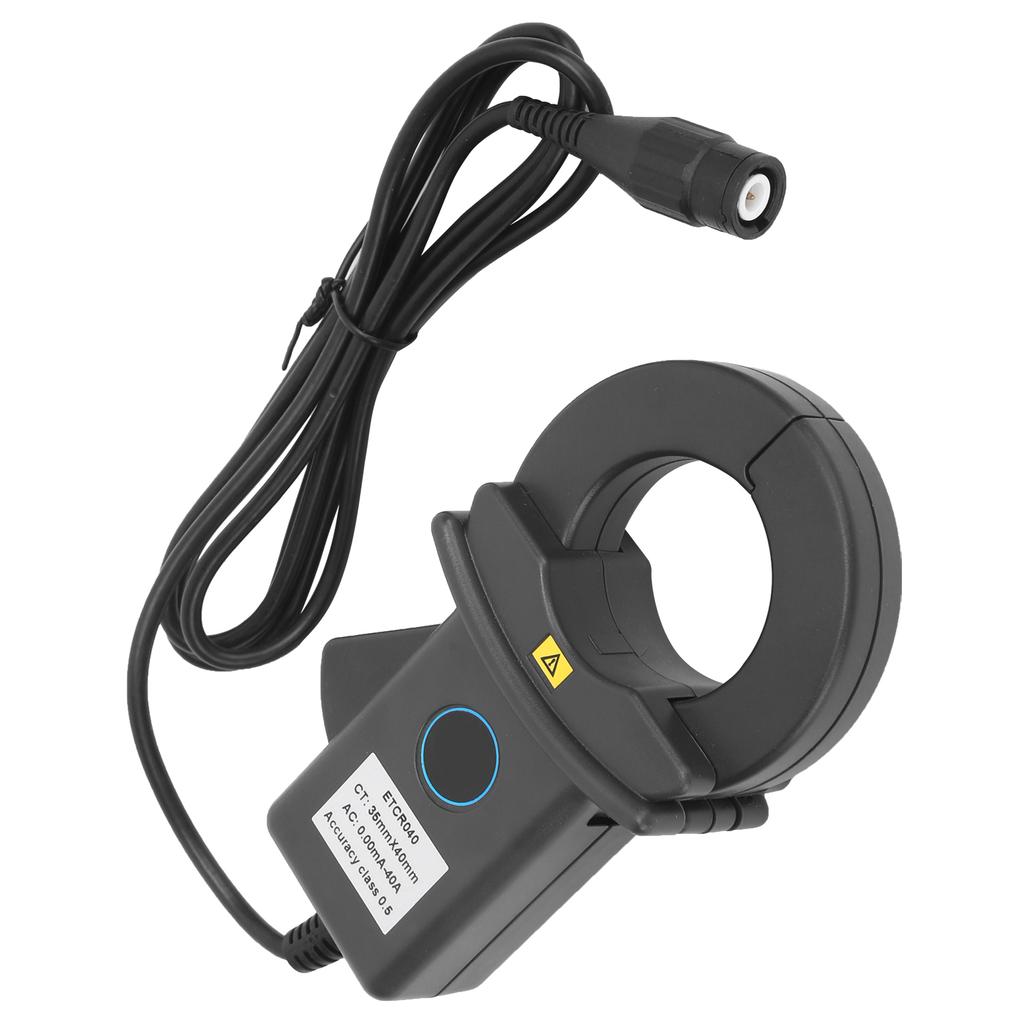

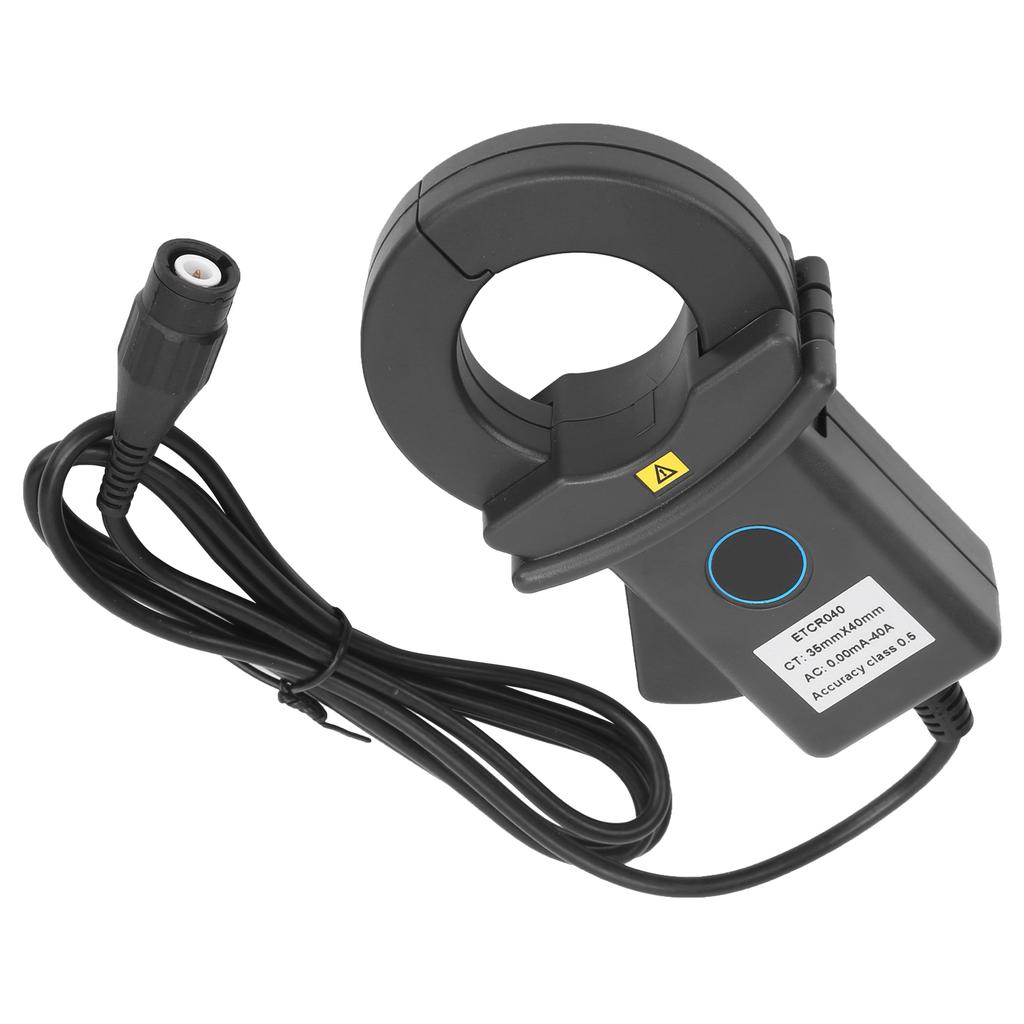

1 x Current Transformer
