Features:
Support All Mach3 versions, including the latest version.
Support all Windows versions, including Win8 WIN10
USB doesn t require a driver, all Windows versions plug and play, support hot plug.
USB bus user high grade chip magnetic coupling isolation, really valuable isolation
Input and output, super reliability, absolutely ensure the safety of computer USB. At the same time ensure the super EMC anti interference ability.
Single chip, the system is more refined, and is more stable than the general multi chip processing method
Dual core super high speed CPU (single core maximum frequency of 204 MHz), strong processing capacity. and ensures that the pulse output frequency of 1000KHz under the three axis linkage is realized, the pulse output frequency of 750 KHz and the 6 axis linkage under the four axis linkage are linked,
The pulse output frequency is up to 500 KHz, and can be connected to the servo step.
The motion control buffer size can be set, the fastest interpolation period can be guaranteed to be stable, and the computer can operate stably even when the running load of the computer is overweight.
It has a 16 way isolation input port, the input interface is simpler, the dry and dry contact of the port can be both, the wiring is simpler, the dry contact method can only be externally connected with a physical switch to the ground wire, and all the 16 way input port have the signal indication, and the indicator light is on when the low level is low, and the debugging is simple and clear.
Up to 24 output port (with 8 way, RS485 extension), 32 way input (with 16 way input, RS485 can be extended for 16 way).
The PWM speed regulating output port (isolated) can set the PWM frequency and the duty ratio of 0 1000 is continuously adjustable
With the function of speed measurement, the actual speed of the main shaft is displayed in real time in the Mach3 interface, and the measurement is accurate and stable.
With the NVRAM space of 256 bytes, the coordinate value and the processing line number of the 6 axes can be saved, and the next power on does not need to be found.
The output of all the motion axes is a differential signal, which can be connected with a servo high speed signal input port.
You can set the slave axis to support dual X, dual Y, and double Z. Soft limit bottom treatment, the system is more secure
RS485 isolation bus, external input output or ground servo read position, grounding ruler, etc. (need to be customized and developed)
All input and output is isolated from the motion control core, and the pulse isolation uses high speed 10M optical coupling isolation. Single double pulse mode is supported
The upgrade is convenient, and the firmware of the upgrade hardware layer of the product is only brushed with the USB, the speed is high, the firmware is open, the test can be tested for 1 hour, and the hardware layer firmware can be shut down for more than 1 hour.
Specification:

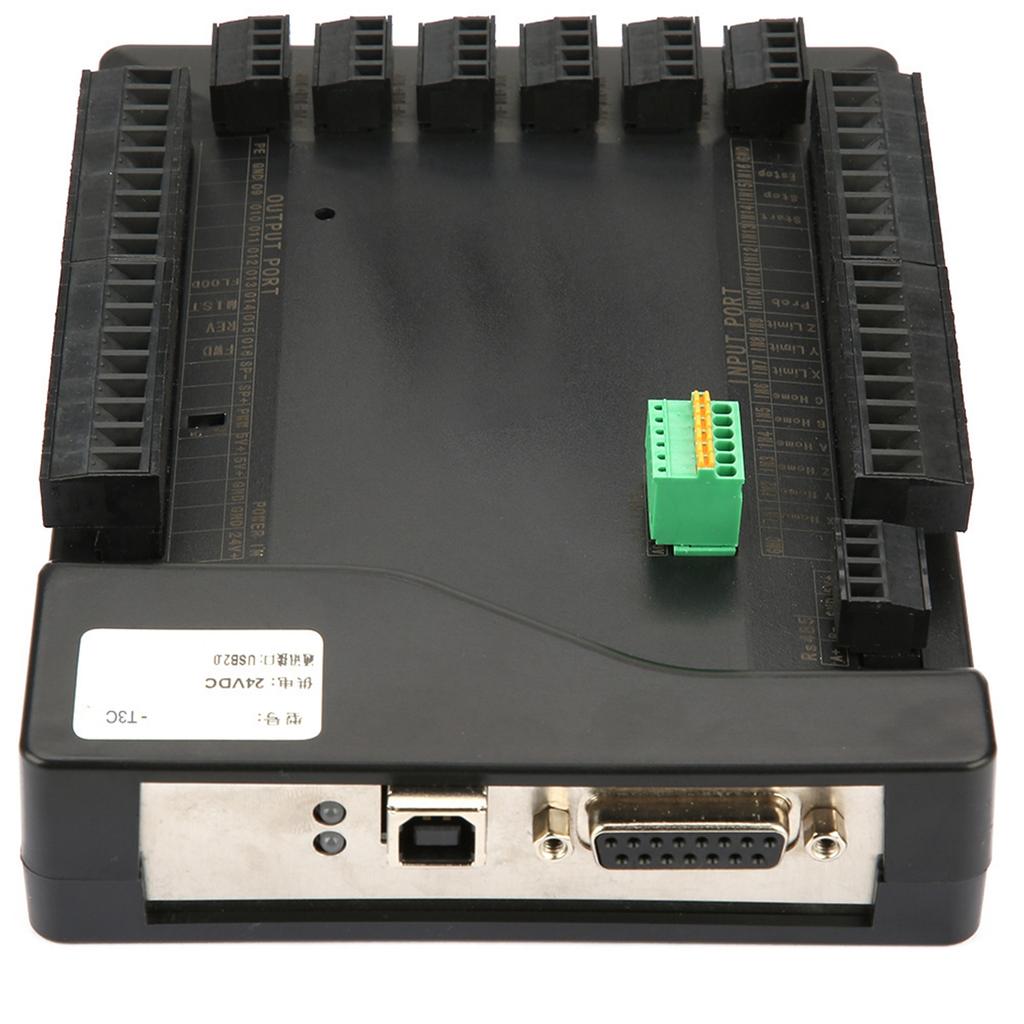

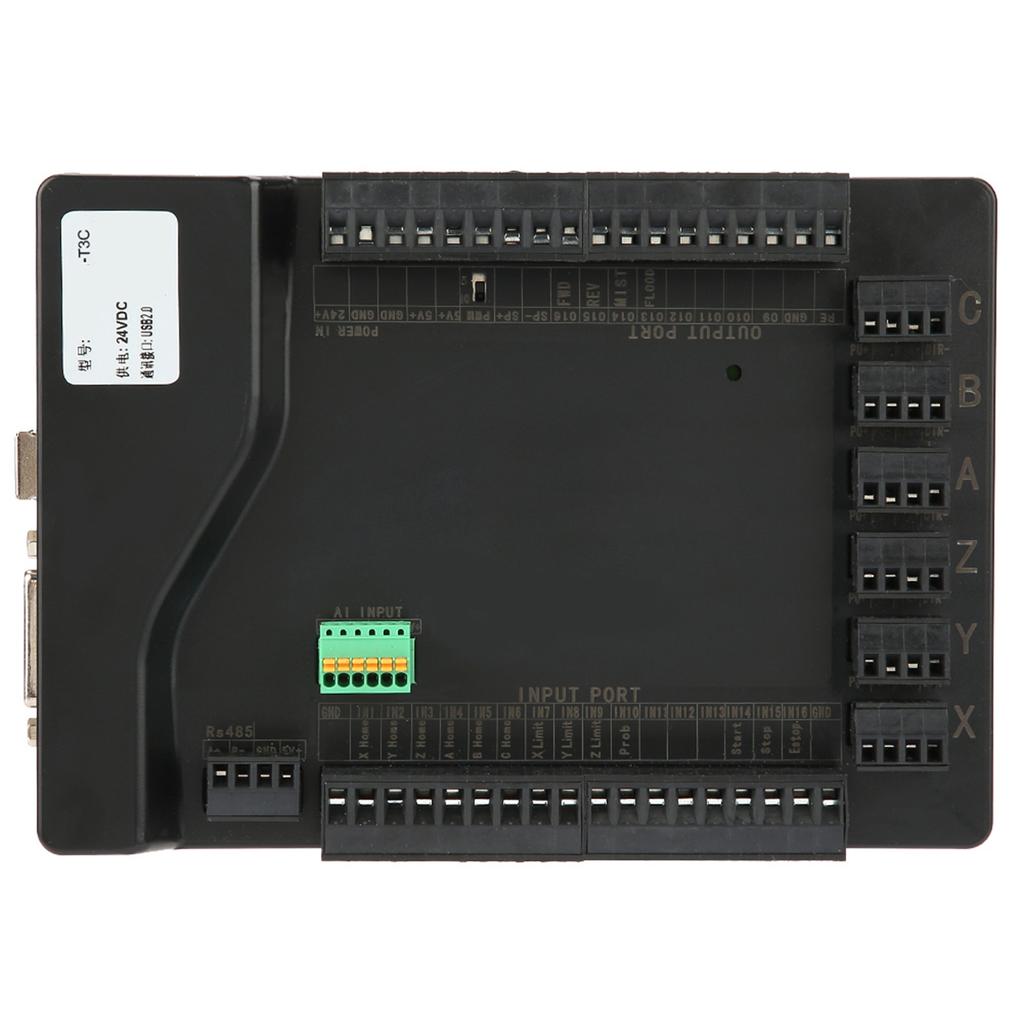

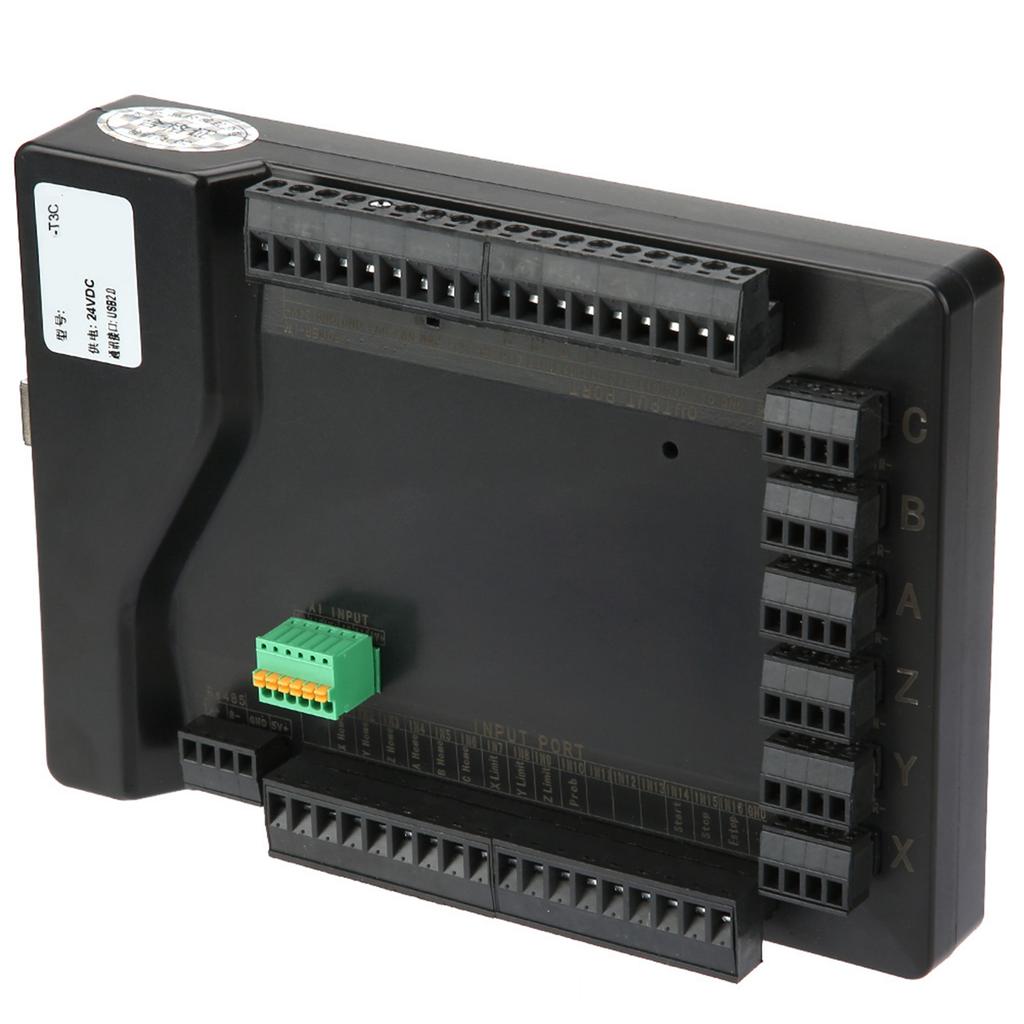

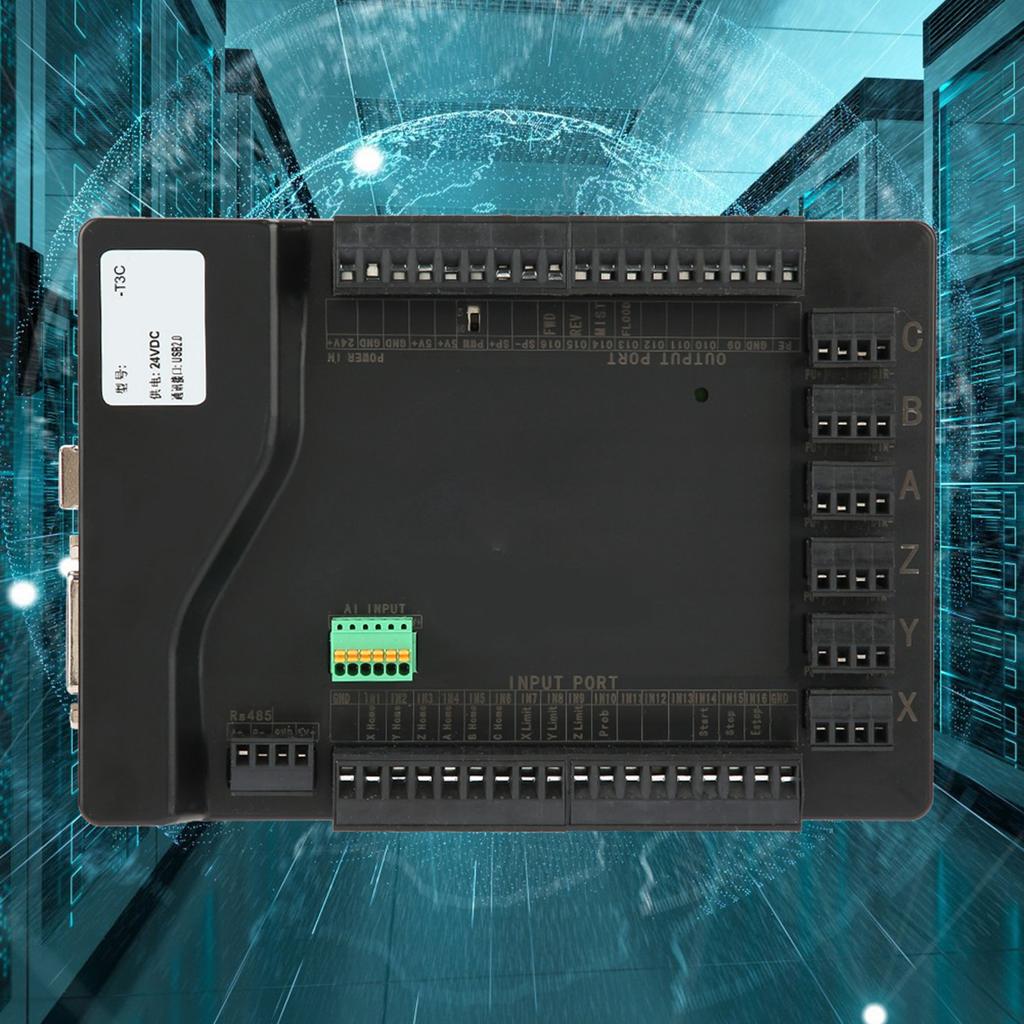

Type: Mach3 USB CNC Controller Card
Support: Windows
Axis: 3 4 6 axis(Optional)
Isolated input port: 16 channel
Weight: Approx.456g 16.1oz
Package list:

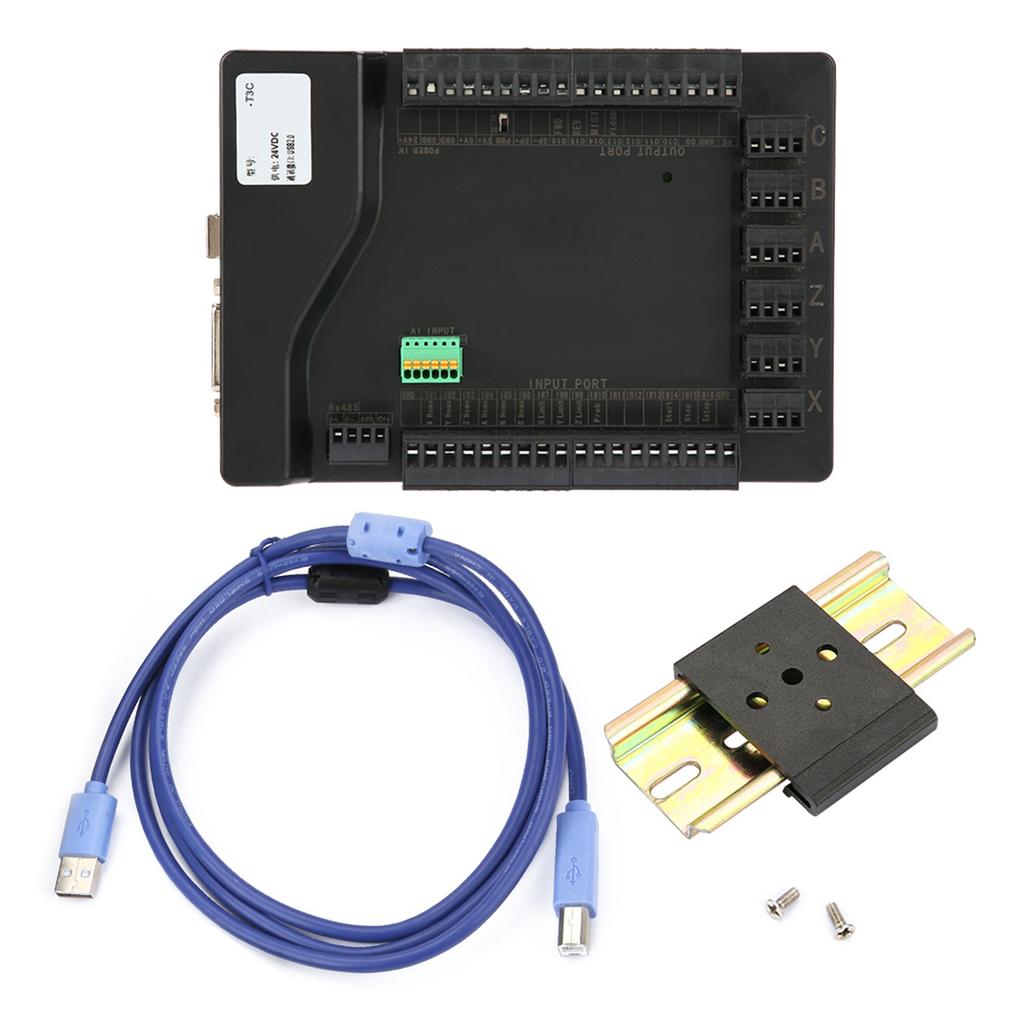

1 * control board
1 * cable

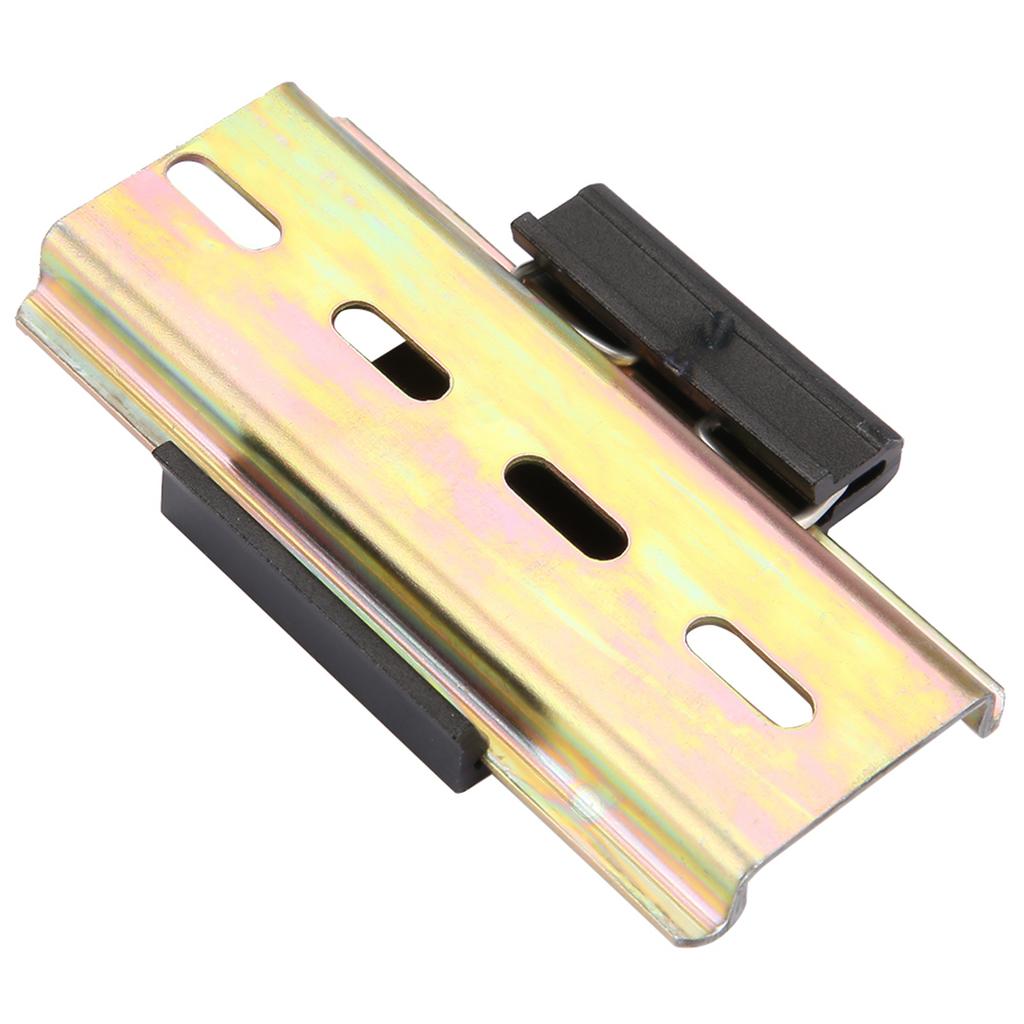

1 * fixed bracket
2 * screw
.
