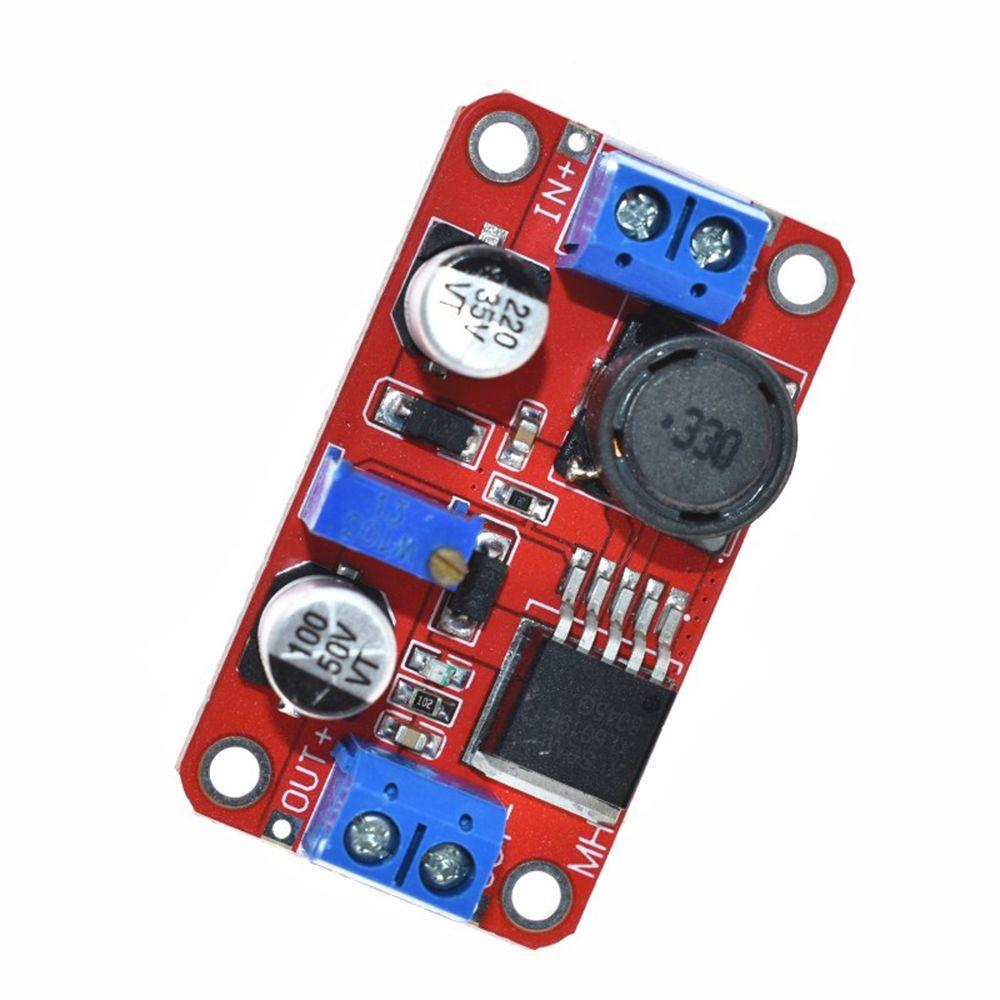

to DC High Power Step-up Adjustable Converter Power Modules Voltage Regulator Boost Module Booster

Label:Yes MS + -> Positive; IN ---> Negative; OUT + -> Positive; OUT ---> Negative Switching Frequency: 220 kHZ Input Voltage: DC 3-35 V Input Current: 5A (MAX) Conversion efficiency: 94% (MAX) Voltage regulation: ± 0.5% Working Temperature: Industrial (-40 ° C to + 85 ° C) Package Includes:1 pc XL6019 Boost Module Output ripple: 100mv (MAX) Load regulation: ± 0.5% Output Voltage: DC 5-40V (Adjustable) Size: Approx 50 * 28 * 13mm (L * W * H) Instructions: Input and Output must be connected correctly Conventional Constant Voltage Output BOOST Fully Integrated Solutions, Integrated MOSFET, Fewer External Components, Smaller Cos System Built-in over temperature protection, full set overcurrent protection circuit reliability, high reliability TO263-5L standard package, suitable for 30W boost inside applications. Power (3-35 V), power indicator light, module is working properly. Adjust the blue knob of the potentiometer (counterclockwise general impulse, buck clockwise rotation) and with a multimeter to monitor the output voltage reaches the required voltage

NOTE: Long hours working current is recommended for use at less than 2.5 M, while adding heatsink mass (10 W output above); Because it is boosting the module, in order to ensure stable output, please keep the minimum differential 1.5 V.
