Overview:

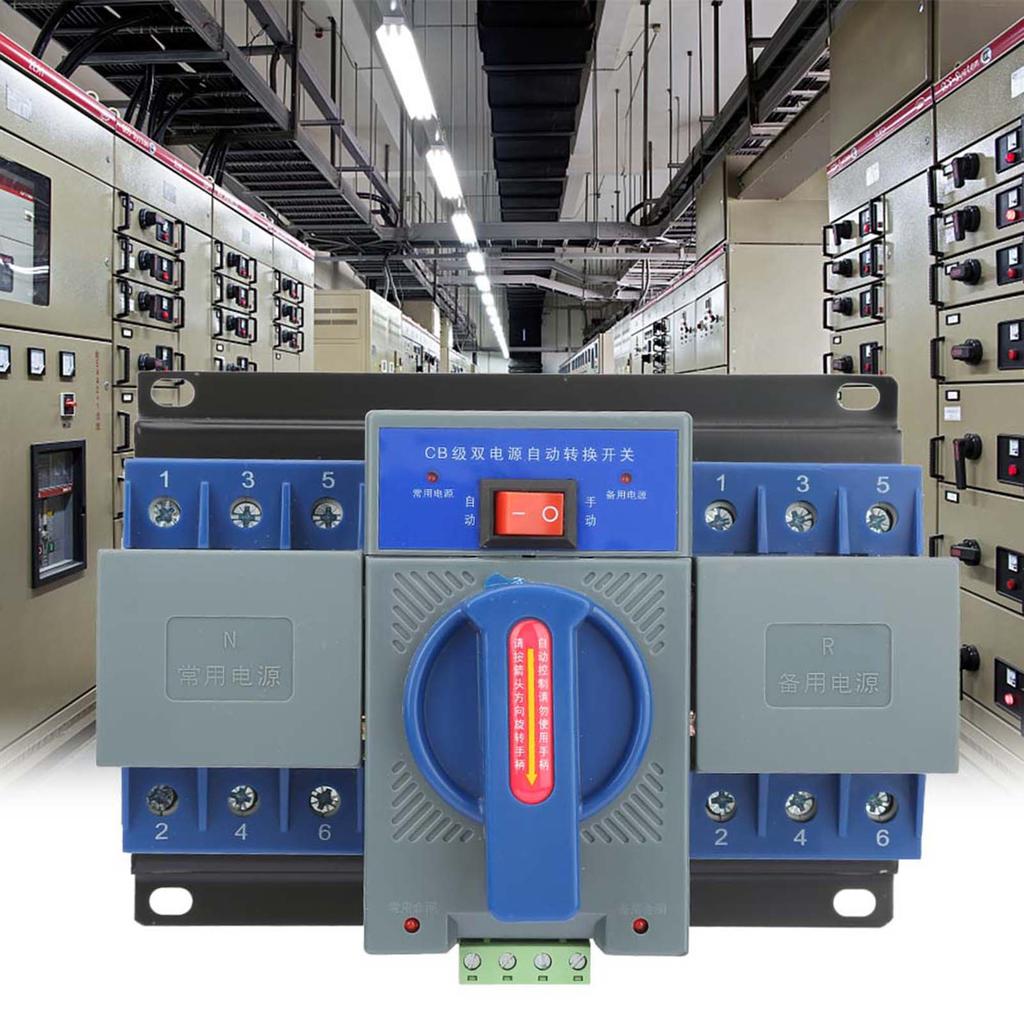

Micro new double power automatic switch, suitable for AC 50Hz, rated working voltage 400V and below the double power supply system, with automatic or manual operation to complete the conversion between the common power supply and the standby power supply. The switch is mainly used in hospitals, shops, Banks, metallurgy, highrise buildings, military facilities and other important occasions where power failure is not allowed.
Features:
High quality double power automatic switch, strong antiinterference ability, high precision.
Complete protection function, with overload, short circuit protection.
Small size, high breaking, short arc, compact structure, beautiful appearance.
Noisefree operation, energysaving, convenient installation, simple operation, stable performance.
The product has overload, short circuit function, but also has the function of output closing signal.
Specification:
Material: Plastic
Weight: 1580g55.7oz
Model: NDQ1633
Insulation voltage: 300 (V)
Rated working voltage: AC 50Hz 400 (V)
Rated current: 63 (A)
Pole number: 3
Rated impulse withstand voltage: 0.6 (KV)
Rated short circuit capacity: 3KA
Rated short time withstand current: 63A
3 optional working modes:
Selfthrow and selfreply working mode.
Alternate working mode.
Self feeding and self restoring working mode.
3 stable working positions:
Common power supply and standby power supply.
Common power supply, backup power supply.
Common power supply points, standby power points.
Use level: AC33B, motor load or mixed load including motor, resistance load and white light load up to 30percent .
Package List:
1 x Automatic Transfer Switch
Note:
1. When wiring, commonly used power N should enforce access common power supply circuit breaker QN standby power R should enforce access the standby power supply circuit breaker QR when QN quadrupole is broken and chronological, connection mode according to the wiring diagram, including QN and QR 1, 3, 5 for threephase terminal, 2, 4, 6, for the threephase line end, 7 zero line into the terminal, eight is zero line end of line. If the circuit breaker is a threelevel circuit breaker, the neutral NN of the common power supply (N) and the neutral NR of the standby power supply (R) must be connected to the neutral terminal of the threepole dedicated wiring at the same time.
2. The working power of the double power switch automatic controller is taken from the incoming terminal and zero line of the new circuit breaker QN and QR. During the installation and wiring of automatic power switch, do not shake off, break or short circuit the original control line connected to the incoming line.
