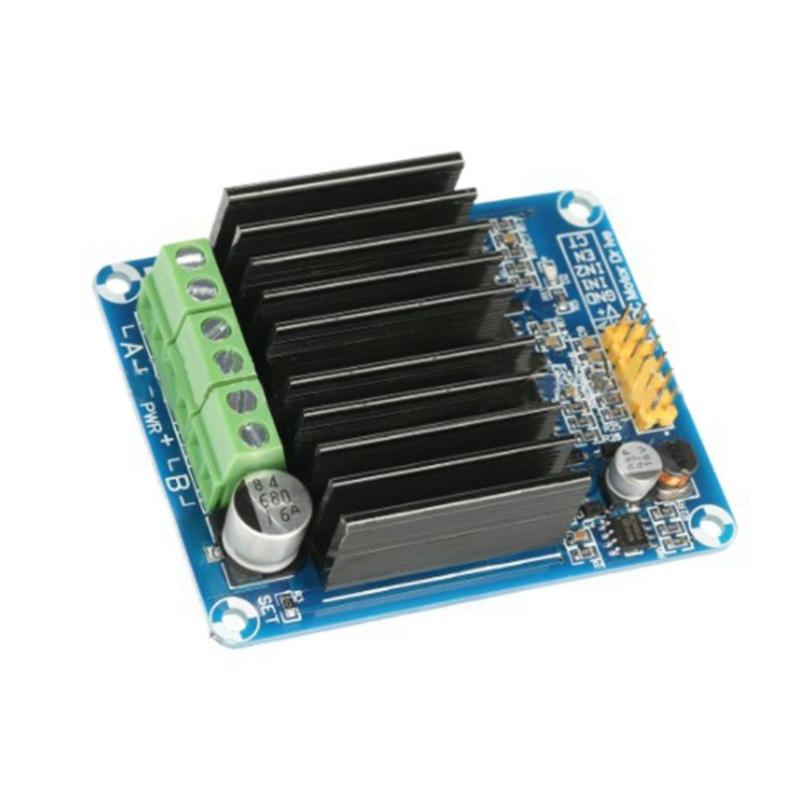

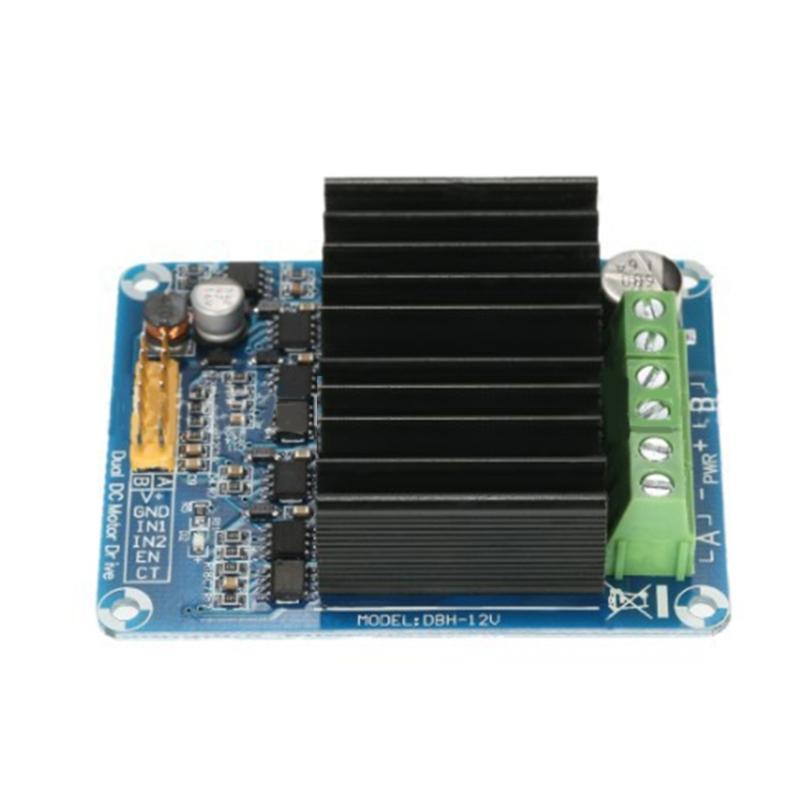

Universal 30A DC5V-12V H Bridge Motor Driver Control Board DHB1A Reversible Control and PWM SpeedControl

Features: This module is a motor control module that can be used to control ordinary DCmotors, intelligent car motors, etc. It can be used to control ordinary DCmotors, intelligent car motors, etc. Reversible control and PWM speedcontrol. Highspeed switchdesign. Low internal resistance, low heat. Small size and light weight. Working voltage: DC5V to 12V; Working current: 0A-30Amaximumper channel.

Specifications: Working voltage: DC5V-12V Standby current:less than 30mA Current: 0A-30Amaximum/per channel PWM : duty cycle: 0-98%; Frequency: l motor: 16kHz; Corelessmotor: 80kHz; TEC: 500Hz-80kHz Input voltage : low: 0-0.5V; High2.5V-13V (typical drive : 3.3V, 5V, 12V) Current sampling: CTpin output voltage =current Ax0.155 Project size: approx 6.2x5.3x1.8cm/2.44x2.08x0.71in Product weight: 54g/1.93oz

Note: There might be a bit color distortions due to different computer resolutions. There might be size errors due to different computer resolution

Package includes: 1PC 30A DualChannel H-bridgeDC Motor Controller Driver
