Feature:
1. [Strong Anti Light Ability] Adopt high quality infrared lamp beads and light panel, with far infrared design, strong anti light ability, can be used as a signal response quickly and accurately, and reduce accidents.
2. [IP65 Protection Level] Safety light curtain with IP65 protection level, with short circuit, over current and reverse connection protection, and the grooves design of the back slide block has strong seismic performance.
3. [Waterproof And Sensitive] Using aluminum alloy shell, which is sturdy, well sealed, dust proof, water proof and oil proof, and prevents foreign matter from intruding into the grating, it is still sensitive in harsh working environments.
4. [Self Check Design] Adopt intelligent technology to protect the circuit safety self check design, if a fault occurs during work, it will be locked to a safe state to avoid accidents, so you can use it with confidence.
5. [Widely Application] Infrared light grating is widely used in a variety of situations, such as stamping machinery, shearing machinery, production line, etc.
Specification:

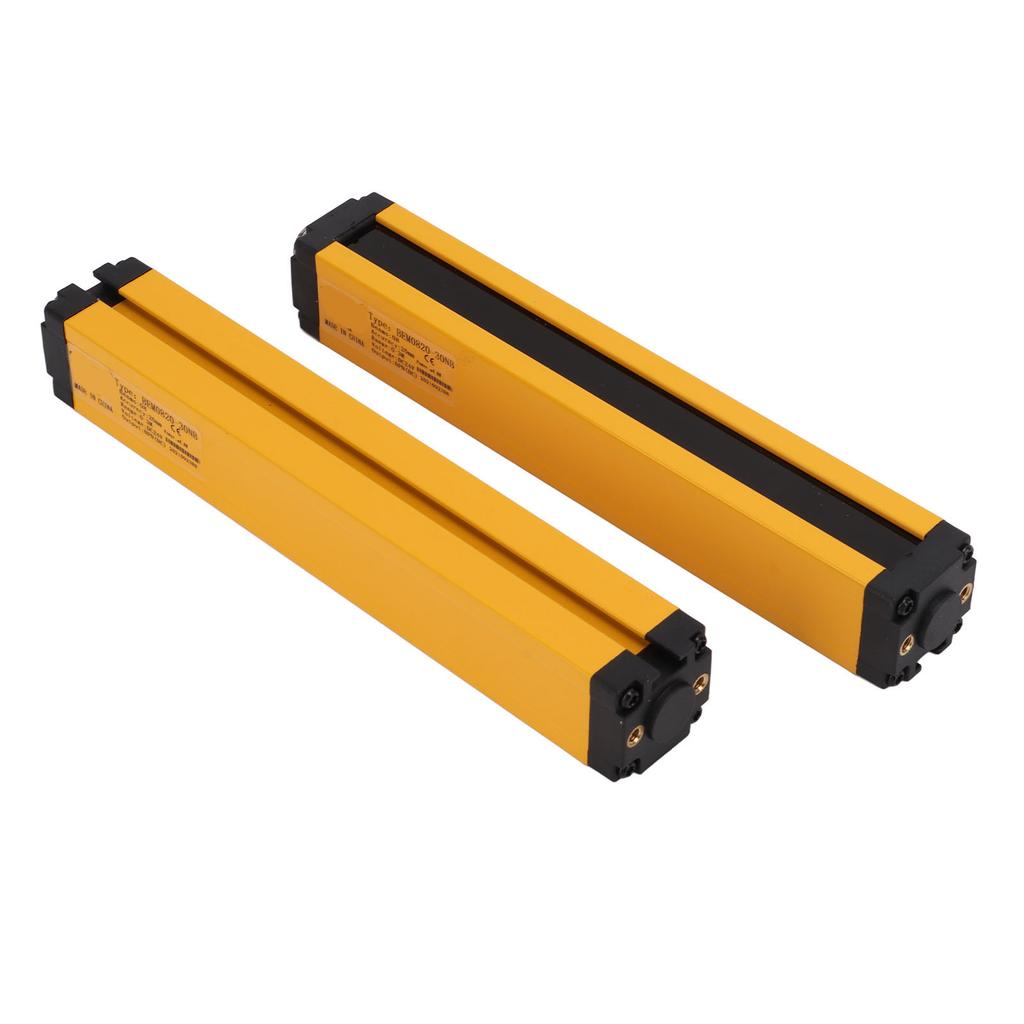

Item Type: Safety Grating
Model: BEM0820 30NB
Material: ABS+Aluminum Alloy
Application: Suitable for stamping machinery, shearing machinery, production line
Number of Beams: 8
Optoelectronic Distance: Approx. 20mm 0.8in
Detection Height: Approx. 30 2520mm 1.18 99.21in
Detection Distance: Approx. 3 meters 9.8ft
Working Voltage: DC24V
Power Consumption: less than 5W
Output Mode: NPN NC (dual independent OSSD output)
Response Time: less than 10ms
Light Curtain Form: Opposite type
Ambient Temperature: 20C, RH less than 95percent
Insulation Resistance: >100M Ohm
Anti Interference Ability: 10000Lux (incidence angle less than 5 degrees )
Connection Mode: M12, 3 pin, 4 pin
Protection Circuit: Reverse connection protection, output short circuit protection
Dielectric Strength: AC1500V 60S
Working Temperature: 10 celsius 55 celsius
Electrical Life: more than 100,000 hours
Protection Level: IP65
Control Circuit: Dual MCU control
Function: Power on delay, blind zone filtering, self check function, short circuit, over current, reverse connection protection, far infrared design, anti electromagnetic interference.

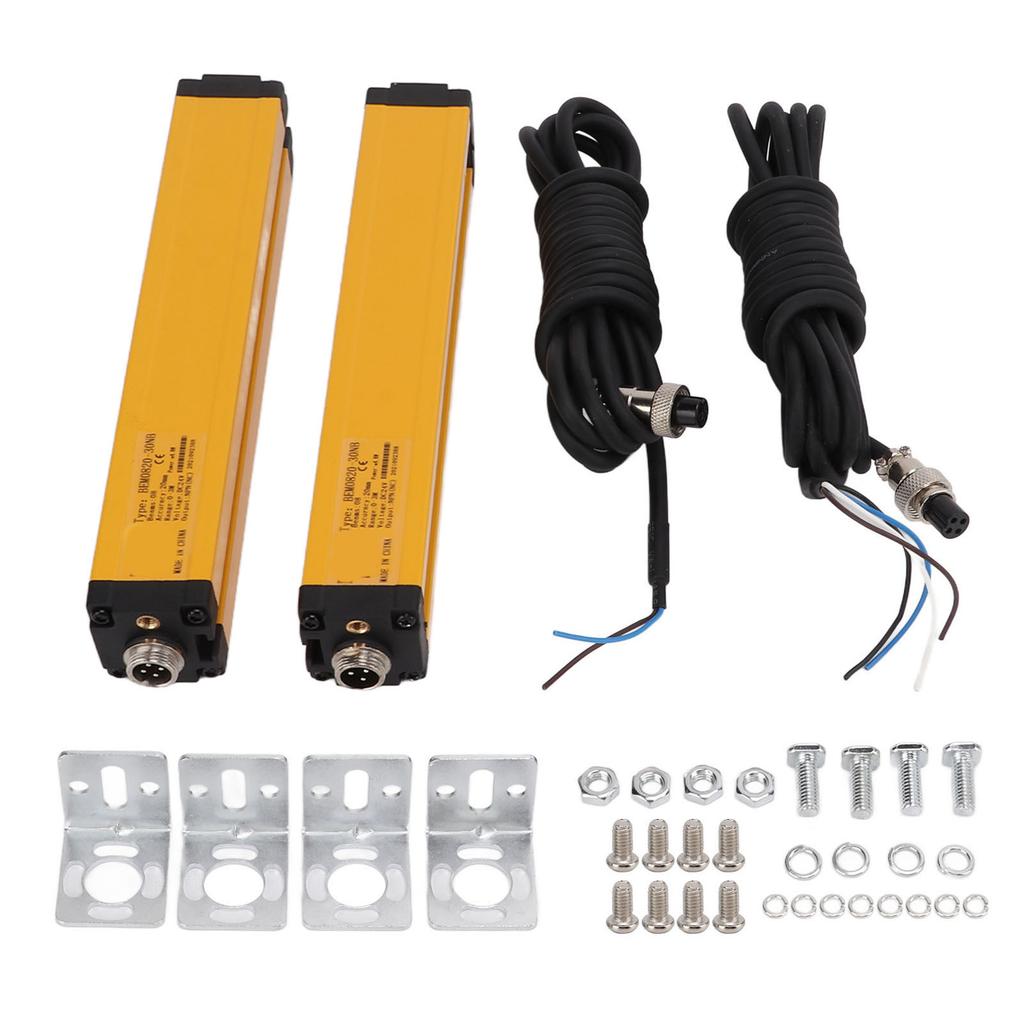

Package List:
1 x Launcher1 x Receiver2 x Adapter Line1 x Accessory Kit (4 x Splint, 4 x Bolt, 8 x Screw, 4 x Nut, 4 x Gasket, 8 x Washer)1 x Manual
Note:
Before each operation, the user must check the machine in good condition to ensure that the grating realizes the protection function
