Features:
1. Available in five styles for your select
2. High quality aluminum alloy material, and long service life
3. Suitable for forging machine tools, automation equipment, shearing machines, hydraulic machines, robots, industrial robots and other automation equipment
4. , it has shock resistae and strong anti-interferee
5. This grating can be used for multi-area protection, etc.
Specification:
Condition: Brand new
Output : NPN/
Working Input Voltage: 10-30VDC
Light Curtain Type: on the Type
A Series: Relay wiring
Number of Beams: 4 beams / 6 beams / 8 beams / 10 beams / 12 beams (corresponding to the model selection)
Optical Shaft Spacing: 40mm
Effective Protection Height: 120/200/280/for 360/440mm (corresponding models are available)
Detection Distance: 0.3-2 Meters
Length of Each Cable: 2.15 Meters (2pcs)
Response Time: ≤10ms

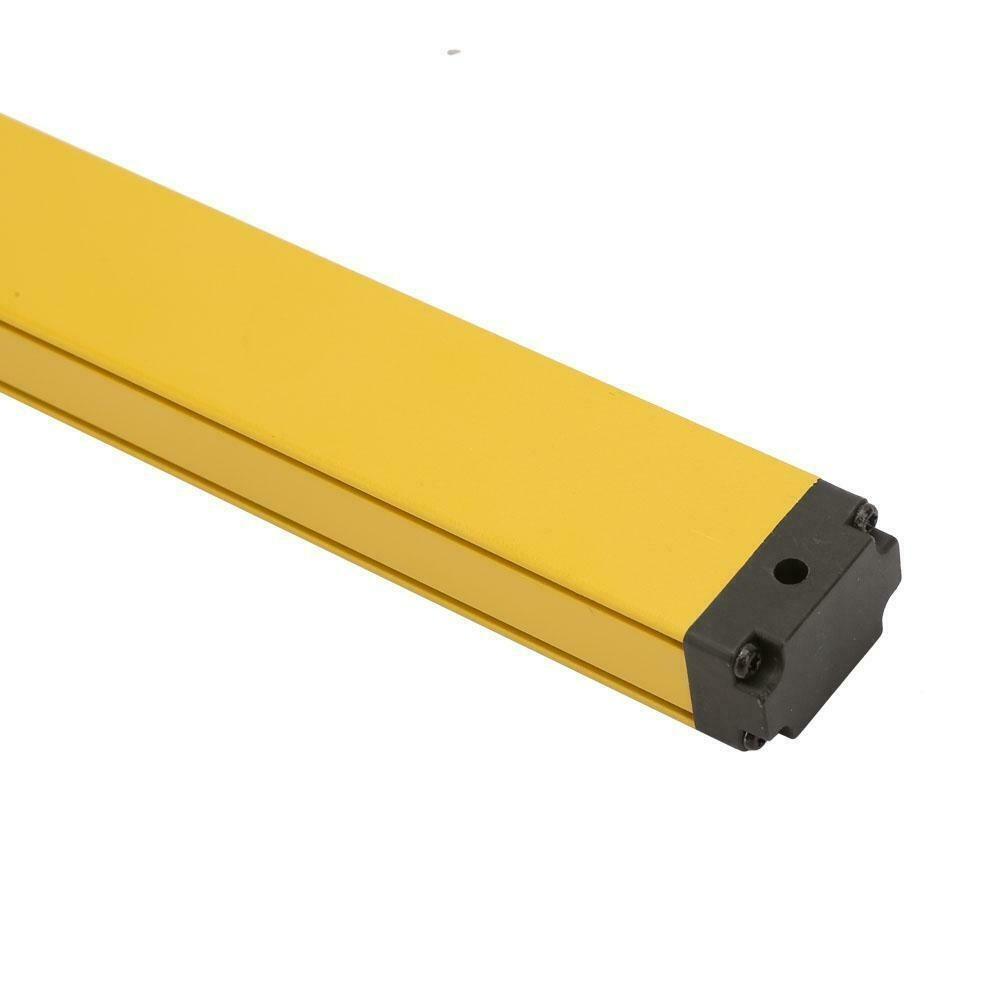

Housing Material: Aluminum Alloy
Protection level: IP-65
Insulation Resistance: Greater than 10MΩ
Product Color: Yellow

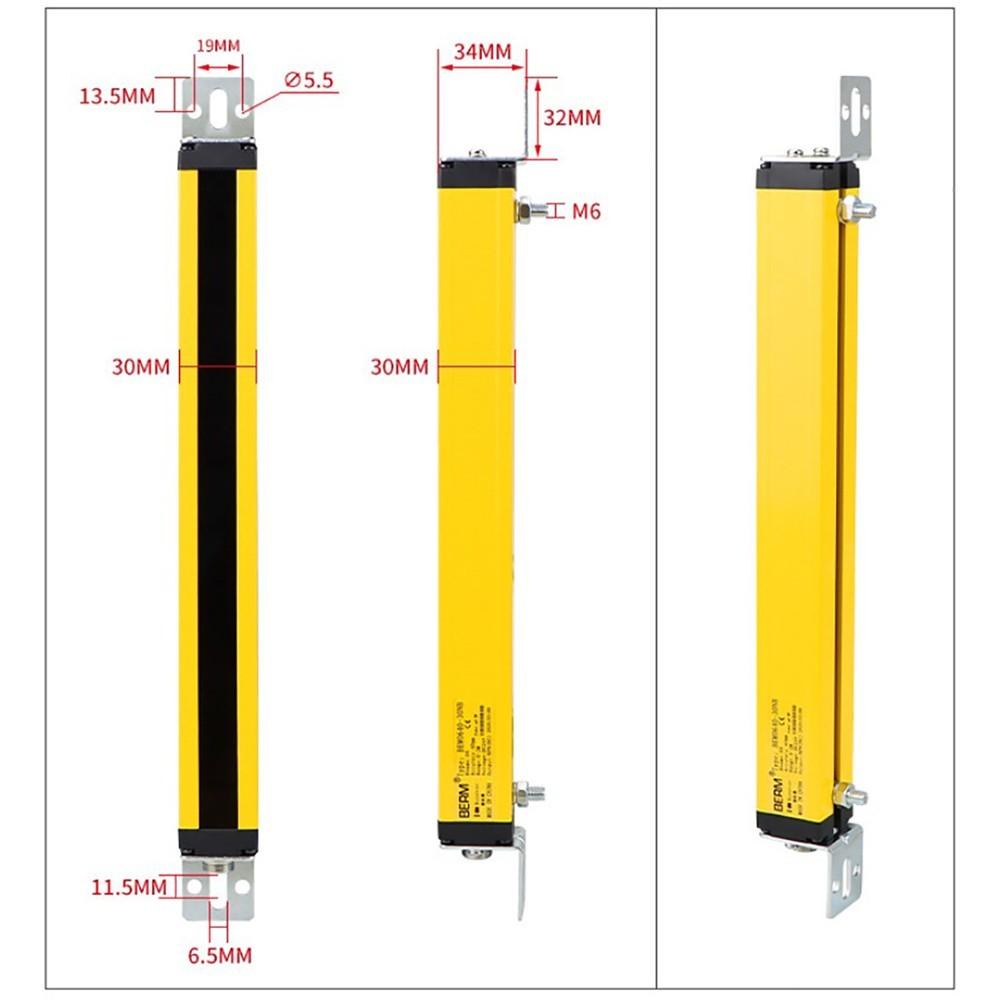

Size(optional): Approx. 195 x 29.8 x 18.5mm / 7.7 x 1.2 x 0.7in
275 x 29.8 x 18.5mm / 10.8 x 1.2 x 0.7in
355 x 29.8 x 18.5mm / 14 x 1.2 x 0.7in x 29.8 x 18.5mm / 17.1 x 1.2 x 0.7in
515 x 29.8 x 18.5mm / 20.3 x 1.2 x 0.7in

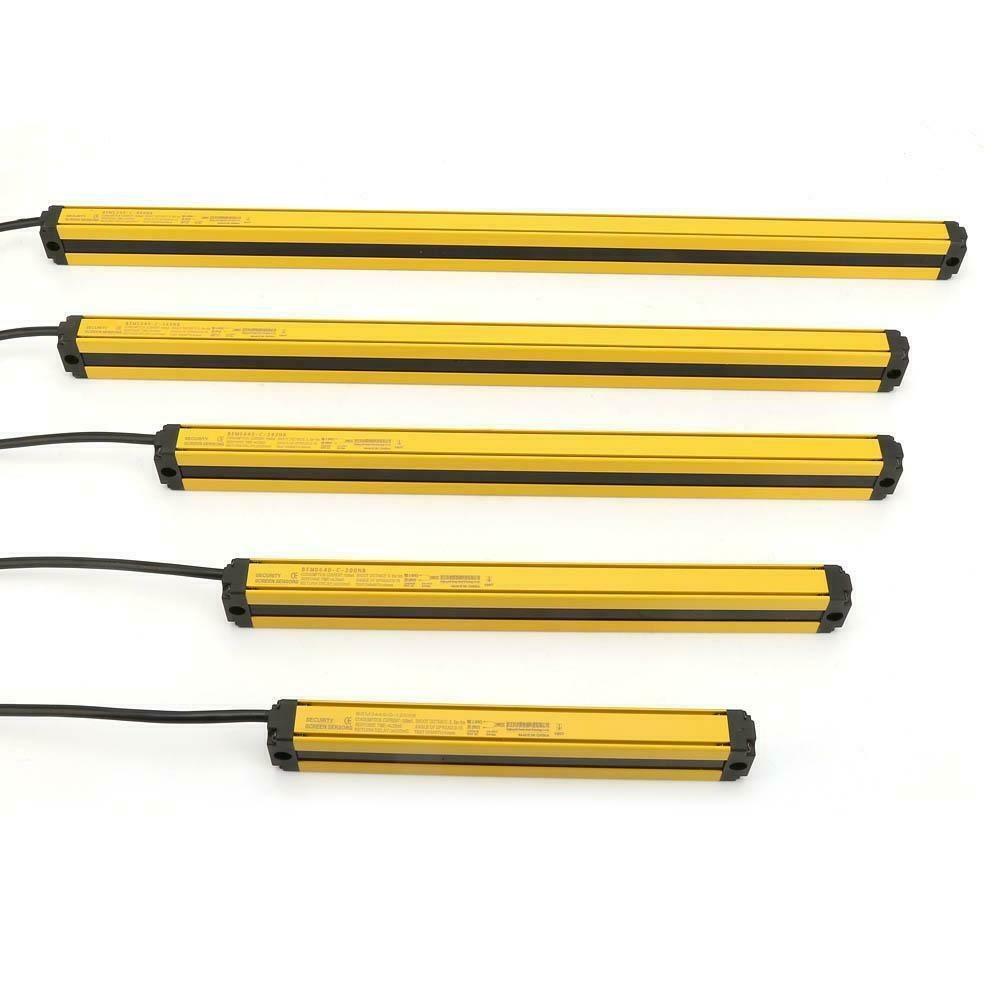

Optional Style: 4 Beams BEM0440-C-120NB, 6 Beams BEM0640-C-200NB, 8 Beams BEM0840-C-280NB, 10 Beams BEM1040-C-360NB, 12 Beams BEM1240-C-440NB

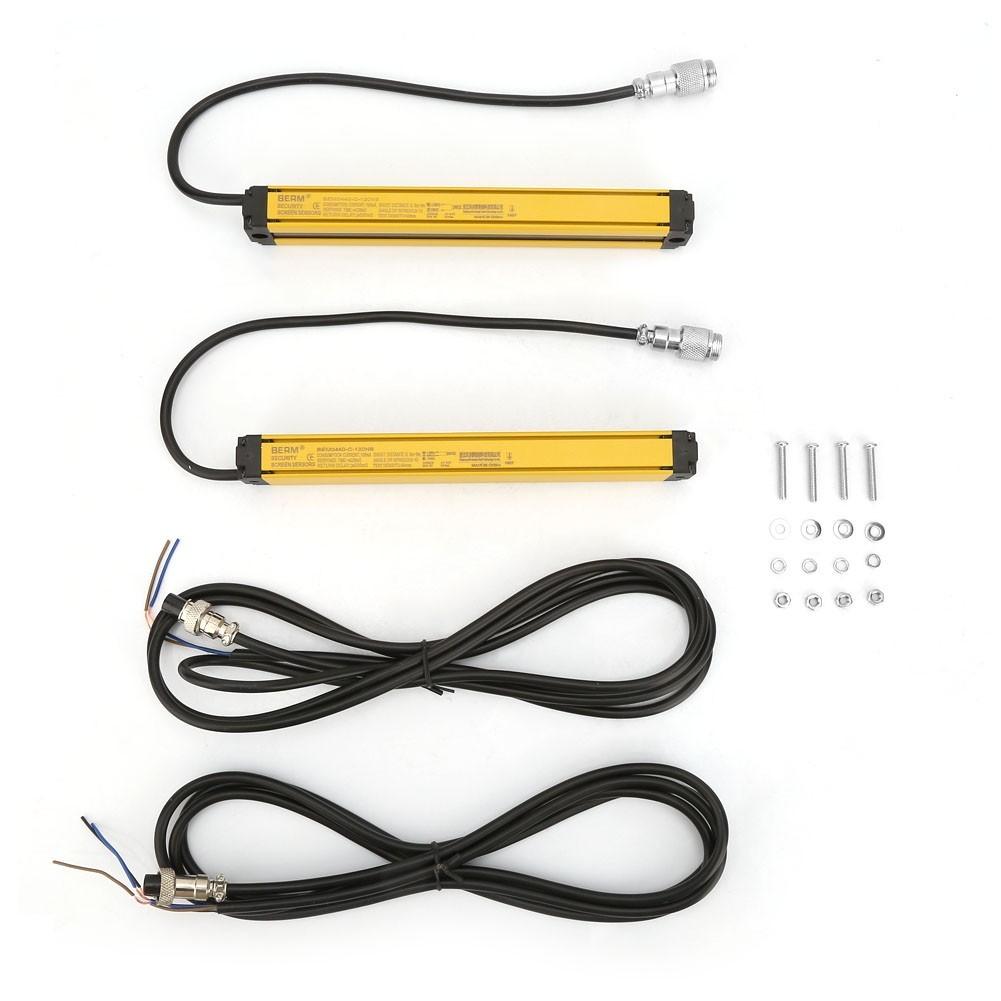

Package List:
1 Bag of Screws
2 x Black Connecting Cable
2 x Yellow Light Gratings
1 x English User Manual
Note:
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
Manual measurement, please allow 1-10mm error. Thanks for your understanding.
