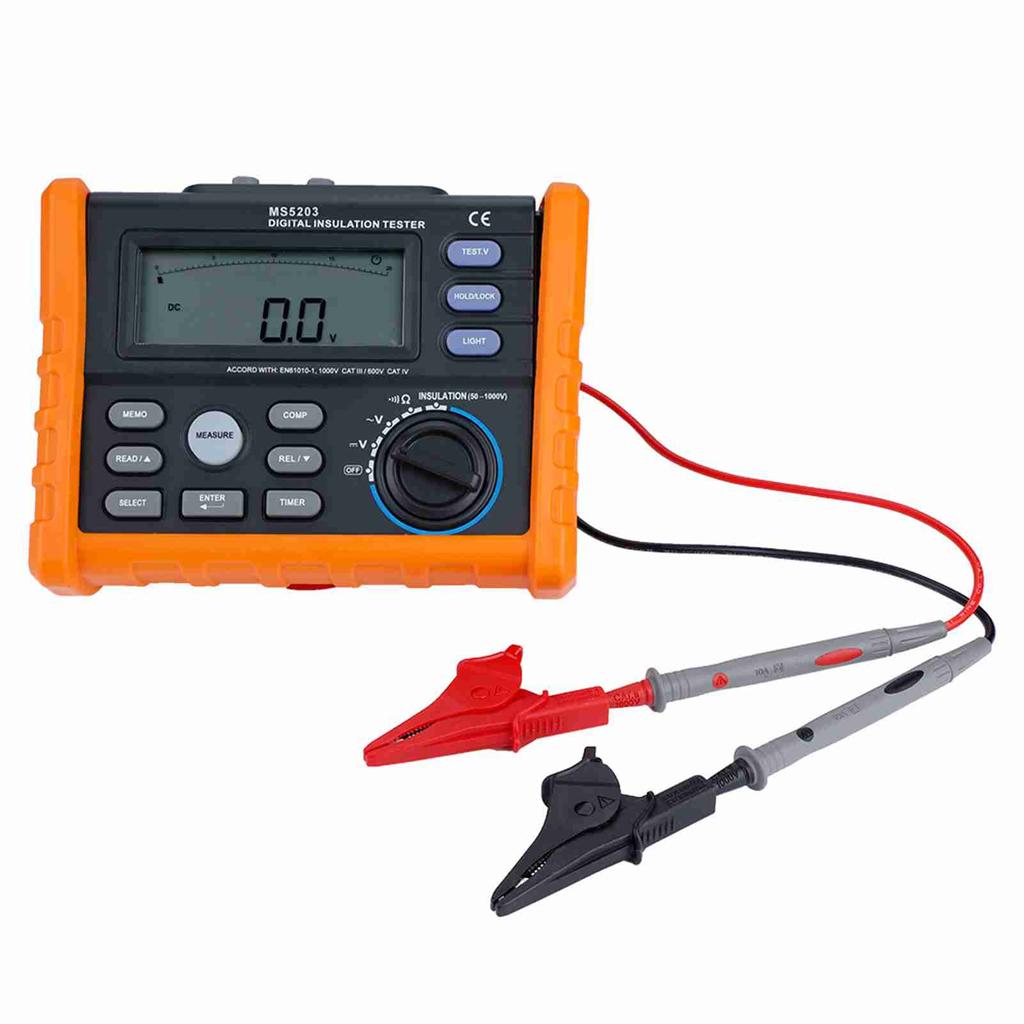

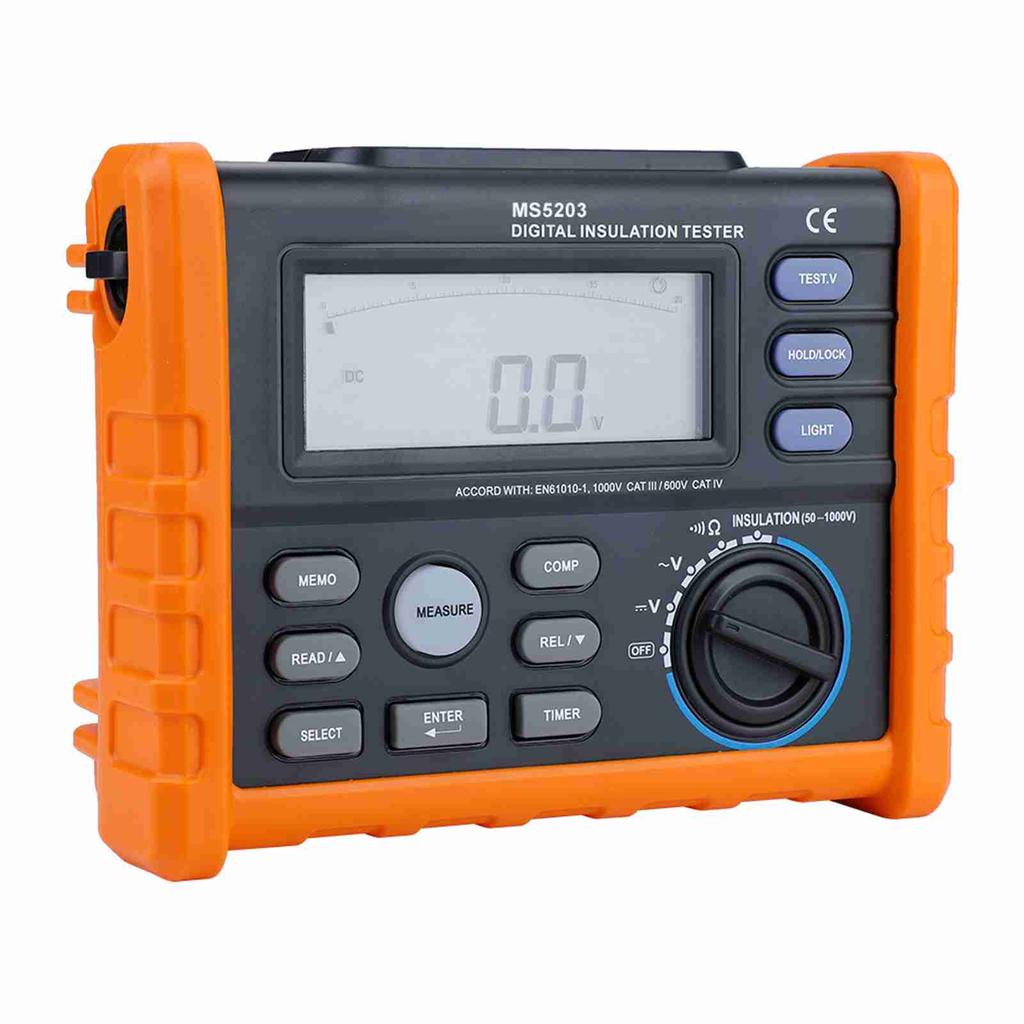

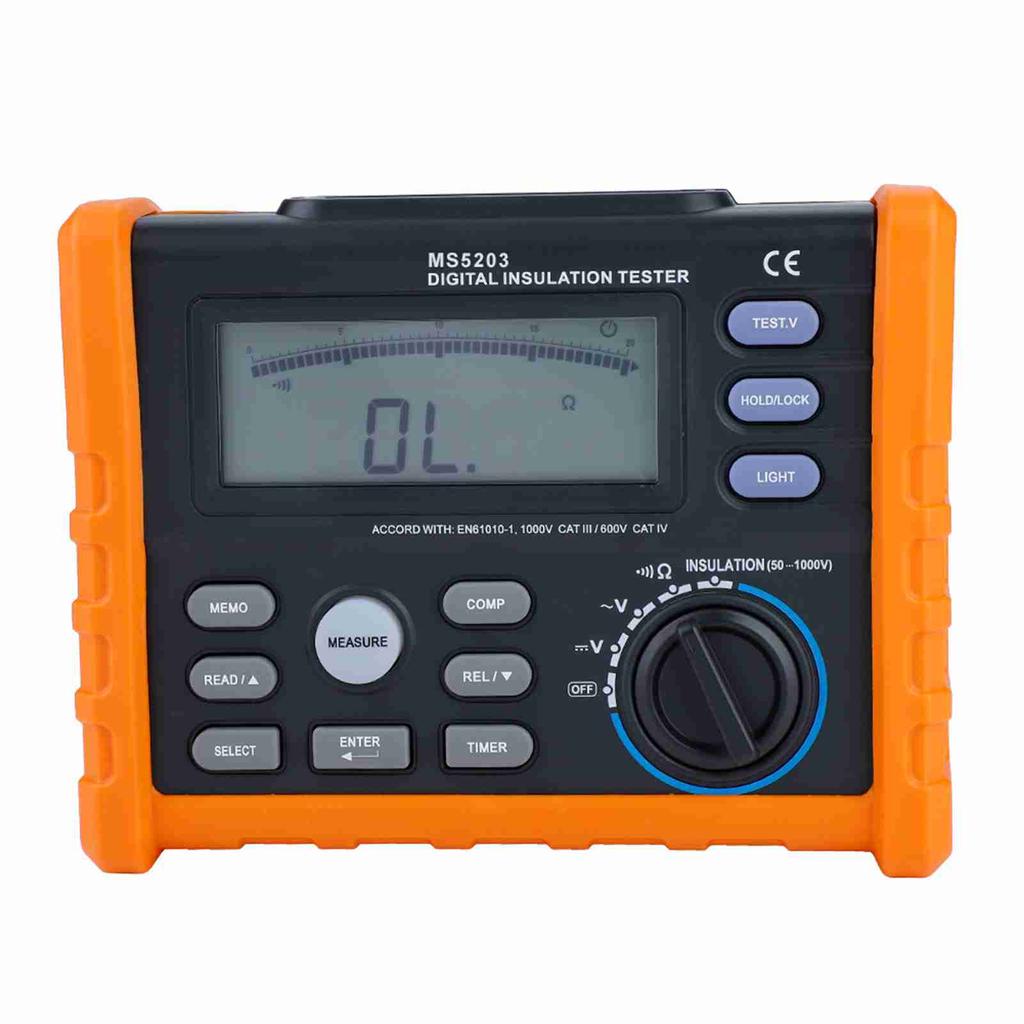

PEAKMETER MS5203 Digital and Analog Display 50 1000V Insulation Resistance Tester Meter

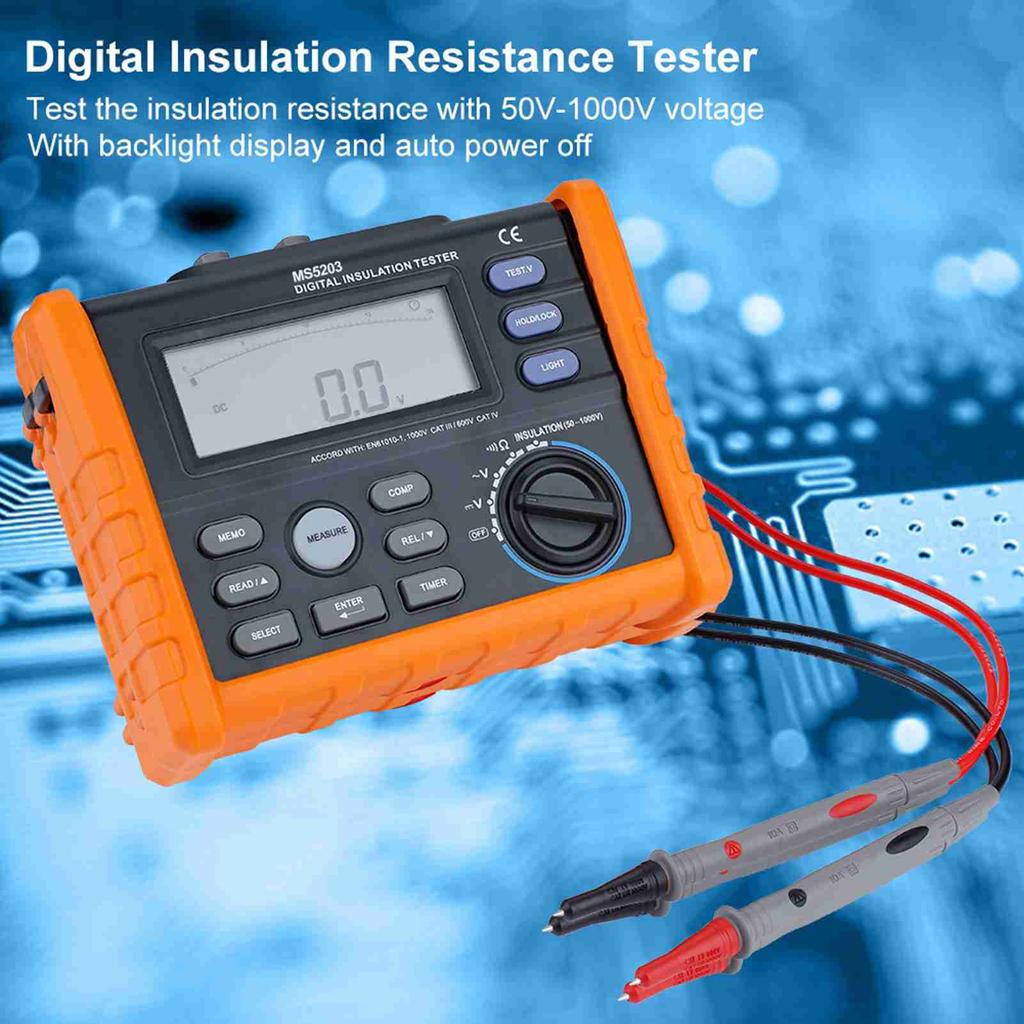

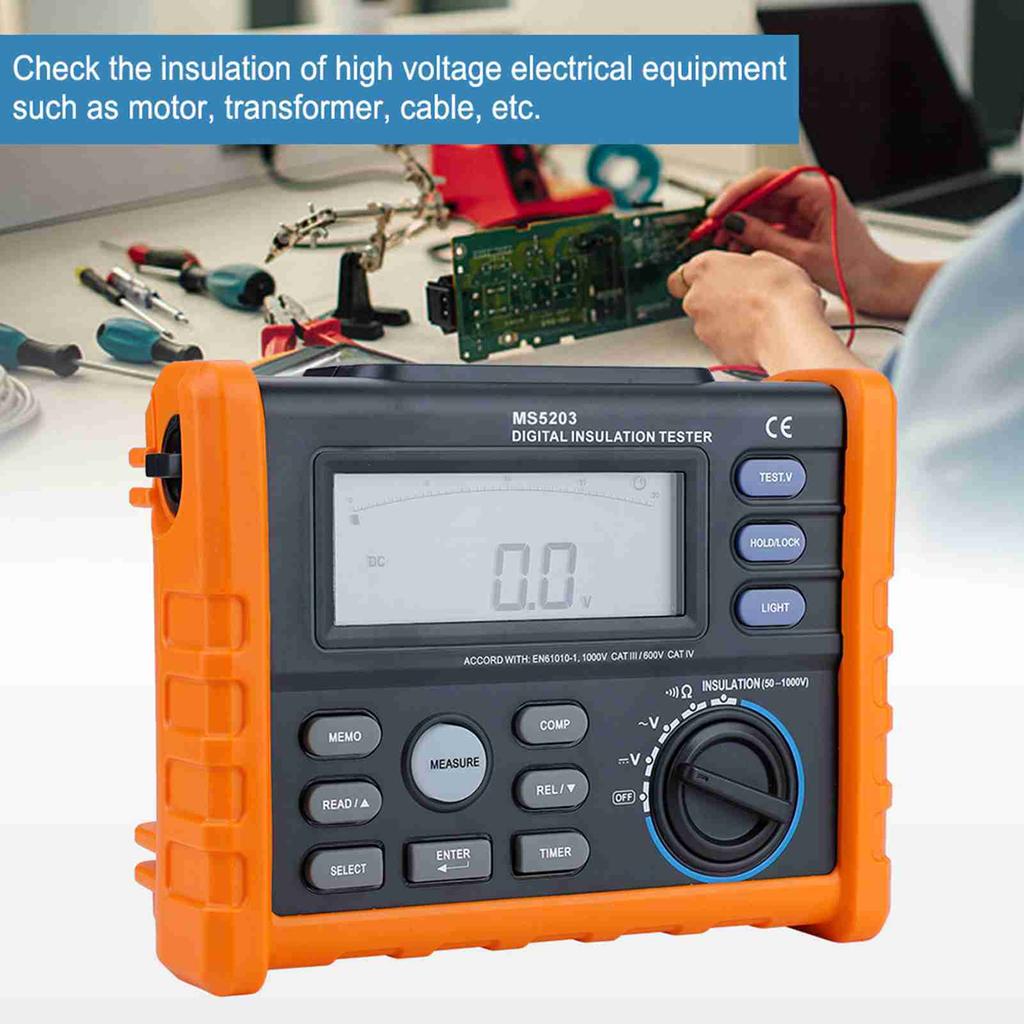

Features: 1. Test the insulation resistance with 50V 1000V voltage. 2. Automatic calculation of PI (polarization index) and DAR (dielectric absorption ratio). 3. With backlight display and auto power off. 4. Check the insulation of high voltage electrical equipment such as motor, transformer, cable, etc. 5. Can also be used to AC DC voltage measurement and continuity test. Specification: Technical Parameter Output Voltage Measuring Range Insulation Test 50V (0 percent +20percent ) 0.01M Ohm 50M Ohm + (3percent +5) 100V (0percent +20percent ) 0.01M Ohm 100M Ohm + (3percent +5) 250V (0percent +20percent ) 0.01M Ohm 250 Ohm M + (3percent +5) 500V (0percent +20percent ) 0.01M Ohm 500M Ohm + (3percent +5) 1.00G Ohm 5.00G Ohm + (5percent +0.1G Ohm ) 1000V (0percent +20percent ) 5.00G Ohm 10.00G Ohm + (10percent +0.2G Ohm ) Short Circuit Current 1.8mA Multimeter Functions DC Voltage Test 0.1 1000V+ 0.5percent AC Voltage Test 0.1 50V+ 1percent Continuity Test 0.01 Ohm 200 Ohm + 0.5percent Characteristics Auto Calculate PI and DAR Data Storage Loading Data Comparision Auto Discharge for Capacitive Load Timer Function for Insulation Test Lock Function For Insulation Test Low Battery Indication DC AC Voltage Test Continuity Test Auto Power Off Digital and Analog Display General Parameter Brand PEAKME TER Model MS5203 Power Supply 6 x 1 . 5 V A A Batteries ( NOT include d ) Item Size 19*15*7cm

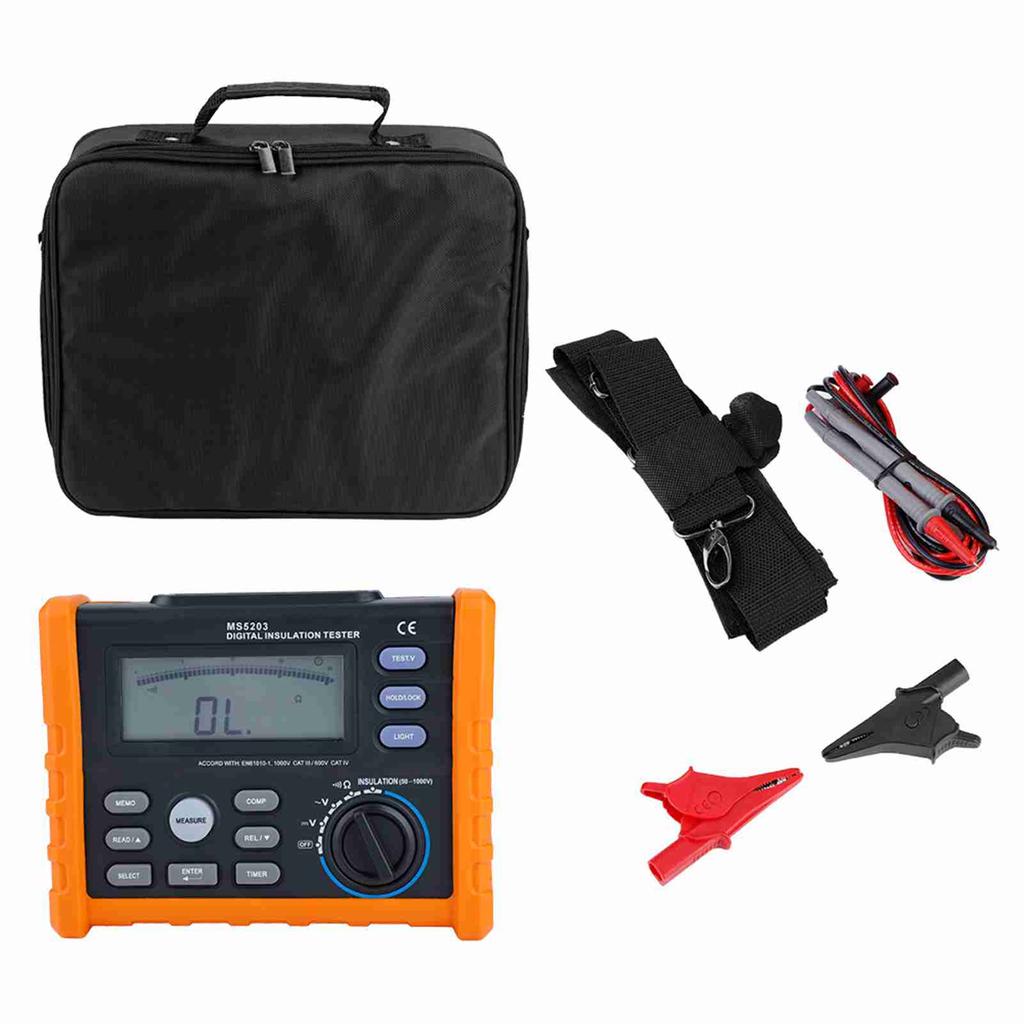

7.48*5.91*2.76in Weight Approx. 1977g Safety Rating CE CAT.III 1000V CAT IV 600V RoHS Package Includes: 1 x MS5203 Digital Insulation Tester 1 x User Manual 2 x Alligator Clips 2 x Test s 1 x Hand Bag 1 x Sling .
