Features:

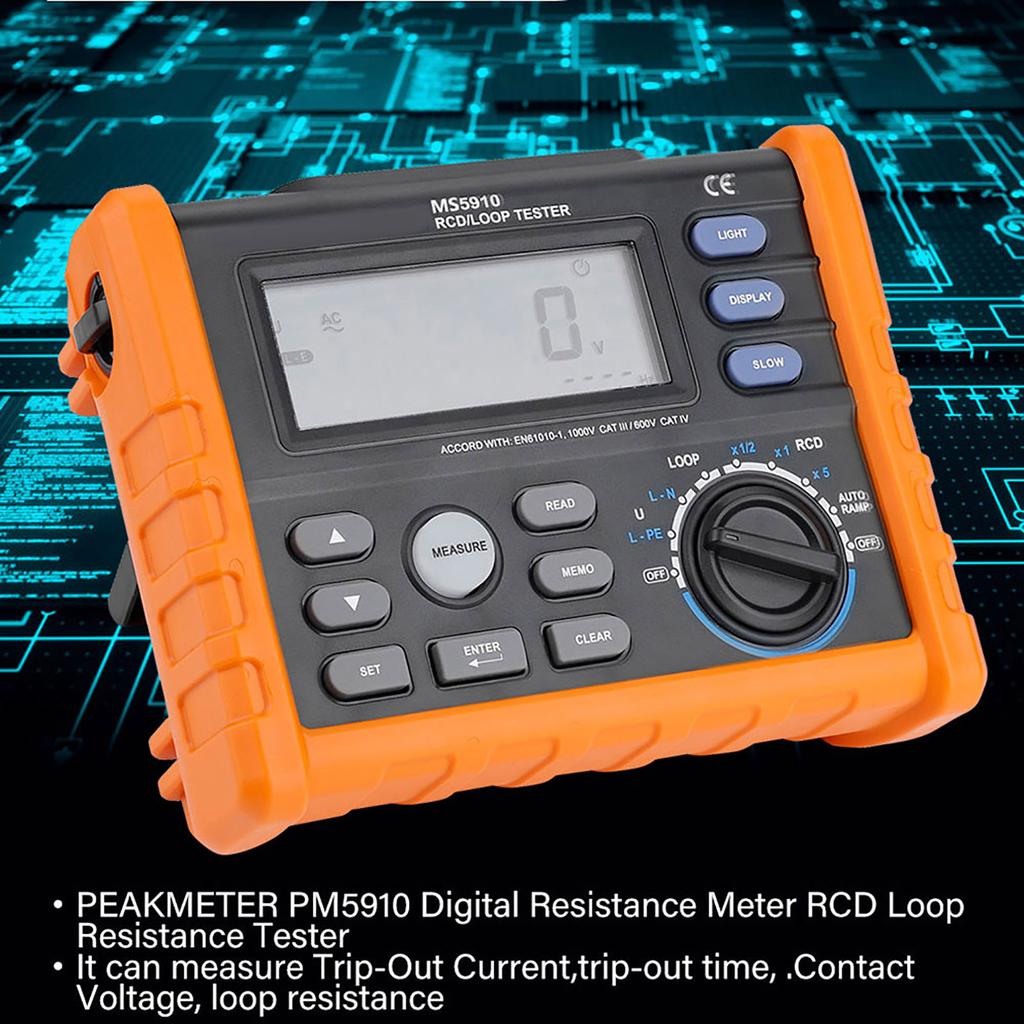

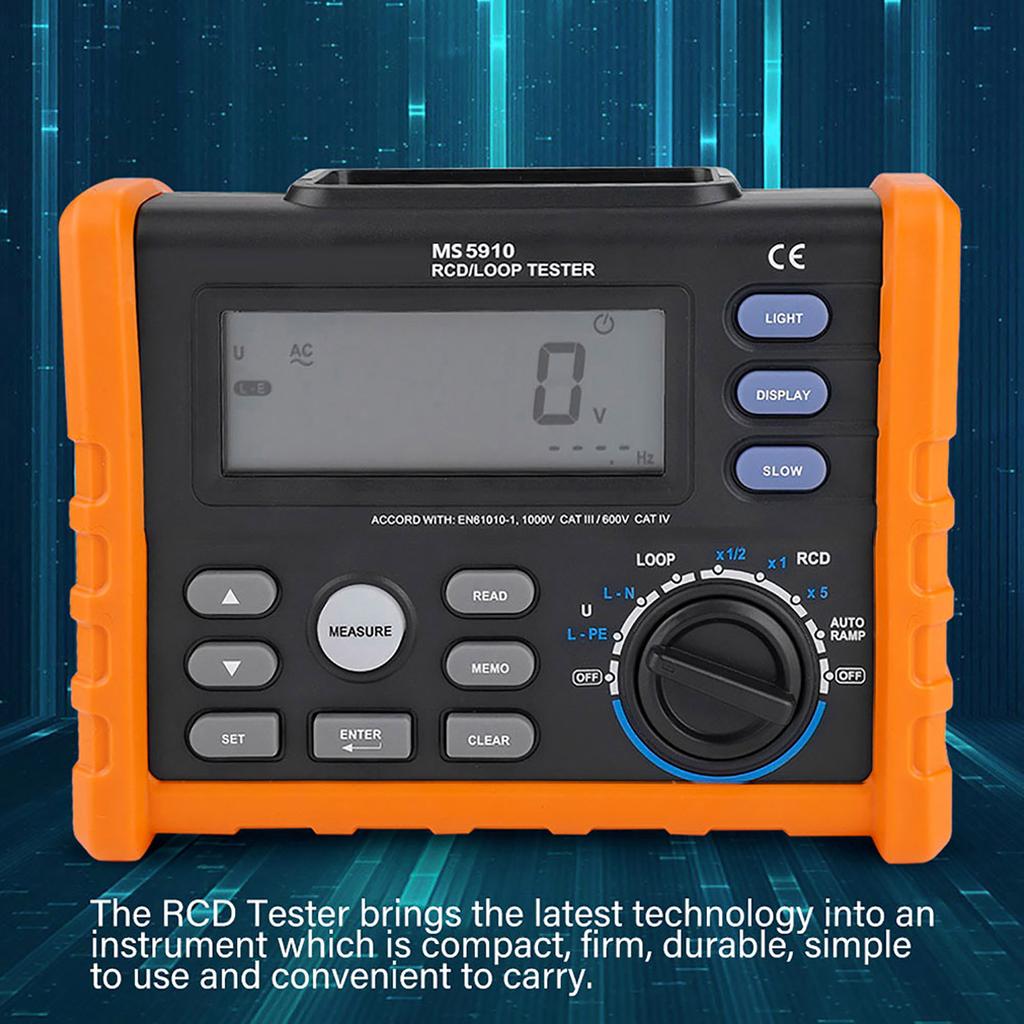

The RCD Tester brings the latest technology into an instrument which is compact, firm, durable, simple to use and convenient to carry.
It can measure TripOut Current,
tripout time,
Contact Voltage
, loop resistance
100 groups of test result can be stored

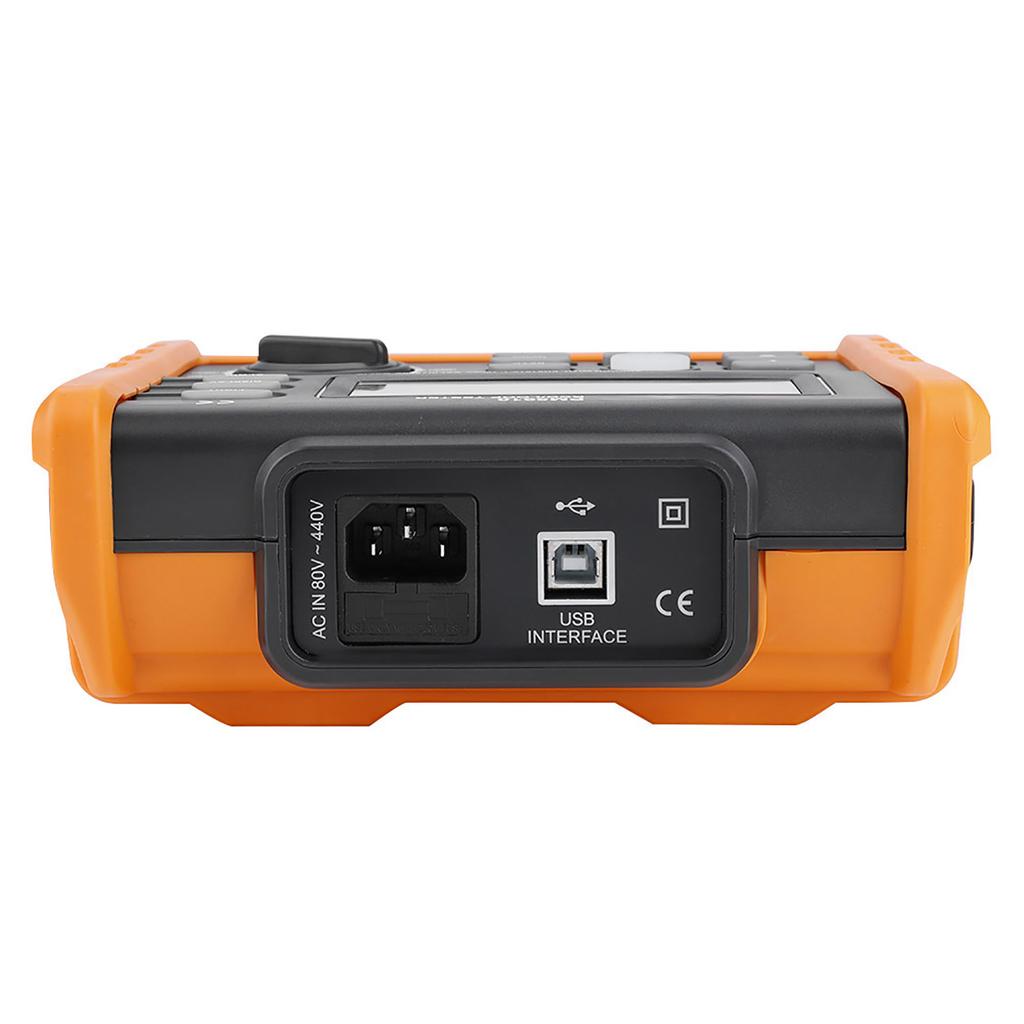

Data stored in host machine can be transmitted to PC via a USB2.0 interface
Features backlight Indication, Auto Power Off,
Automanual range
With the function of overheating Alarm, Low Battery Voltage Alarm
High reliability, stability and accuracy. It is the ideal tool for electrical inspection and repair.

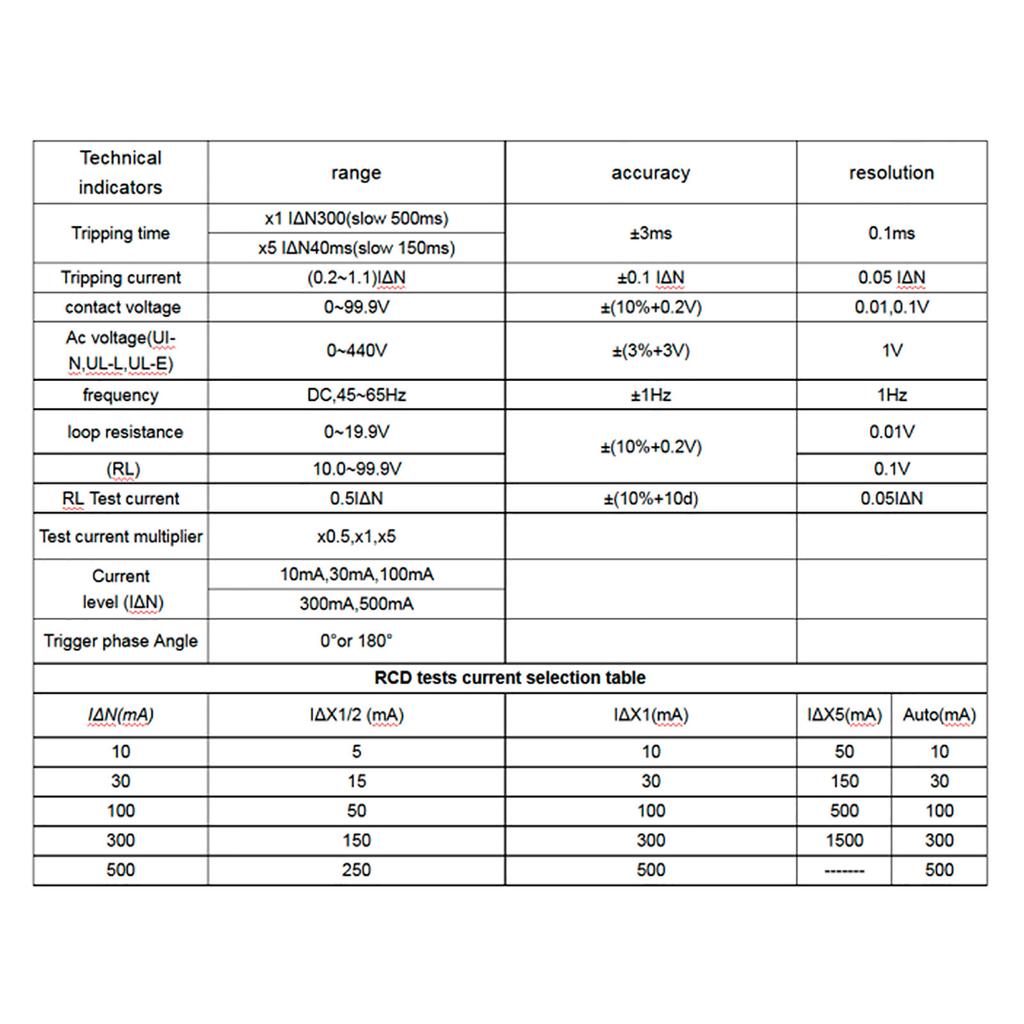

Specifications:
Brand: PEAKMETER
AC voltage measurement: 0V440V
Frequency measurement: DC,45Hz65Hz
Multiplying power of measurement current: 0.5, 1 and 5
Standardselective type current measurement lever: 10, 30, 100, 300, 500mA
Power supply: 6x 1.5V AA batteries(not included)
Storage elevation: 12,000m
Usage elevation: 2,000m CAT III 600V; 3000 CAT II 600V
Size:195*155*80mm7.68*6.1*3.15in
Weight: 2194g

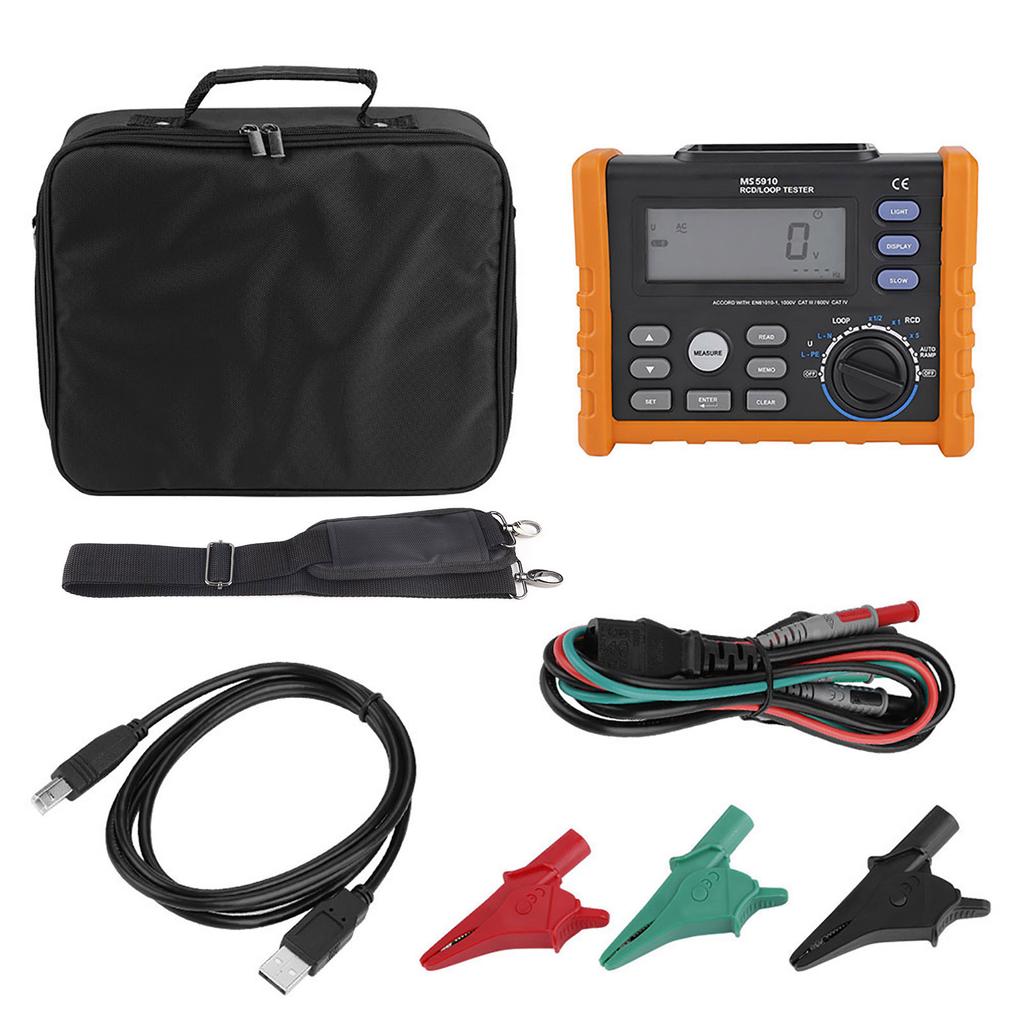

Package includes:
1 * RCDLOOP Tester MS5910(batteries not included)
1 * Test
3 * Crocodile Clip
1 * USB Cable
1 * CD
1 * Instructions
1 * Black Bag
1 * Lanyard
Note:
It supports loop
resistance (RL) measurement, and it can be displayed at a minimum of 3 ohms. This model with a measurement result of 12 ohms is not supported.
.The RCD Tester brings the latest technology into an instrument which is compact, firm, durable, simple to use and convenient to carry.
It can measure Trip?Out Current,trip?out time, Contact Voltage, loop resistance
100 groups of test result can be stored
Data stored in host machine can be transmitted to PC via a USB2.0 interface
Features backlight Indication, Auto Power Off, Automanual range
