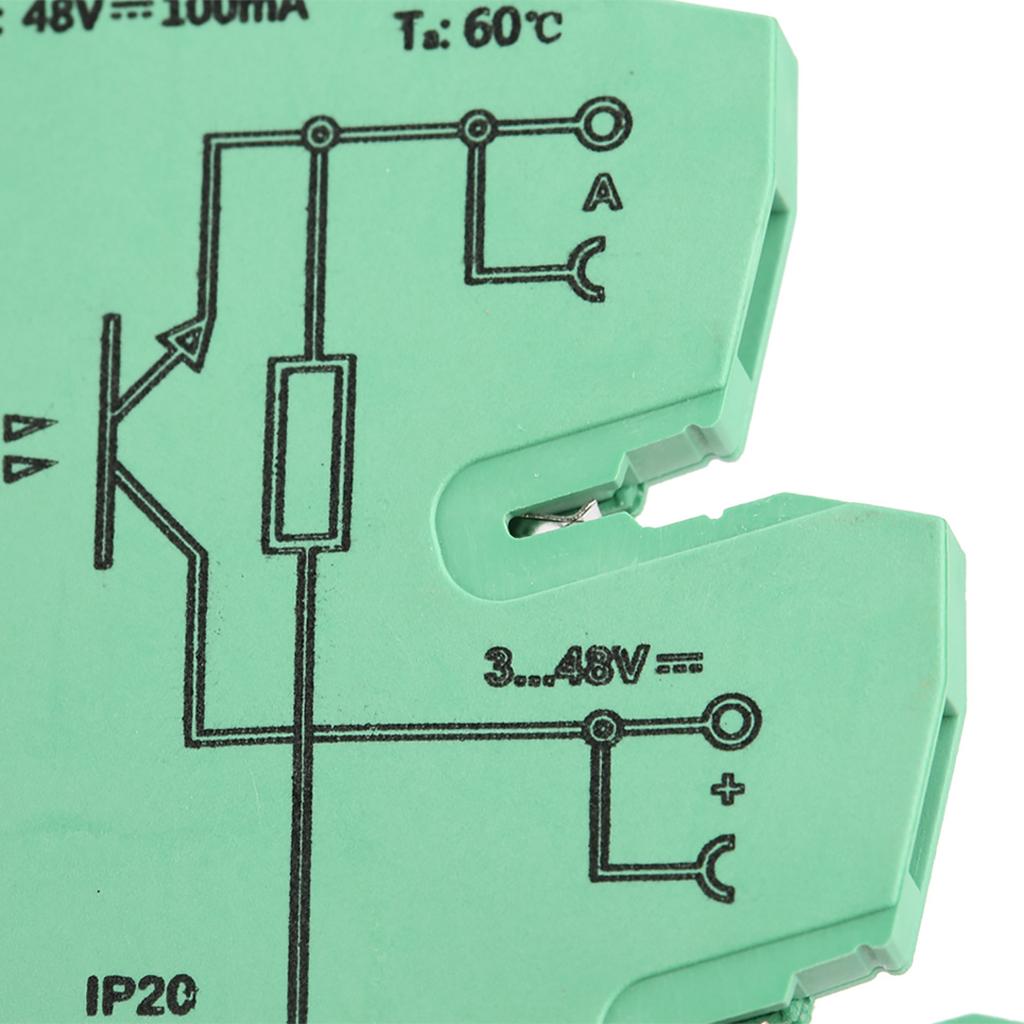

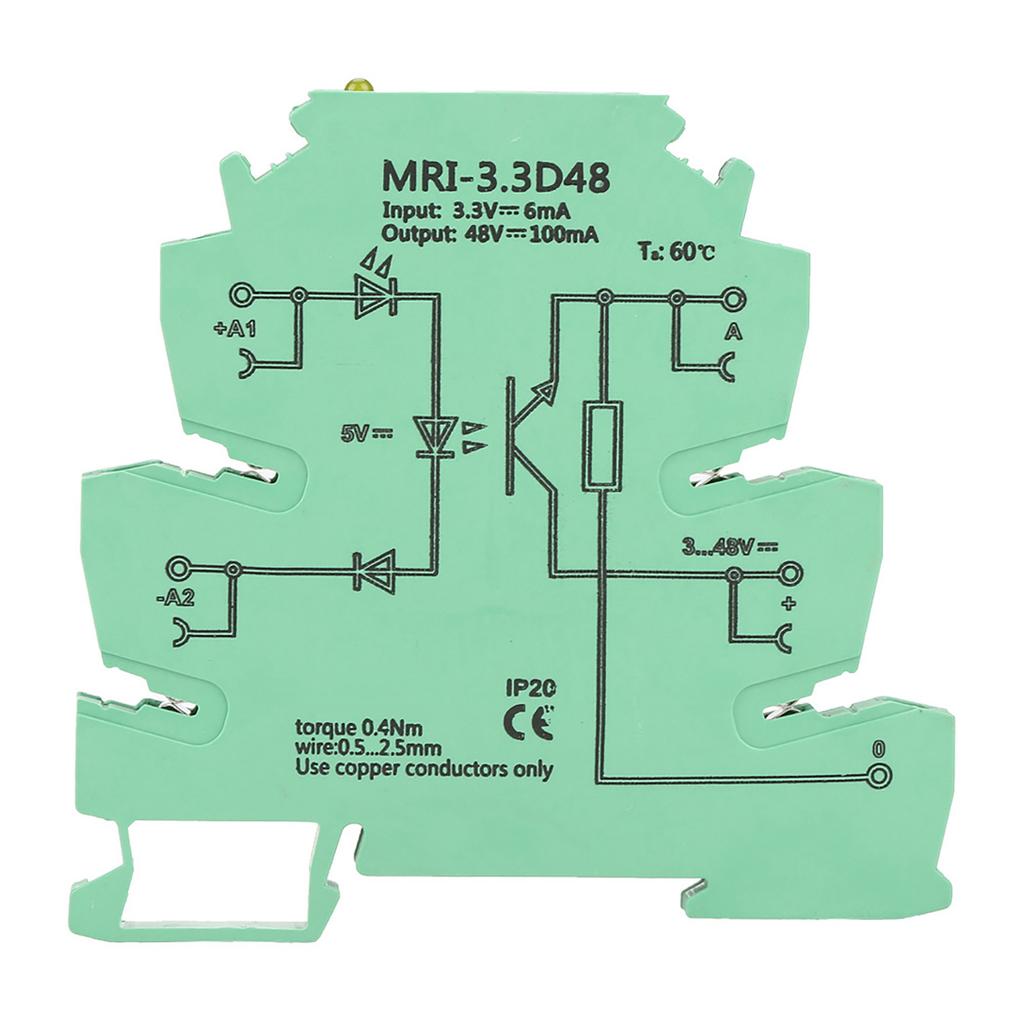

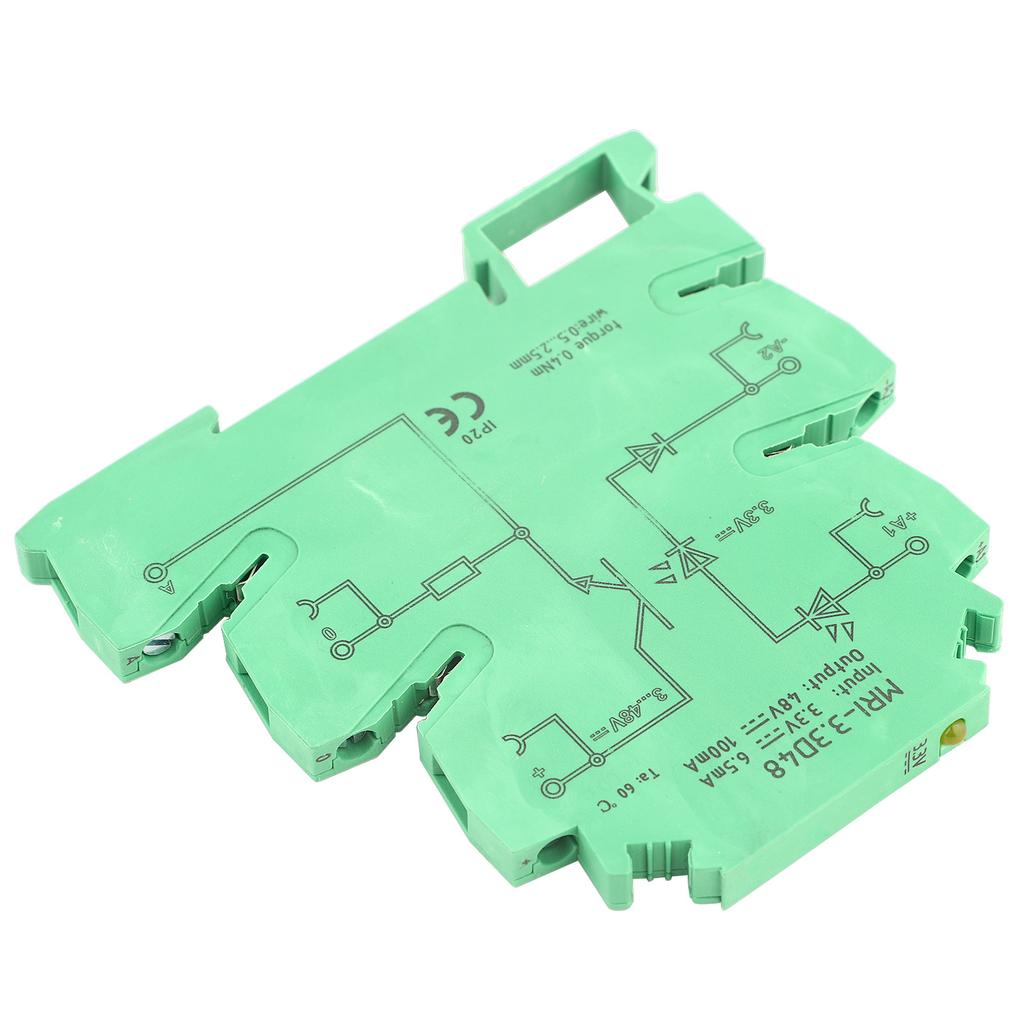

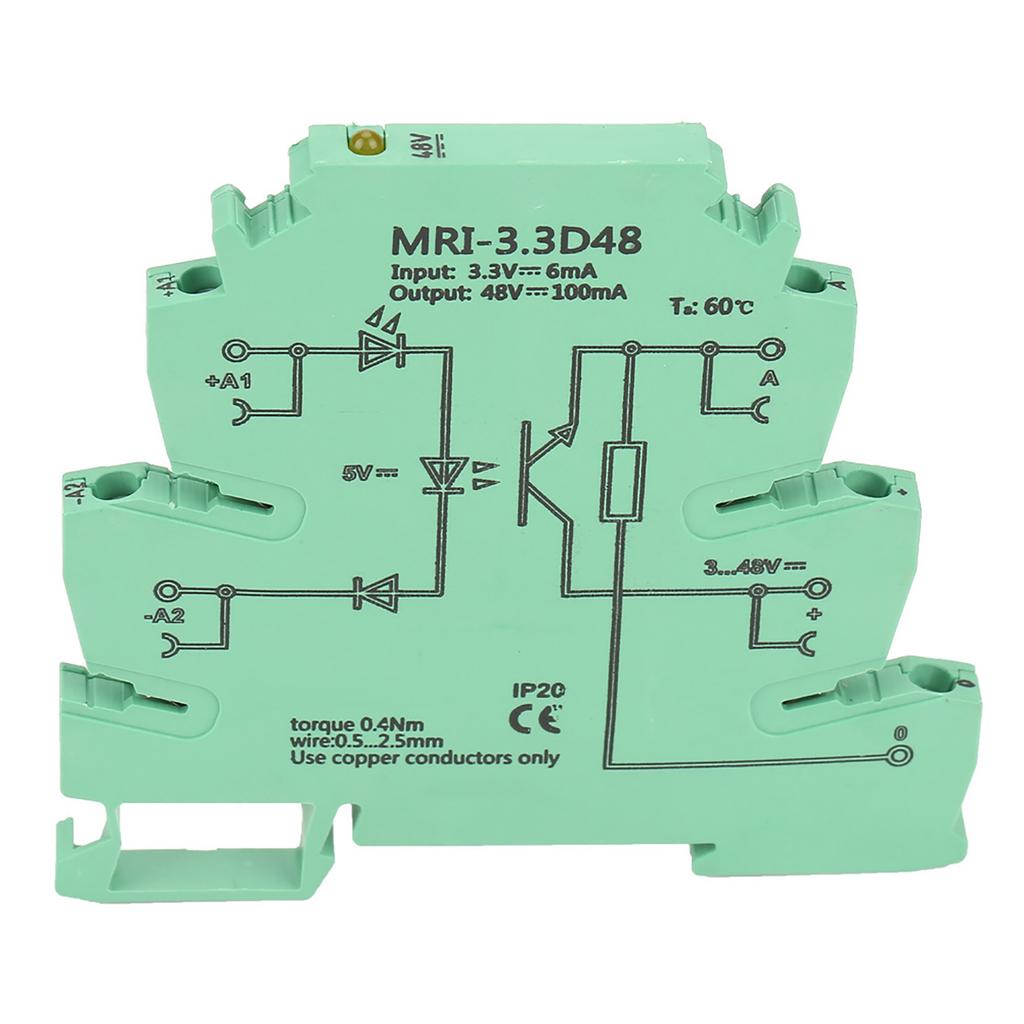

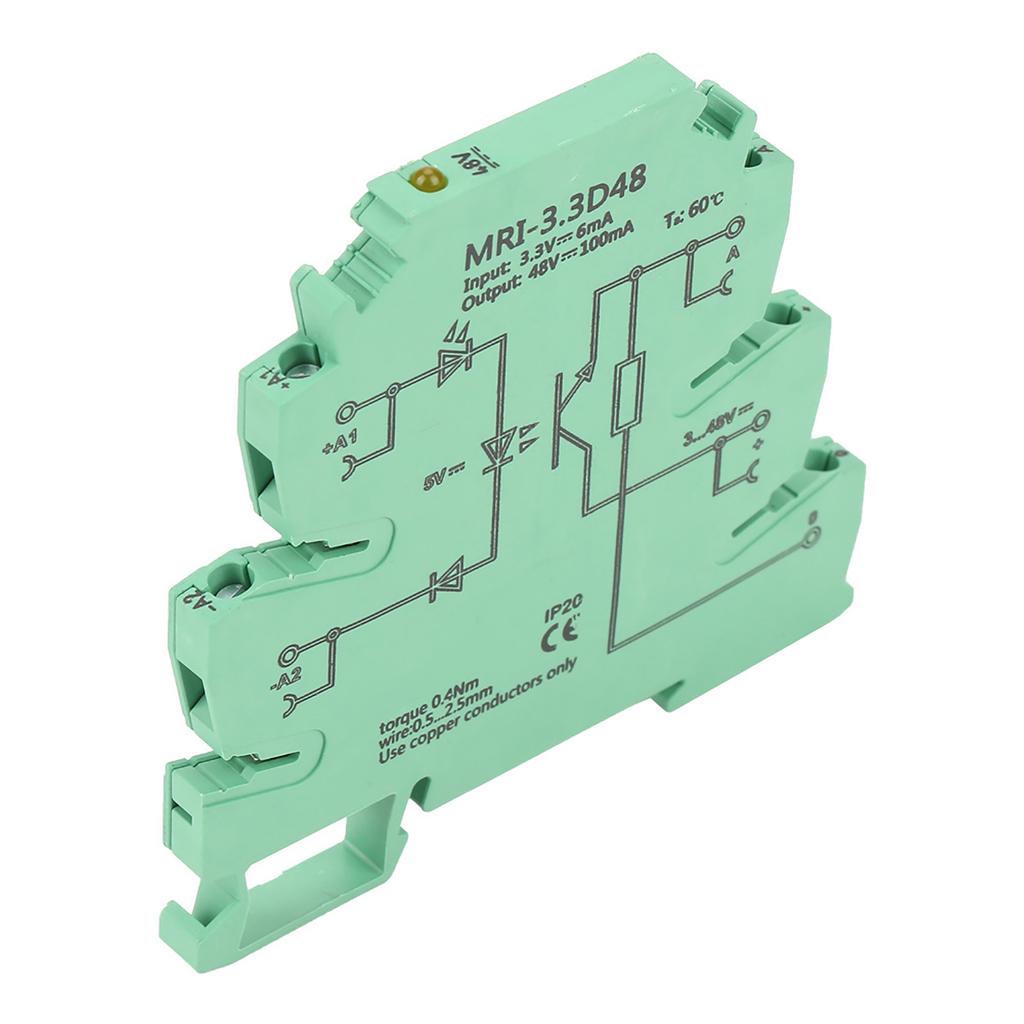

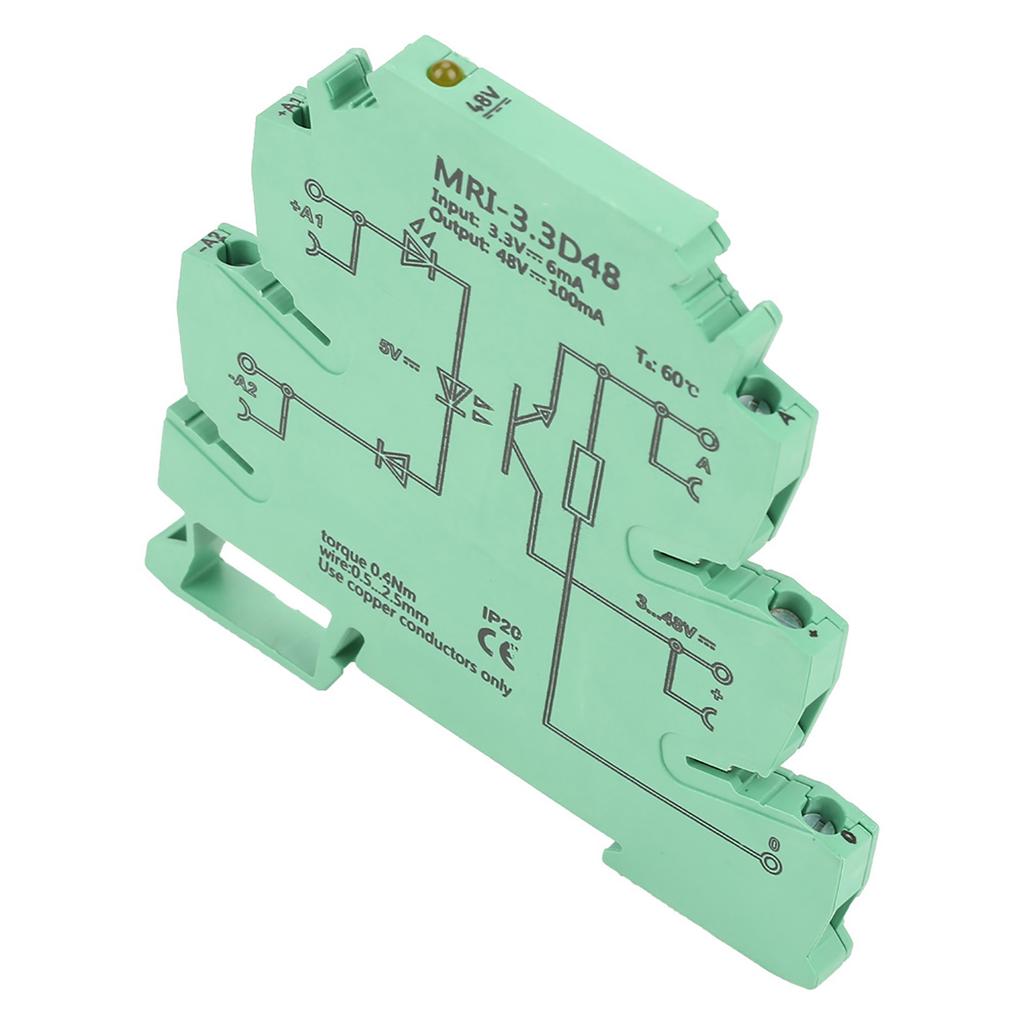

MRI 3.3D48 DC Photoelectrical Coupler Isolating PLC Relay Module Input 3.3VDC Output 3 48VDC

Features: Yellow LED indication, clear port mark The width is only 6.2mm, which saves 60percent of installation space Operational frequency can reach to 300Hz.No abrasion switch output :3 48V DC 100mA Internal input output polarity protection circuit.The max electrical isolation is 2.5kVrms Specification: Model:MRI 230A48 Input Current: 6mA Transfer Frequency:300Hz Switch Electrical Level: 1 signal (H) more than 80, 0 signal (L) less than 40percent Max.Sustained current: 100mA Ambient Temperature: 20 celsius 60 celsius Operative Standard: IEC60664,EN50178, IEC62103 Applicable Wire: (Rigidity)0.2 2.5mm2,(Flexibility)0.2 2.5mm2,(AWG)24 14 Weight: Approx.3 1 g 1.1oz Package list: 1 x Optocoupler Isolating PLC Relay .
