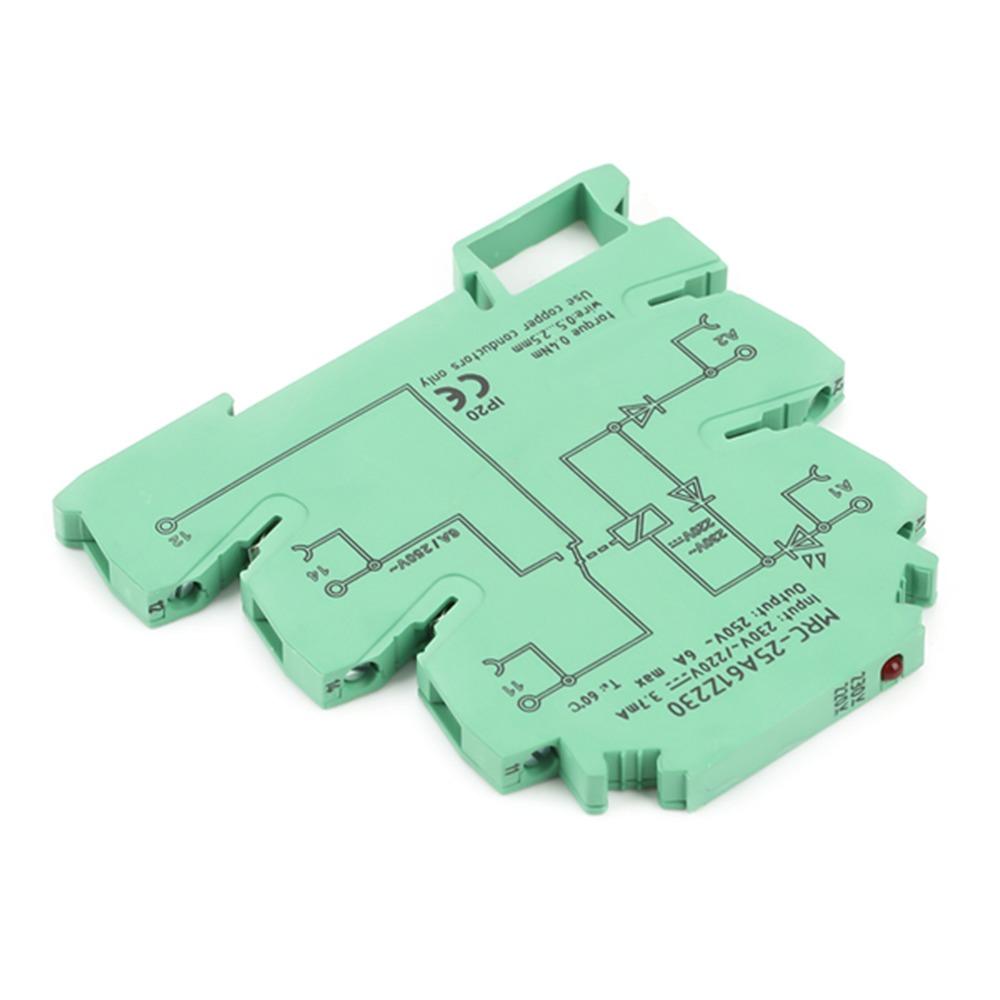

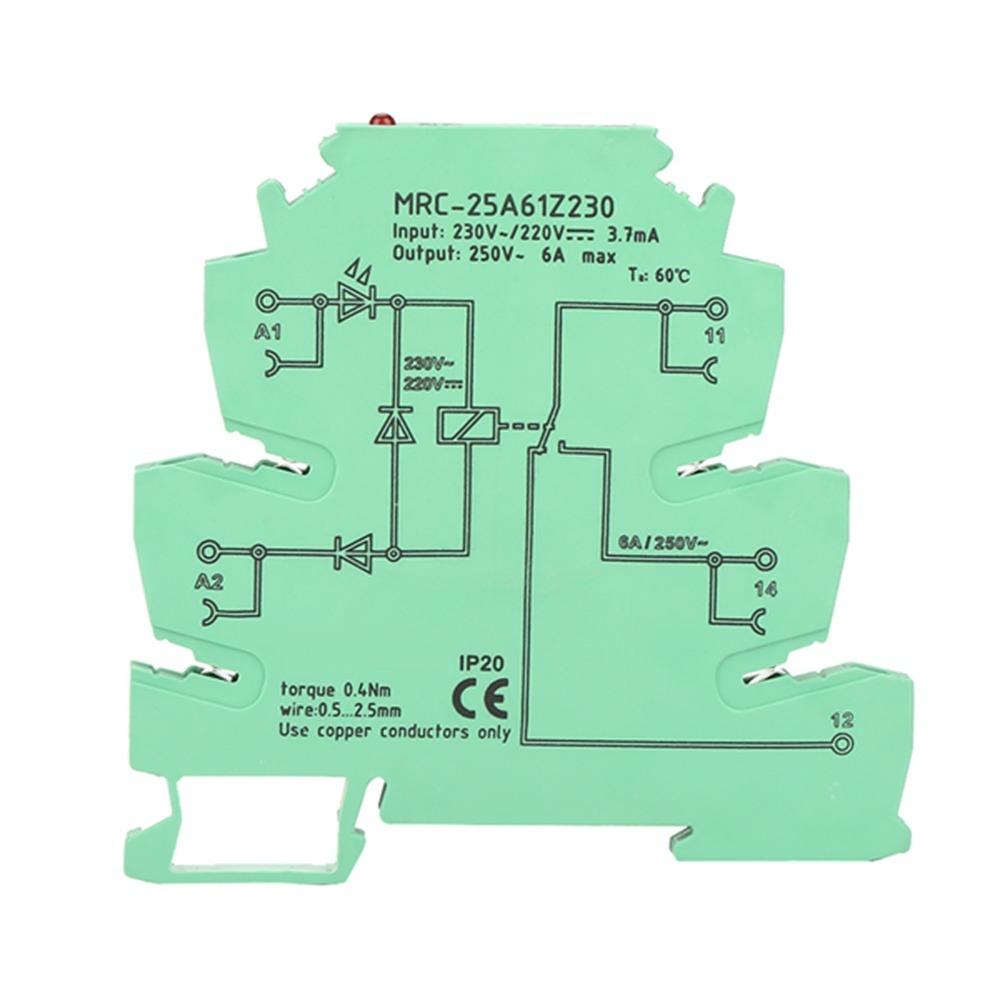

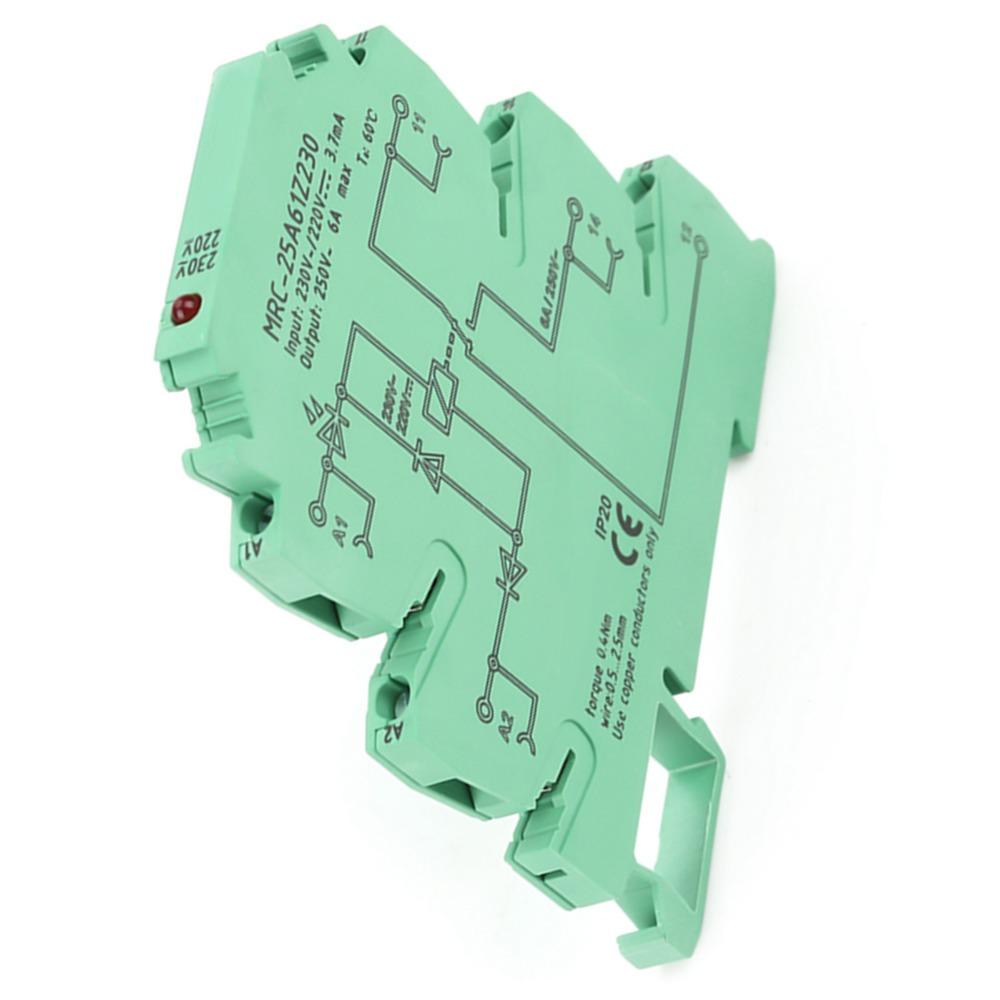

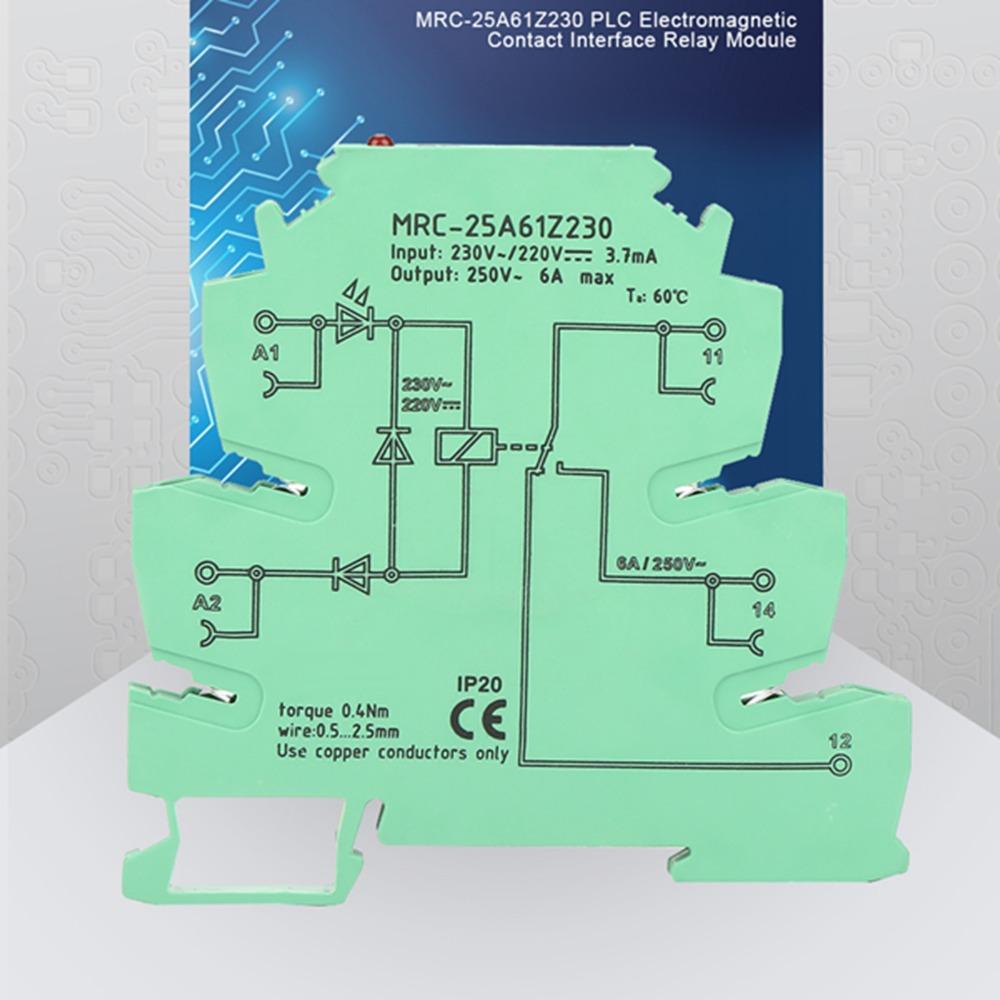

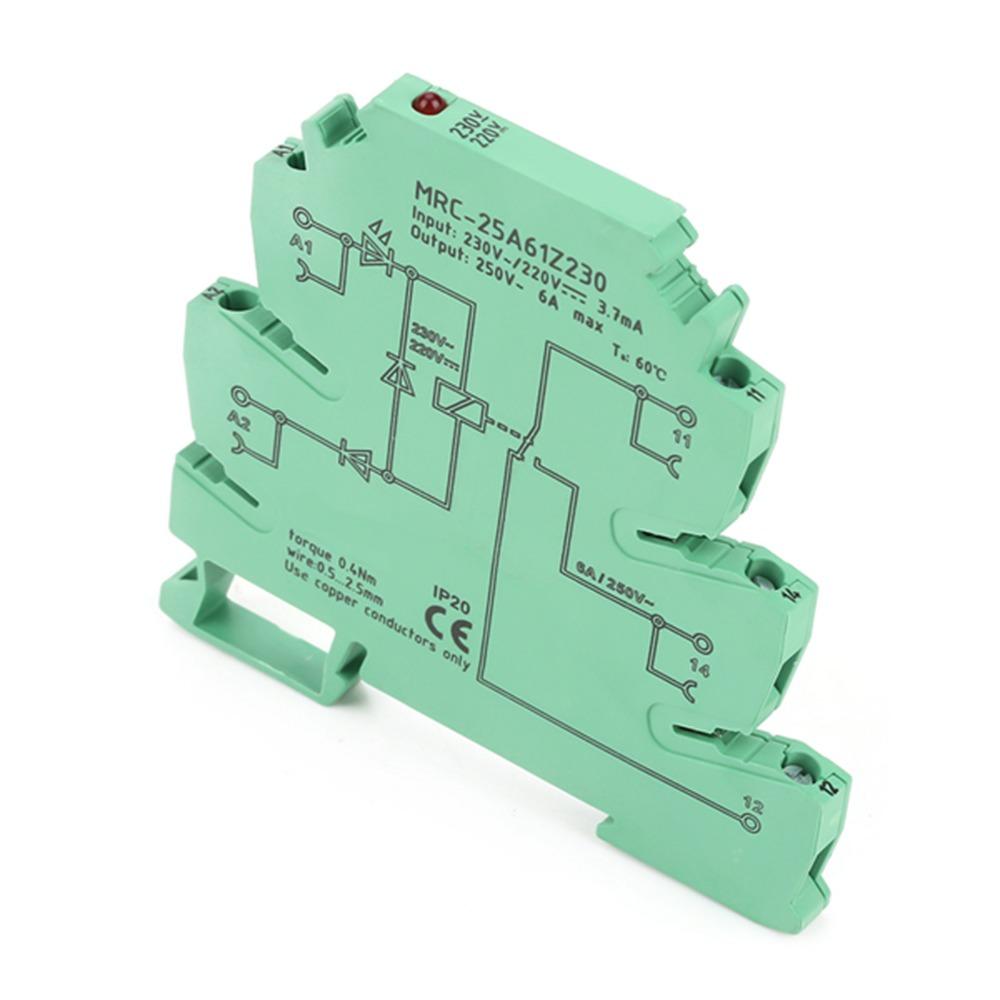

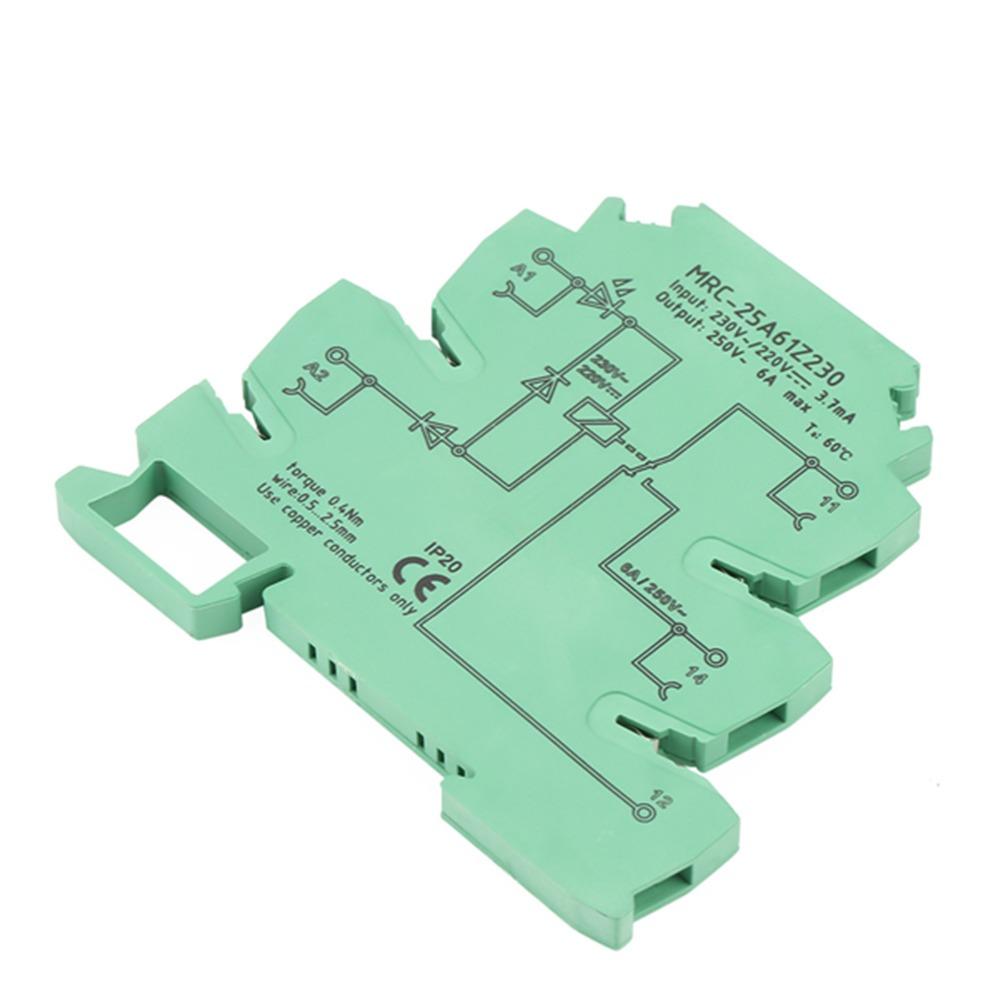

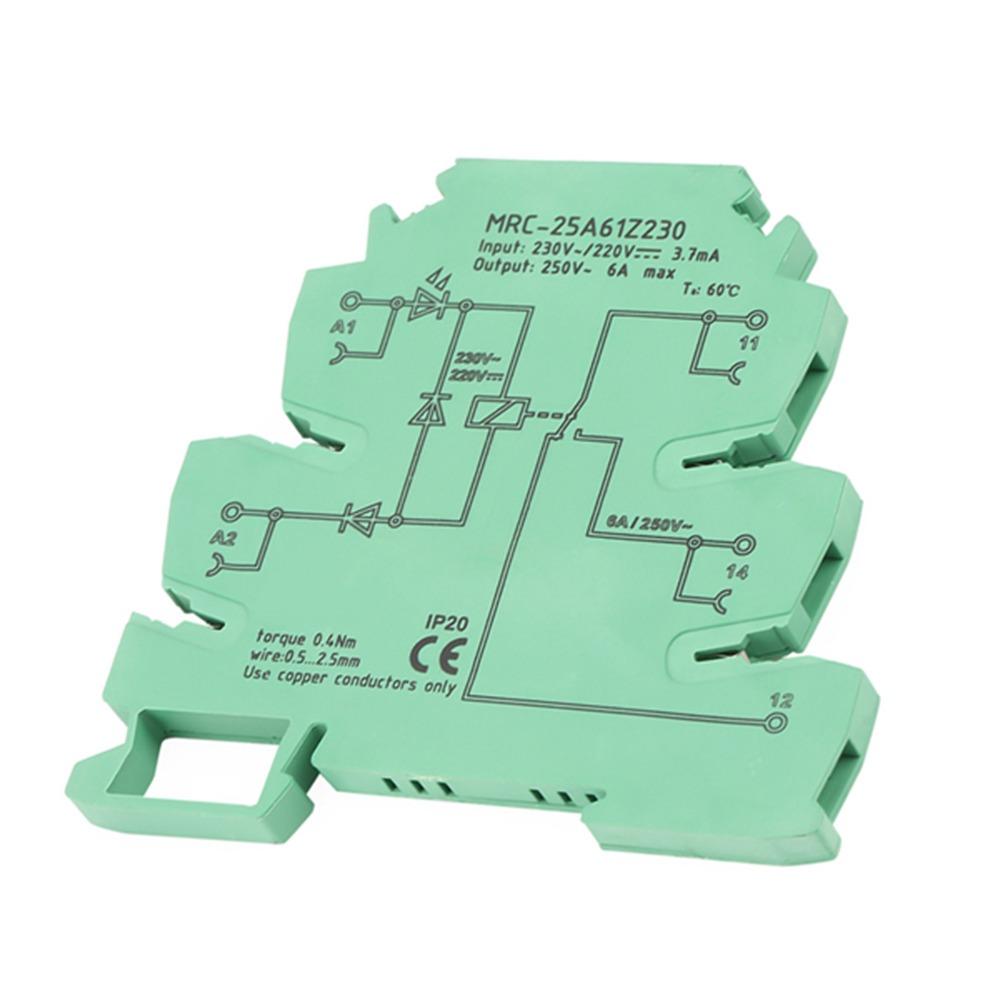

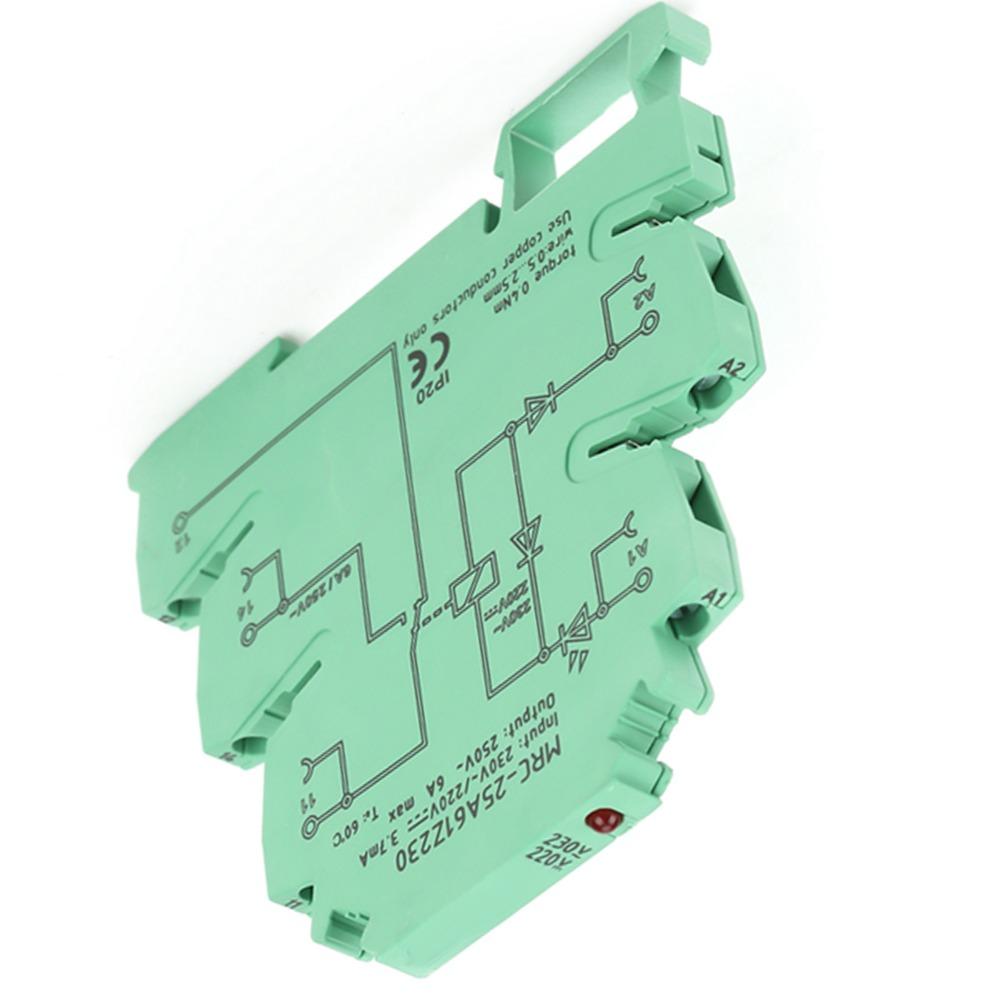

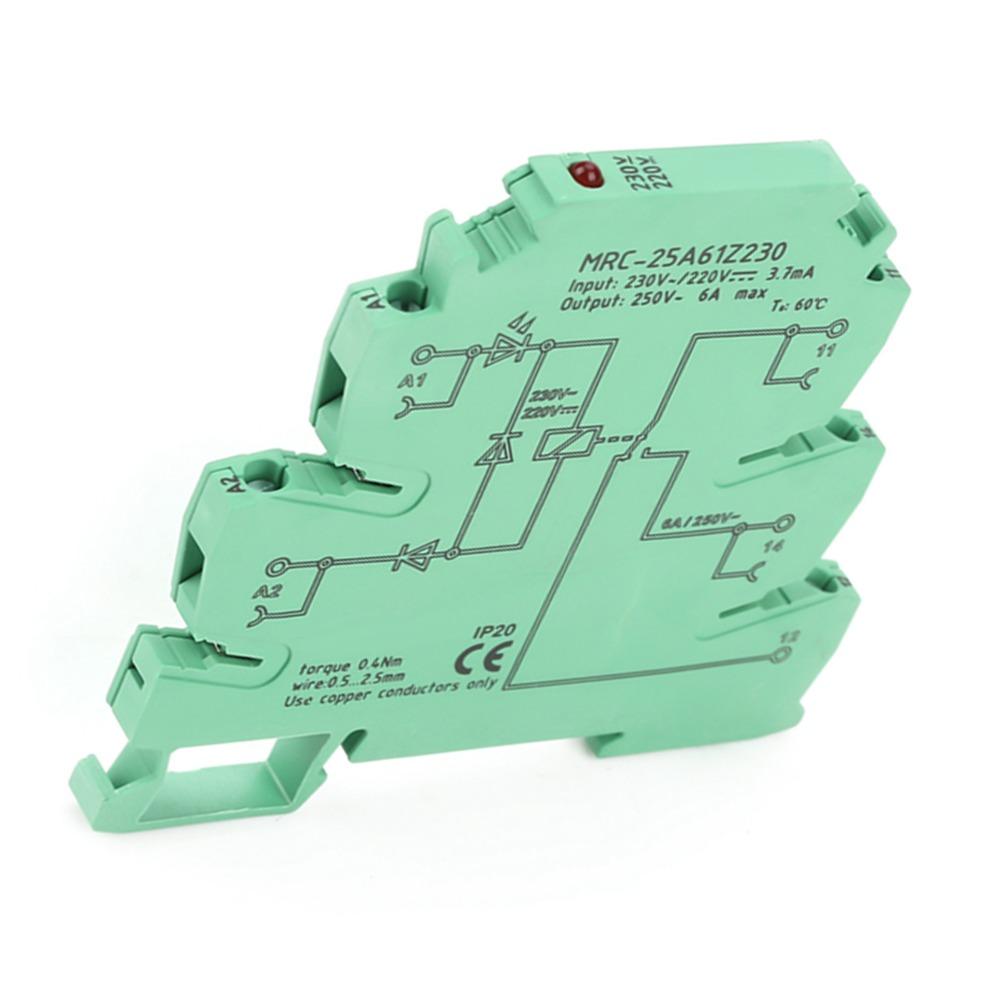

6.2mm Thickness Ultra-thin Relay 230VAC/220VDC Ultra-thin PLC Relay Industrial Control

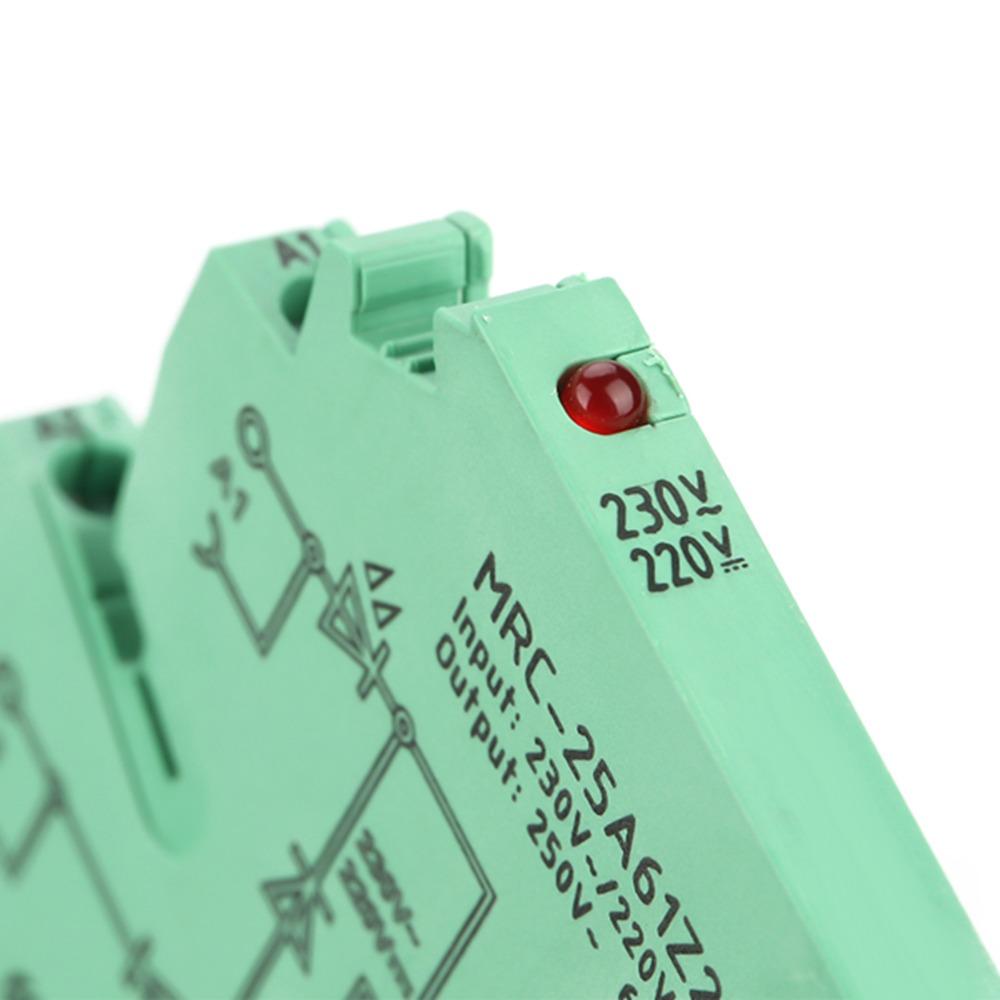

Label:Yes The ultra-thin port type relay, with an width of 6.2mm(0.24in), is mainly used in PLC controllers and actuators, where it serves as a coupling switch amplifier. Comes with an LED input state indicator and an IP20 protection shell (contactless type) to ensure clear state monitoring and basic protection. With overall shrinkage volume to save space, it supports TS - 35 rail installation, and adjacent relays can be bridged for fast connection process. Equipped with AgSno2 alloy contacts, it features impact resistance, durability and no adhesion; meanwhile, its fire-retardant shell adopts an integrated structure, enabling vibration resistance, impact resistance and stable performance. Built with input and output protection circuits, and the isolation voltage can be up to 4kv, effectively safeguarding the circuit system.

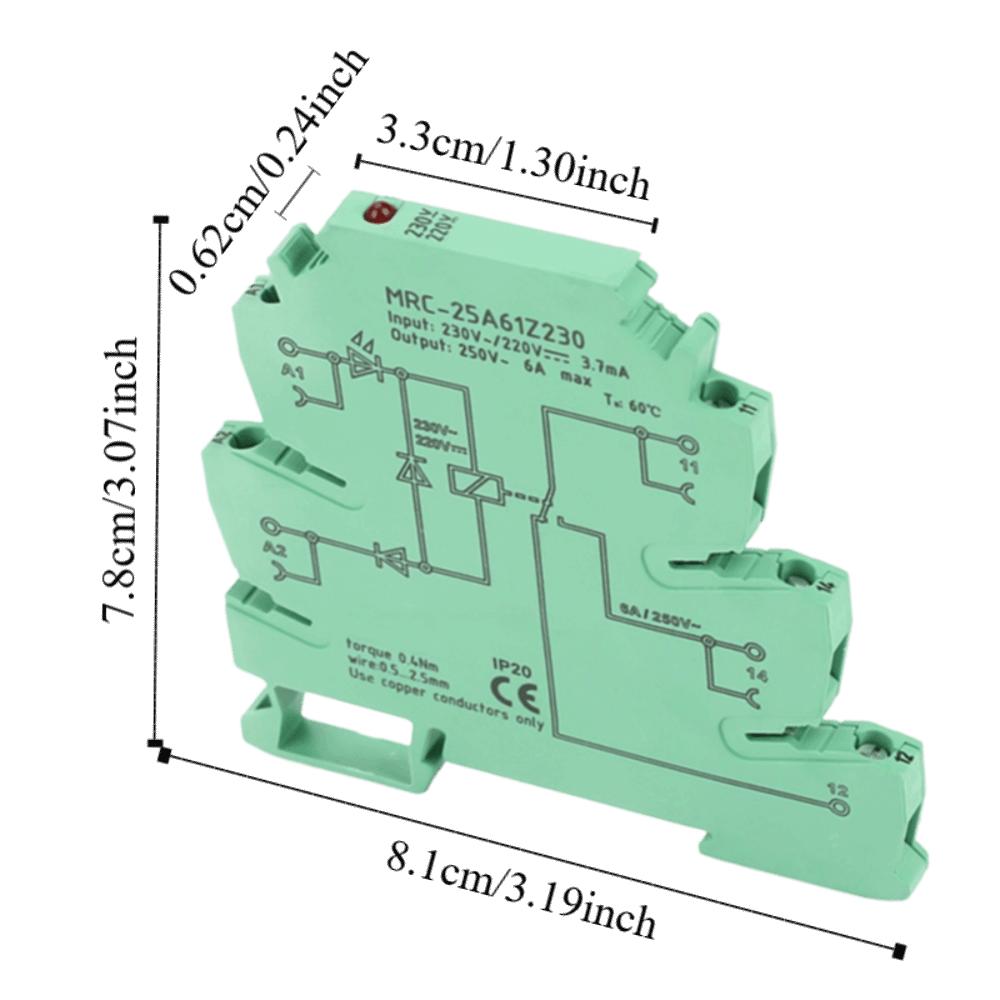

Specification:  Model: MRC-25A61Z230 Relay type:  Interface Relay  Input: 230VAC/220VDC Output: 250VAC 6A Rated power:<300mw  Transmission frequency: 8 ms  Condition indicates: red led luminous tube  Protection circuit: diode reverse polarity protection  Contacts material: Agnso2  Input/output response time: <5ms  The isolation voltage rating: 4 kv  Working temperature: 25 ~ 60℃  Storage temperature: - 40 ~ 80℃  UL94 level of fire retardant: V - 0  Connection: screw connection  Size: 81*78*6.2mm(3.19*3.07*0.24in) Weight: Approx.36g/1.2oz

Package list:  1 x PLC Interface Relay
