Feature:
1. Can measure AC DC voltage, current, resistance, capacitance, frequency, duty ratio.
2. Also can test NCV (non contact voltage), live line, diode, transistor and continuity.
3. PM18C is specially designed with temperature measurement function.
4. Data hold function, \ SEL\ key for some functions selection.
5. LCD display with backlight and lighting, convenient to use.
6. Powered by 4 1.5V AA batteries (Not included).
7. Auto power off function to save power.
8. Intelligent anti burning, high sensitivity NCV sensor. PTC overload conservation, double ceramic fuse protects against current overload.
Specification:
This multifunctional multimeter with high precision and high performance can measure AC DC voltage, current, resistance, capacitance, frequency, duty ratio. It also can test NCV(non contact voltage), live line, diode, transistor and continuity. With a bracket on the back, convenient to place it on the table and read the values.
Features:
Can measure AC DC voltage, current, resistance, capacitance, frequency, duty ratio.
Also can test NCV (non contact voltage), live line, diode, transistor and continuity.
PM18C is specially designed with temperature measurement function.
Data hold function, SEL key for some functions selection.
LCD display with backlight and lighting, convenient to use.
Powered by 4 1.5V AA batteries (Not included).
Auto power off function to save power.
Intelligent anti burning, high sensitivity NCV sensor. PTC overload conservation, double ceramic fuse protects against current overload.

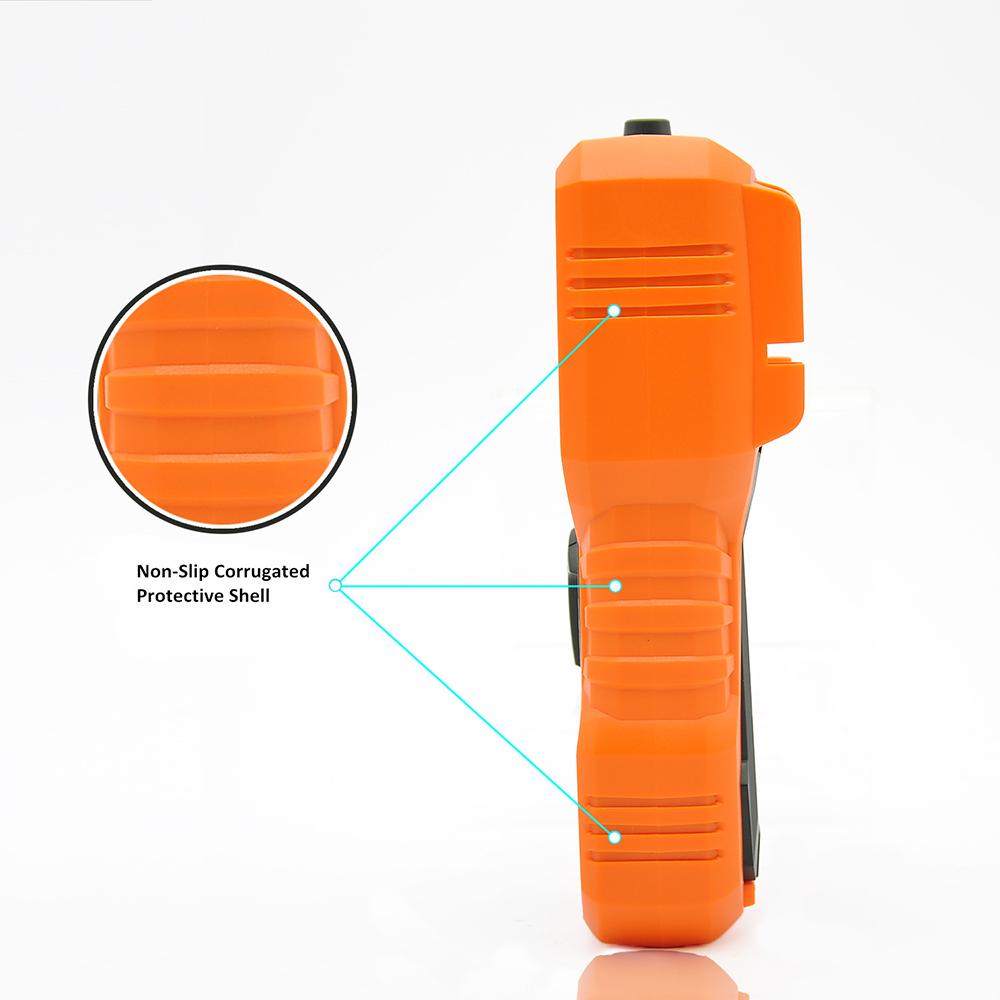

The shell is made of ABS fireproof material and has a hard texture. PVC leather case, anti fall and wear resistant.
User friendly support frame design, easy to use.
The pen slot design is safe and reliable.
Specifications:
Material: ABS
Display: LCD Display with Backlight, 6000 counts
Operating Environment: 600V CAT IV and 1000V CAT III
DC Voltage Range: 600mV 6V 60V 600V 1000V
DC Voltage Resolution: 0.1mV 1mV 10mV 100mV 1V
AC Voltage Range: 6V 60V 600V 750V
AC Voltage Resolution: 1mV 10mV 100mV 1V
DC Current Range: 60microamps 60mA 600mA 20.00A
DC Current Resolution: 0.01microamps 0.01mA 0.1mA 10mA
AC Current Range: 60mA 600mA 20A
AC Current Resolution: 0.01mA 0.1mA 10mA
Frequency Range: 9.999Hz 99.99Hz 999.9Hz 9.999KHz 99.99KHz 999.9KHz 9.999MHz
Frequency Resolution: 0.001Hz 0.01Hz 0.1Hz 0.001KHz 0.01KHz 0.1KHz 0.001MHz
Resistance Range: 600 Ohm 6k Ohm 60k Ohm 600k Ohm 6M Ohm 60M Ohm
Resistance Resolution: 0.1 Ohm 1 Ohm 10 Ohm 100 Ohm 1k Ohm 10k Ohm
Capacitance Range: 6nF 60nF 600nF 6microfarad 60microfarad 600microfarad 6mF 100mF
Capacitance Resolution: 0.001nF 0.01nF 0.1nF 1nF 10nF 100nF 0.1microfarad 0.001mF
Temperature Range: 20 1000 degrees C 4 1832 degrees F(only for PM18C)
K Type Thermocouple Range: Max.250 degrees C(only for PM18C)
Working Temperature Humidity: 0 40 degrees C; <80percent RH
Storage Temperature Humidity: 10 60 degrees C; <70percent RH
Power Supply: 4 * 1.5V AA Batteries (Not included)
Item Size: 19 * 8.5 * 5.5cm 7.48 * 3.35 * 2.17in
Item Weight: 328g 11.59oz
Package Size: 21 * 13 * 6cm 8.27 * 5.11* 2.36 in
Package Weight: 508g
Note:
Item color may show sight aberration due to different shooting light and monitor display.
Packing List:
1 * Multimeter
1 * Pair of Test Probe
1 * Pair of Temperature Probe
1 * User Manual (English)
Package List:
1 * Multimeter
1 * Pair of Test Probe
1 * Pair of Temperature Probe
1 * User Manual (English)
