Features:

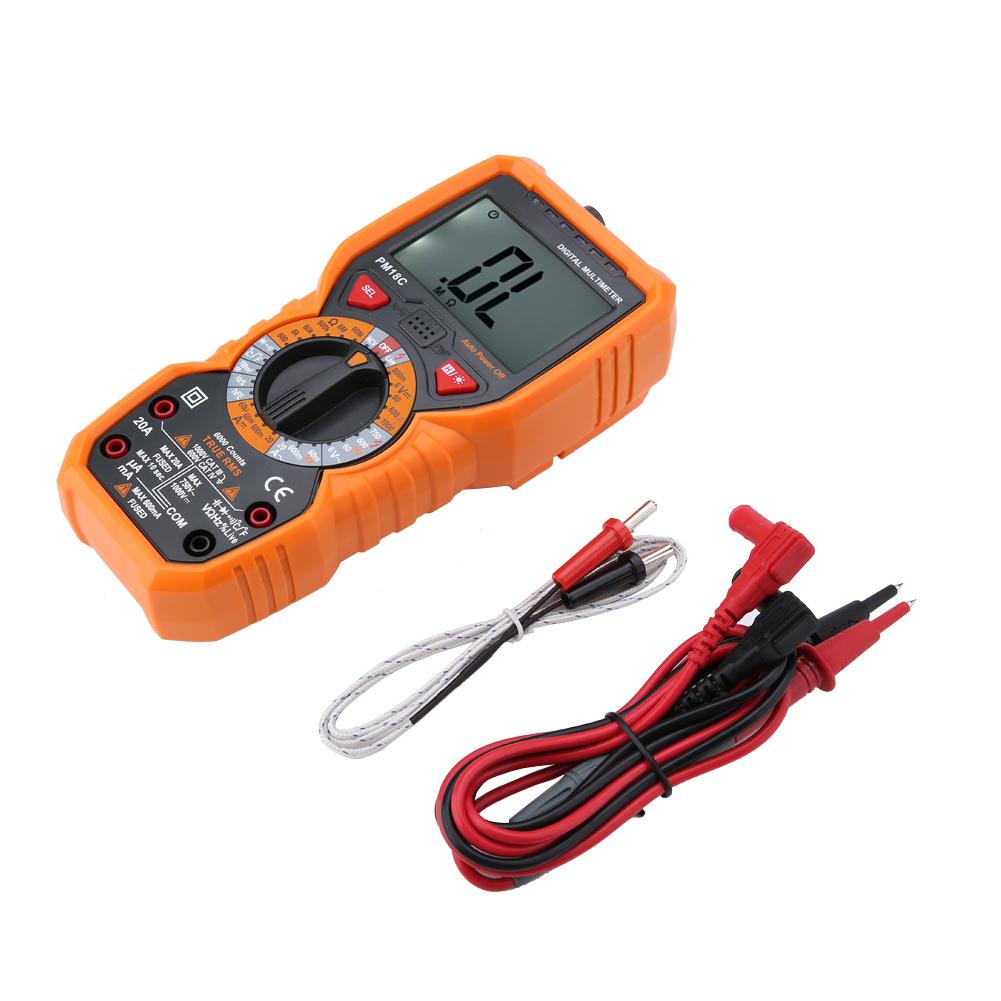

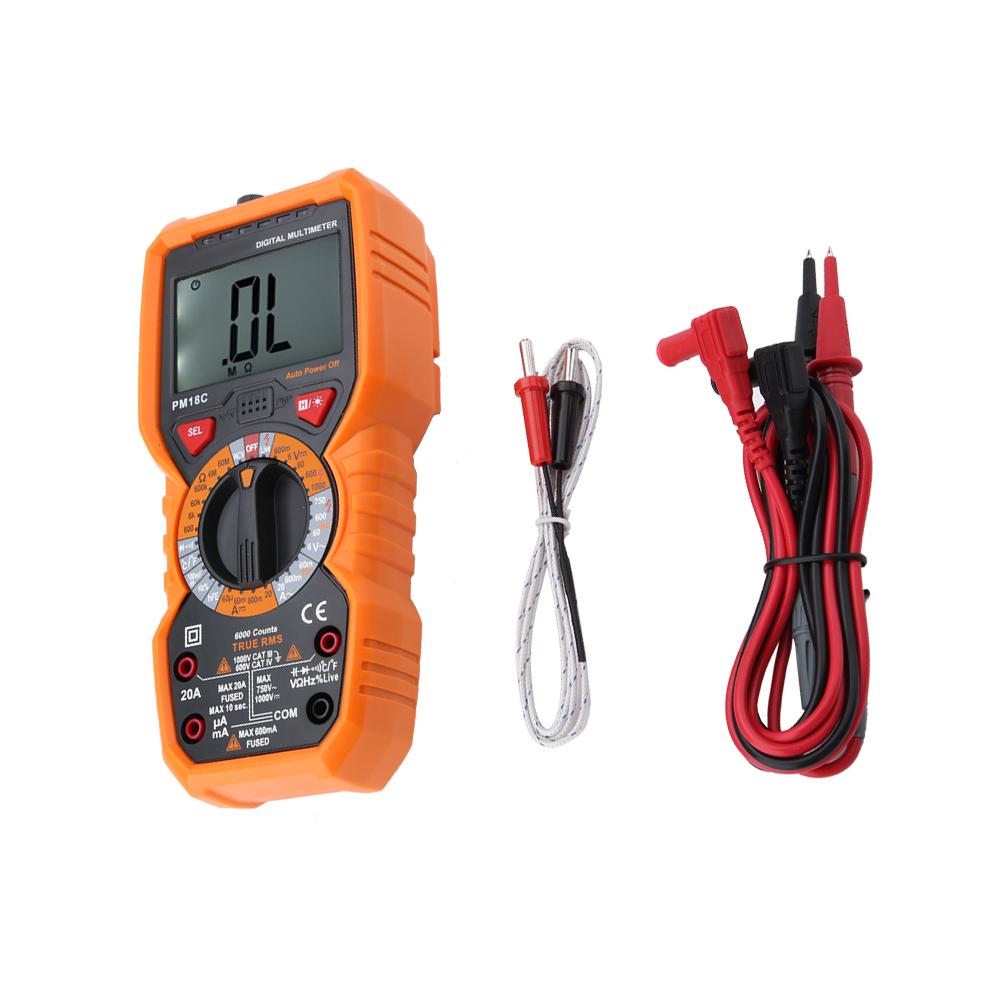

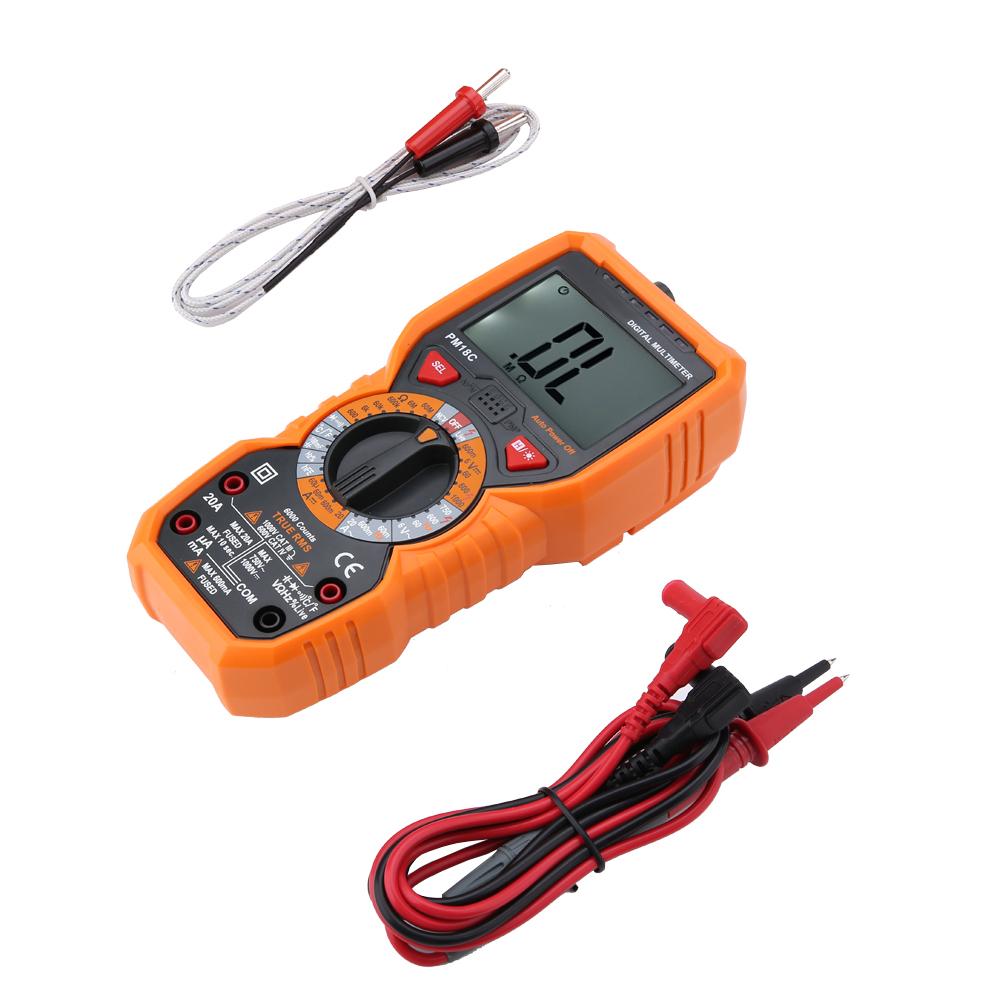

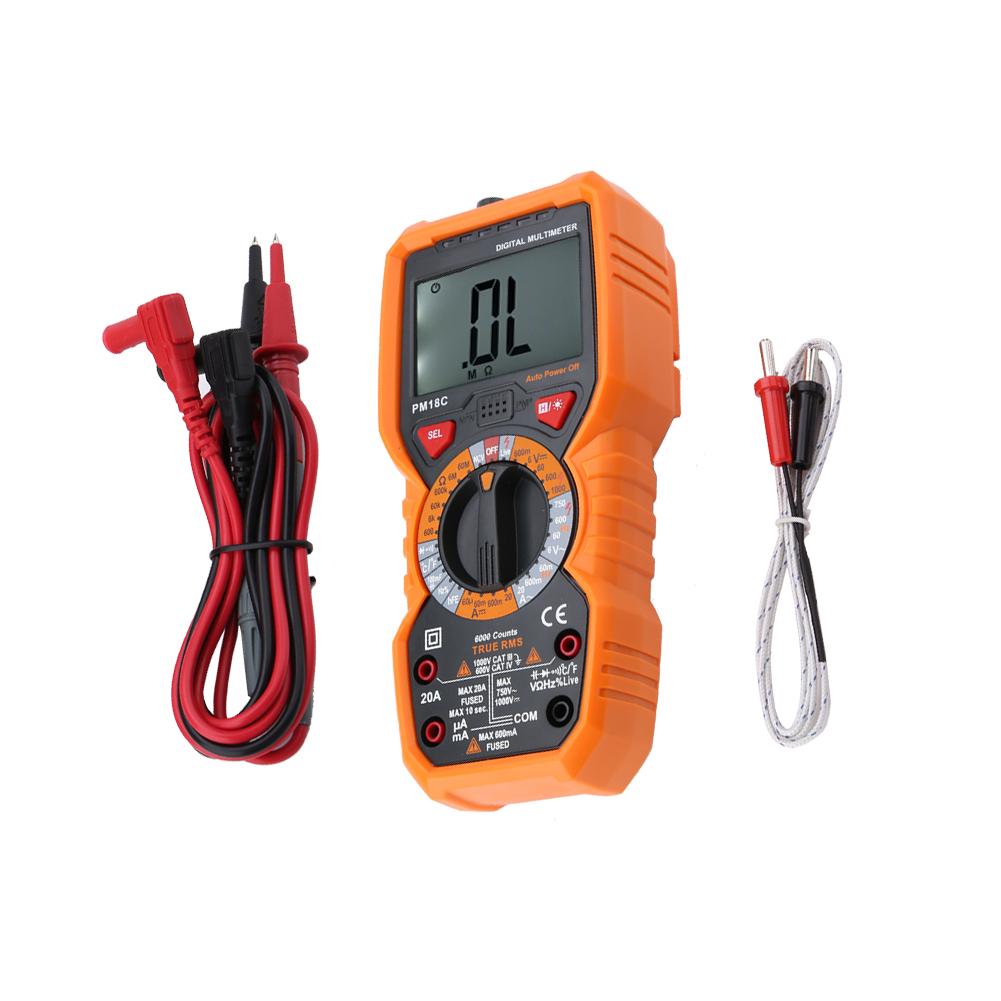

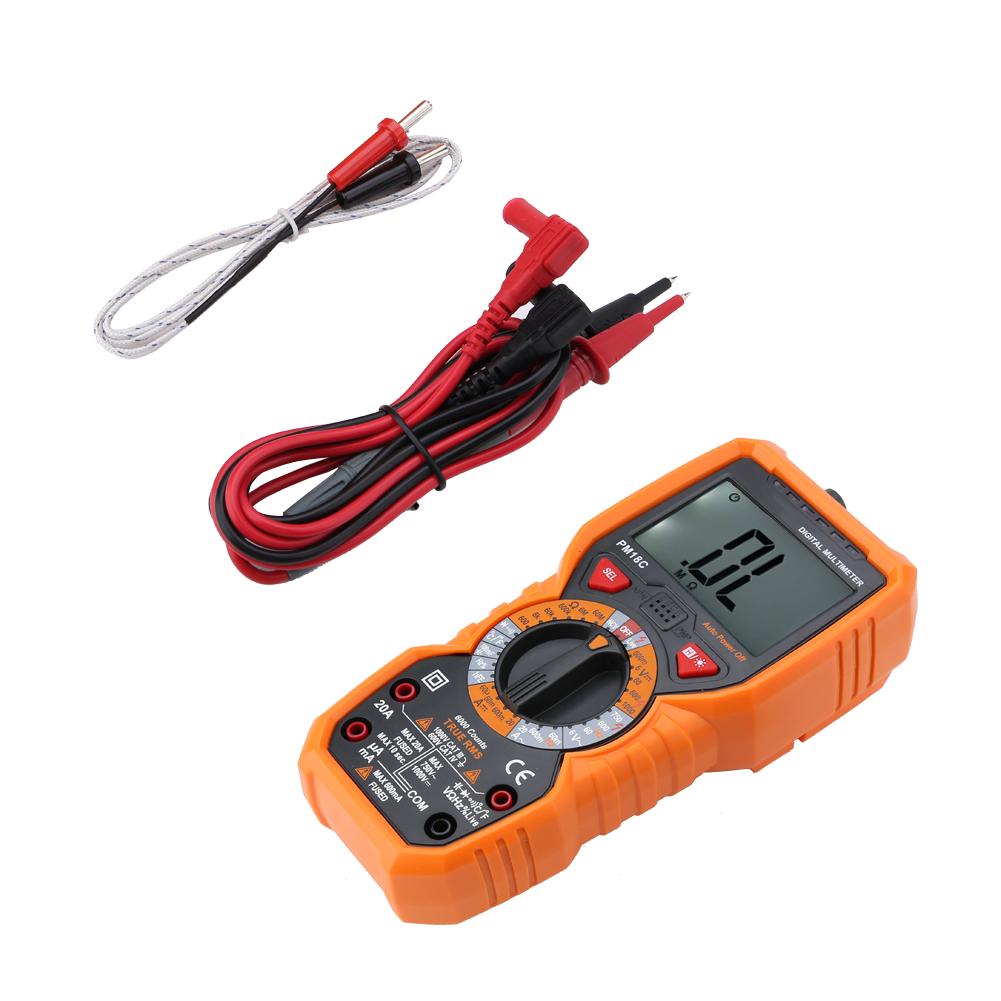

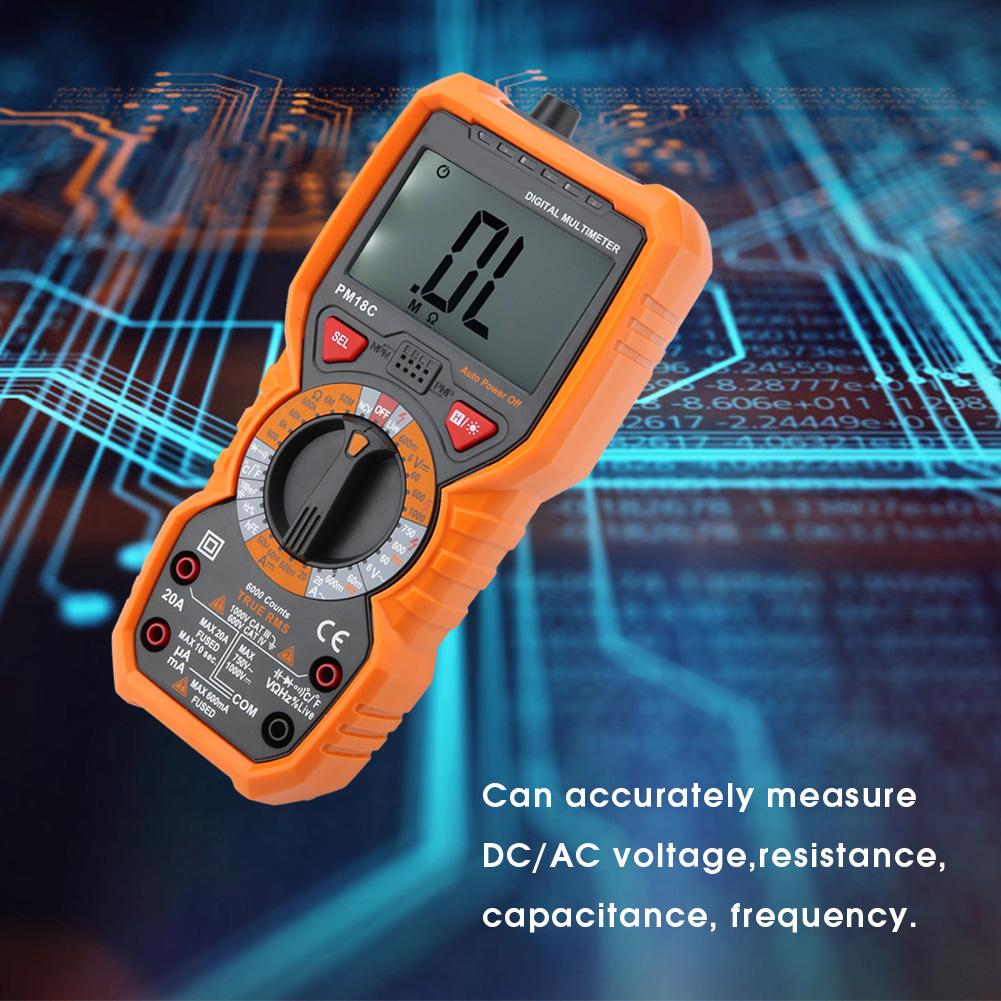

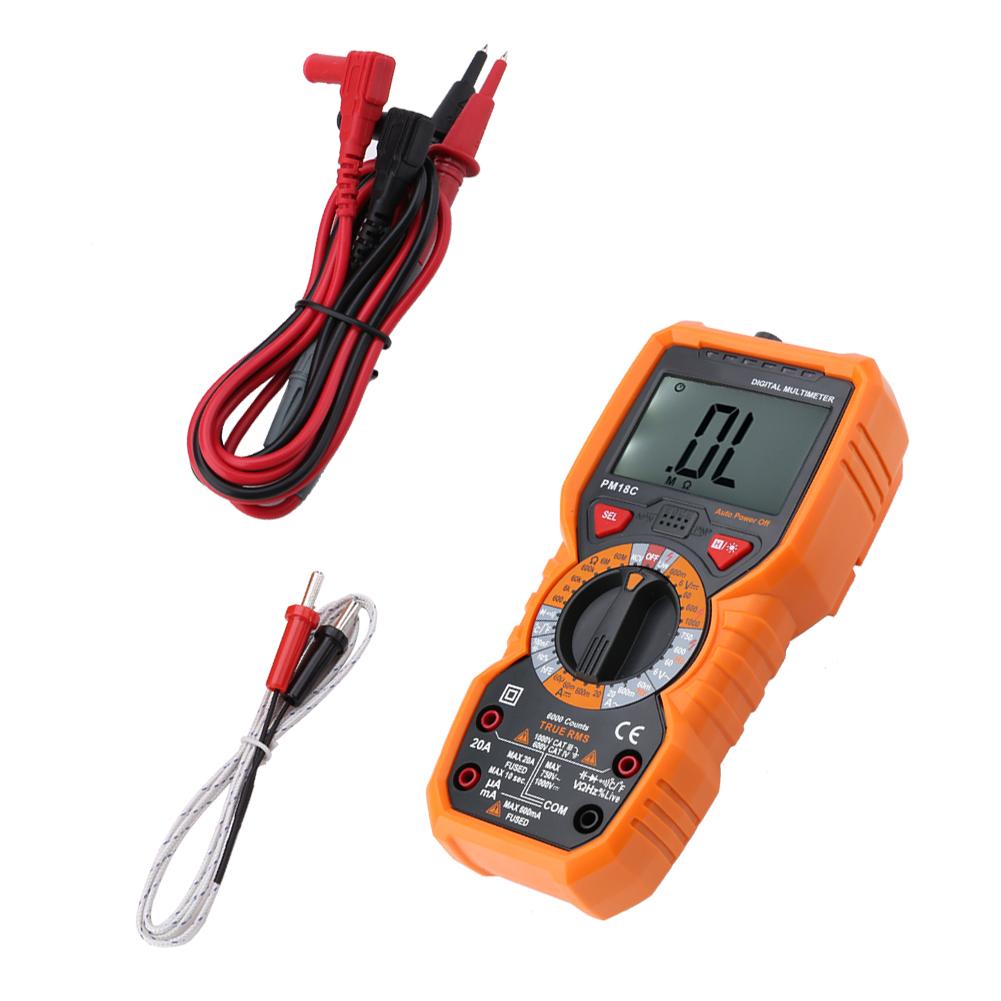

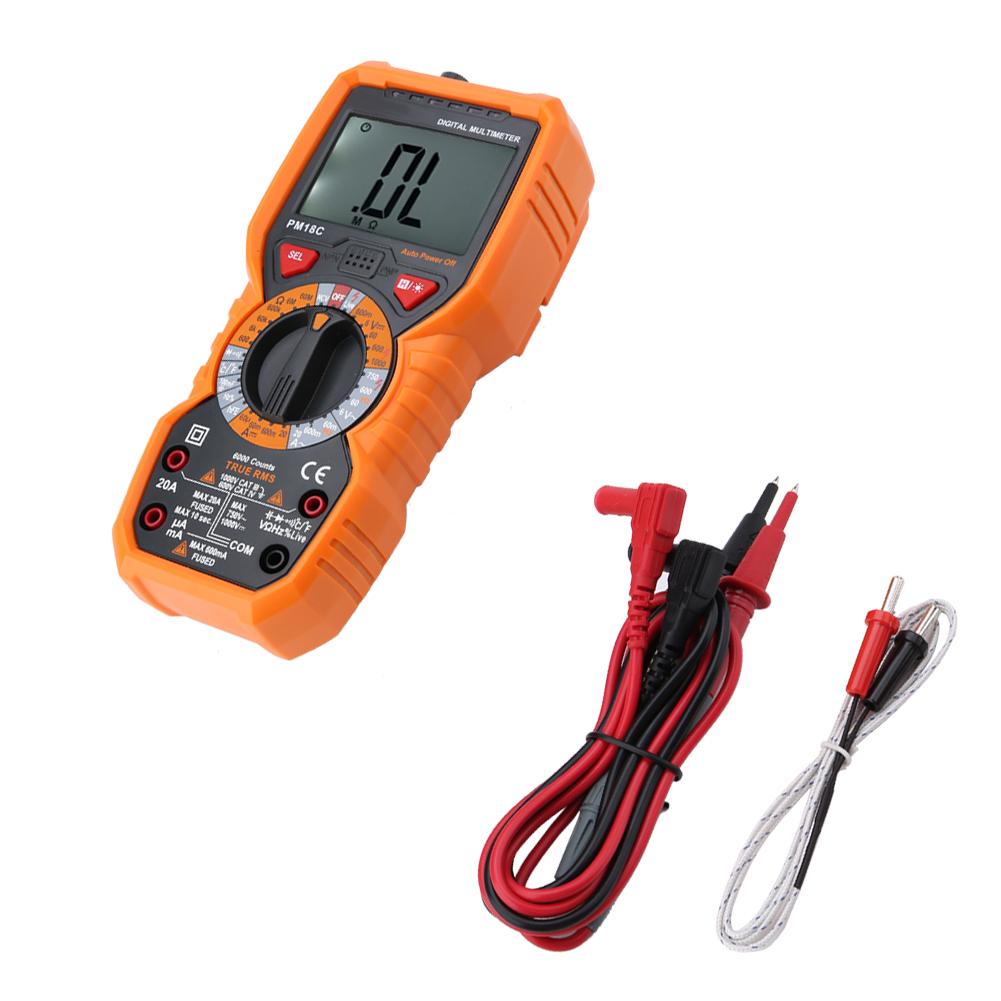

This is a multi functional digital multimeter which can accurately measure DC AC voltage, current, resistance, capacitance, frequency, temperature, etc.
It also can test NCV(non contact voltage), live line, diode, transistor and continuity.
The non contact voltage detection function, detecting voltage without contact wire, avoid electric shock.
Adopt back light display, convenient to read data in the dark.
Widely used in laboratories, factories and homes.
Specification:
Specifications
Range
Accuracy
DC Voltage
600mV 6V 60V 600V 1000V
+ (0.5percent +3)
AC Voltage
6V 60V 600V 750V
+ (0.8percent +3)
DC Current
60uA 6mA 60mA 600mA
+ (0.8percent +3)
20A
+ (1.0percent +3)
AC Current
6mA 60mA 600mA
+ (1.0percent +3)
20A
+ (1.5percent +3)
Resistance
600 Ohm 6k Ohm 20k Ohm 600k Ohm 6M
+ (0.8percent +3)
60M Ohm
+ (1.2percent +3)
Capacitance
6nF 60nF 600nF 6uF 60uF 600uF 6mF
+ (4.0percent +3)
100mF
+ (5.0percent +3)
Frequency
60 600 6k 60k 600k 6M 10MHz
+ (1.0percent +3)
Duty Cycle
5percent 95percent
+ (2.0percent +3)
Temperature
20
celsius
1000
celsius
4
Fahrenheit
1832
Fahrenheit
+ (1.0percent +3)
Transistor (HFE)
0 1000
+ (1.0percent +3)
Features
Display
6000 Counts
True RMS
YES
AC Voltage Bandwidth
1 kHz
celsius Fahrenheit
YES
Continuity
YES high, medium, low (LED signal intensity indication)
Diode Test
YES
Transistor
YES
Live Wire
YES high, medium, low (LED signal intensity indication)
Low Battery Indication
YES
Auto Power Off
YES
Back Light
YES
General
Power Supply
4*1.5V AAA Batteries (NOT included)
Weight
510g 18oz
Size
19*8.9*5cm 7.5*3.5*2inch
Safety Rating
EN61010 1, 2 030, EN61010 2 033, CAT.III 1000V CAT.IV 600V
Package List:
1* Digital Multimeter
2* Test pen
1* Thermocouple
