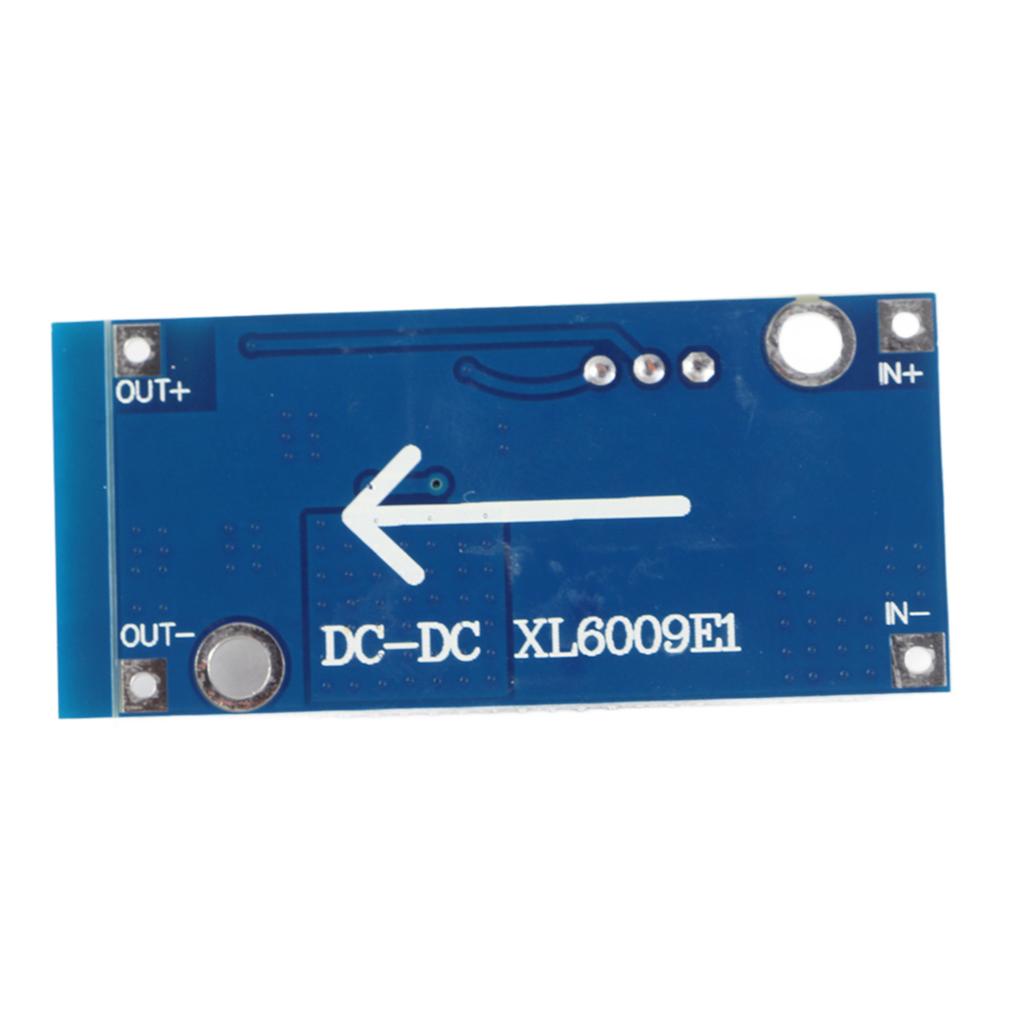

XL6009E1 DC‑DC Adjustable Step Up Power Boost Voltage Converter Module

Features: XL6009E1 is a high performance boost module with 4A switching current. Adopting XL6009E1 chip with high frequency switching technology as the core chip, superior performance. Ultra wide input voltage 3V 32V, the best operating voltage range of 5 32V. Ultra wide output voltage 5V 35V. Built in 4A high efficiency MOSFET switch tube with high efficiency up to 94percent . Ultra high switching frequency is 400KHz, and small capacity filter capacitance can achieve good results. The ripple is smaller and the volume is smaller. Specification: Weight: 13g 0.5oz Model: XTW6009 boost module Module Type: Non isolated boost (BOOST) Rectification method : Non synchronous rectification Input range: 3V 32V Output range: 5V 35V Input current: Crest 4A (recommended to work for 1.5A or less for a long time), no load 18mA (5V input, 8V output, no load less than 18mA. The higher the voltage, the larger the no load current.). Conversion efficiency : <94percent (the larger the pressure difference, the lower the efficiency) Switching frequency : 400KHz Output ripple: 50mV (the higher the voltage, the larger the current, the larger the ripple) Load regulation rate: + 0.5percent Voltage regulation rate : + 0.5percent Working temperature : 40 degrees C +85 degrees C Size (L*W*H): 43*21*14mm 1.7*0.8*0.6inch IN+ input positive IN input negative! OUT+ output positive OUT output negative. Measurement results are for reference only. Input Voltage Output Voltage Output Current Output Power 5V 12V 0.8A 9.6W 7.4V 12V 1.5A 18W 12V 15V 2A 30W 12V 16V 2A 32W 12V 18V 1.6A 28.8W 12V 19V 1.5A 28.5W Package List: 1 x Step up Voltage Converter .
