Hign-concerned Chemical : None
Model Number : XL7015
Dissipation Power : standard
Supply Voltage : standard
Application : standard
Type : Module
Operating Temperature : standard
Origin : China
Condition : New

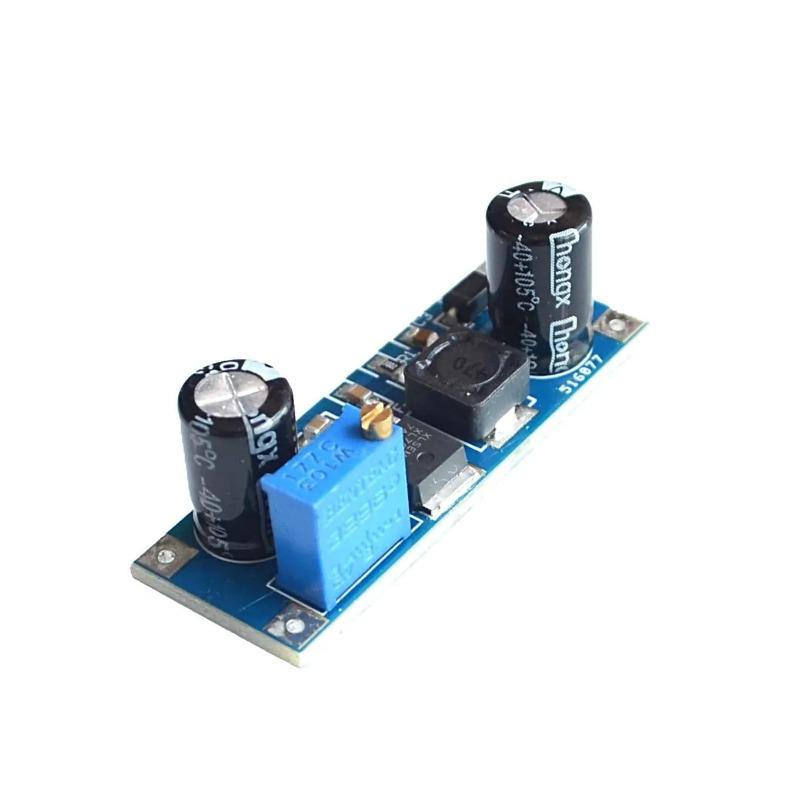

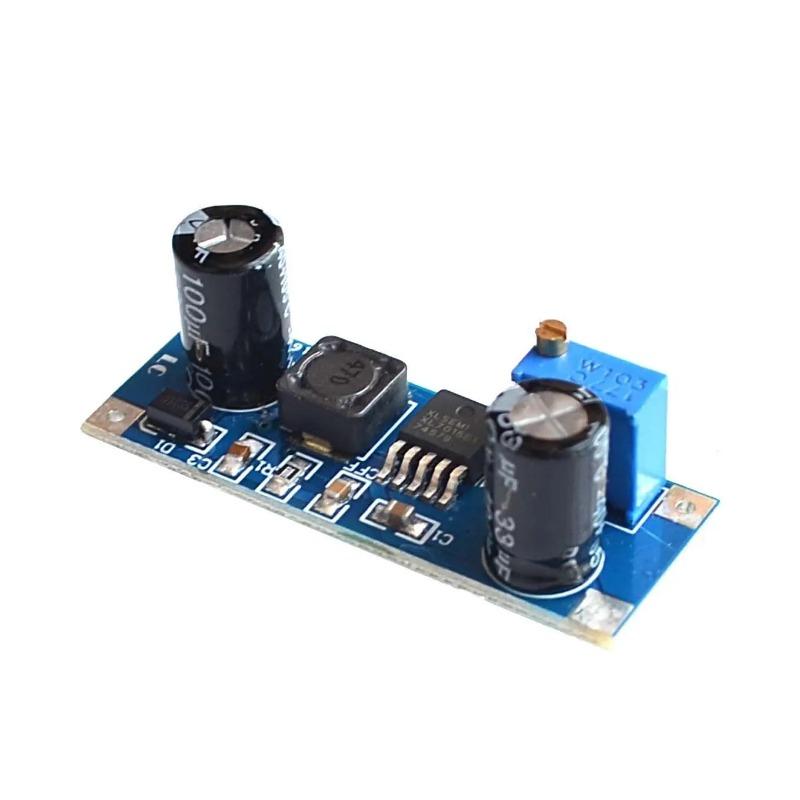

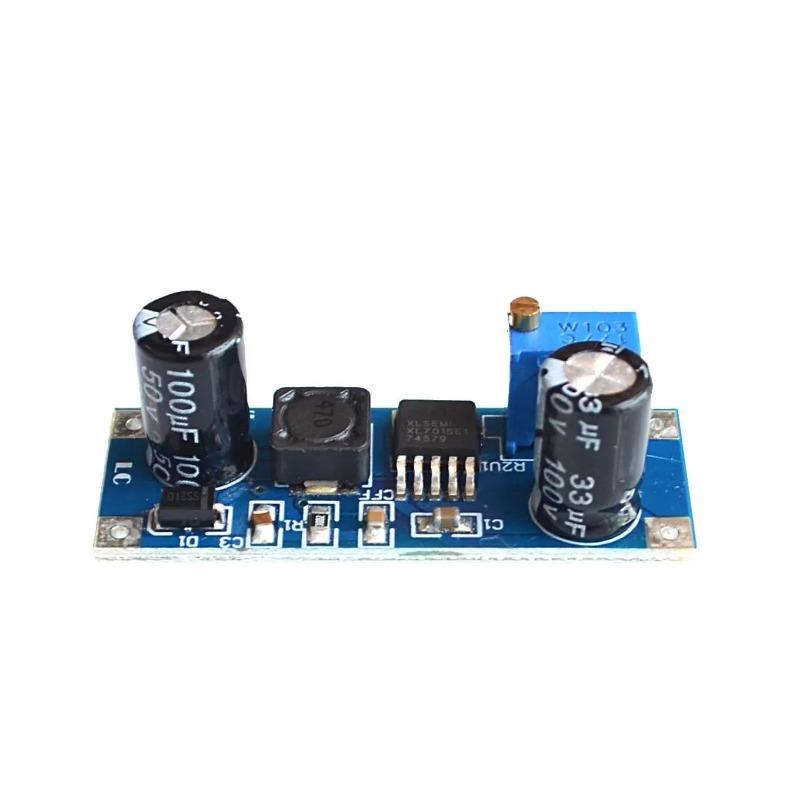

XL7015 DC - DC buck type module is A highly efficient, high pressure step-down DC - DC converter, provides the highest 0.8 A output current capability, low ripple, excellent linear regulation and load regulation, up to A maximum of 80 v input voltage, more than 2596 modules, etc. Chip built-in various protection mechanisms. Can be applied to electric vehicle controller, etc.
1. 5 v to 80 v input voltage range wide;
2. The output voltage from 5 v to 20 v adjustable;
3. The minimum pressure drop 1 v.
4. 0.8 A biggest switch current;
5. Recommend the output power is less than 7 w;
6. Shut off built-in overheating protection, output short circuit protection, over current protection;
7. Good linear with load regulation;
The board size: 16 mm * 44 mm;
Wiring instructions
1. VIN: input voltage (5 v - 80 - v);
2. The GND: input voltage side;
3. The VOUT: output voltage (5 v - 20 v);
4. The GND: output voltage to end;
The line layout is compact and regular, with good electrical insulation and mechanical stability, and can maintain stable performance under different temperature and humidity environments to ensure accuracy and reliability.
In circuit design, carefully planned lines are like precision transportation networks, and lines of different widths and spacings undertake different currents and signals transmission tasks respectively. The key signal lines are impedance matching processing, which greatly reduces signal reflection and attenuation and ensures the stable transmission of high-frequency signals.
All kinds of electronic components are soldered on the circuit board, and the solder joints are full, round, and firm and reliable. Core components like chips are perfectly connected to the circuit board through fine packaging processes to achieve high-speed data processing and interaction.
This circuit board has a wide range of responses in many fields. Whether in the industrial control field that requires extremely high stability or consumer electronics field that pursues extreme performance, it can provide solid guarantees for the stable operation of the equipment with its excellent design and reliable performance, and help various electronic devices play a powerful role.
