Joom: Safely charging your e-bike or e-scooter
• Don’t leave your battery unattended while charging, when you're out or while you're asleep
• Don’t cover chargers or battery packs when charging
• Don’t overload sockets or use unsuitable extension chords
• Don’t charge or store batteries in direct sunlight or in areas with temperatures above 45⁰C
• Don’t charge batteries next to combustible materials or hazardous substances
• Always unplug your charger once you have finished charging
• Always make sure to only use the proper proprietary charger
• Always ask a professional when converting your e-bike or e-scooter
• Always check your battery (and charger) for visible damage
-----
Category Specification

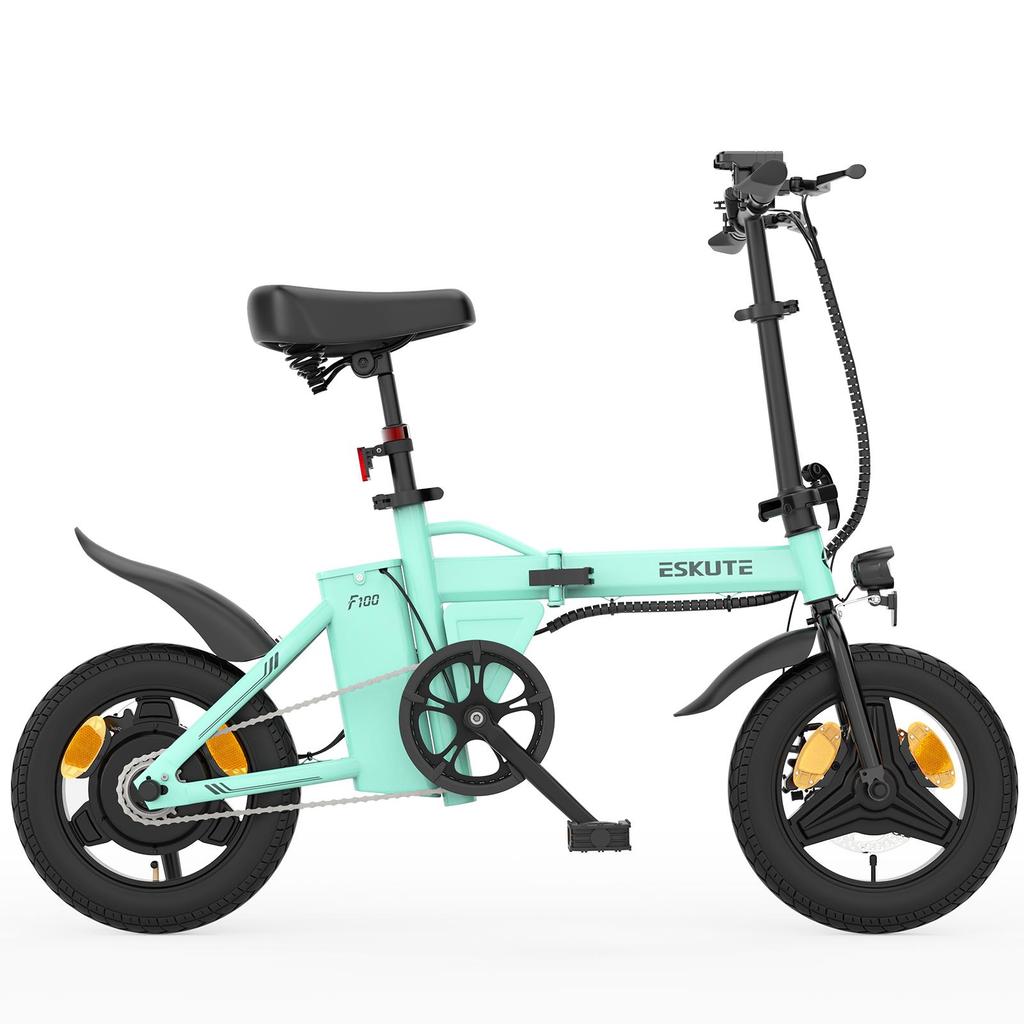

Model Name：ESKUTE F100
Color：Green/Grey
Motor：36V 250W Hub Motor
Speed：Up to 25 km/h (Pedal Assist)
Max Speed (Unlocked)：40 km/h
Torque：20 N.m
Battery：36V 9Ah Lithium Battery
Battery Weight：1.55 kg
Range:~29 km (Estimated, PAS mode)
Charger: 42V 1.5A Charger
Charging Time :5-6 Hours
Sensor :Speed Sensor
Display :P6 LCD Display
Throttle :Yes (Optional Purchase)
Lights :Front: LED Headlight + Reflector
Rear: Reflector
Frame Material:Steel
Fork Lockout :Suspension Fork
Shift Lever:Shimano 1-Speed
Rear Derailleur:Shimano 1-Speed
Crankset 152mm, 46T Chainring
Pedals:9/16" Folding Footrest
Chain:1-Speed Chain
Brakes:Mechanical Disc Brakes (160mm Rotors)
Handlebar:Middle Stem: 25.4mm / Cross Tube: 22.2mm
Grip Rubber Grips
Saddle:Ergonomic Saddle
Seat Post:Forged Iron, Ø31.8×370mm
Seat Clamp:Quick Release
Rims:14×2.125" Alloy
Spokes:Standard Spokes
Tire:14×2.125" Pneumatic Tires
Tire Pressure:40-65 PSI / 2.7-4.4 bar / 270-440 kPa
Tube:Butyl Rubber Inner Tube
1️⃣ Strong power&high-speed cycling
36V 250W wheel hub motor, torque 20N. m, easy to climb (suitable for European hilly cities).
The maximum speed is 40km/h (after the speed limit is lifted), which is faster than ordinary electric bicycles and has higher commuting efficiency.
25km/h power assist mode, compliant with EU regulations for electric bicycles (adjustable in some countries).
2️⃣Long battery life&portable charging
36V 9Ah lithium battery with a range of approximately 29km (power assisted mode), suitable for short distance commuting.
5-6 hour fast charging, with a battery of only 1.55kg, detachable for easy charging, convenient for apartment users.

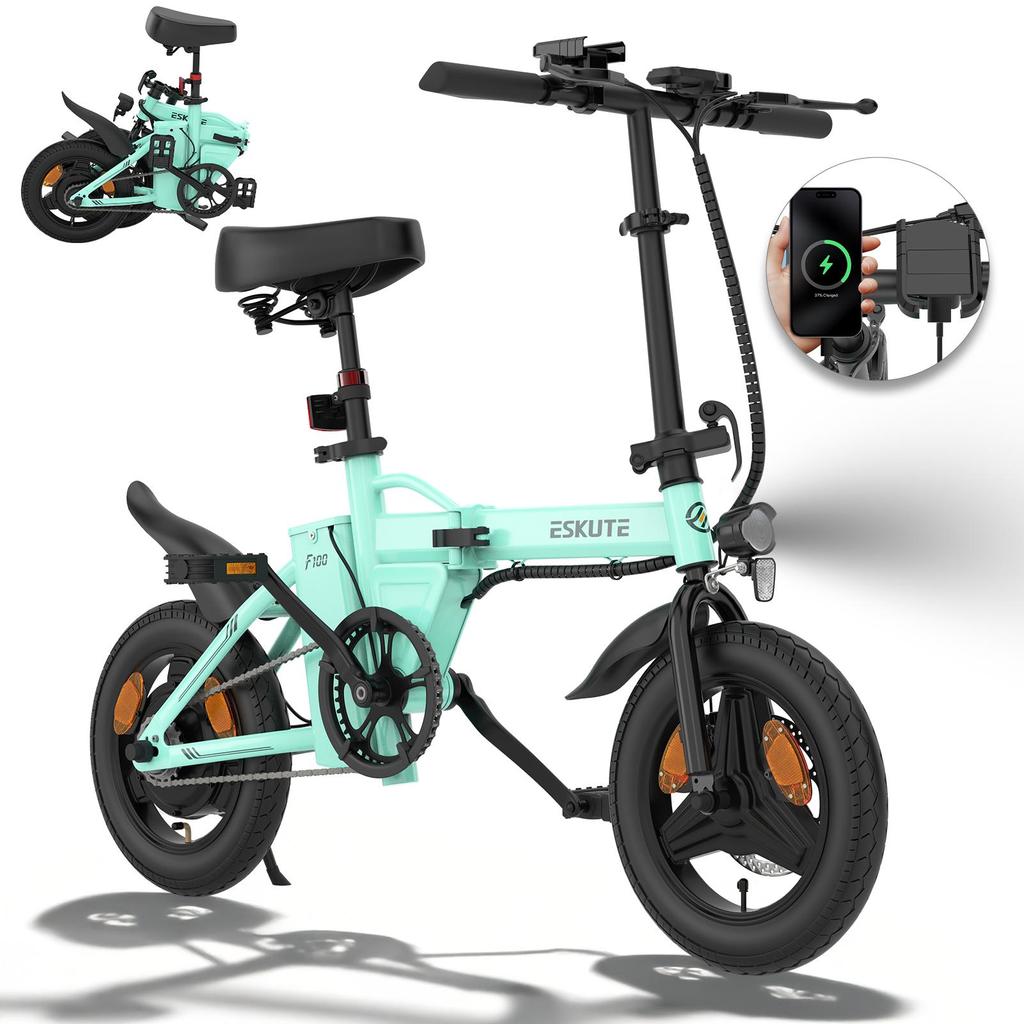

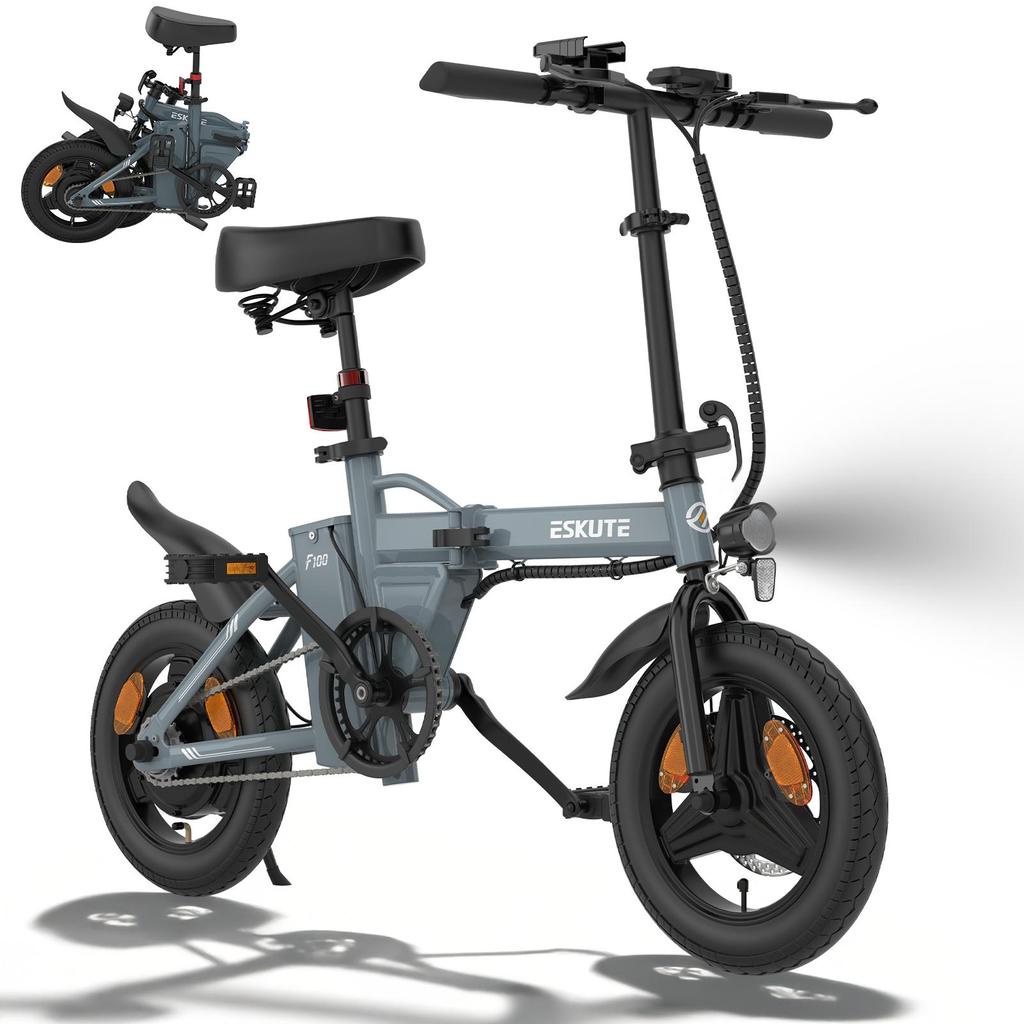

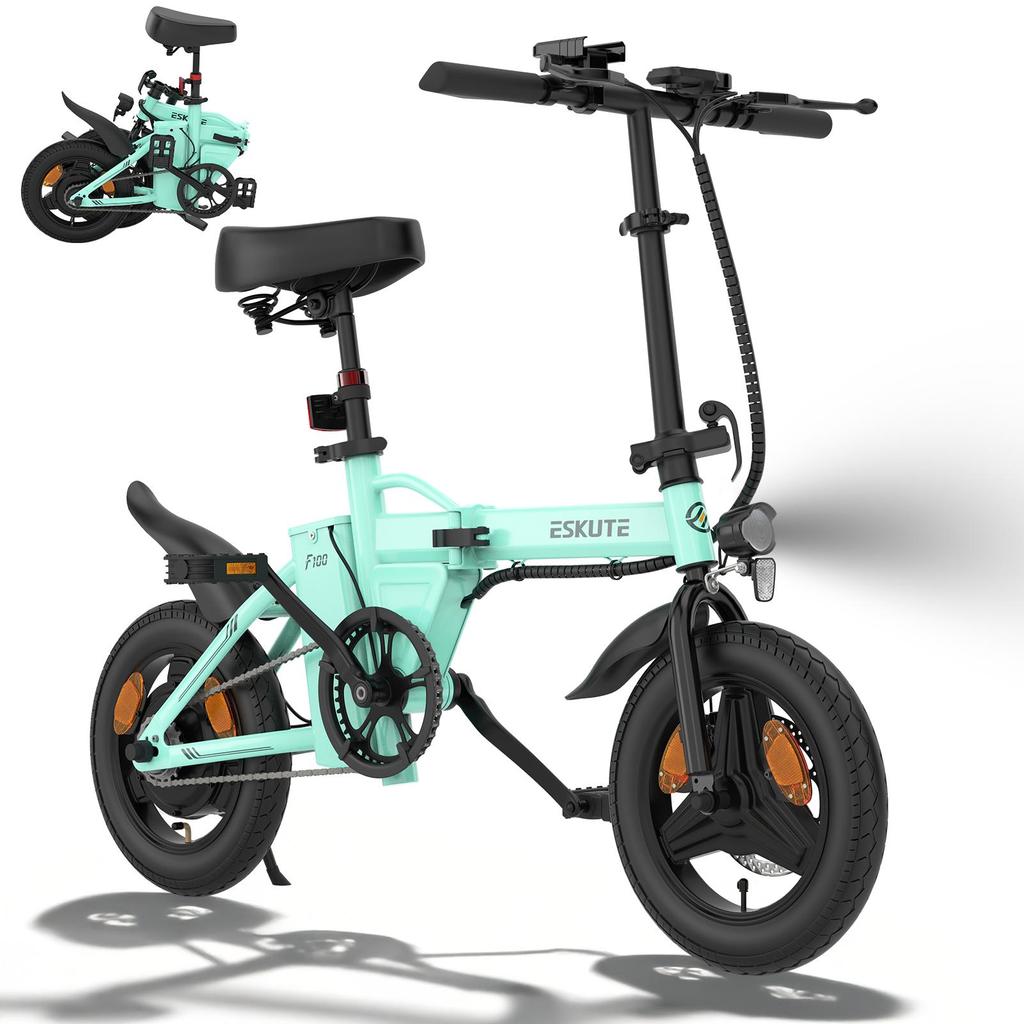

3️⃣ Ultra portable folding design
14 inch lightweight steel frame, can be quickly folded, saves space, and easily carried on the subway/bus/car.
Folding foot pedals make storage more convenient.
4️⃣ Safe riding configuration
Front and rear mechanical disc brakes (160mm brake discs) provide more stable braking for high-speed riding.
Anti puncture inflatable tire (14 × 2.125 "), tire pressure 40-65 PSI, suitable for European stone roads and rainy roads.
LED headlights and rear reflectors make nighttime cycling safer.
5️⃣. Comfortable riding experience
SHIMANO single speed transmission system, maintenance free, suitable for urban cycling.
Ergonomic seat cushion+rubber grip, comfortable for long-term cycling.
P6 LCD display screen, real-time view of speed, battery level, and mileage.
6️⃣ High cost-effectiveness and regulatory compliance
1-speed design, simple structure, low maintenance cost.
Complies with the EU electric bicycle standard (EN15194) (certification confirmation required) to avoid legal risks.
