• Don’t leave your battery unattended while charging, when you're out or while you're asleep
• Don’t cover chargers or battery packs when charging
• Don’t overload sockets or use unsuitable extension chords
• Don’t charge or store batteries in direct sunlight or in areas with temperatures above 45⁰C
• Don’t charge batteries next to combustible materials or hazardous substances
• Always unplug your charger once you have finished charging
• Always make sure to only use the proper proprietary charger
• Always ask a professional when converting your e-bike or e-scooter
• Always check your battery (and charger) for visible damage
-----

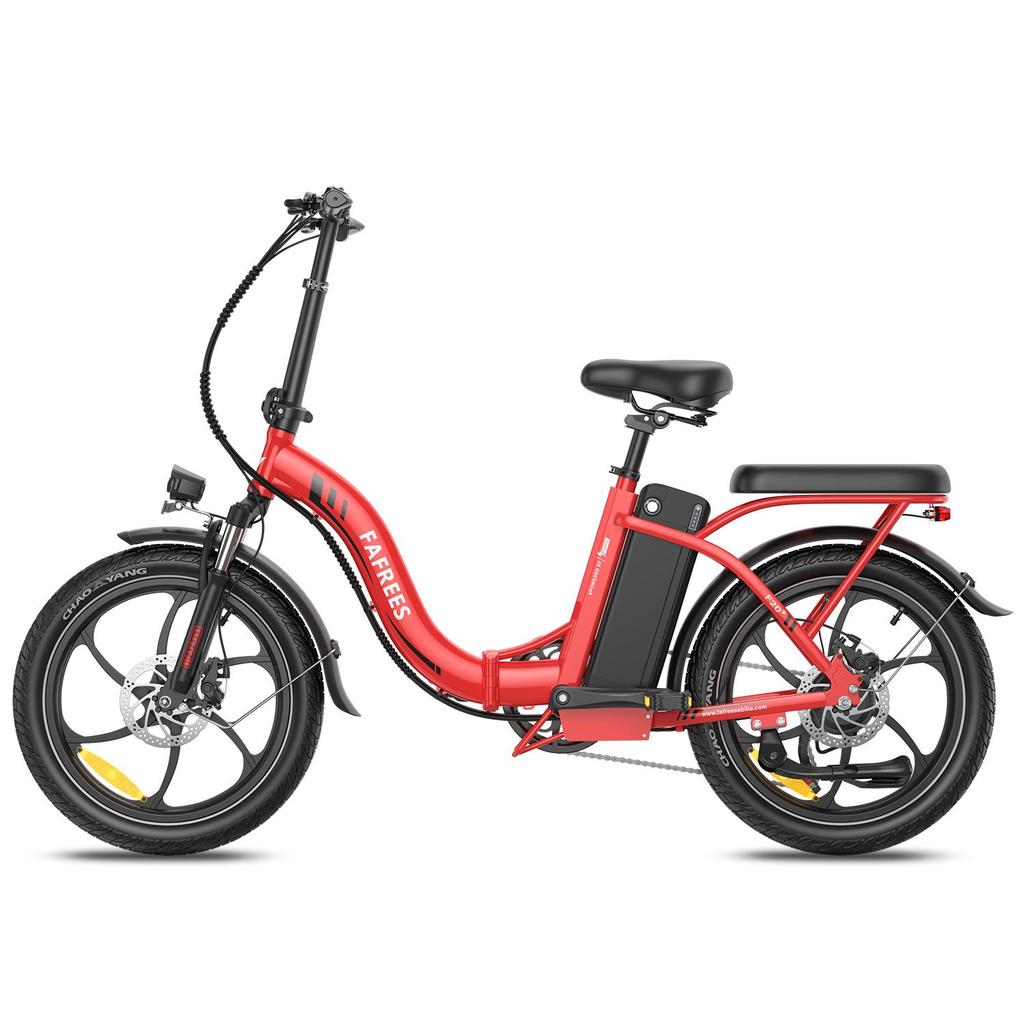

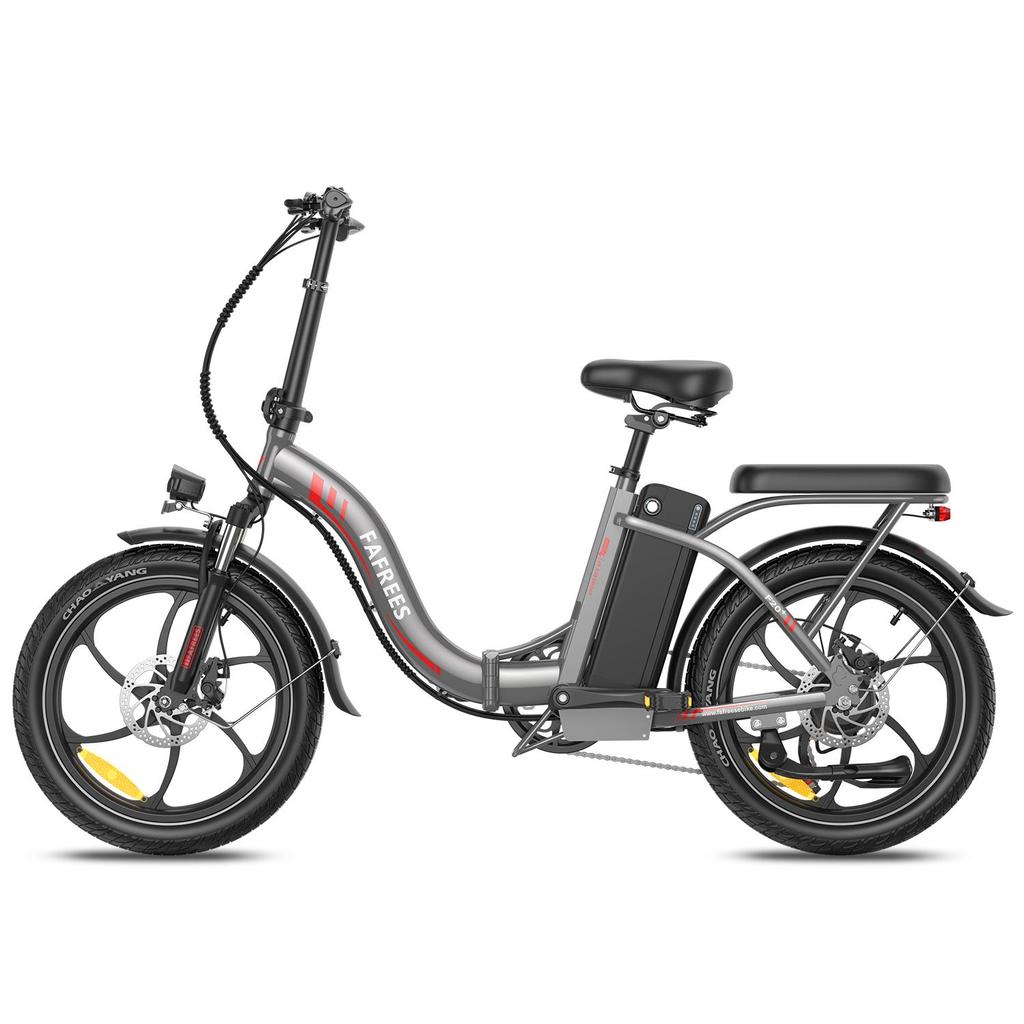

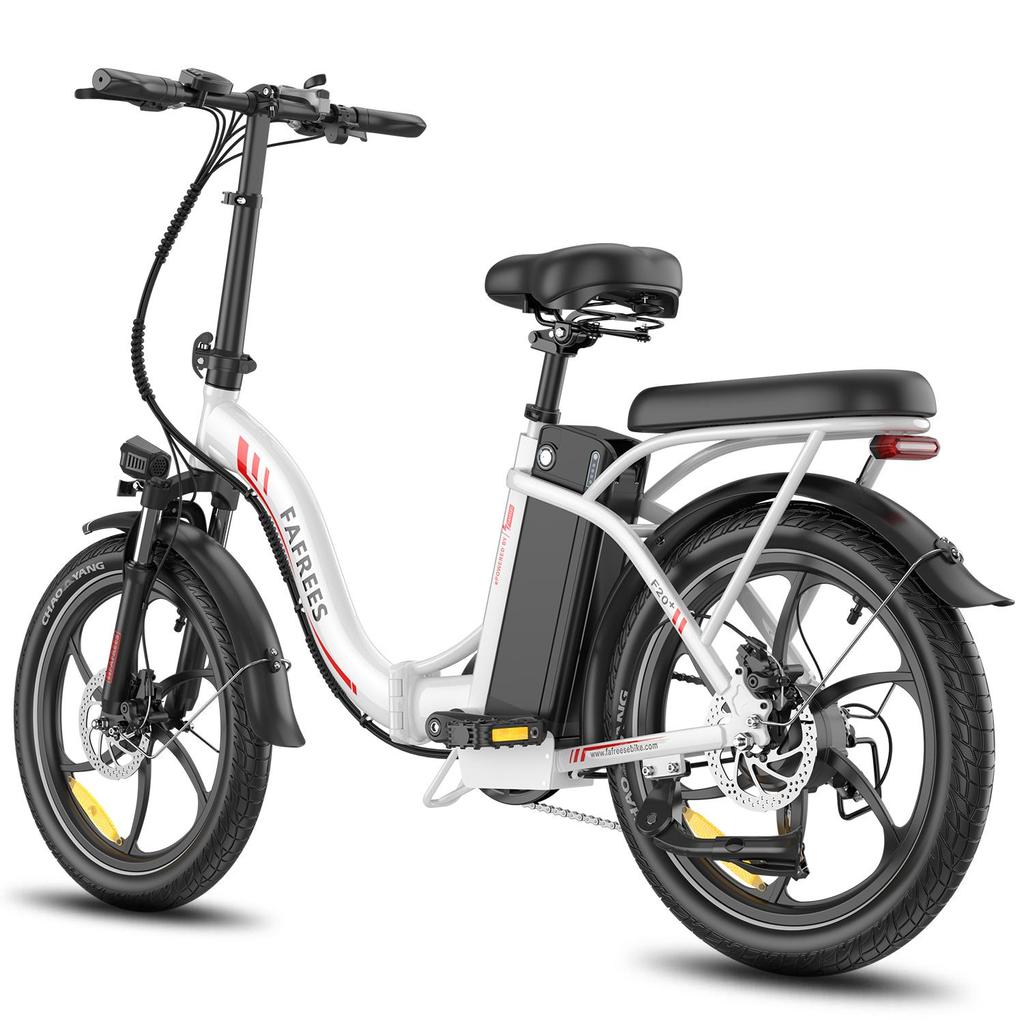

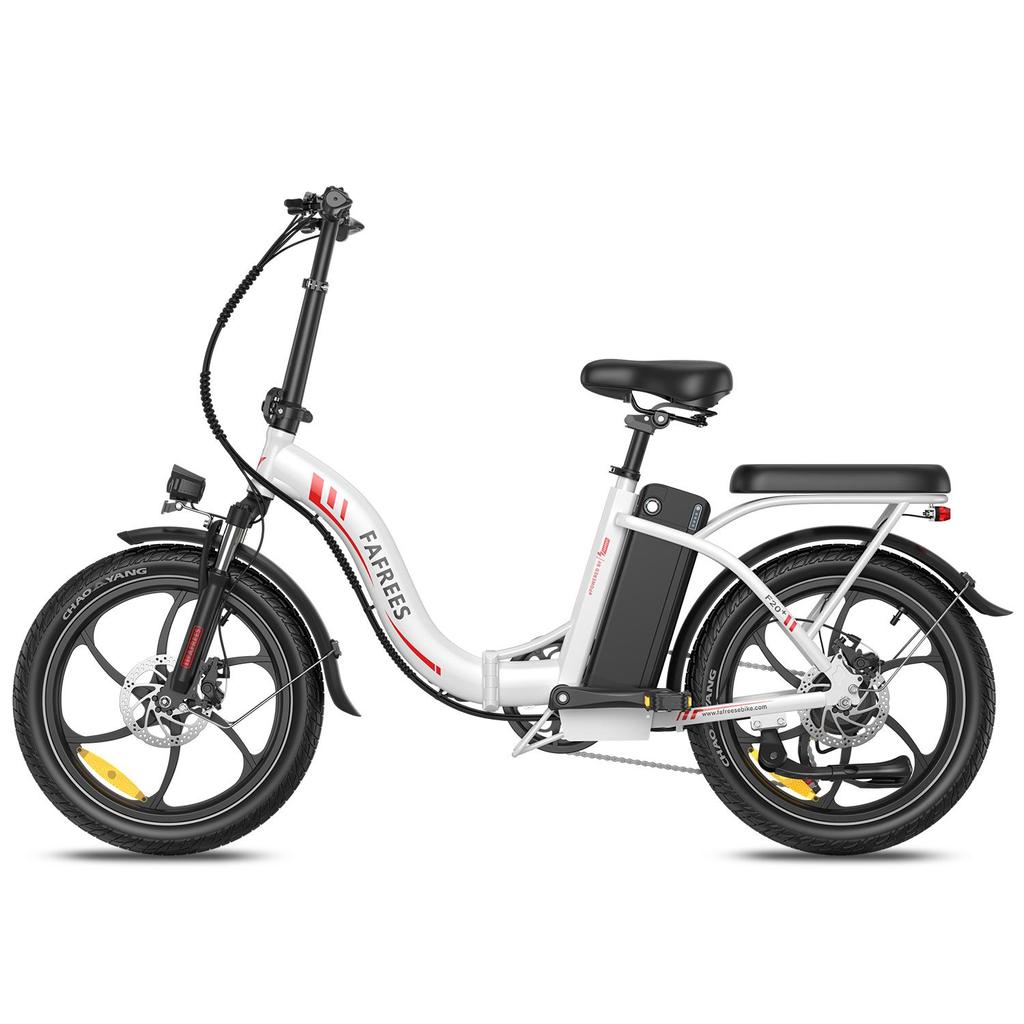

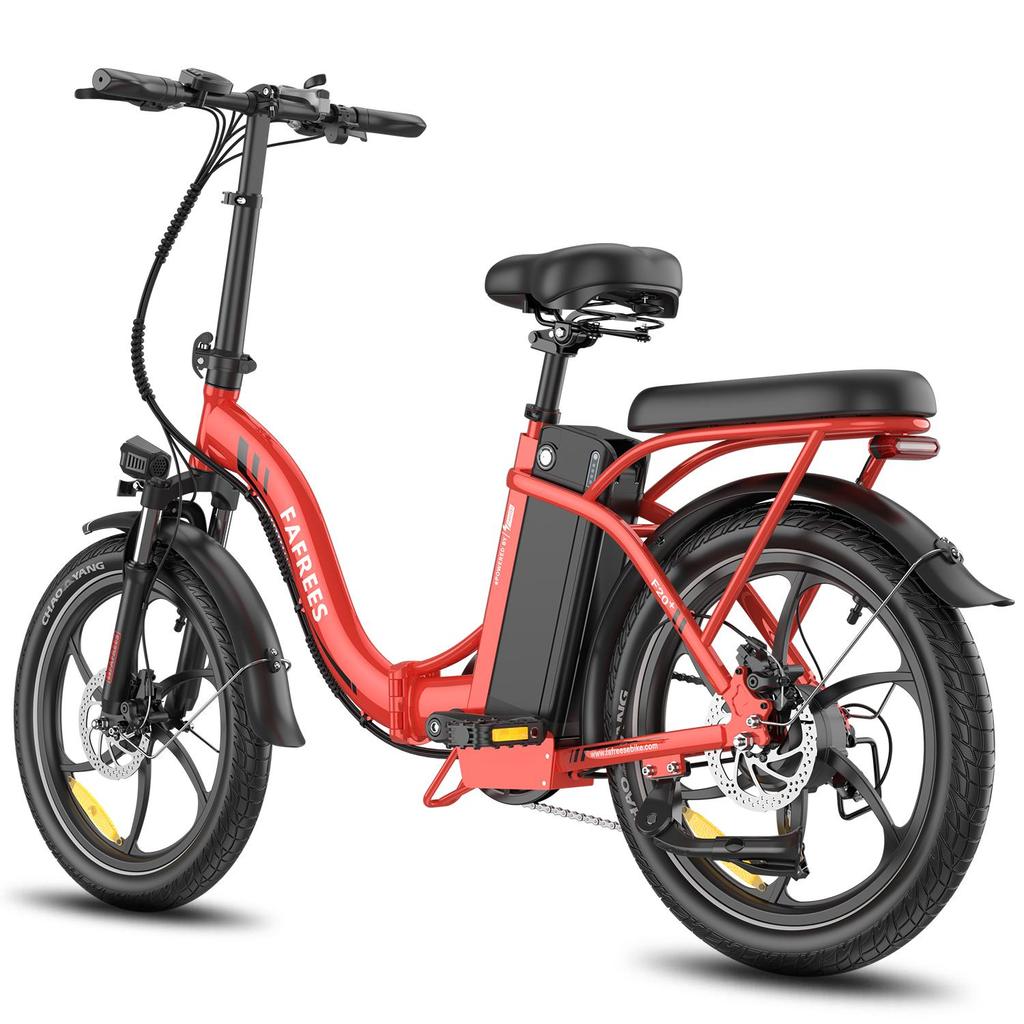

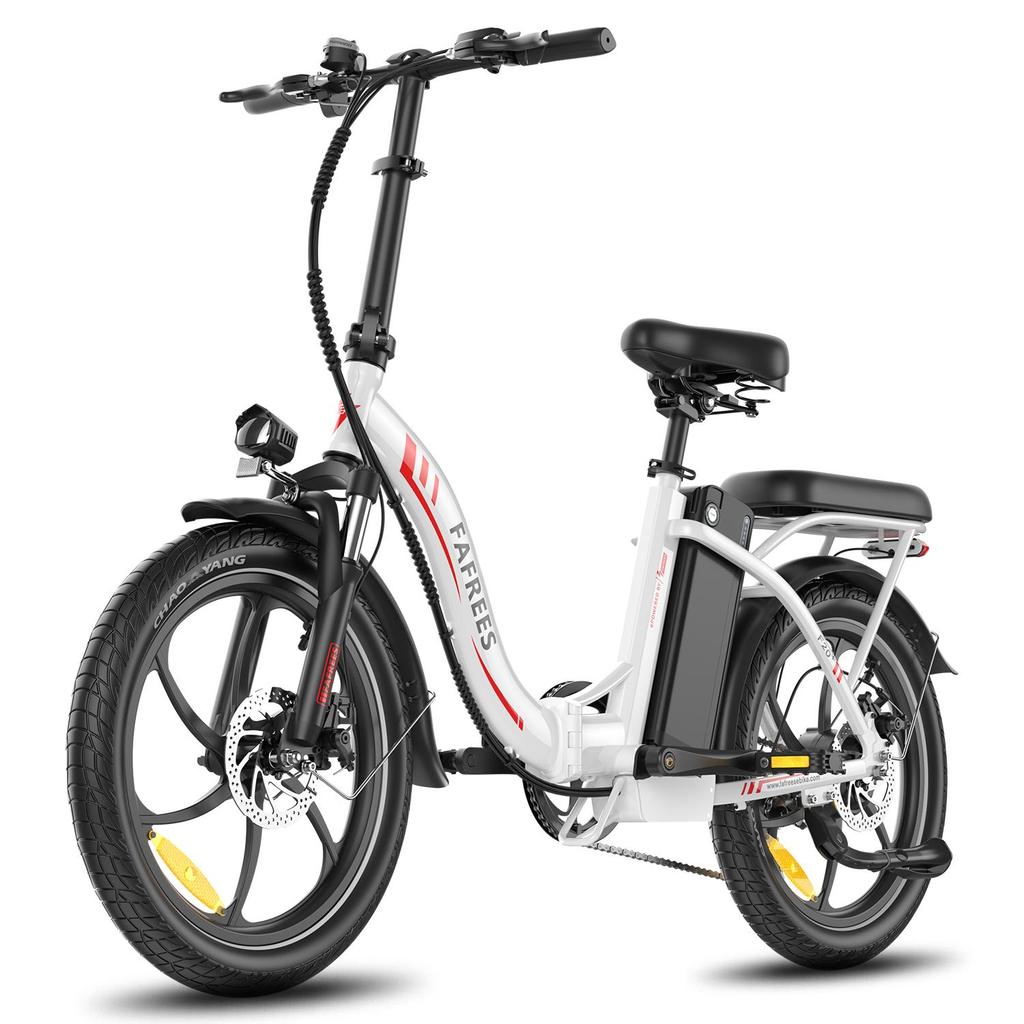

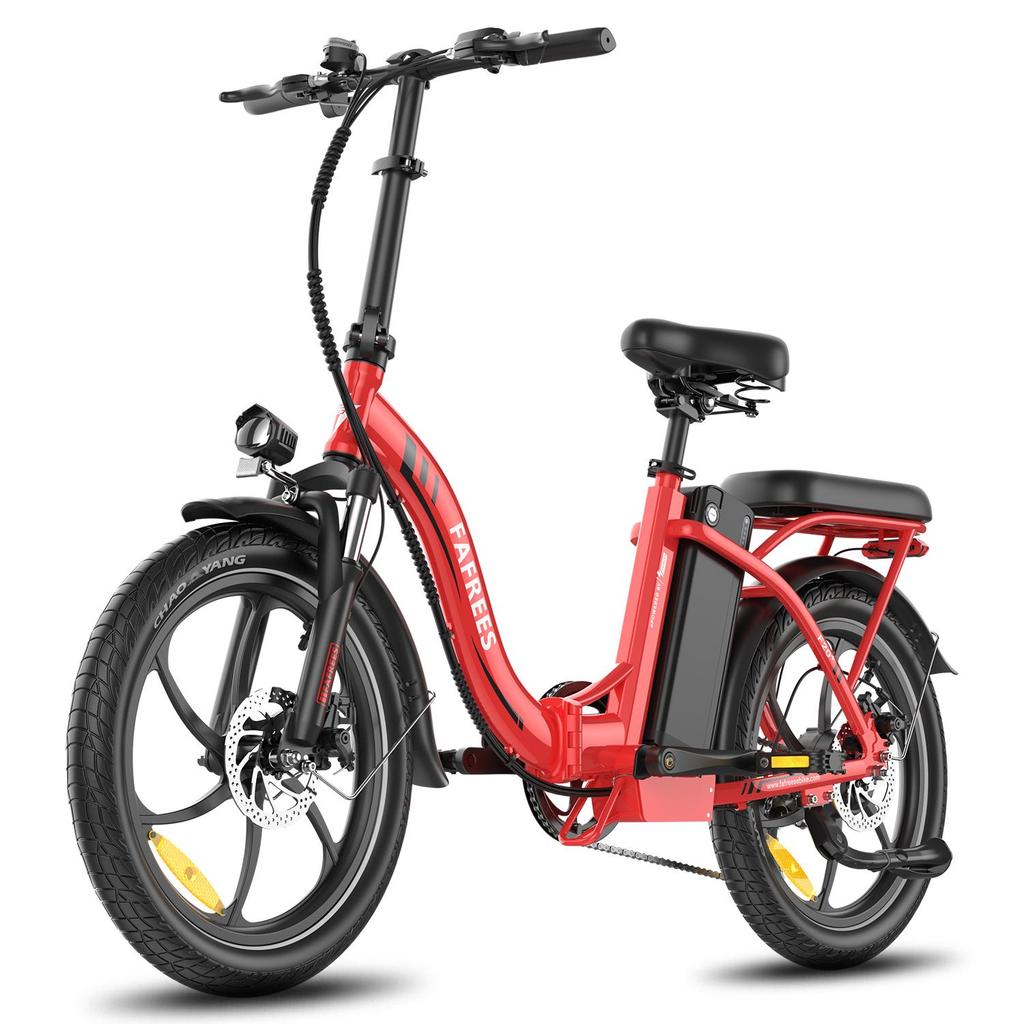

FAFREES F20+ Foldable Electric Bike
[🛞 20"x3" Tires]
The wide tire design provides both stability and adaptability, easily navigating a variety of urban surfaces.
[⚡️ 250W Motor]
The efficient motor provides smooth power, perfect for daily commuting and gentle hill riding.
[🚴 Top Speed 35km/h]
Up to 35km/h, improving commuting efficiency while ensuring safety and speed.
[🔋 36V 20AH Battery]
The large-capacity battery ensures long-lasting battery life, allowing for uninterrupted long-distance riding.
[🛣️ Maximum Range 90km]
A single charge allows for up to 90km of range, covering both urban exploration and daily commutes.
[🛡️ Maximum Load 150kg]
The sturdy frame structure supports up to 150kg, accommodating users of all sizes.
Product Parameters：
Brand FAFREES
MODEL F20+
Type Folding City Ebike
Color black/grey/white/red
Size Unfolded size 170*60*115cm
Folded size 86*38*71cm
Adjustable height of handlebar 105-120cm
Adjustable height of seat 84-98cm
Package size 88*38*73cm
Tire size 20*3.0 inch
Pedal-ground distance 10cm
Recommend rider heights 160-195cm
Weight Net Weight 28kg
Package weight 35kg
Battery weight 4.6kg
Load capacity 140kg
Material Frame material Aluminum alloy
Tire Type Air tire
Driving Default maximum speed 25km/h
Adjustable maximum speed 35km/h
Battery range 75-90km
Max climbing Gradability 20°
Battery Battery type 21700 Lithium-ion
Rated voltage (V) 36V
Input voltage (V) 42V
Battery capacity (AH/Wh) 20Ah/720Wh
Undervoltage protection value (V) 29V
Overcurrent protection value (A) 30A
Motor Motor rated power 250W
Motor peak output power 400W
Maximum torque Rear Drive
Drive type 45N.m
Charger Input voltage (V) 220V
Output voltage (V) 36V
Rated current (A) 2A
charging time 10H
Damping Fork Type Spring suspension fork
Fork travel distance 70mm
Type of rear shock /
Rear shock travel distance /
Display Display type LCD display
6km/h walk assist mode yes
Cruise control yes
APP control no
PAS level 0-3

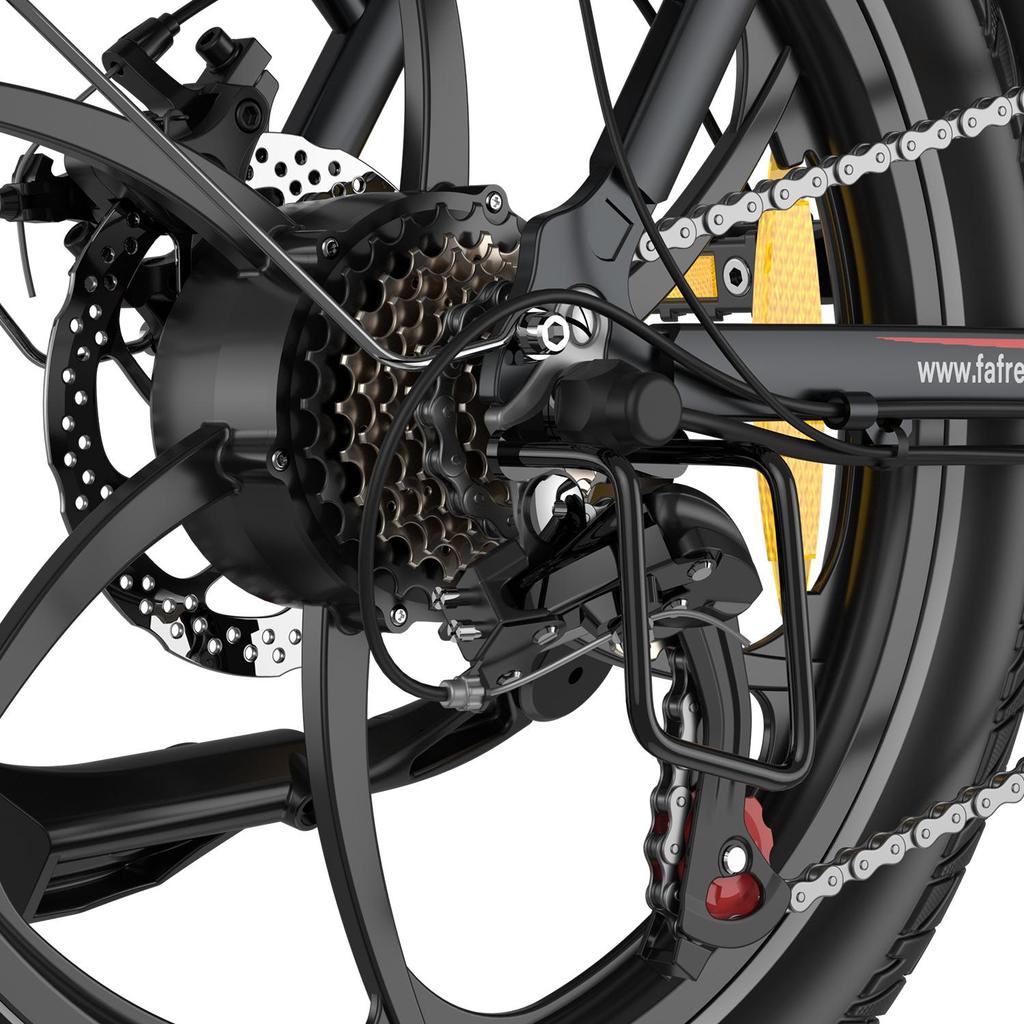

Transmission SHIMANO 7S
Sensor Cadence sensor

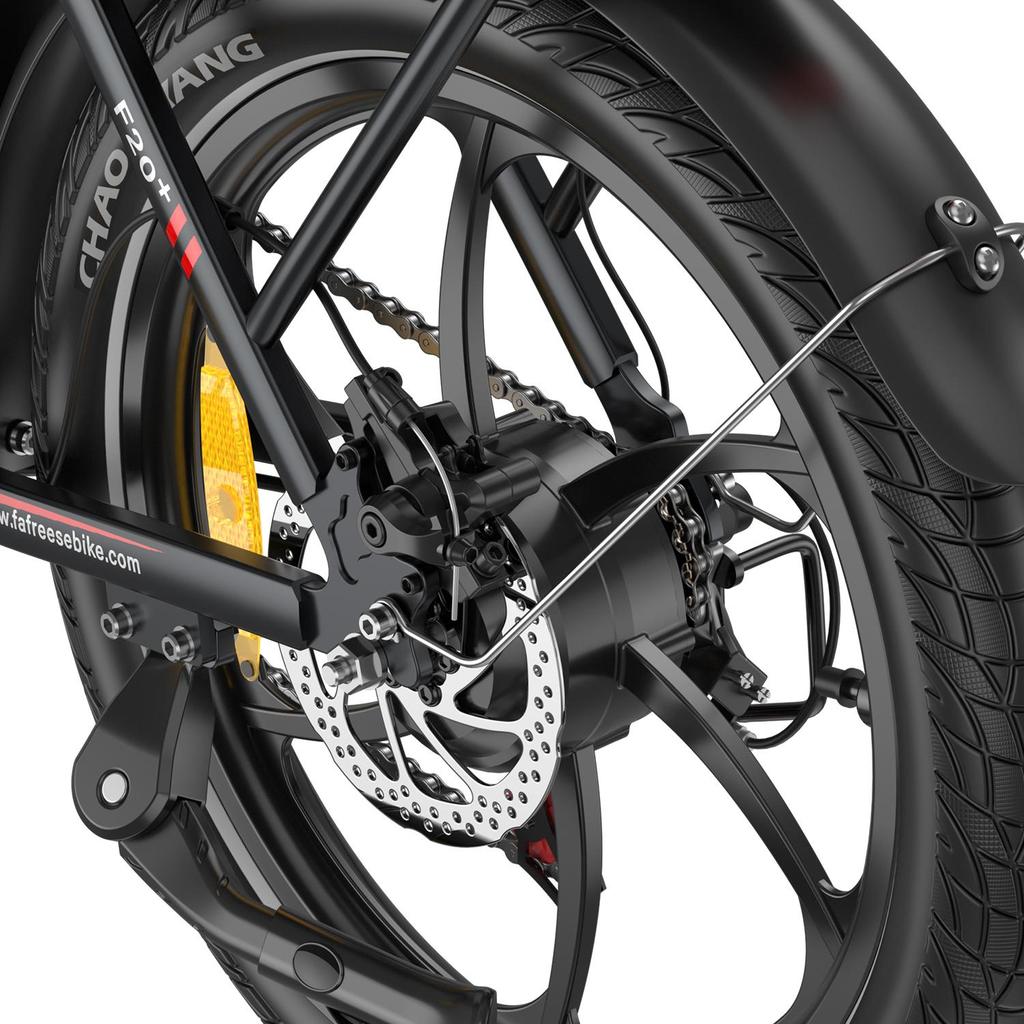

Brake type Mechanical disc brakes

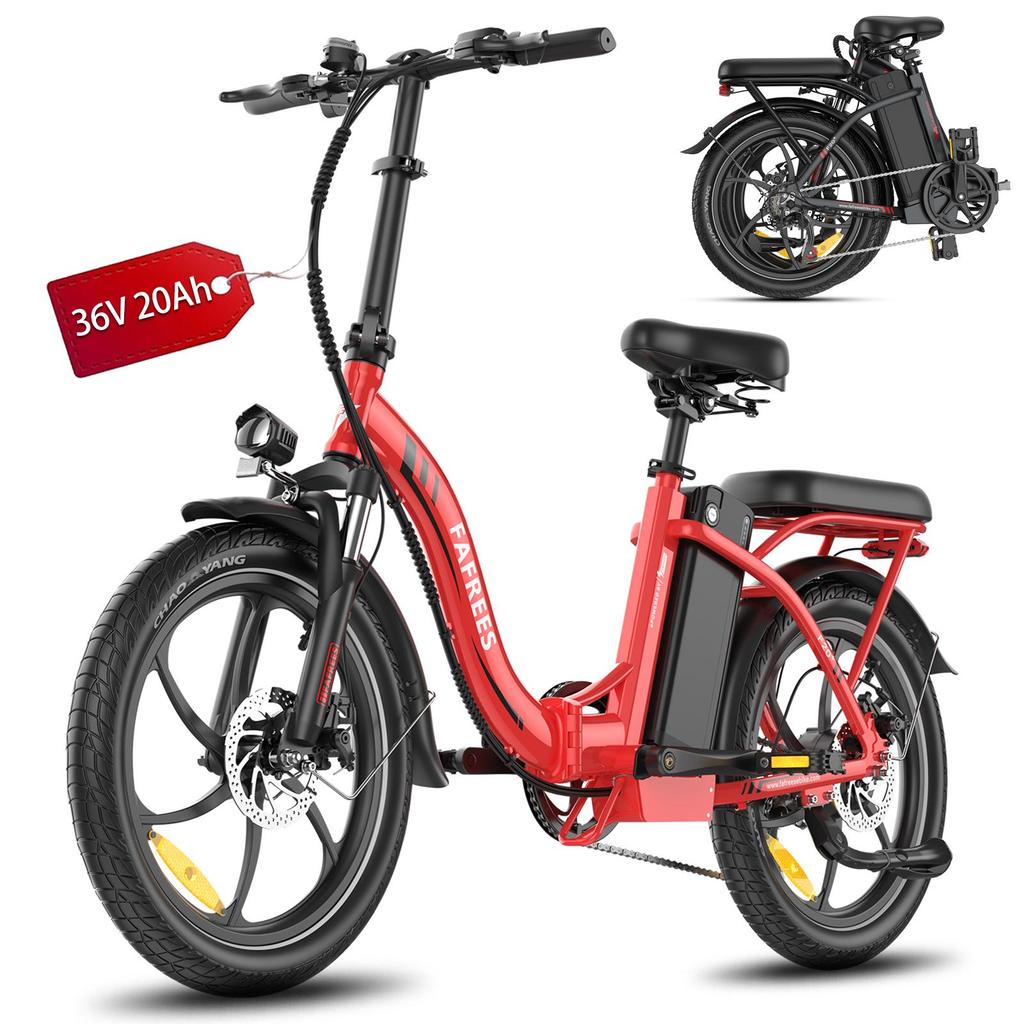

Folding parts Foldable frame, handlebar, pedels

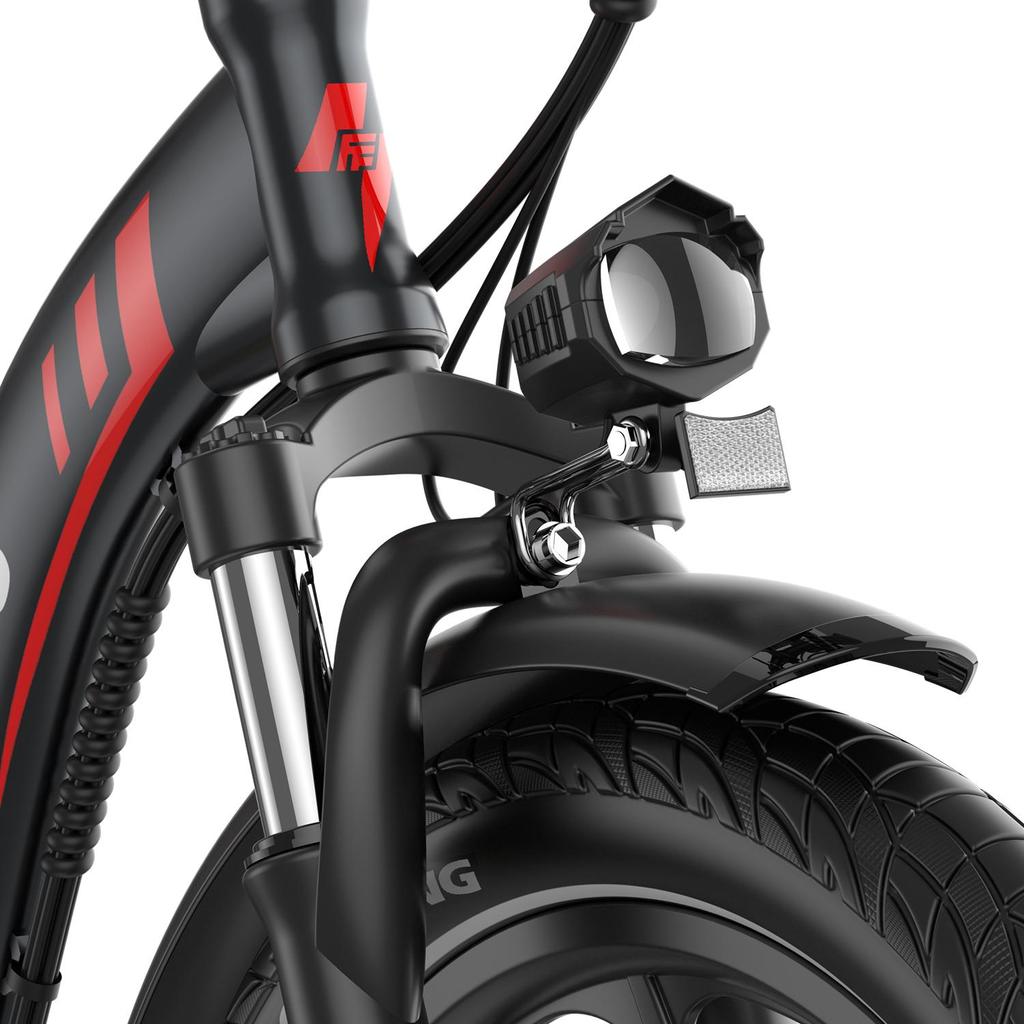

Headlight Yes

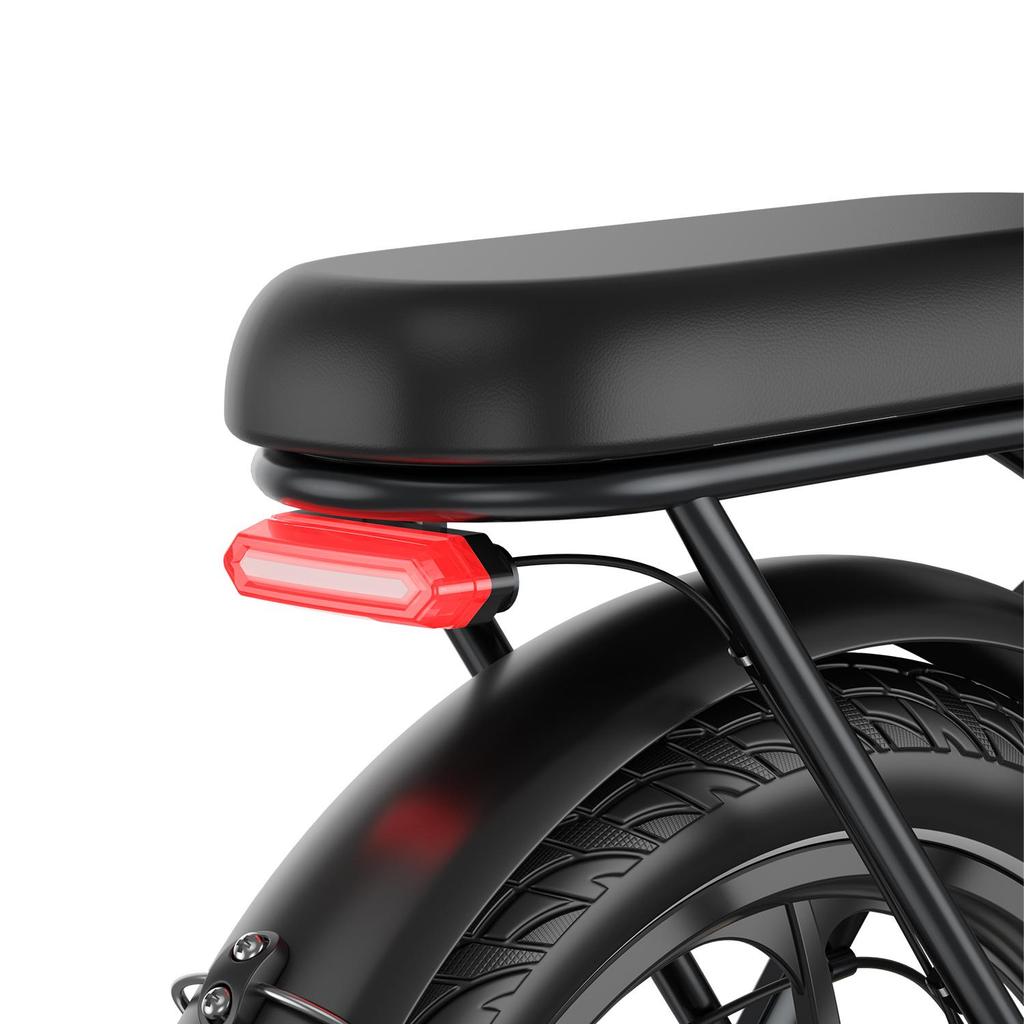

Taillight Yes
Riding mode Human/assisted/pure power
Operating temperature （-10~40）℃
Waterproof grade IP54
Package Include "1*F20+ ebike
1*Charger
1*Tool kit
1*Owner's manual
1*Gift box (Including 1*Inner tube, 2*Valve caps, 1*wheel reflector, 2*Battery fuses, 2*Brake linings, 1*key chain)"
Note: Actual performance will be affected by user's weight, road conditions, and battery level.
