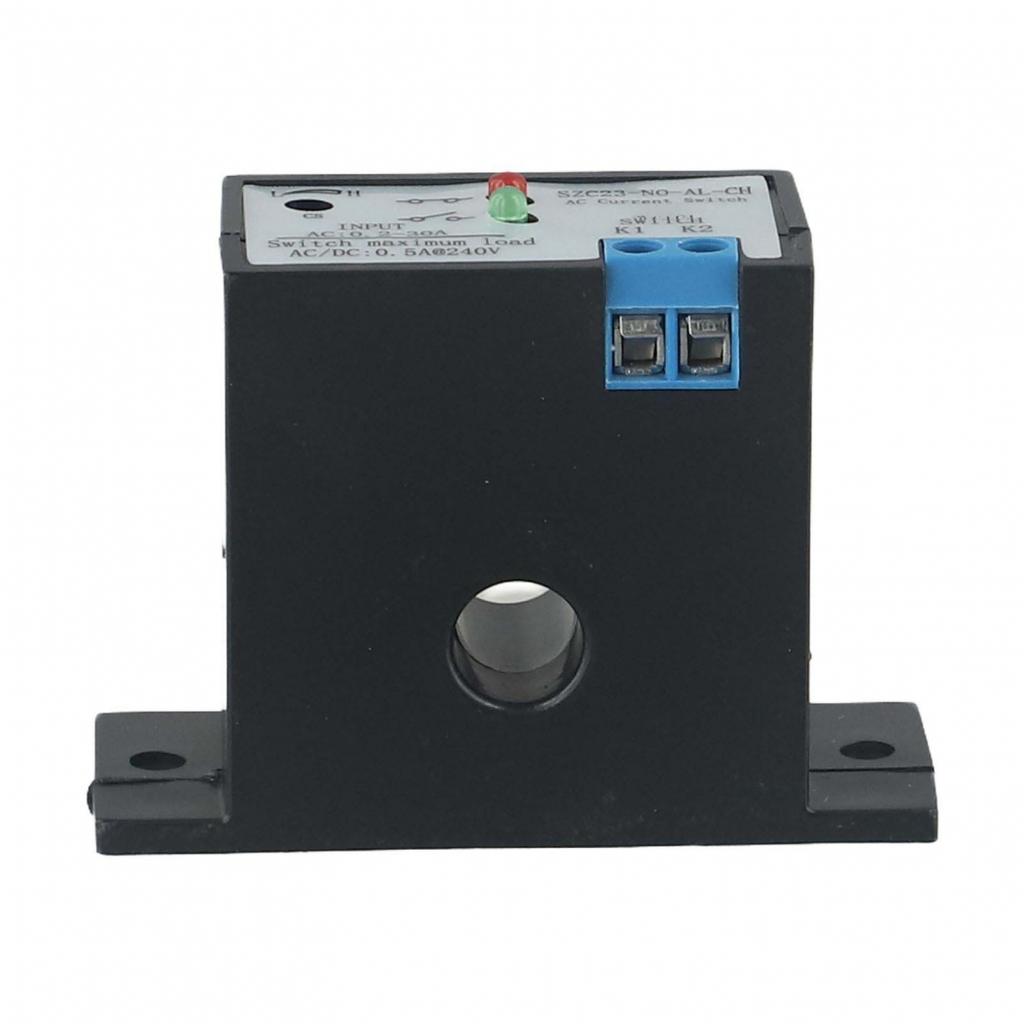

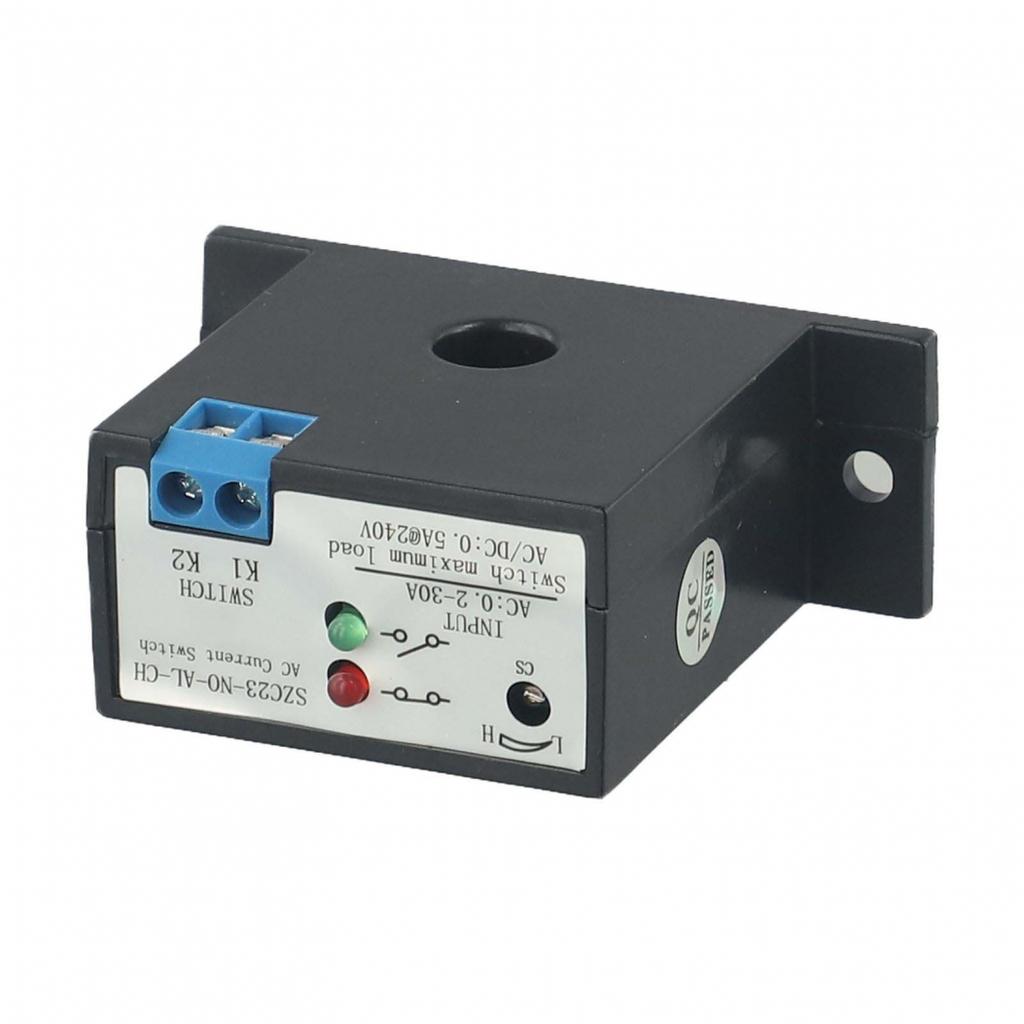

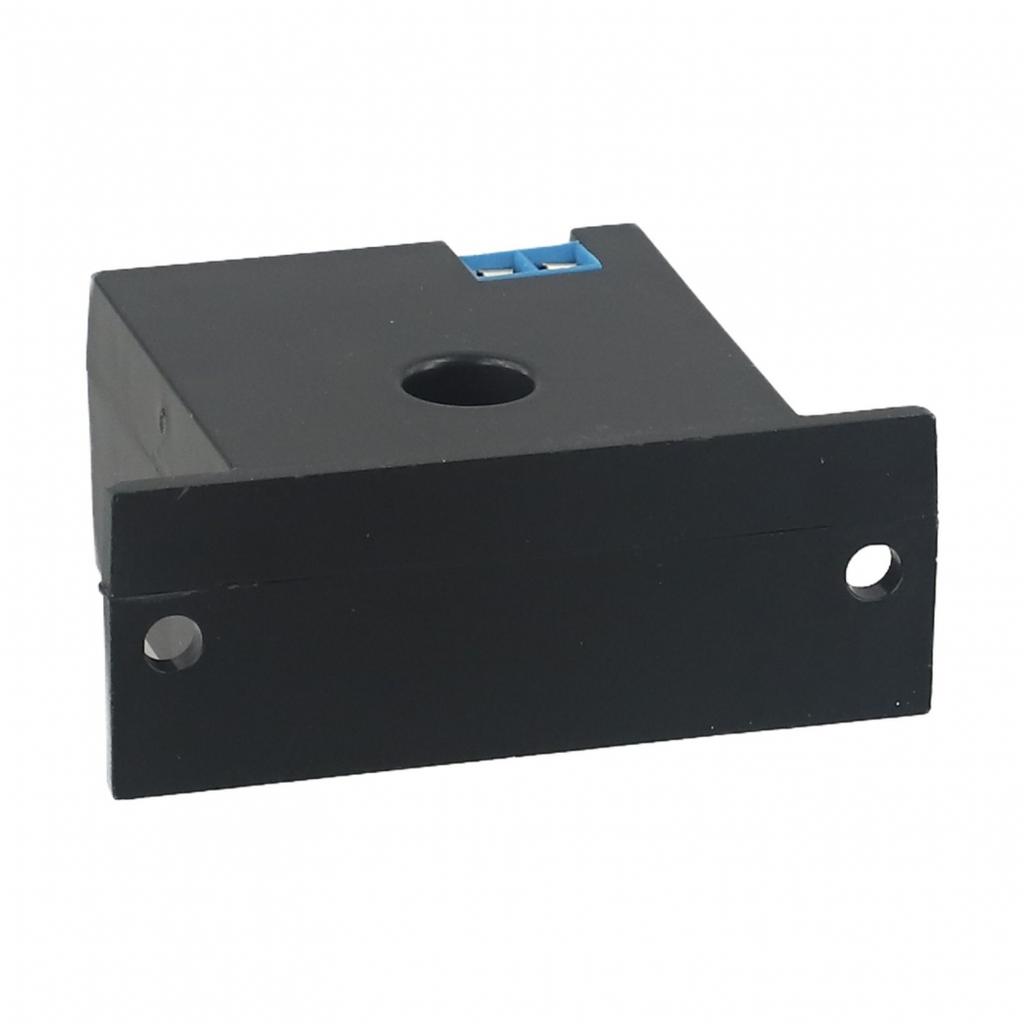

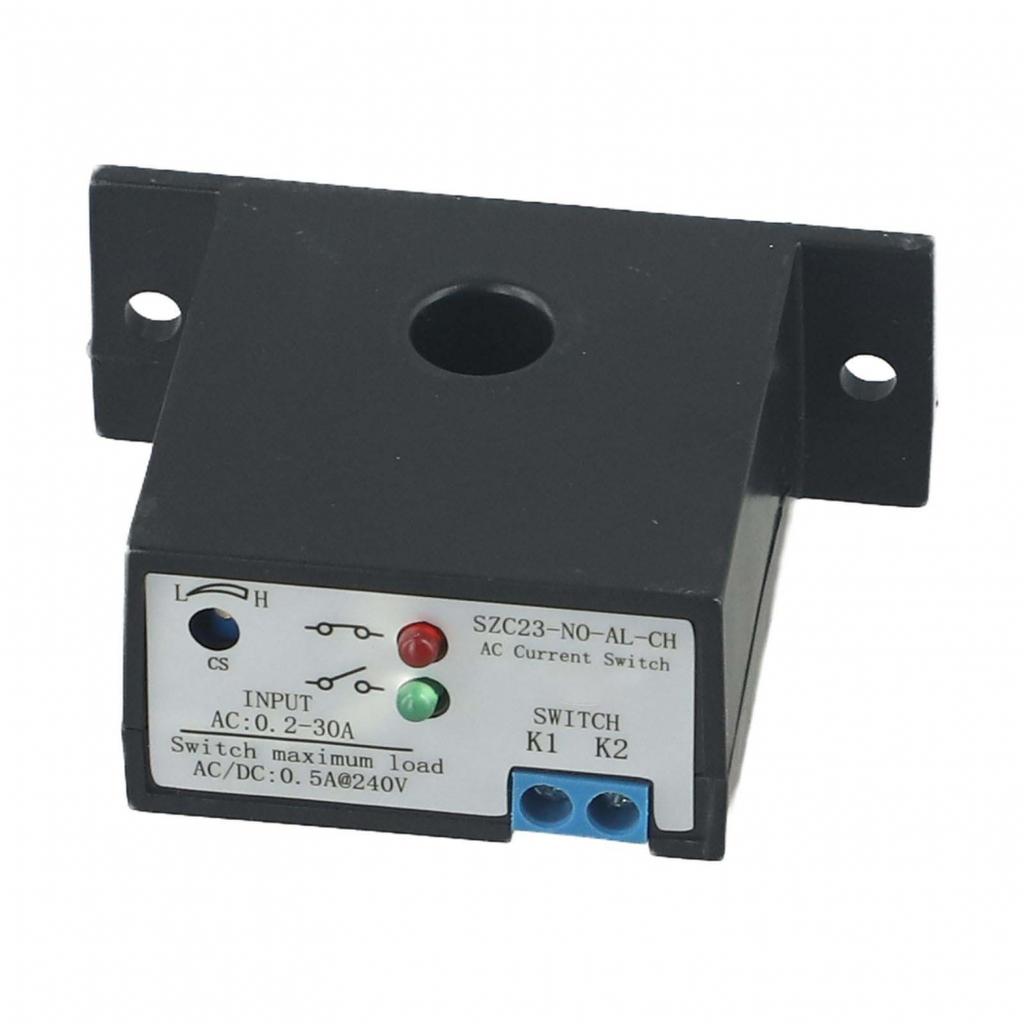

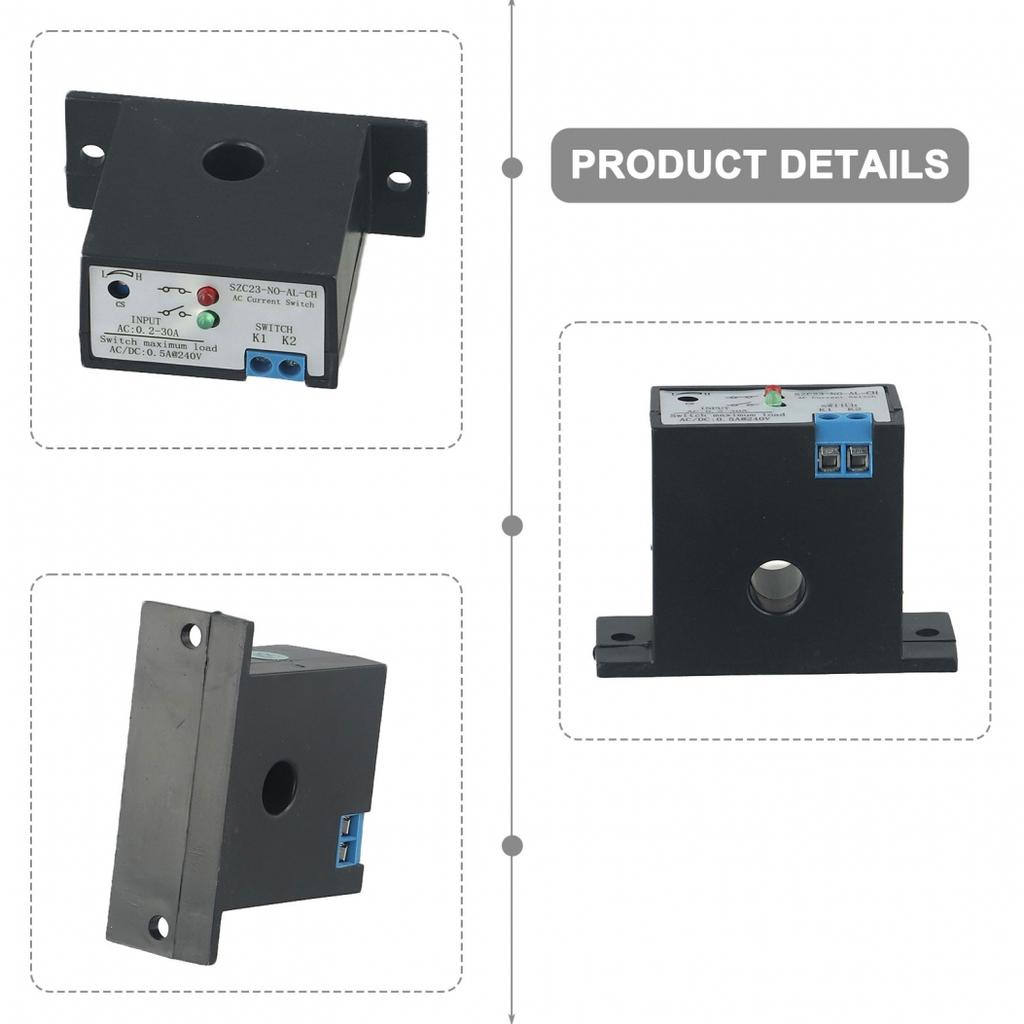

Reliable Current Sensing Switch for AC Applications 0 230A SZC23 NO AL CH

Features: * Self-powered, no external power supply required. * Action current 0.2-30A AC, with potentiometer. * LED indicator light can conveniently and intuitively indicate the working status of the switch. * High-power MOS tube contactless electronic switch. * The number of switch opening and closing times is unlimited, and the speed reaches for ms level. * Straight-through structure design, isolation withstand voltage can reach 2000V. * Hysteresis is less than 1%, and can be used under strong magnetic conditions. * The shell is made of self-extinguishing material ABS. * Suitable for AC current measurement and monitoring, AC motor overload for protection, automatic control system electronic switch, .

Specifications: Part name: Current sensing switch Model: SZC23-NO-AL-CH Power supply: Not required Material: ABS+metal Main body color: Black Rated load: ≤0.5A@240V Input current: 0.2-30A AC Minimum on current: 0.5±0.2A Maximum overload: 100% Leakage current: ≤0.1A Accuracy: 1% Hysteresis: ≤1% Response time: ≤200ms Repeatability: 100% Operating temperature: -20~60℃ Waterproof: IP30 Size: 65*25*47mm / 2.56*0.98*1.85in Aperture: 10mm / 0.4in Package weight: Approx. 56g/2.0oz

Package contents: 1 x Current sensing switch

Note: 1.The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness. 2.Please allow slight manual measurement deviation for the data.
