Feature:
1. The shell is made of self?extinguishing ABS material, self?powered, no external power supply is needed, and the AC current 0.51.5A?200AAC can be adjusted by a potentiometer.
2. LED status indicator, can conveniently and intuitively indicate the working status of the switch, high?power MOS tube non?contact electronic switch.
3. The switch has no limit on the number of on?off times, the response speed reaches the ms level, the through?core structure design, and the isolation withstand voltage is up to 2000V.
4. The hysteresis is less than 1percent , and it can be used under strong magnetic field conditions. The maximum AC and DC load of the switch is 0.3A 135V ACDC.
5. It has the advantages of high accuracy, stable performance and long service life. It is an ideal choice for automatic industrial control equipment and power monitoring.
Specification:

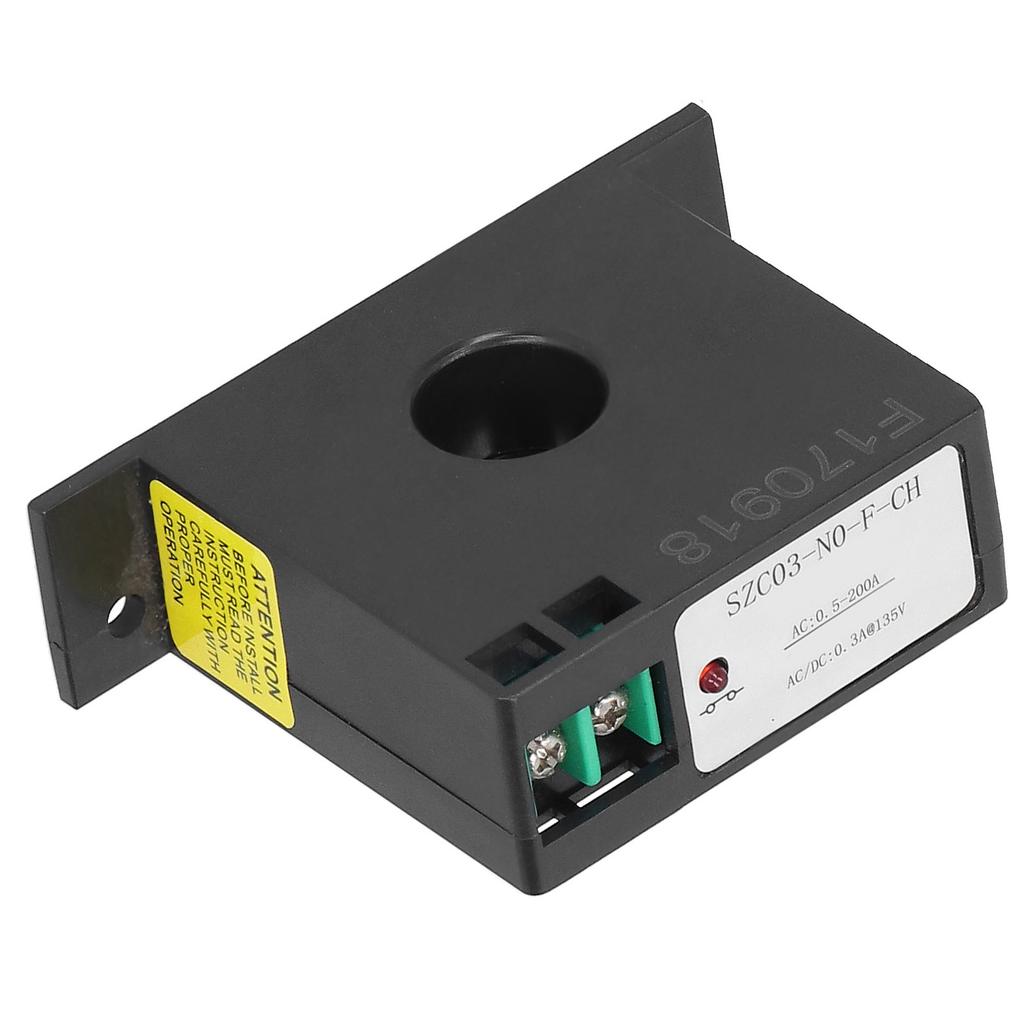

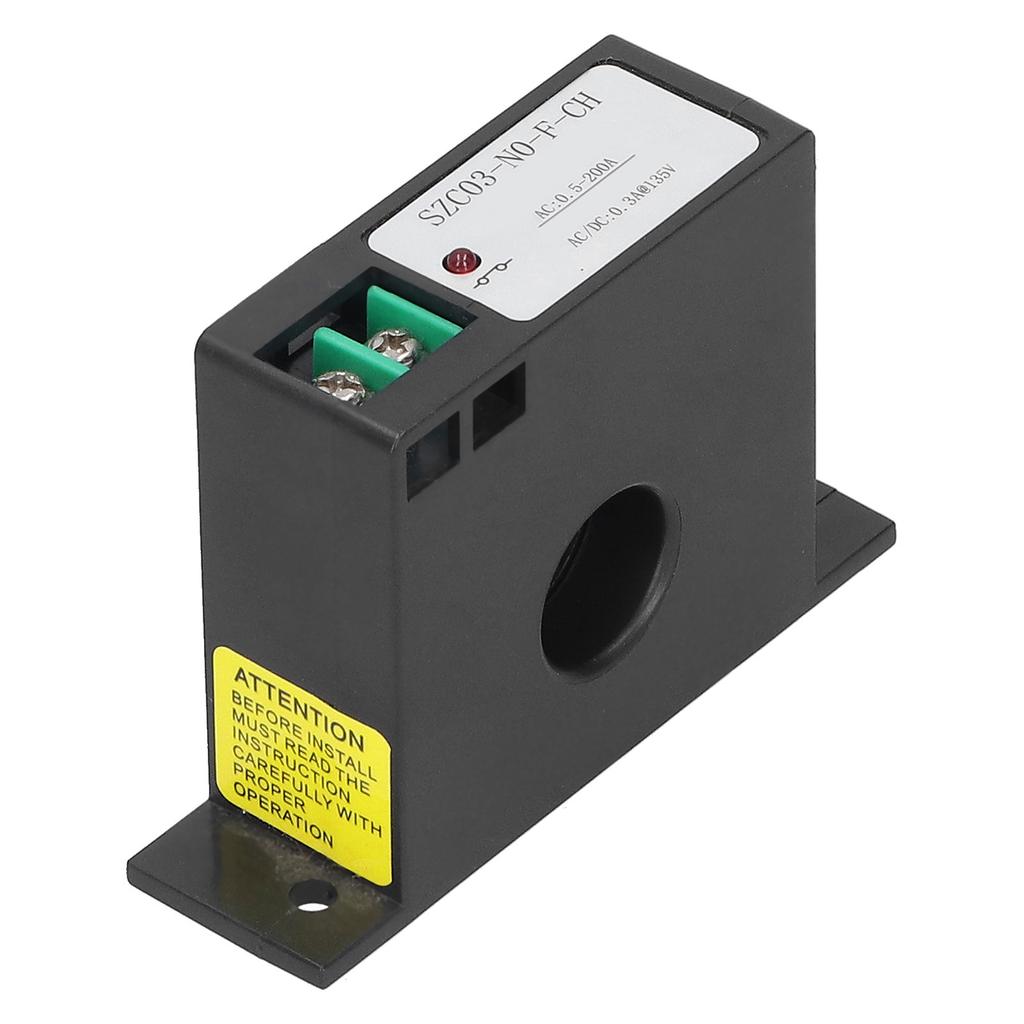

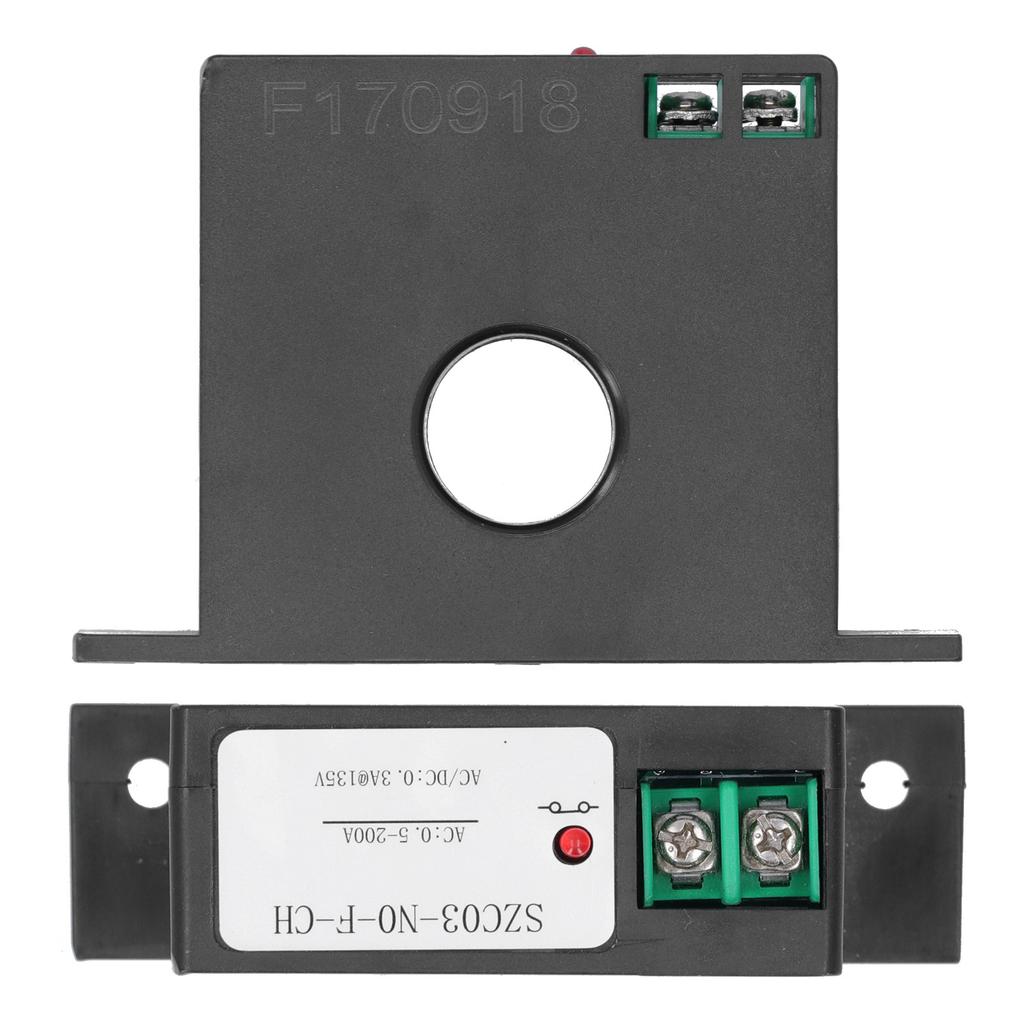

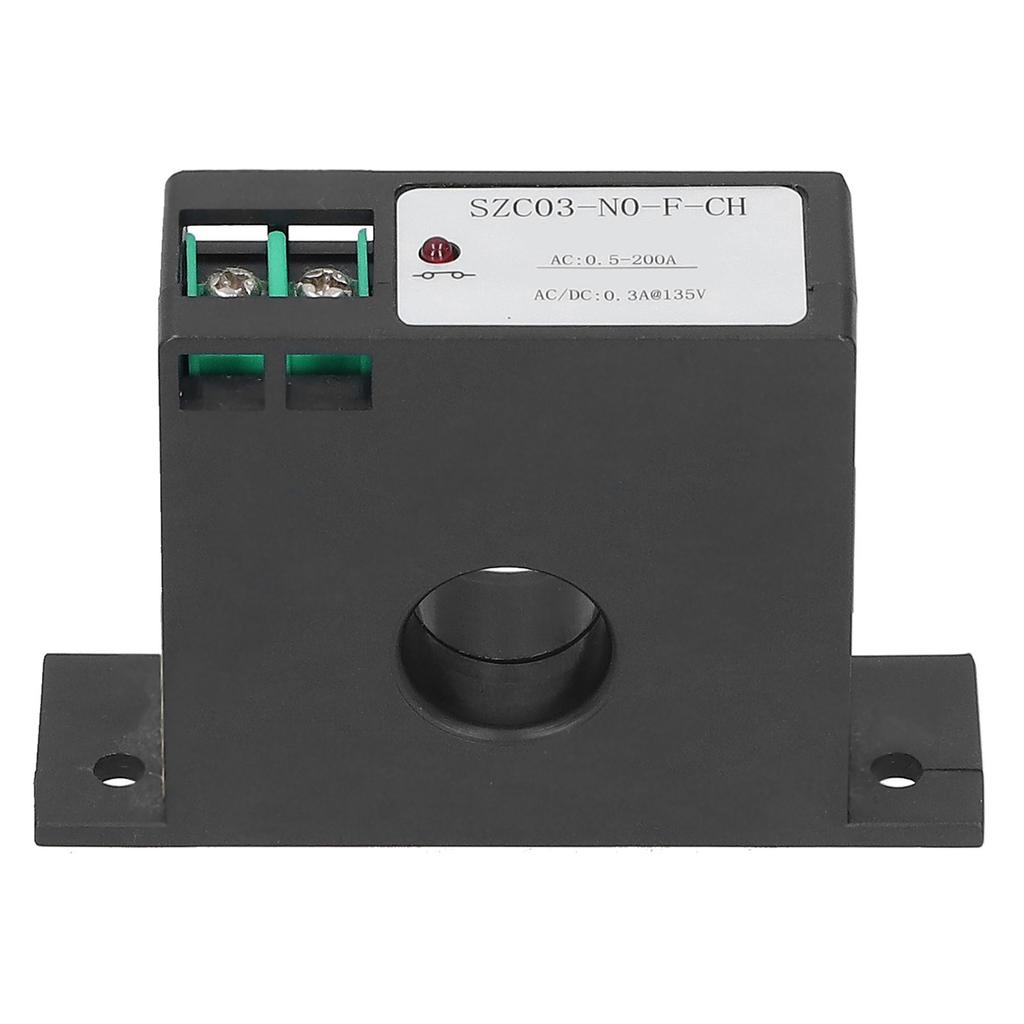

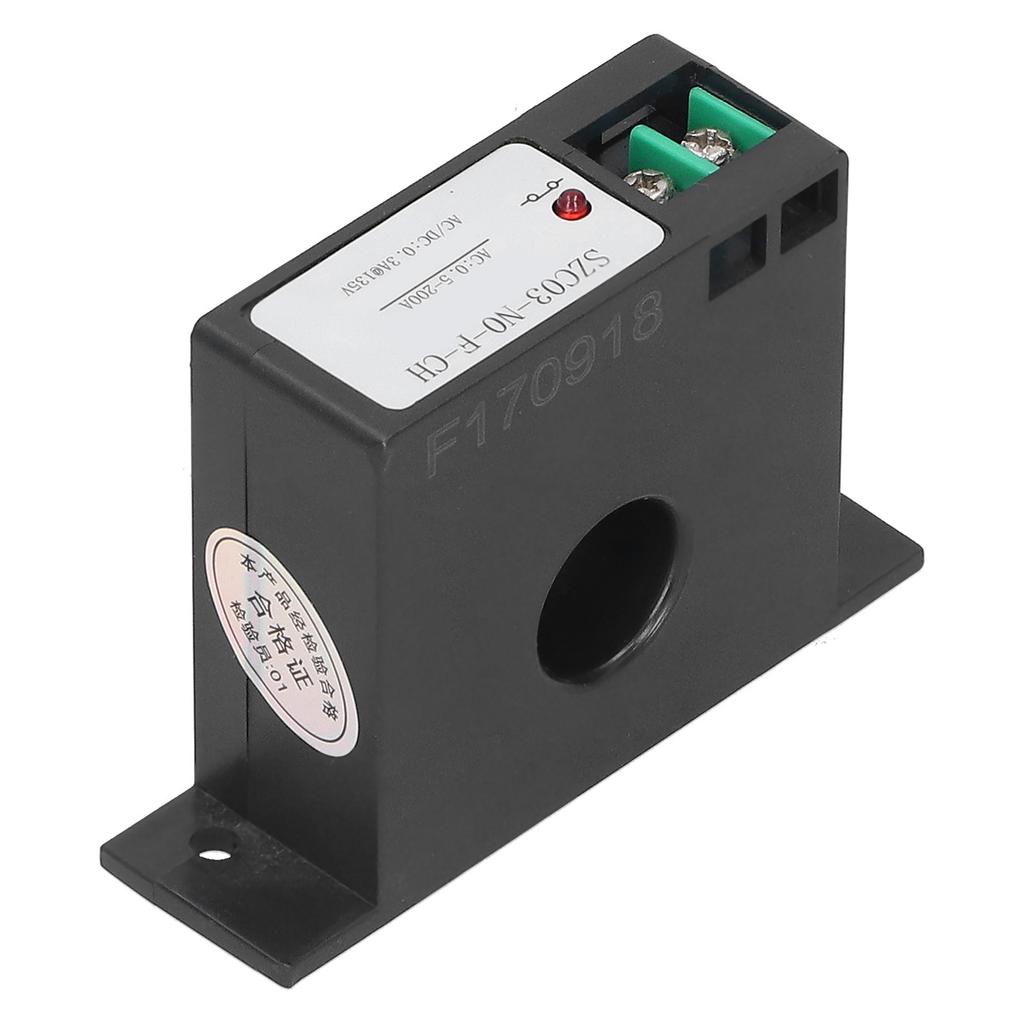

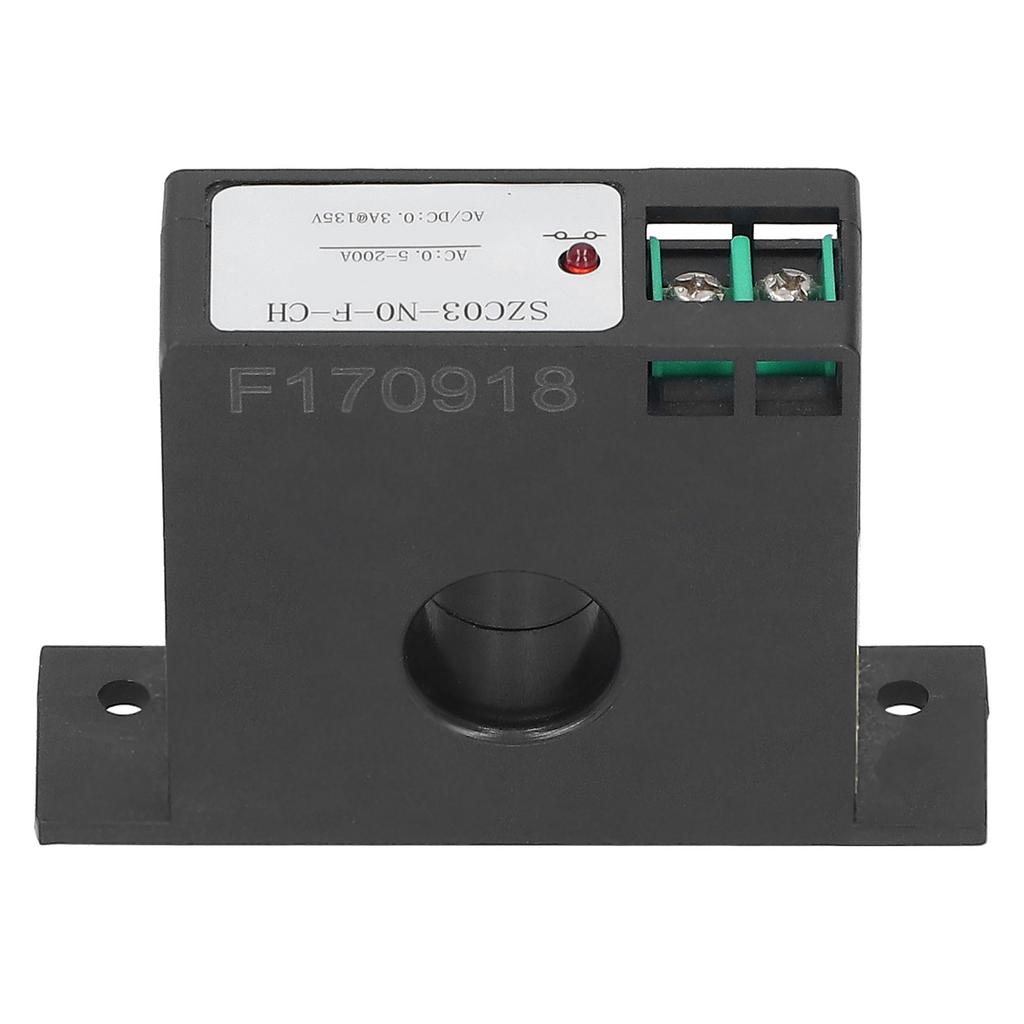

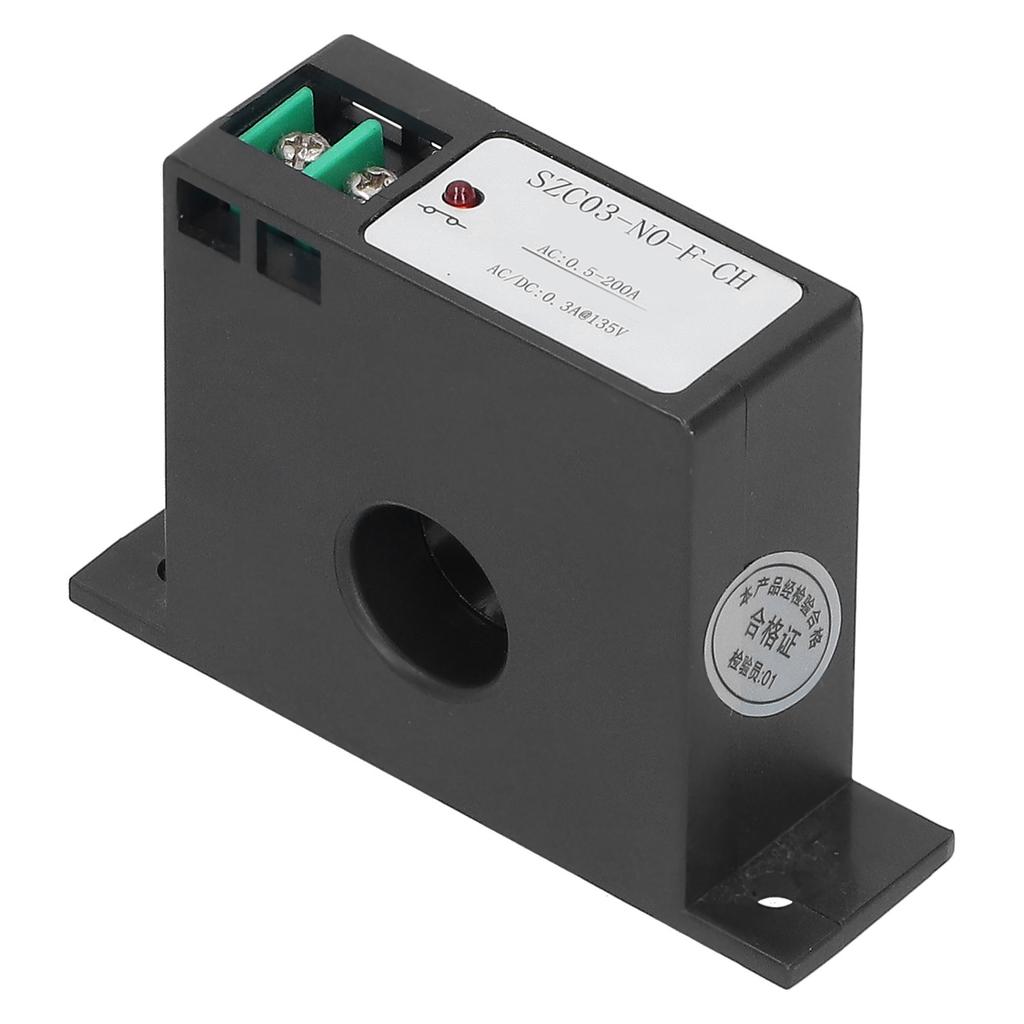

Item Type: Current Mutual Inductance Switch
Material: Plastic
Model: SZC03NOFCH
Switch Type: Normally On
Current Jump Value: Not Adjustable
Power Supply: SelfPowered
Input ThroughCore Current: 0.5200A AC
Rated Load: 0.3A at 135V ACDC (Can not be exceeded in any case)
Minimum Value of Switch Conduction: 0.5+0.2A
The Maximum Overload of the ThroughCore Current: 200percent , the throughcore current cannot exceed 200percent of the rated value
Accuracy: 10percent
Power Consumption: less than 1W
Maximum Leakage Current: less than 1mA
Hysteresis: less than 1percent
Response Time: less than 200ms
Working Temperature: 30~70 celsius
Humidity: 095percent (No Condensation)
Square Bore Diameter: Approx. 20 x 20mm0.8 x 0.8in

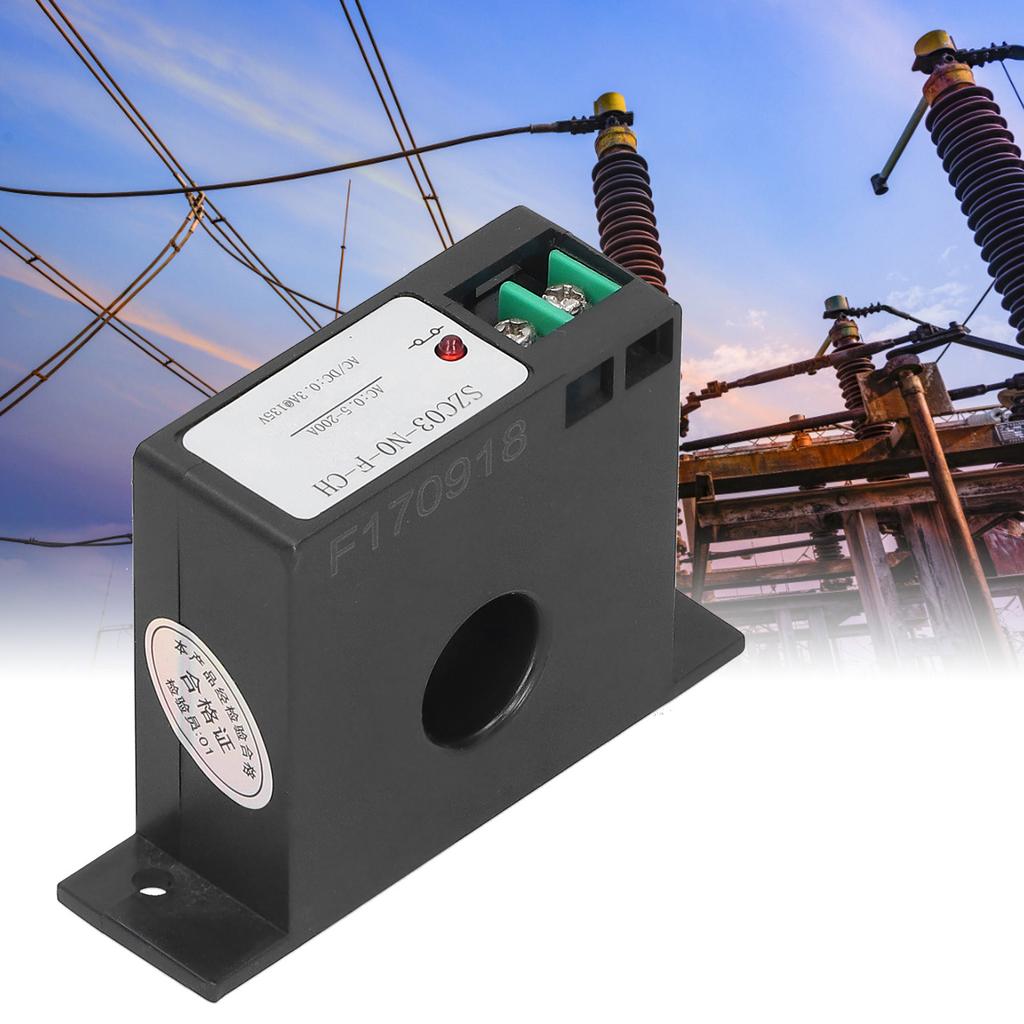

Application: Widely used in substations, frequency conversion speed regulation devices, inverter devices, electrolytic plating, electric locomotives, street lamp monitoring, coal mines and other automation industries that require current monitoring.
Product Introduction:
SZC03 series AC current induction switch is designed and produced to solve AC current monitoring. It uses the principle of mutual inductance to isolate AC current by inducing AC throughcore current, output a normally open or normally closed switching signal, and directly control various automated industrial control equipment Compared with traditional transformer, thermal protector and other devices, using this device can not only obtain more accurate and timely control effects, but also greatly simplify design..
Package List:
1 x Current Mutual Inductance SwitchThe shell is made of self?extinguishing ABS material, self?powered, no external power supply is needed, and the AC current 0.51.5A?200AAC can be adjusted by a potentiometer.
