Note: This motherboard has been used, we will test 100% before Shipping ，Have 90% New

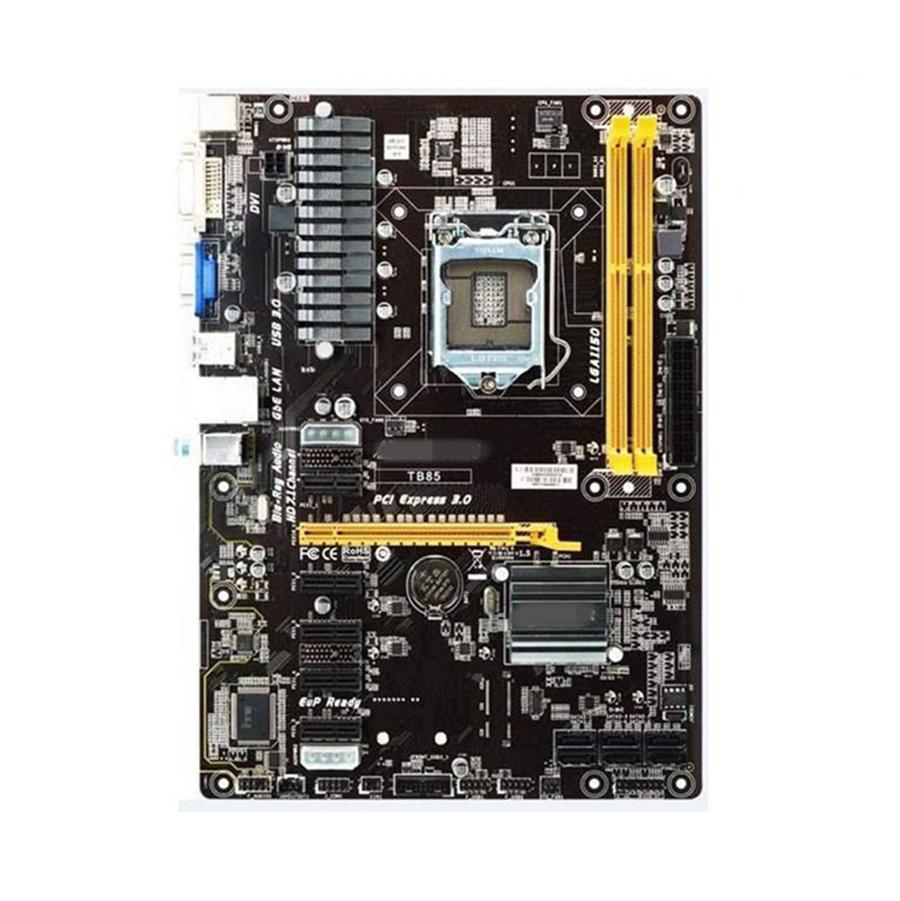

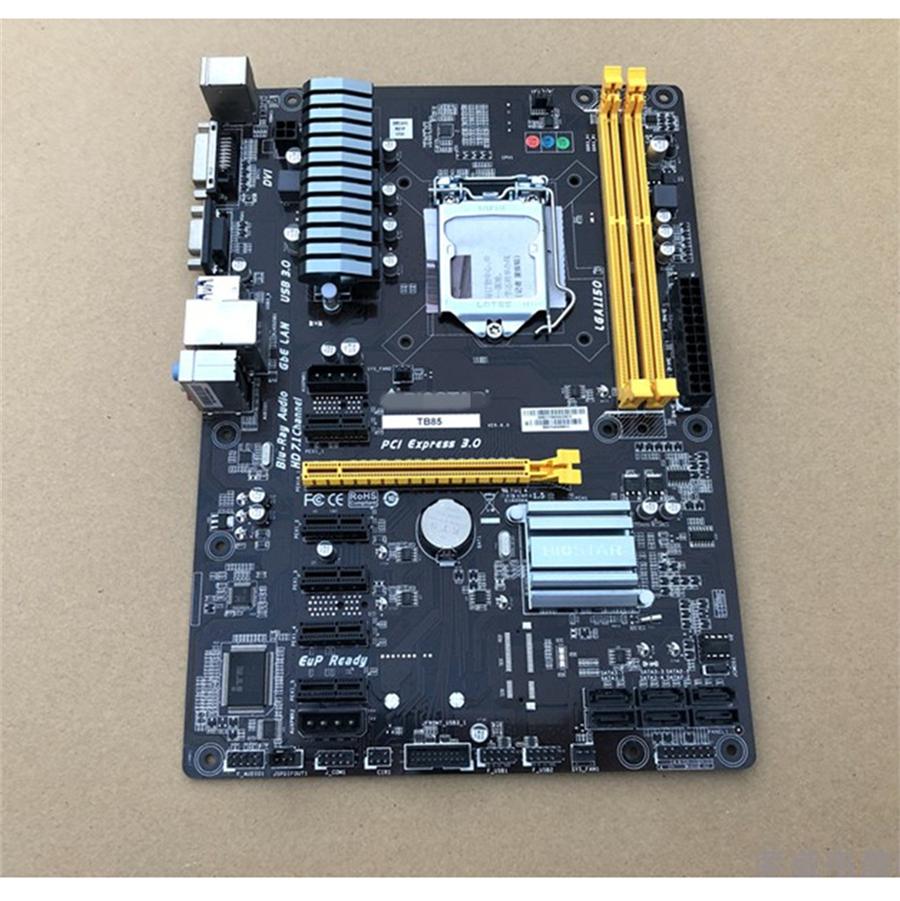

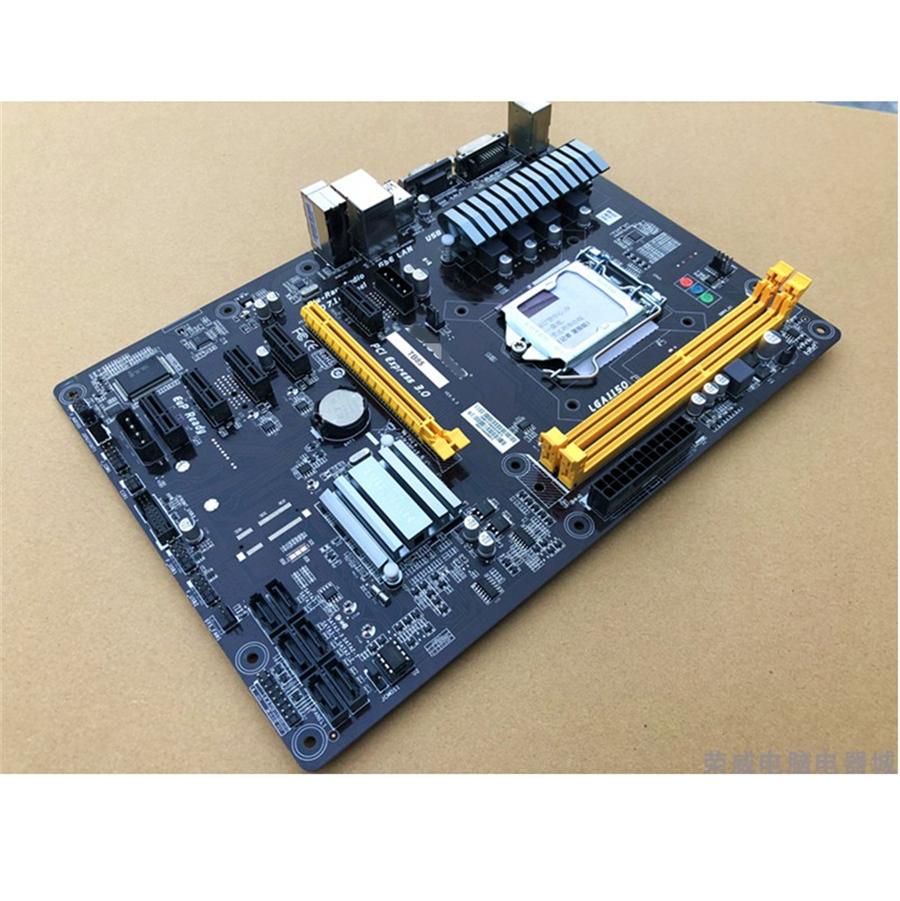

TB85 parameters
Main chipset: Intel B85
Audio chip: Integrated Realtek ALC892 8 channels
Memory type: 2×DDR3 DIMM
Maximum memory capacity: 16GB
Main board type: ATX board type
Dimensions: 29.5×21cm
Power socket: a 4-pin, a 24-pin power connection
Integrated chip sound card/network card
Main chipset Intel B85
The chipset description uses Intel B85 chipset
Display chip CPU built-in display chip (requires CPU support)
Audio chip integrated with Realtek ALC892 8-channel sound effect chip
Realtek RTL8111G Gigabit network card onboard network card chip
Processor specification
CPU type Core i7/i5/i3/Pentium/Celeron
CPU slot LGA 1150
The CPU description supports Intel 22nm processors
Memory size
Memory type 2×DDR3 DIMM
Maximum memory capacity 16GB
Dual channel DDR3 1600/1333/1066MHz memory is supported
Storage extension
PCI-E standard PCI-E 3.0
PCI-E slot 1 x PCI-E X16 graphics card slot, 5 x PCI-E X1 slot
Storage interface: 4×SATA III interface, 2×SATA II interface
The I/O interface
USB interface 4×USB3.0 interface (2 built-in +2 backboard), 3×USB2.0 interface (1 built-in +2 backboard)
Video interface 1×DVI interface, 1×VGA interface
A 4-pin power interface, a 24-pin power interface
Other interfaces 1×RJ45 network interface, audio interface, 1×PS/2 mouse, 1×PS/2 keyboard interface, 1×COM interface
The plate type
Main board ATX board
Overall dimension 29.5×21cm
