Feature:

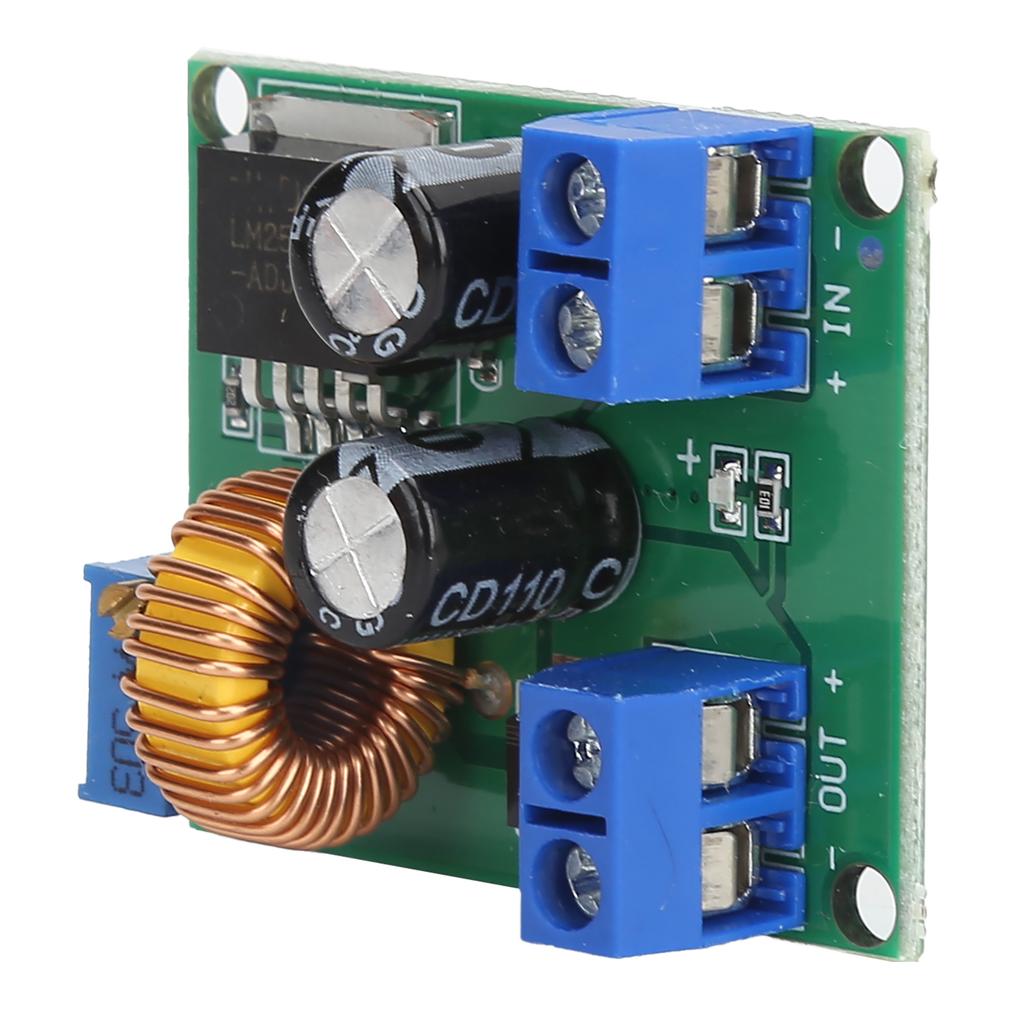

1. Terminals are free of soldering, IN is input, OUT is output, easy for you to judge
2. DC to DC converter module possess long service life, easy assembly, very convenient
3. The product come with stable performance, longlasting work, and wide application
4. Made of good?quality resin material, possess environmental protection, heat resistance, low temperature resistance
5. The continuous working current is only 3A under good ventilation and cooling conditions, which is energysaving
Specification:
Item Type: DC to DC Converter
Material: Resin
Input Voltage Range: DC3V30V (must ensure that the output voltage is higher than the input voltage)
Output Voltage Range: DC4.0V36V
Maximum Input Current: 5A
Working Temperature: 40 celsius 85 celsius
Load Capacity: Maximum 80W
Module Size(LxWxH): Approx. 37 x 32 x 15mm 1.5 x 1.3 x 0.6in
Continuous Working Current: 3A (good ventilation and cooling conditions, the ratio of output voltage to input voltage is not more than 3).
Package List:
1 x DC to DC Converter
Note:
When you test whether the output voltage is greater than the input voltage, please adjust the potentiometer CW, the output voltage will rise, please do not adjust the module CCW, it will be damaged in the case of high input voltage!Terminals are free of soldering, IN is input, OUT is output, easy for you to judge
DC to DC converter module possess long service life, easy assembly, very convenient
The product come with stable performance, longlasting work, and wide application
Made of good?quality resin material, possess environmental protection, heat resistance, low temperature resistance
The continuous working current is only 3A under good ventilation and cooling conditions, which is energysaving
