Hign-concerned Chemical : None
Package : DIY Module
Model Number : XL4015
Dissipation Power : ...
Supply Voltage : 5V-32V
Application : Computer
Type : Module
Operating Temperature : -40℃~+80℃
Origin : China
Condition : New
Input voltage : 5-36V
Output voltage : 1.25-32V continuously adjustable
Output current : adjustable, 5A (recommended for use within 4.5A
Output powe : 75W
Operating frequency : 180KHz
Conversion efficiency : 96%

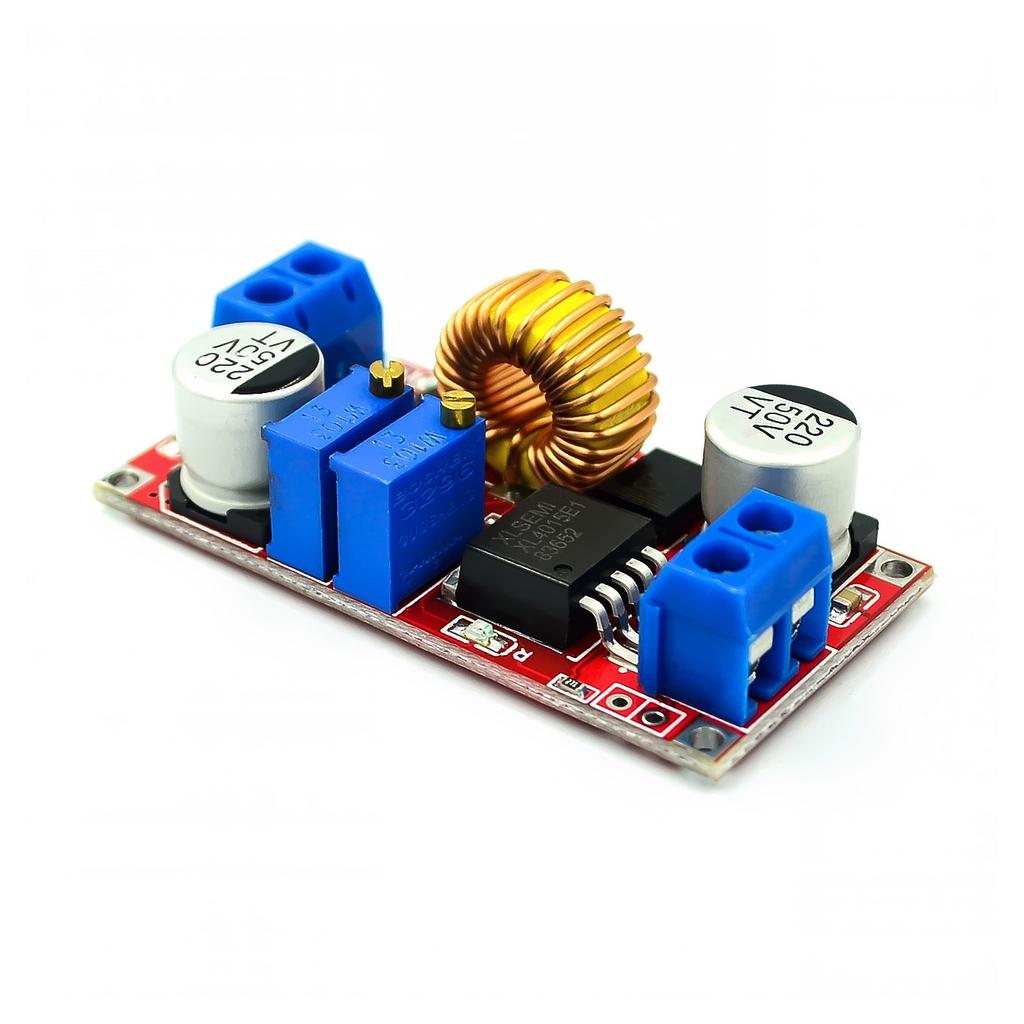

XL4015 Constant current constant voltage high current 5A lithium ion battery charging LED drive power module
Module nature: non-isolated buck module
Rectifier mode: asynchronous rectifier
Input voltage :5V-32V
Output voltage :0.8V-30V
Output current: Adjustable 5A
Conversion efficiency :95%
Switching frequency :300KHz
Output ripple :50mV(large)20M bandwidth
Load adjustment rate :±0.5%
Voltage adjustment rate :±2.5%
Operating temperature :-40℃ to +85℃

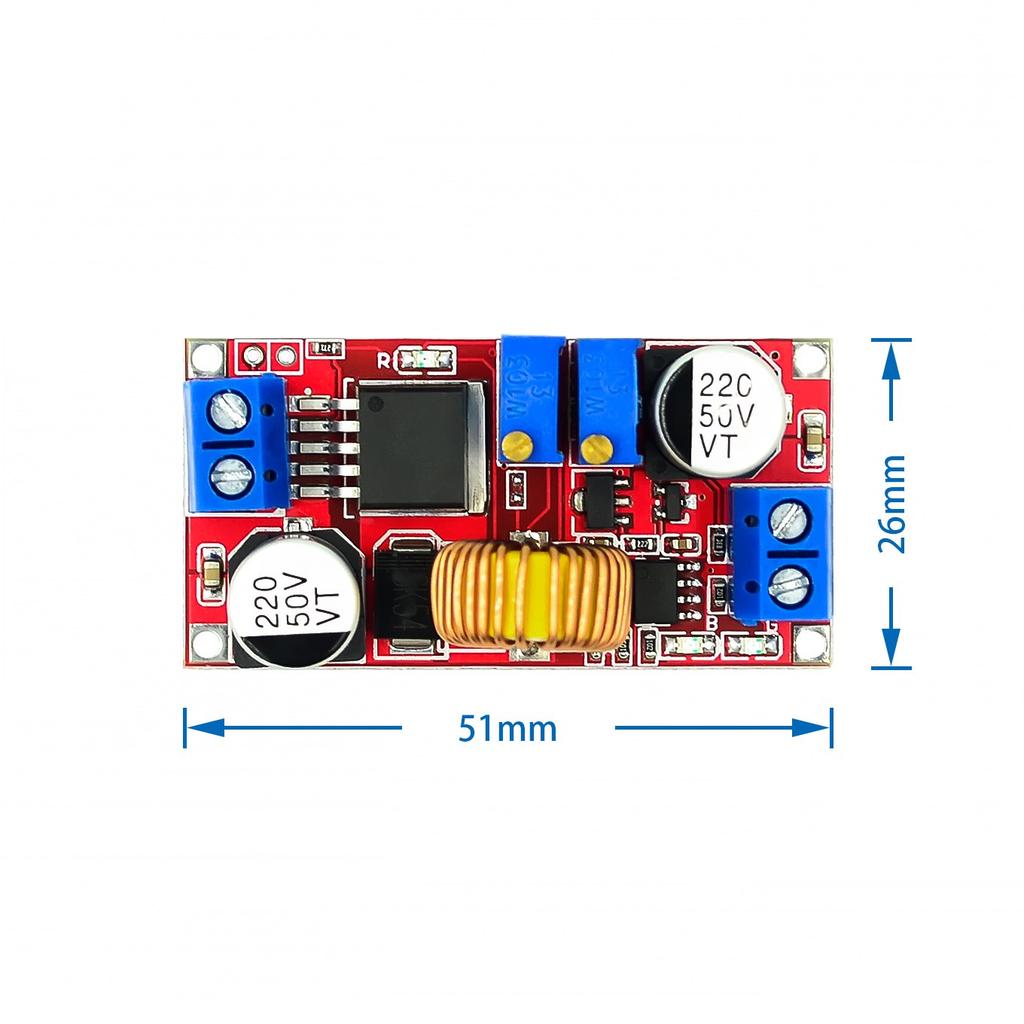

Size :51*26.3*14 (L * W * H) (mm)
Product features:
The module uses imported high-quality chips, high efficiency (95%), while the heat is small, can go to 5A current, while with the original TI op amp control output current, so that the overall output is very stable.
This module uses the original Sanyo filter capacitor with low ESR, which can make the ripple current low to 50mV!
This module uses machine patches, reflow welding, and each module is subjected to a two-hour aging test before shipping to ensure high reliability.
This module is an adjustable step-down module. The output voltage can be changed by adjusting the blue adjustable resistor on the module. The input and output pressure difference is 1V, which can output 0.8V voltage.
The IN-(input negative), IN+(input positive), OUT-(output negative), OUT+(output positive) marked on the module must be connected correctly, otherwise it may cause module damage.
Battery charging method:
1. Determine the floating charging voltage and charging current of the battery you need to charge, and the input voltage of the module;
2. Adjust the constant voltage potentiometer to adjust the output voltage to about 5V.
3. Use a multimeter 10A current stop to measure the output short-circuit current, and adjust the constant current potentiometer to make the output current reach the predetermined charging current value;
4. Charging switch current Default shipment is 0.1 times charging current (constant current value).
5. Adjust the constant voltage potentiometer to make the output voltage reach the floating charging voltage;
6. Connect the battery and charge it.
(Steps 1, 2, 3, 4, and 5 Connect the input to the power supply and the output to the battery.)
LED constant current driver use method:
1. Determine the working current and working voltage that you need to drive the LED;
2. Adjust the constant voltage potentiometer to adjust the output voltage to about 5V.
3. Use a multimeter 10A current stop to measure the output short-circuit current, and adjust the constant current potentiometer to make the output current reach the predetermined LED working current;
4. Adjust the constant voltage potentiometer to make the output voltage reach the LED operating voltage;
5. Connect the LED and test the machine.
(Step 1, 2, 3, 4 for the module input power, output no load LED lights.)
The line layout is compact and regular, with good electrical insulation and mechanical stability, and can maintain stable performance under different temperature and humidity environments to ensure accuracy and reliability.
In circuit design, carefully planned lines are like precision transportation networks, and lines of different widths and spacings undertake different currents and signals transmission tasks respectively. The key signal lines are impedance matching processing, which greatly reduces signal reflection and attenuation and ensures the stable transmission of high-frequency signals.
All kinds of electronic components are soldered on the circuit board, and the solder joints are full, round, and firm and reliable. Core components like chips are perfectly connected to the circuit board through fine packaging processes to achieve high-speed data processing and interaction.
This circuit board has a wide range of responses in many fields. Whether in the industrial control field that requires extremely high stability or consumer electronics field that pursues extreme performance, it can provide solid guarantees for the stable operation of the equipment with its excellent design and reliable performance, and help various electronic devices play a powerful role.
