Joom: Safely charging your e-bike or e-scooter
• Don’t leave your battery unattended while charging, when you're out or while you're asleep
• Don’t cover chargers or battery packs when charging
• Don’t overload sockets or use unsuitable extension chords
• Don’t charge or store batteries in direct sunlight or in areas with temperatures above 45⁰C
• Don’t charge batteries next to combustible materials or hazardous substances
• Always unplug your charger once you have finished charging
• Always make sure to only use the proper proprietary charger
• Always ask a professional when converting your e-bike or e-scooter
• Always check your battery (and charger) for visible damage
-----
⭐Main Features
⚙️ 250W Magnesium Alloy Hub Motor & 75Nm Torque
250W high-efficiency magnesium alloy integrated wheel hub motor with 75Nm torque delivers robust power, reaching 25km/h in PAS 5 for smooth acceleration on roads and slopes.
🔋 48V 16Ah High-Capacity Battery
16Ah lithium-ion battery offers an impressive 90-110km range in PAS 1 mode, with a quick 5.5-hour charging time to keep you riding longer.

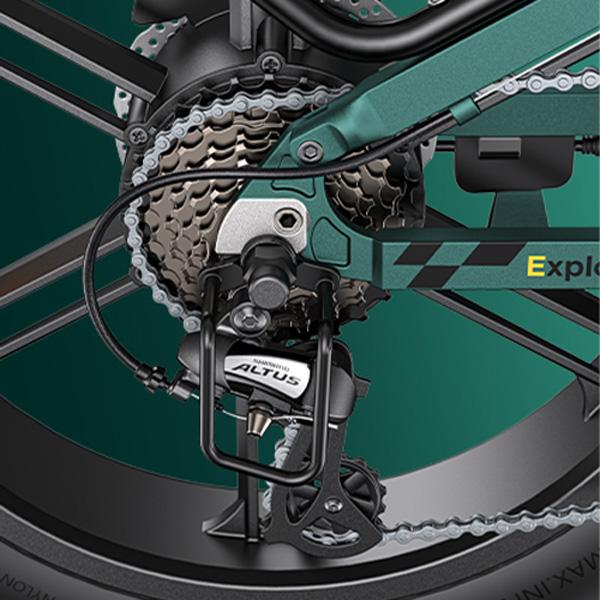

🚀Shimano Altus 8-Speed Drivetrain
Precise Shimano Altus 8-speed drivetrain paired with 10° maximum climbing degree adapts seamlessly to urban streets and hilly terrains.

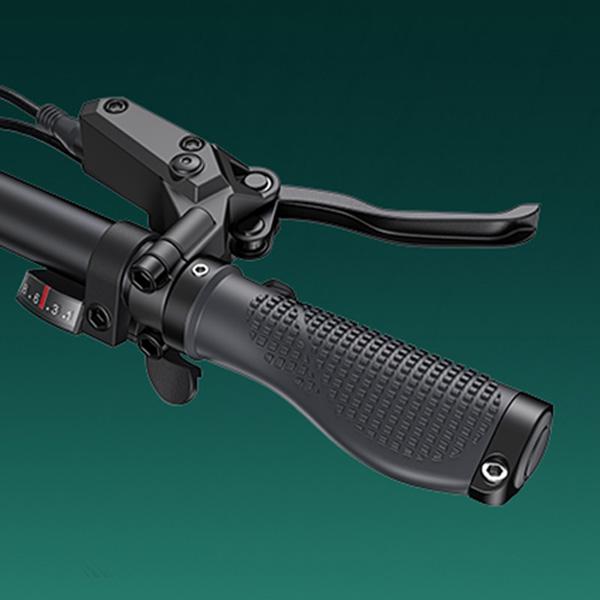

🛑160mm Hydraulic Disc Brakes
Responsive 160mm hydraulic disc brakes provide reliable stopping power, ensuring safe rides even at maximum speed.
📊Specifications
Motor:250W Magnesium Alloy Integrated Wheel Hub Motor
Material:6061 Aluminium Alloy Folding Frame
Torque:75 Nm
Sensor:Torque Sensor
Brake:160mm Hydraulic Disc Brakes
Drivetrain:Shimano Altus 8-speed

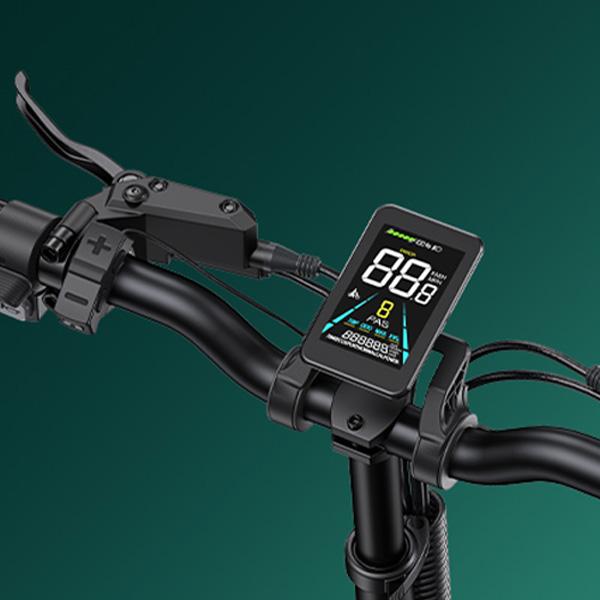

Display:LCD Color Display
Speed:25km/h (PAS 5)
Max Mileage (Fully charged):90-110km (PAS 1)
Battery:48V 16Ah Lithium-ion Battery

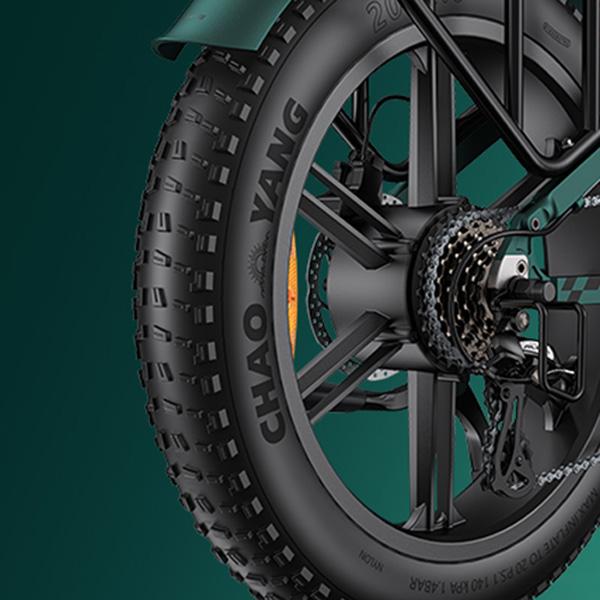

Tires:20x4.0" Tires
Maximum Climbing Degree:10°
Charging Time:about 5-7 hours
Rider Height:5.4 (ft) - 6.2 (ft)
Payload Capacity:150 kg (330lbs)
Package Dimensions (LWH):144*32*72 cm
Bike Weight:31.6 kg
Gross Weight:39.8 kg
Unfolded Size:170*57*130 cm

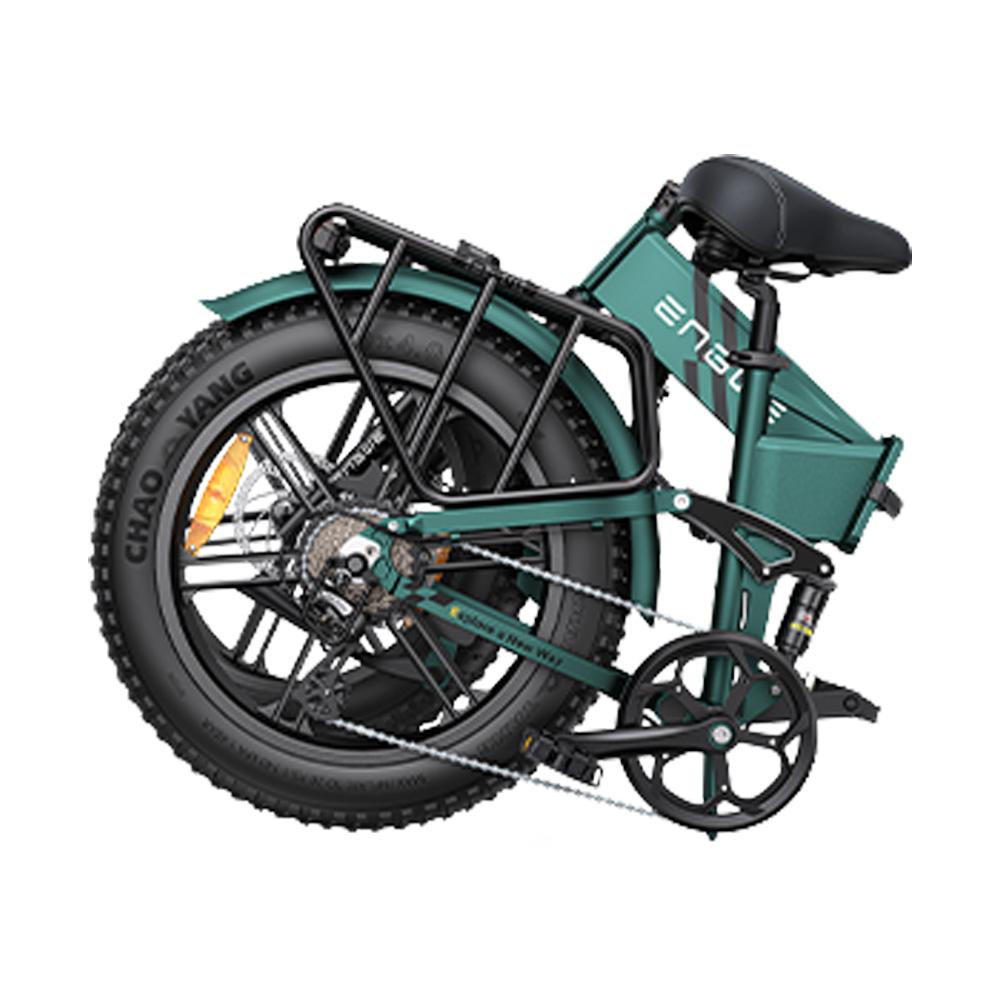

Folded Size 104*55*84 cm
Wheelbase:113.5 cm
Total Length:170 cm
Reach:43 cm
Standover Height:69 cm
Minimum Saddle Height:86 cm
Maximum Saddle Height:102 cm
Minimum Handlebar Height:120 cm
Maximum Handlebar Height:130 cm
Please note:There may be a difference of 0~5 cm between measured and actual data.
