【Voltage Compatibility】
When using electrical appliances, please note that they are designed for Japanese voltage specifications (90-110V), so if you use them with a different voltage, it may cause a malfunction.
【Plug Type】
Our products use Japanese plug types (A or B type).
Please use a conversion adapter if necessary.
【Important Note on Transformers and Adapters】
A transformer adjusts voltage to match your device’s requirements.
A conversion adapter only changes the plug shape and does not adjust voltage.
Using only a conversion adapter without a transformer may result in damage to the product.
【Liability】
We are not responsible for malfunctions or damages caused by improper use, such as operating the product without a transformer.
Colors may vary depending on your monitor and may differ from the actual product. Thank you for your understanding. We have made every effort to provide accurate explanations, but in the unlikely event that the description differs from the actual product, priority will be given to the actual product. Specifications are subject to change without notice due to package changes or product function improvements.

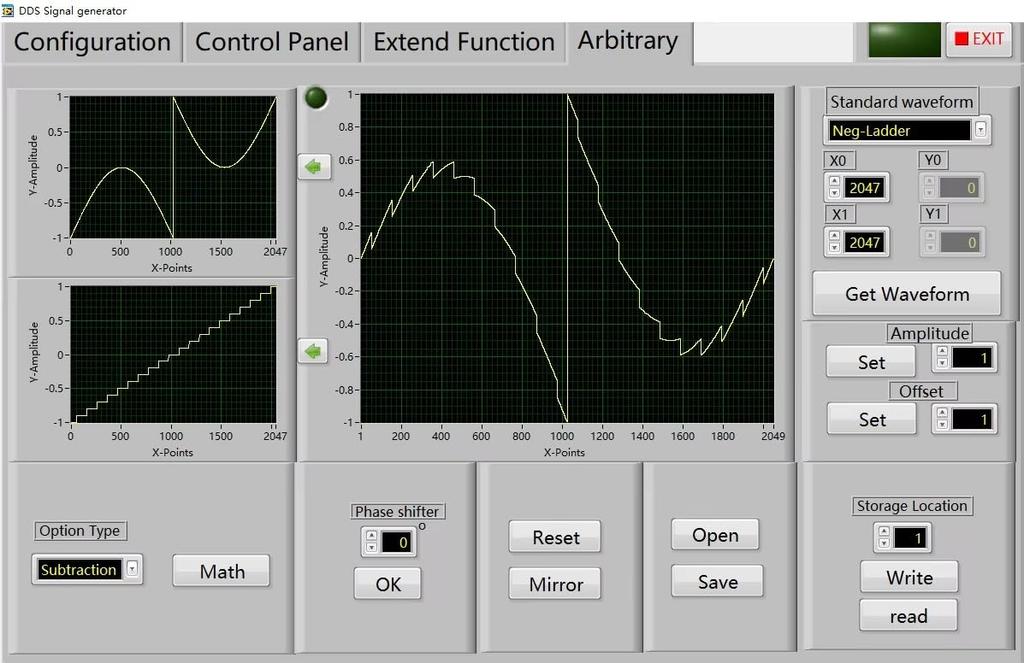

Technical parameters Frequency characteristics Sine wave frequency range 0~60MHz Square frequency range 0~15MHz Triangular frequency range 0~15MHz Pulse frequency range 0~6MHz CMOS/TTL digital frequency range 0~6MHz Arbitrary wave frequency range 0~6MHz Rise time ≤20nS Minimum frequency resolution 0.01µHz (0.00000001Hz) Frequency accuracy ±20ppm Frequency Stability ±1ppm/3h Waveform Characteristics Waveforms Sine, Sine, Triangle, Pulse (Duty Cycle Compensated), Partia Sine, CMOS, DC Level, Half Wave, Full Wave, Positive Ladder, Negative Ladder, Noise, Exponential Rise, Exponential Fall, Tone, Lorentz Pulse, and 60 user-defined waveforms. Waveform length 2048 points Waveform sampling rate 266MSa/s Waveform vertical resolution 12 bits Sine Harmonic suppression ≥45dBc(＜1MHz); ≥40dBc(1MHz~20MHz) Total harmonic distortion ＜0.8%(20Hz~20kHz,0dBm) Square and pulse Overshoot (square) ≤5% Duty cycle range (pulse)
0.1%~99.9% Ramp wave Linearity ≥98% (0.01Hz~10kHz) Output characteristics Amplitude range ≤10MHz: 2mVpp~20Vpp ≤30MHZ: 2mVpp~10Vpp ≤60MHZ: 2mVpp~5Vpp Amplitude resolution 1mV Amplitude stability ±0.5%/5 h Amplitude flatness ±5%(＜10MHz); ±10%(＞10MHz) Waveform output Output impedance 50Ω±10% (typical) Protection All signal output terminals can be shorted within 60 seconds
