OWON XDM2041 Benchtop AC 65 Sample Temperature True LCD and Instruction Manual Multimeter, Power, 4.5 Digits, 55,000 Counts, S/s Rate, RS232,

---------------------------------------------------------------------- 【Voltage Compatibility】 When using electrical appliances, please note that they are designed for Japanese voltage specifications (90-110V), so if you use them with a different voltage, it may cause a malfunction.

【Plug Type】 Our products use Japanese plug types (A or B type). Please use a conversion adapter if necessary.

【Important Note on Transformers and Adapters】 A transformer adjusts voltage to match your device’s requirements. A conversion adapter only changes the plug shape and does not adjust voltage. Using only a conversion adapter without a transformer may result in damage to the product.

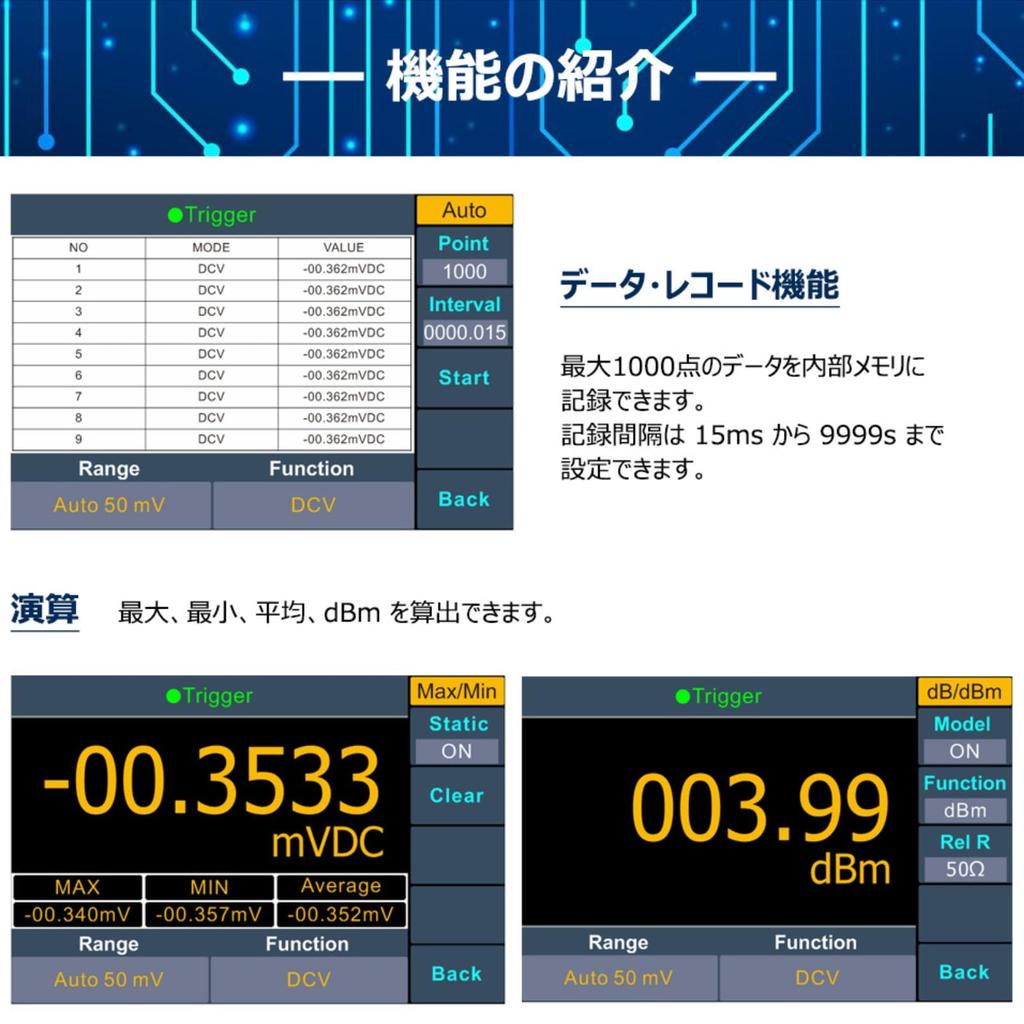

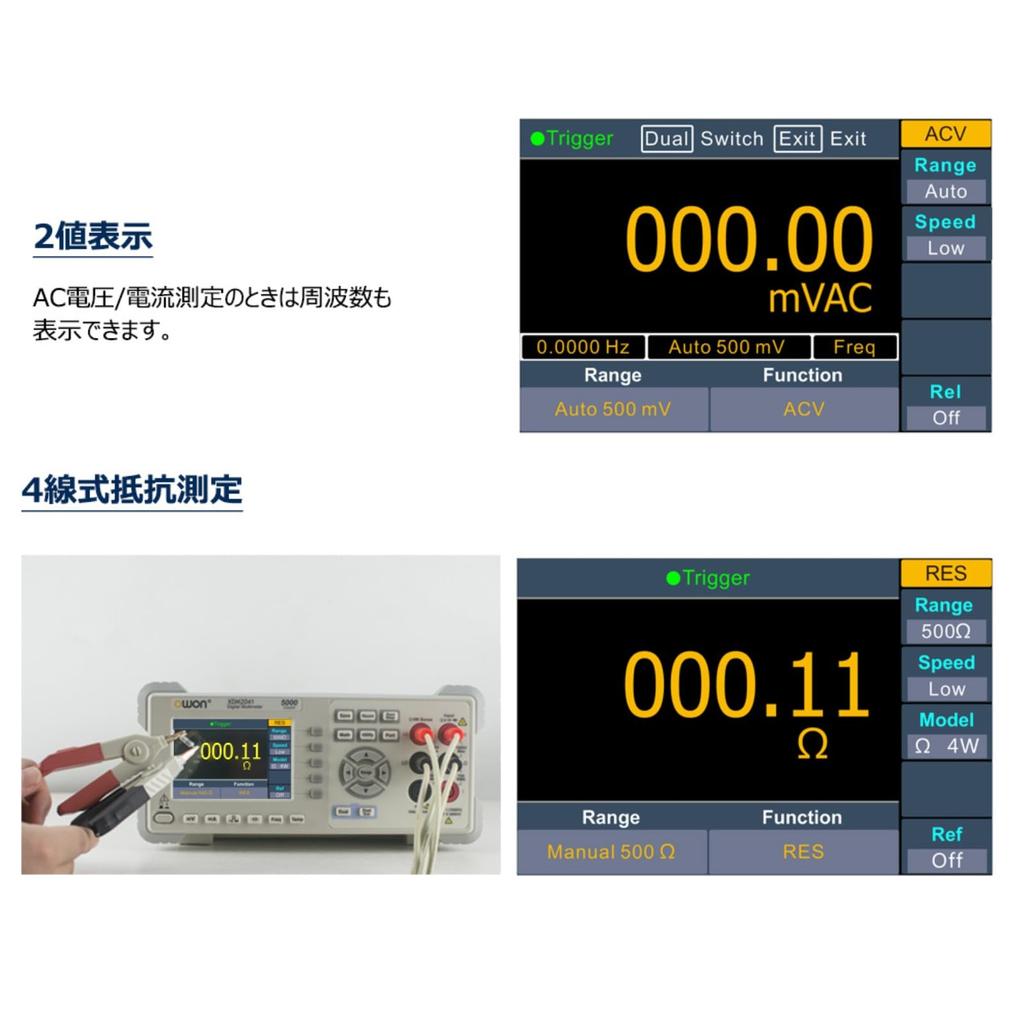

【Liability】 We are not responsible for malfunctions or damages caused by improper use, such as operating the product without a transformer. ---------------------------------------------------------------------- High-Precision 4.5-Digit Measurement with True RMS: 55,000 count resolution and high-speed measurement at up to 65 samples per second. Supports true RMS AC voltage and current measurement, accurately analyzing waveforms other than sine waves. Ideal for research, design, and calibration applications that require highly accurate and reliable measurements. Dual Display & Data Logging Function: Dual display mode allows you to simultaneously display two types of measurement results, such as voltage and resistance. The built-in data logging function allows for up to 1,000 points of data logging, allowing for long-term recording and analysis. [Rich Measurement Functions and 4-Wire Resistance Measurement Support] Multi-function measurement is possible, including voltage, current, resistance, frequency, capacitance, temperature, diode, and continuity tests. 4-wire resistance measurement is also supported, minimizing the effect of lead resistance when measuring low resistance. Intuitive Operation and RS232 Communication Support: The 3.7-inch high-resolution LCD (480 x 320 pixels) provides both visibility and operability. The RS232 interface also supports PC control and automatic measurement using SCPI commands. [Support] The user manual can be downloaded from the OWON official website (owon.co.jp). It comes with a 3-year manufacturer's warranty on the device itself and a 1-year manufacturer's warranty on accessories, so you can install and use it with peace of mind. [High-precision 4.5-digit measurement and true RMS support] Achieves 55,000 count resolution and high-speed measurement of up to 65 samples/second. Supports true RMS AC voltage and current measurements, accurately analyzing waveforms other than sine waves. It is ideal for research, design and calibration applications that require highly accurate and reliable measurements. [Dual display and data logging function] Dual display mode allows you to simultaneously display two types of measurement results, such as voltage and resistance. Equipped with a data logging function for up to 1,000 points, it supports long-term recording and analysis. [Abundant measurement functions and 4-wire resistance measurement support] Achieves multi-function measurements such as voltage, current, resistance, frequency, capacitance, temperature, diode, and continuity tests. It also supports 4-wire resistance measurement, minimizing the effect of lead resistance when measuring low resistance. [Intuitive operation and RS232 communication support] It uses a 3.7-inch high-resolution LCD (480 x 320 pixels) that combines visibility and operability. Equipped with an RS232 interface, it also supports PC control and automatic measurement using SCPI commands. [About support] The user manual can be downloaded from the OWON official website (owon.co.jp). As a result, you can install and use it with peace of mind, as it comes with a manufacturer's warranty of 3 years for the main unit and 1 year for accessories.
