Feature:

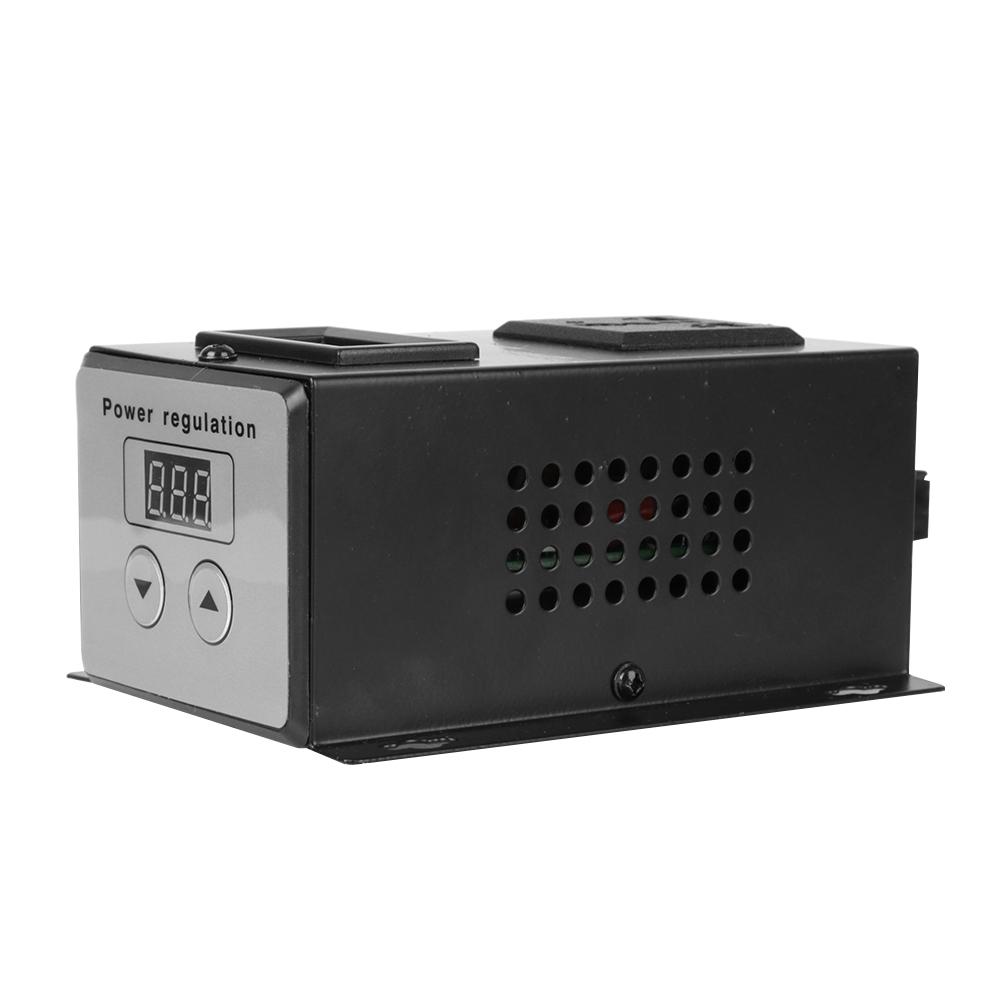

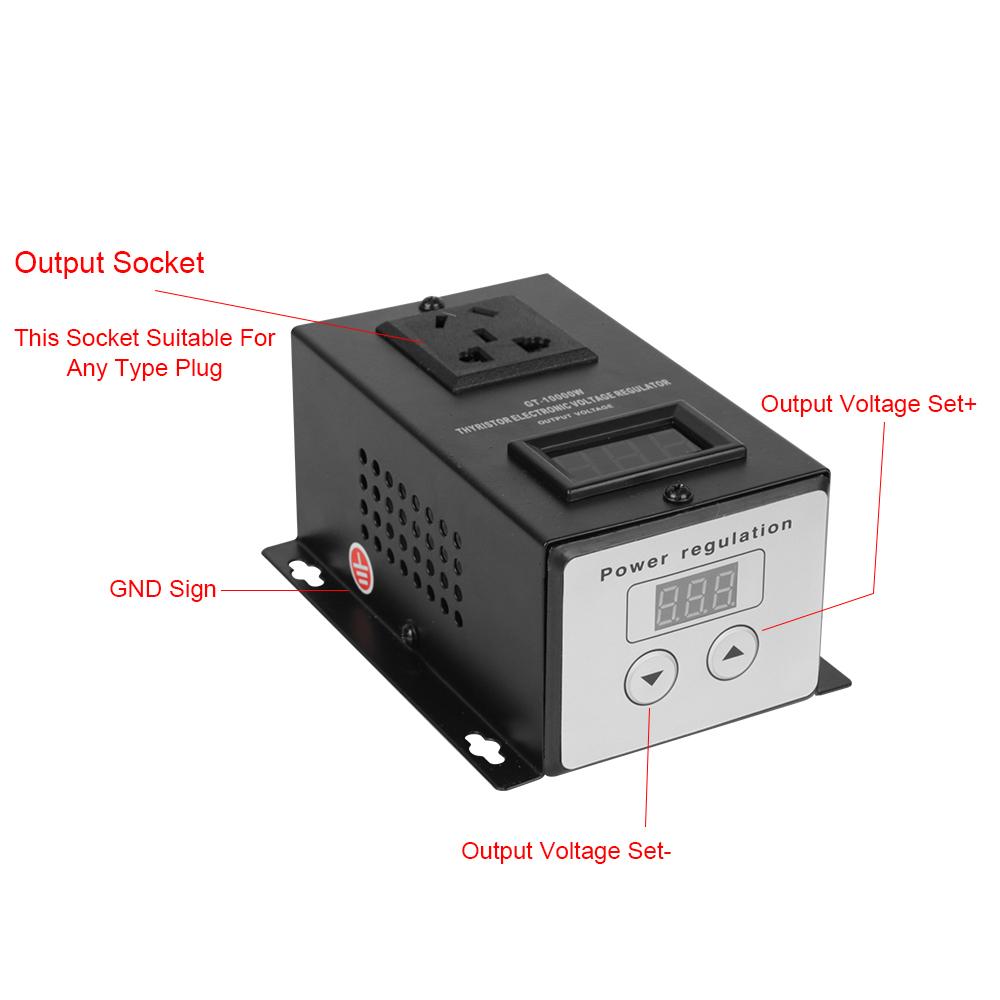

SCR anti-surge, anti-spike, RC absorption multiple protectionThis product is made of metal thickened shell material, high temperature resistance, flame retardant, no rust, internal chipFor high power, thyristor. The product design is compact and lightweight, and the four-sided heat dissipation cavity does not generate heat or deformSafe and durable. Housing with universal multipurpose socket and output voltmeter displayQuiet, energy saving, anti-noise and stable, wide range of use
With US plug and EU/US socket.
main function:
Temperature adjustment: resistance, heating wire, heating tube, electric furnace, etc.Dimming: Dimmable incandescent lamps, dimmable LED lamps, high pressure halogen lamps, tungsten bulbs, etc.Speed regulation: fans, exhaust fans, electric drills, angle grinders, etc.Voltage adjustment: reduce the mains voltage, change the load power.Power-off memory function: automatically save the value, automatically start the last set value after power-on.
Specifications:
Input Voltage: AC220VOutput Voltage: 0-220V (adjustable output voltage is less than input voltage)Maximum Power: 10000W (when inputting 220V)Voltage Regulation Range: 0-220V stepless adjustable (under load conditions) step down to OV, from 0v boostPeak Value: 45A (instantaneous limit power of impedance load, below 5000W is recommended for long-term use)Voltage Regulation: 0-100% (non-linear)Maximum current: 20A (resistive load)/12A (inductive load)
Package Included:
1 x SCR Controller
1 x Manual
Warn:
1. Not suitable for soft/slow start voltage regulators and induction transformers, ordinary LED lights, household use
2. The metal shell of this product must be safely grounded.
3.When the machine is empty, the measured output voltage is a virtual voltage, and a load above 20W must be connected to measure the correct output voltage(Attention must first load and then adjust the voltage).
