SCR High Power Thyristor AC 220V 10000W Dimmer Thermostat Controller Dimming Electronic Voltage Regulator Digital Display Temperature Speed Adjust

Specifications:

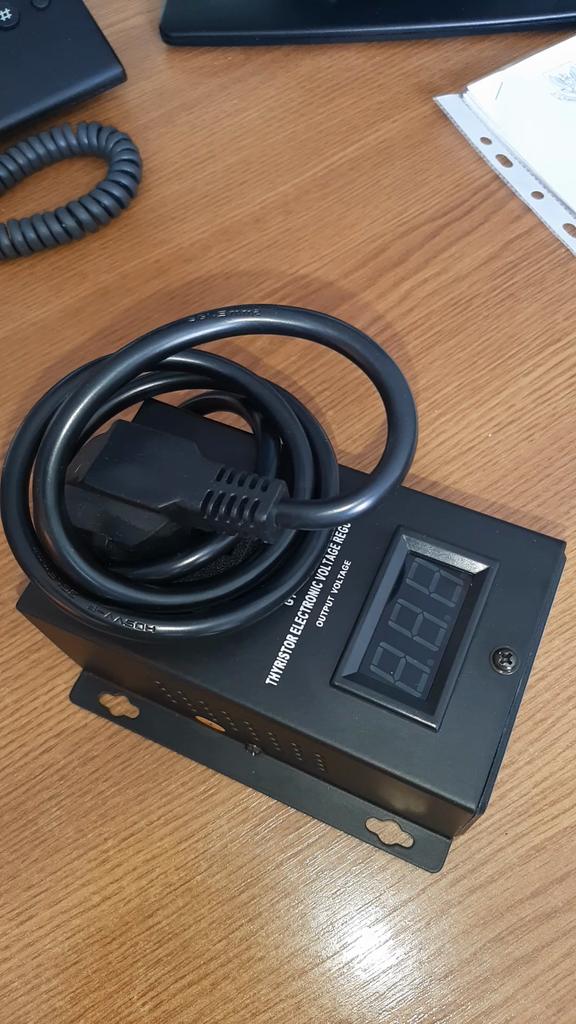

SCR Electronic Regulator

Model: GT-10000W (with power cord)

Material: Metal shell

Size: As picture show

Plug Type: EU Plug

Input voltage: AC220V

Output voltage: 0-220V adjustable (output voltage is less than input voltage)

Maximum power: 10000W (when inputting 220V)

Voltage regulation diagram: 0-220V stepless adjustable (with load conditions) real buck to 0V, boost from 0V

Rated current: 25A

Maximum current: 45A (resistive load limit power, heating for a long time recommended 5000W use

Product features: zero hysteresis, zero delay, with peak voltage absorption circuit to effectively protect high-power thyristor

Anti-surge, anti-spike, RC absorption multiple protection

SCR model: STMicroelectronics, SCR, BTA100-800B

Product advantages: 0-100% 220V divided into 100-speed adjustment, the starting voltage is low, Off power automatically saves the value)

Precautions and instructions for use:

When the load is idling, the output voltage is the same as the input voltage. The output voltage must be measured when the voltage is above 10W.

Input AC power, the output network sample is AC, not DC.

The above mentioned 10000W refers to the power when the group is negative, and the inductive load is 1/3 of the resistive load.

The load refers to the electric lamp, the hairline, etc., and the inductive negative refers to the electric motor, etc., with electronic smart products used with caution.

Metal enclosure electrical appliances, please safety grounding.

Package Includes:

1 x Electronic Voltage Regulator
