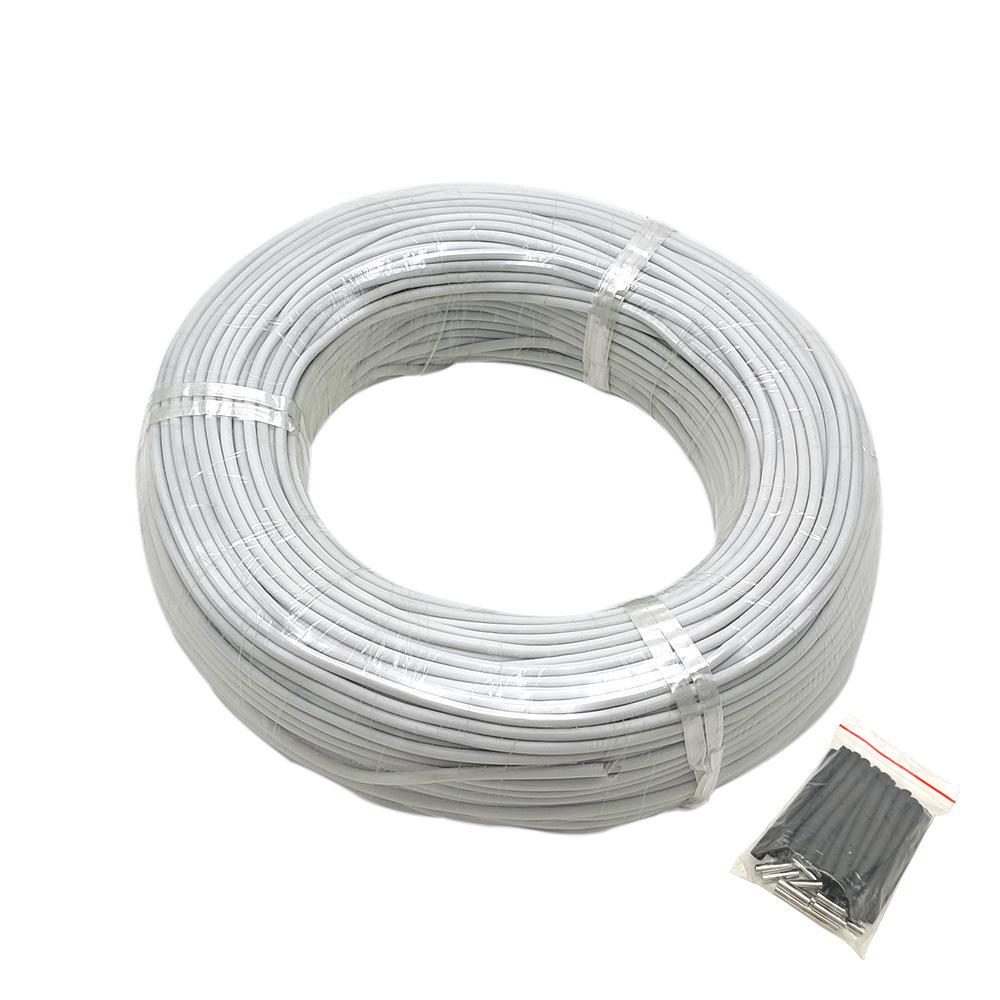

100m Silicone Rubber Spiral Heating Cable 0.3/0.6/1.1/2.2/14/50 Ohm/m Winter Warm Supply Electric Blanket Incubator Electric Warm Wire

Product Details: Product Name: Carbon fiber resistance heating wire

Insulating materials: Silicone rubber

Temperature: 100 degrees celsius limit

Leakage current: 0.05mA/m

The product can withstand the power: 15W/M

Diameter: 2±0.2 MM

Colors: White

Infrared wavelength: 8UM-18UM

Conductor resistance: Power calculation:P=(U*U)/(L*R)

Voltage*Voltage÷resistance=electric power For example, 50Ω using 5m carbon fiber cable on 110V, the power is: 110V*110V÷（5meters*50Ω）=48.4W,9.6W/M

The longer length, the smaller power, and lower heating temperature.

Temperature: 1. The power of the cable is based on the length that you use, you can calculate the power according to above examples. Power = 5W/m, the temperature is about 30~40℃; Power = 10W/m, the temperature is about 40~50℃; Power = 15W/m, the temperature is about 50~60℃;

Please notice that this is for your reference, not exactly right because of different test conditions.

Package includes：100M 0.3/0.6/1.1/2.2/14/50 ohm/m Heating cable We have many different types of resistance type for you to choose.

Applications: The cable is suitable for making electric blankets, cushions, pet mats, jade mattress, electric belts, electric warm clothing, electric shoes, electric massage chairs, refrigerators, air conditioners, freezers defrost, rice cooker insulation, pool bath, heated towel rail, pipeline tank antifreeze, window heating, equipment, and other medical and cosmetic lines for internal use.
