Heating Cable Snow Melting 220V No Need Controller Waterproof Self Regulating Heating Tape,Prevent Pipe Freeze Heat Trace System

The self-regulating heating cable is widely used in fire protection,petroleum, chemical industry, iron and steel, electric power and so on to keep pipes,tanks warm and prevent frostbite, roof and gutter snow melting.

The cable is designed for house water pipe and solar upper water pipe freeze protection requirement in winter, to maintain the water in pipes above 0 centigrade, and do not need a controller.

The cable is very easy to install, suit for metal and plastic water pipes.

We use the pure copper as the conductor, and the PE jacket, it's durable, UV resist, better than PVC jacket.

Product name: water pipe heating cable/self regulating heat trace cable Voltage: 200V~240V

Power: 17W/m (5W/ft) at 10℃

Max working temperature: 60℃

Min installation temperature: -40℃

Start-up current: less than 0.6 A/m

Min. bend radius: at 20℃:25.4mm at -30℃:35.0mm

Structure:

1. Pure copper conductor

2. PTC heating element

3. PE insulation

Max circuit length: 20 meters

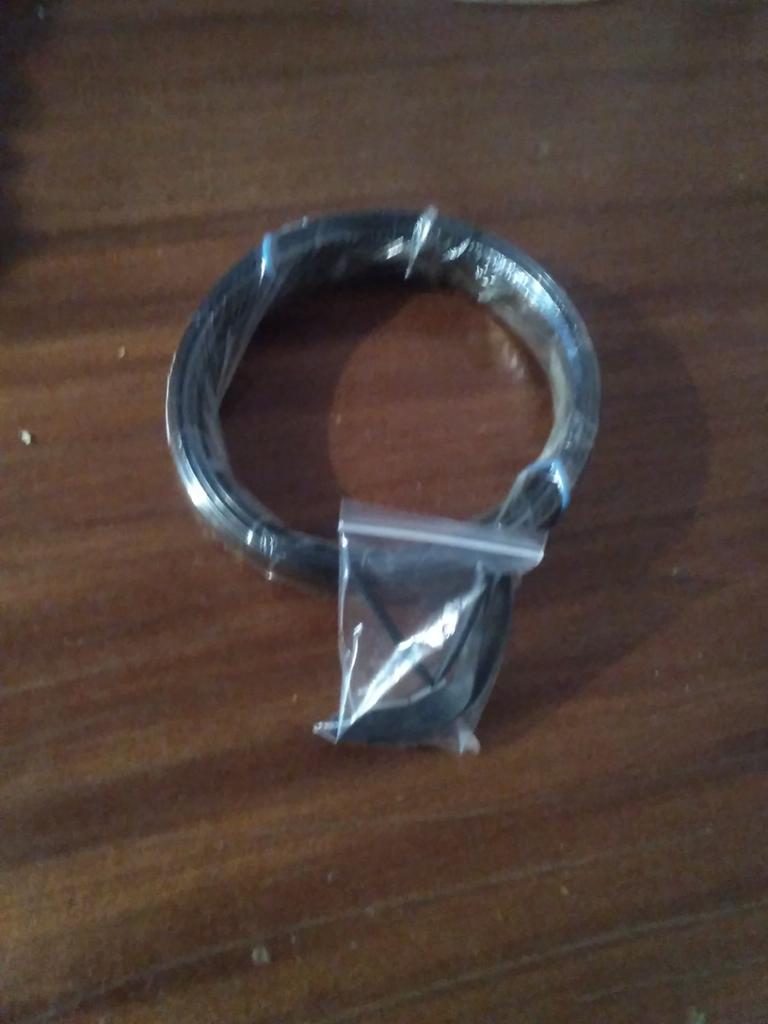

1 x heating cable(Length optional）

Now buy heating cable of more than 10 meters, we will give a set of connecting sleeves as gift!!!

2 pcs Heat Shrinkable Sleeves and 2 pcs Copper Tubes for each 10meters

There is a uniform core strip of PTC material between the two parallel metal busbars. When the two busbars at one end of the cable are connected to the power source, current flows laterally from one busbar through the PTC material layer to the other busbar. The PTC layer is a resistance heating body that is continuously connected in parallel between the busbars to convert electrical energy into heat. The core strip resistance increases with temperature, reaching about 65 degrees, the resistance is so large that it almost blocks the current, and the core strip temperature reaches the high limit and no longer rises but automatically limits the temperature. The self-limiting temperature heating belt has uniform temperature, does not overheat, saves electric energy,and has a rapid heatingtemperature. It can be arbitrarily cut and used within the longest use length of the electric heating belt, and can be overlapped and crossed.
