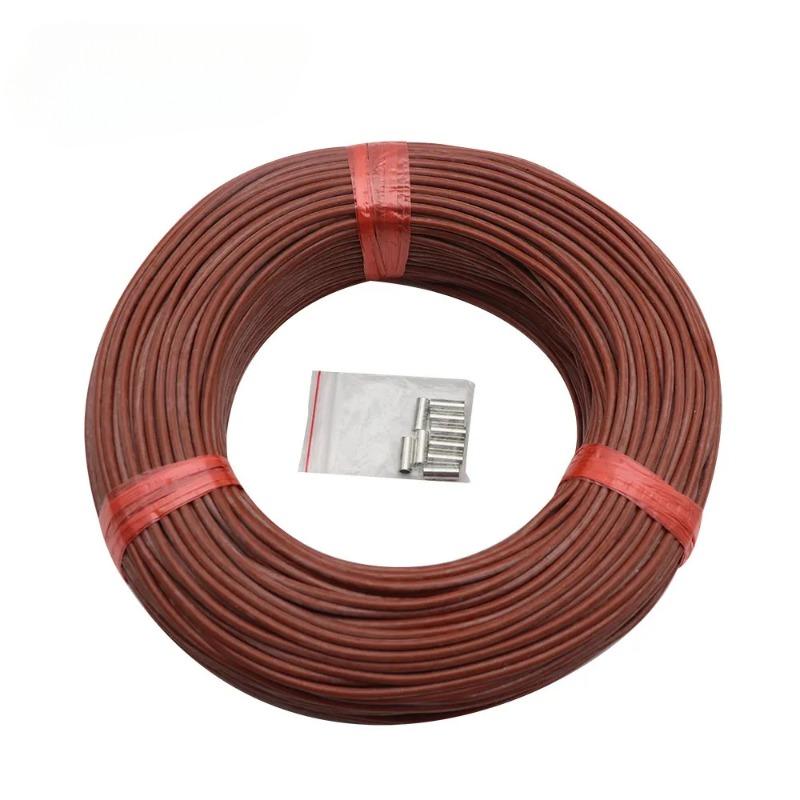

Infrared Warm Floor Cable 12K 33ohm/m Electric Carbon Heating Wire Coil 2.0mm Fiber Wire Floor Hotline Thickening Electric Blanket Soft Silicone Pad

Voltage : 220V Power : 150w/m2 Length: 5-100mm (mm) Floor Heating Part Type : Floor Heating Cables Type : Floor Heating Parts Material : silicon rubber Origin : Mainland China Voltage : 220V,7~300 V Floor Heating Part Type : Floor Heating Cables Material : Anti-flammable PC Resistance : 33 Ohm/m Outer jacket : Silicone rubber Technical Datas:

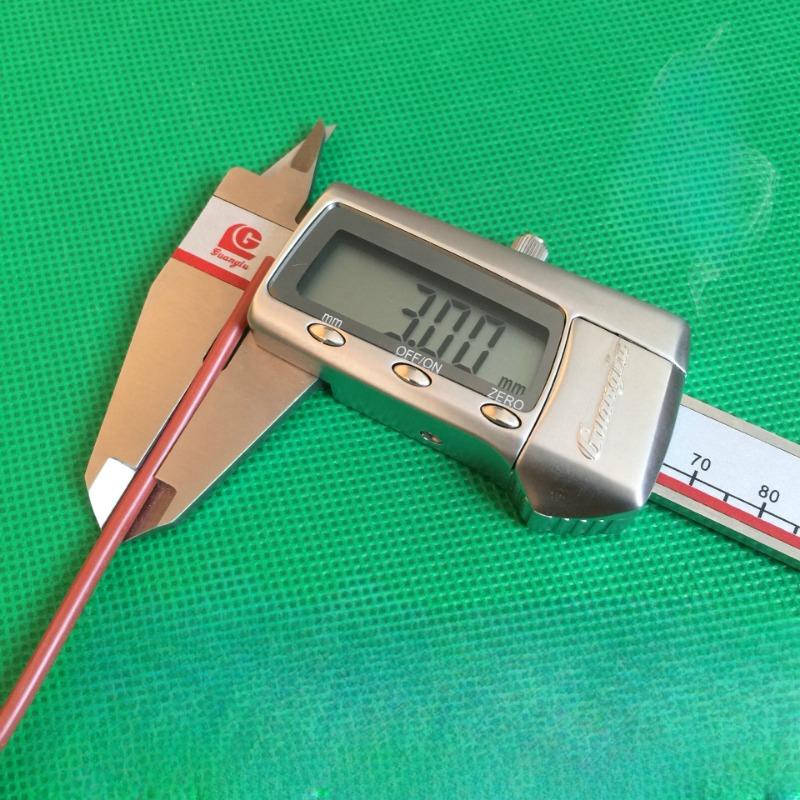

Conductor resistance: 33±10% Ω/m Infrared wavelength: 8UM-18UM Colors: Red Diameter: 3±0.1 MM ( Thicker and Safer) The product can withstand max power: 25W/M Leakage current: 0.05mA/m Heating conductor: 12K Heating temperature: based on the using length Max enduring temperature: 200C degrees Insulating material: Silicone rubber Product Name: Carbon fiber heating wire What is the power of the cable? And what is heating temperature? 1. The power of the cable is based on the length that you use, you can calculate the power according to above examples. Power = 5W/m, the temperature is about 30~40C degrees; Power = 10W/m, the temperature is about 40~50C degrees; Power = 15W/m, the temperature is about 50~60C degrees; Power = 20W/m, the temperature is about 60~70C degrees; Power = 25W/m, the temperatuee is about 70~90C degrees. Please notice that this is for your reference, not exactly right because of different test conditions. How to calculate power? 220V*220V÷(15meters*33Ω)=100W 100w/15m=6.66w/m - For example, using15m 12K carbon fiber cable on 220V, the power is: 220V*220V÷(10meters*33Ω)=150W 150w/10m=15w/m - For example, using 10m 12K carbon fiber cable on 220V, the power is: 12K=33ohm/meter Voltage*Voltage÷resistance=electric power Package Includes: Buy 10m = 10m cable + 2 pcs copper tube + 2 pcs sleeves Buy 15m = 15m cable + 4 pcs copper tube + 4 pcs sleeves Buy 20m = 20m cable + 4 pcs copper tube + 4 pcs sleeves Buy 30m = 30m cable + 6 pcs copper tube + 6 pcs sleeves Buy 40m = 40m cable + 8 pcs copper tube + 8 pcs sleeves Buy 50m = 50m cable + 10 pcs copper tube + 10 pcs sleeves Buy 60m = 60m cable + 12 pcs copper tube + 12 pcs sleeves Buy 70m = 70m cable + 14 pcs copper tube + 14 pcs sleeves Buy 80m = 80m cable + 16 pcs copper tube + 16 pcs sleeves Buy 90m = 90m cable + 18 pcs copper tube + 18 pcs sleeves Buy 100m = 100m cable + 20 pcs copper tube + 20 pcs sleeves
